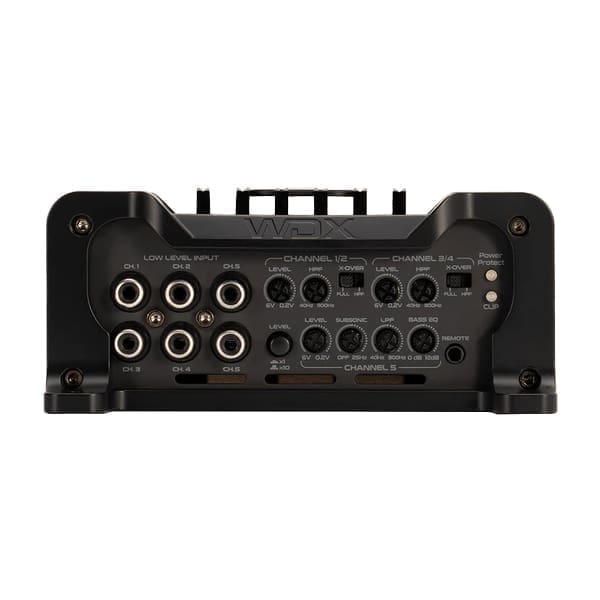

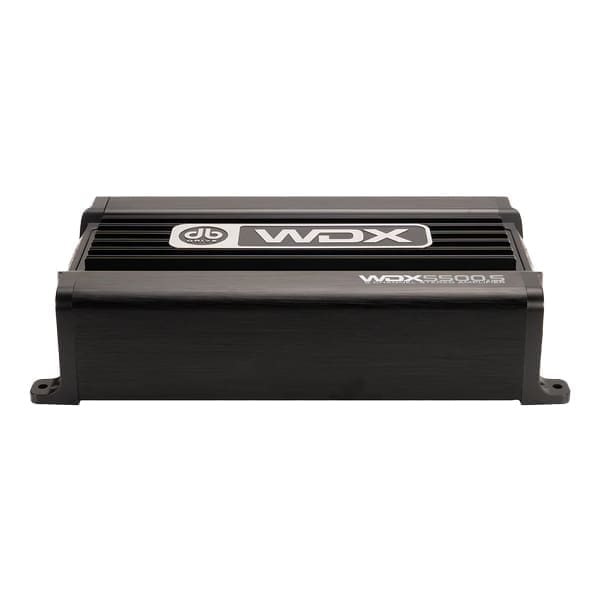

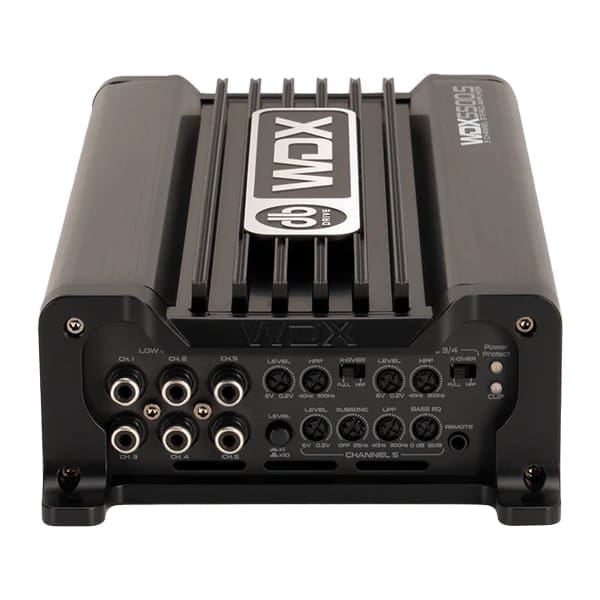

DB Drive WDX5500.5 5-Channel Class D Amplifier
-
DB Drive WDX5500.5 5-Channel Class D Amplifier
Features:
• Class “D” Circuitry
• Direct Connect Speaker Terminals
• 4 Gauge Power Wire Input
• CHM- Collective Heat Management
• ACT – Adaptive Crossover Technology
• SESI – Signal Evaluation Status Indicator
• APC – Audio Protection Circuit
• Included Remote Level Control
Specs
| Rated Power @14.4 Volts | 4 x 200 Watts @ 4Ω + 500 Watts @ 2Ω |
| 4 x 400 Watts @ 2Ω + 500 Watts @ 2Ω | |
| Frequency Response | 20Hz ~ 22KHz |
| S/N Ratio | < 105 dB |
| Low Level Input | 6V – 0.2V |
| Independent Selectable X-Over F/R | HPF / LPF / FULL |
| Variable High Pass Filter (@ 12dB Slope) | 40Hz ~ 300Kz |
| Variable Low Pass Filter (@ 12dB Slope) | 40Hz ~ 300Khz |
| Variable Subsonic Filter (@ 12dB Slope) | 0Hz ~ 25KHz |
| Bass Equalizer | 0dB – 12dB |
| Working Voltage | 12 – 15 Volts |
