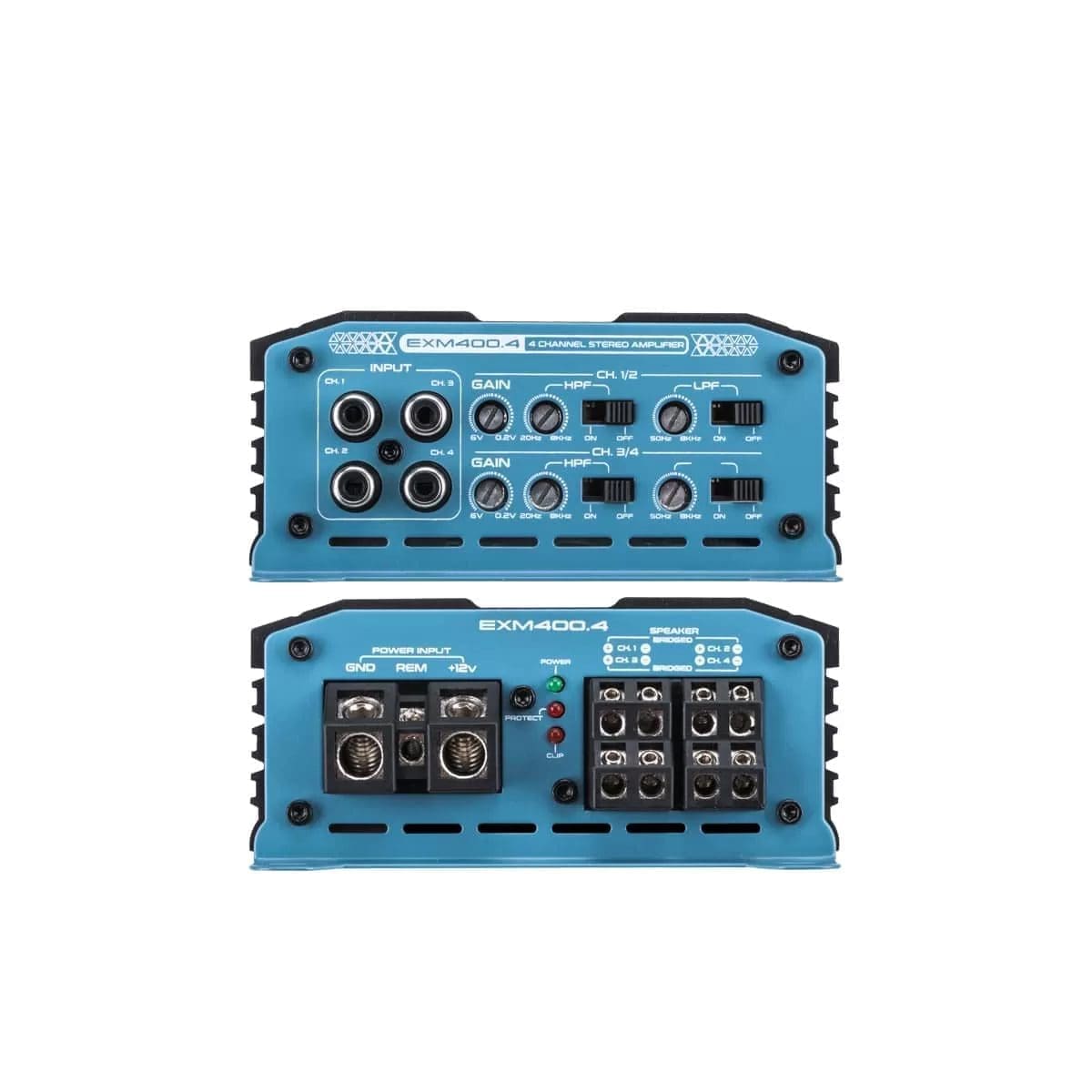

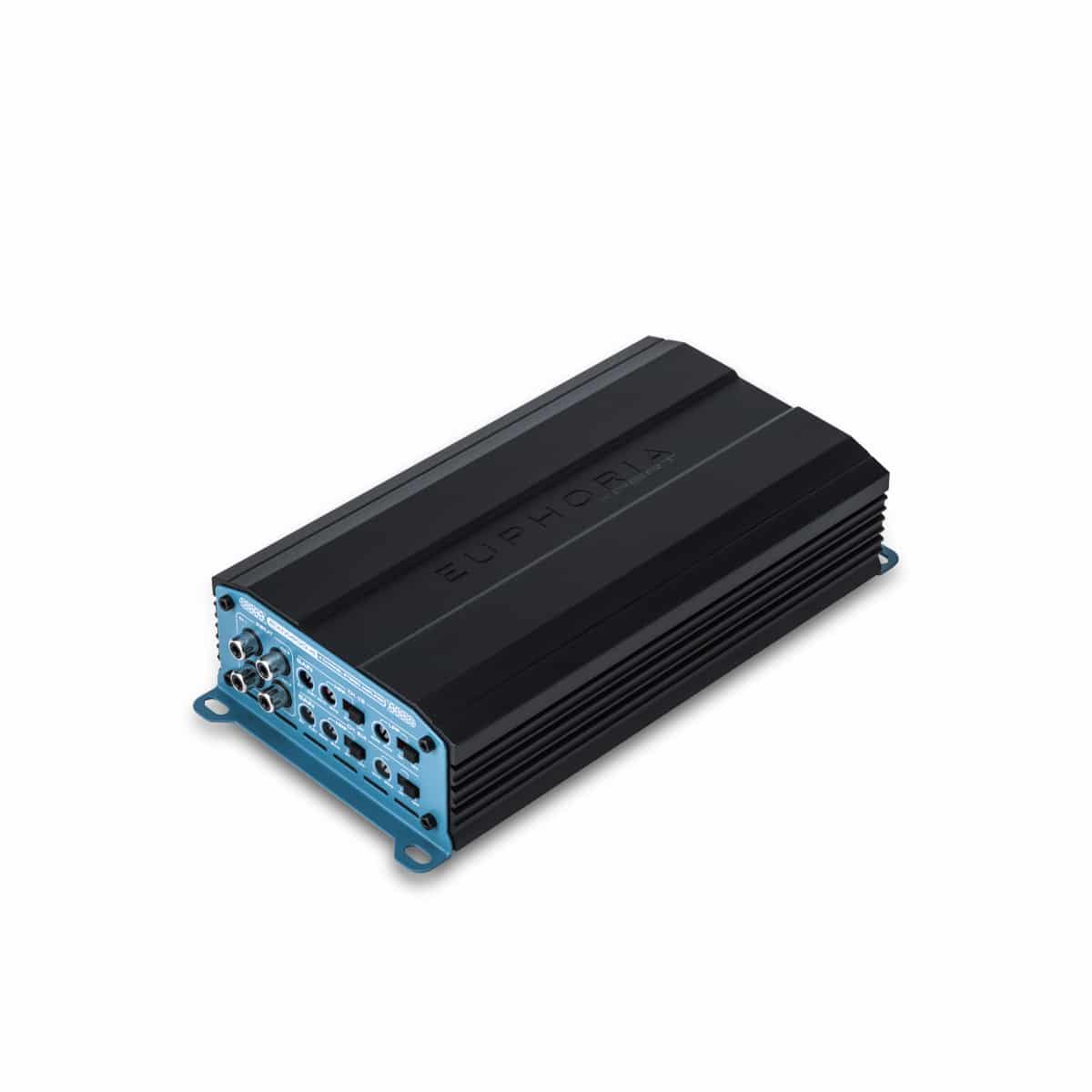

Euphoria Xpert 400.4 Amplifier

Login To View Price

-

Euphoria Xpert 400.4 Amplifier

Brand:
EXM400.4.
UPC: 00811536036216

Features:

• 4 Channel full range class D circuitry

• SESI – Signal Evaluation Status Indicator

• ACT- Adaptive Crossover Technology

• High-efficiency Full Range Class D Technology

• Direct Connect Speaker Terminals

• Large Gauge Power Wire Inputs

• APC – Audio Protection Circuit

Specs

GENERAL SPECIFICATIONS
Rated Power @ 14.4 Volts 4 x 200 Watts @ 4Ω
Dynamic Power Handling 4 x 400 Watts @ 2Ω
2 x 800 Watts @ 4Ω Bridged
PARAMETERS
Frequency Response 10-24KHz
S/N Ratio <85dB
Working Voltage 10-16 Volts
Damping Factor 100dB
Low Level Input 6V – 0.2V
Ch 1/2 High Pass Filter Variable 20Hz – 8KHz
Ch 1/2 Low Pass Filter Variable 50Hz – 8KHz
Ch 3/4 High Pass Filter Variable 20Hz – 8KHz
Ch 3/4 Low Pass Filter Variable 50Hz – 8KHz
Minimum working Impedance 2 Ohm Stereo
Length 8.26″ (250mm)
Width 4.68″ (119mm)
Height 2.04″ (52mm)

Resources

Manual
