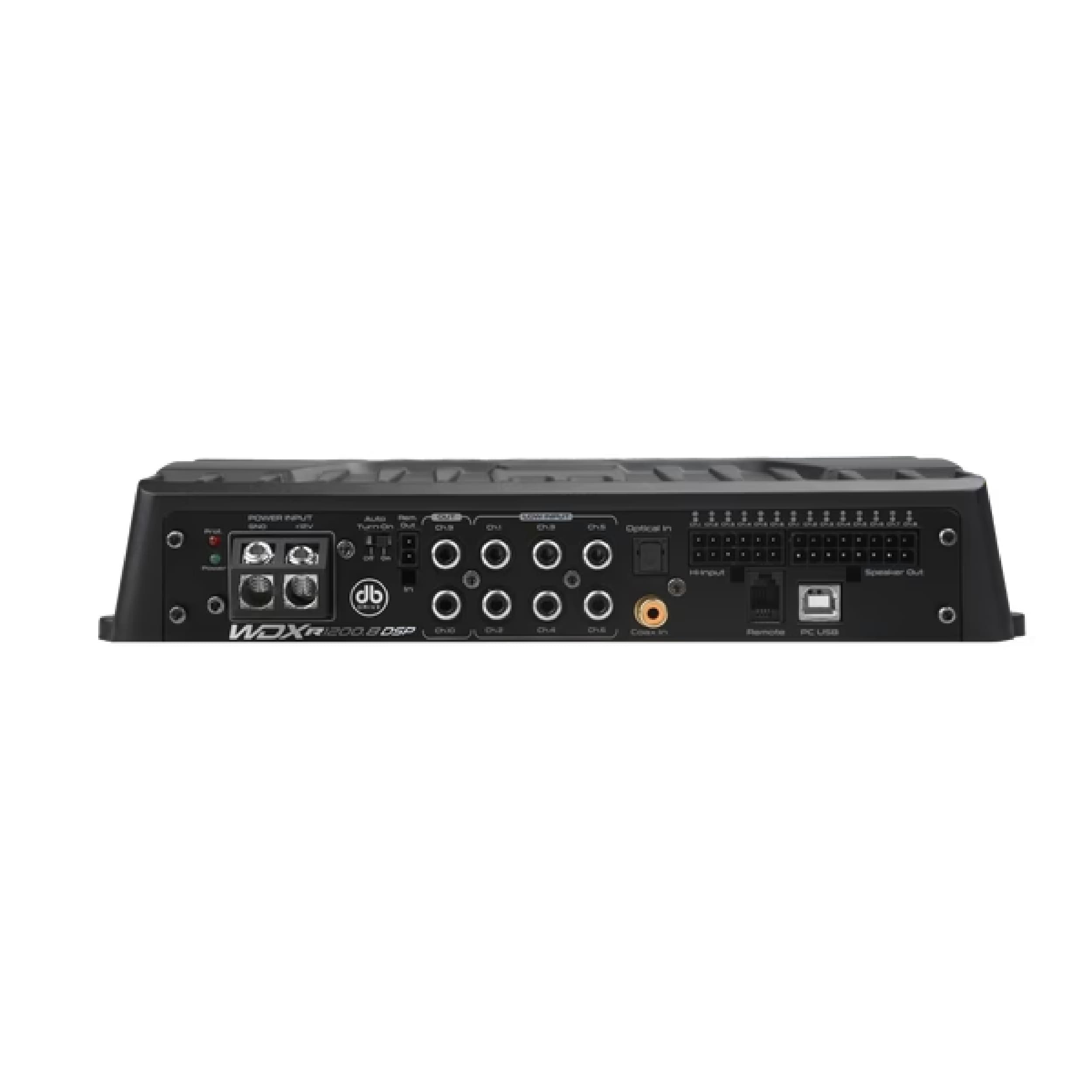

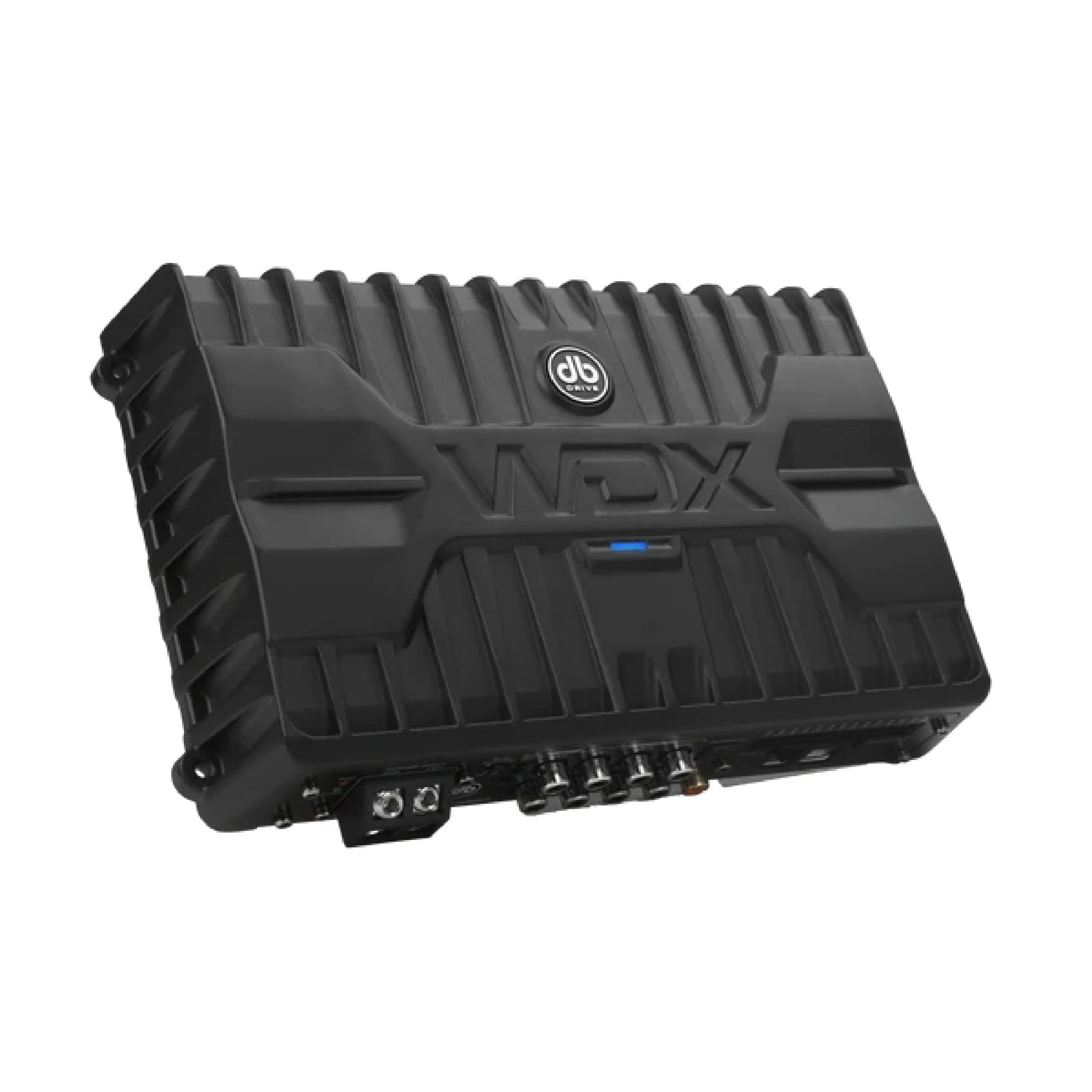

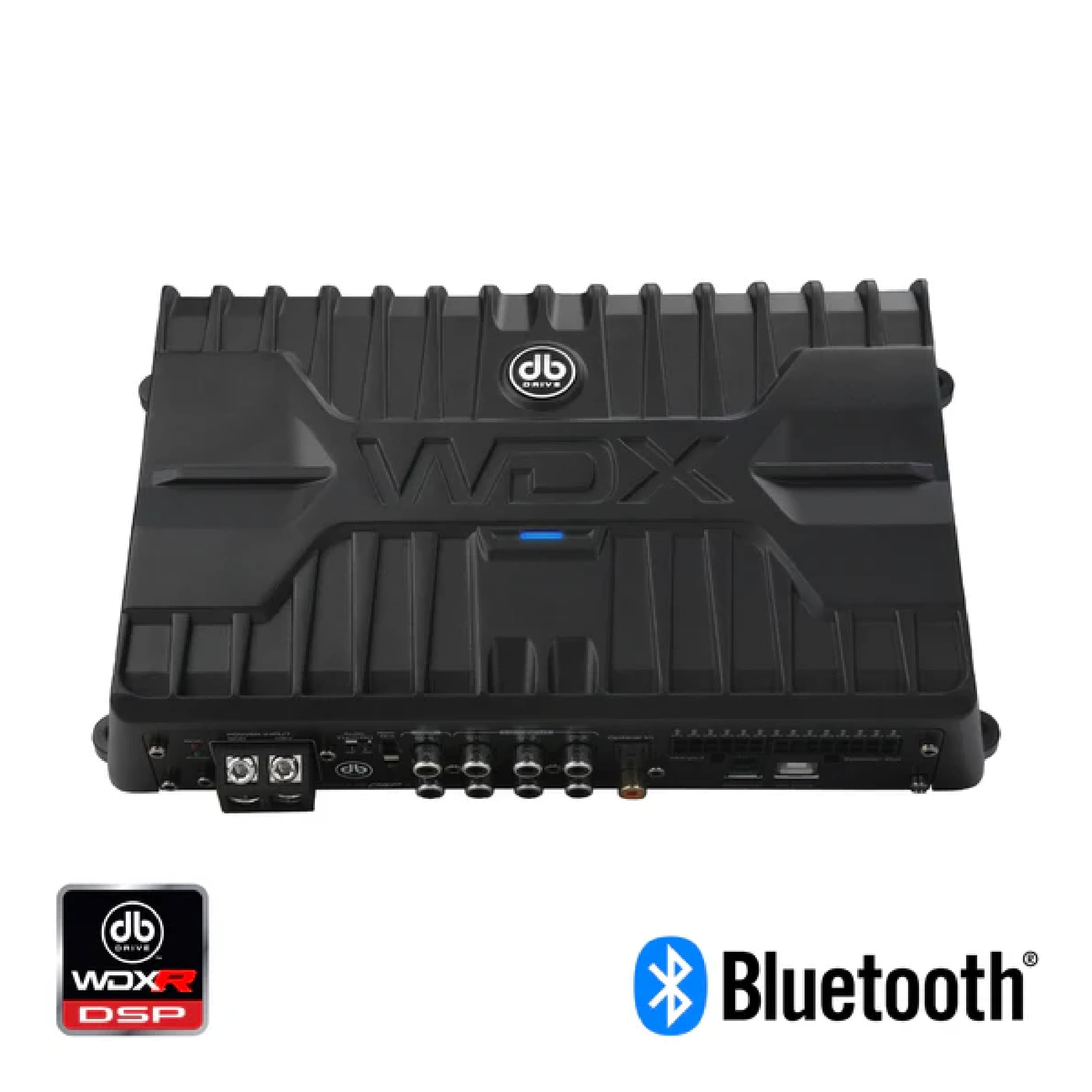

WDX-R1200.8-DSP WDX Reference Class-D 8 Channel Amplifier w/ DSP
-
WDX-R1200.8-DSP WDX Reference Class-D 8 Channel Amplifier w/ DSP
In Stock - Ships in 24-48 hours
Features:
• Class D Technology
• Bluetooth Receiver
• Built in 10 channel DSP
• 2-Ch Assignable Pre-amp outputs
• Easy connect speaker harness
• Speaker-level inputs (6 channels) for OEM integration
• Large Gauge Power Wire Inputs
• PWM Mosfet Regulated Power Supply
• APC – Audio Protection Circuit
• SESI – Signal Evaluation Status indicator
• CHM – Collective Heat Management
Specs
| Rated Power: 4 x 65 Watts @ 4Ω -Ch 1-2, Ch 3-4 |
| Rated Power: 4 x 125 Watts @ 2Ω -Ch 1-2, Ch 3-4 |
| Rated Power: 2 x 225 Watts @ 4Ω -Ch 1-2, Ch 3-4 (bridged) |
| Rated Power: 4 x 165 Watts @ 4Ω -Ch 5-6, Ch 7-8 |
| Rated Power: 4 x 225 Watts @ 2Ω -Ch 5-6, Ch 7-8 |
| Rated Power: 2 x 625 Watts @ 4Ω -Ch 5-6, Ch 7-8 (bridged) |
| Input Sensitivity: .650Mv – 8.5V |
| Signal to Noise Ratio :>90dB |
| DIMENSIONS: |
| L – 10.26″/ 260.7 mm |
| W – 6.12″/ 155.5 mm |
| H – 1.97″/ 50 mm |
Manual

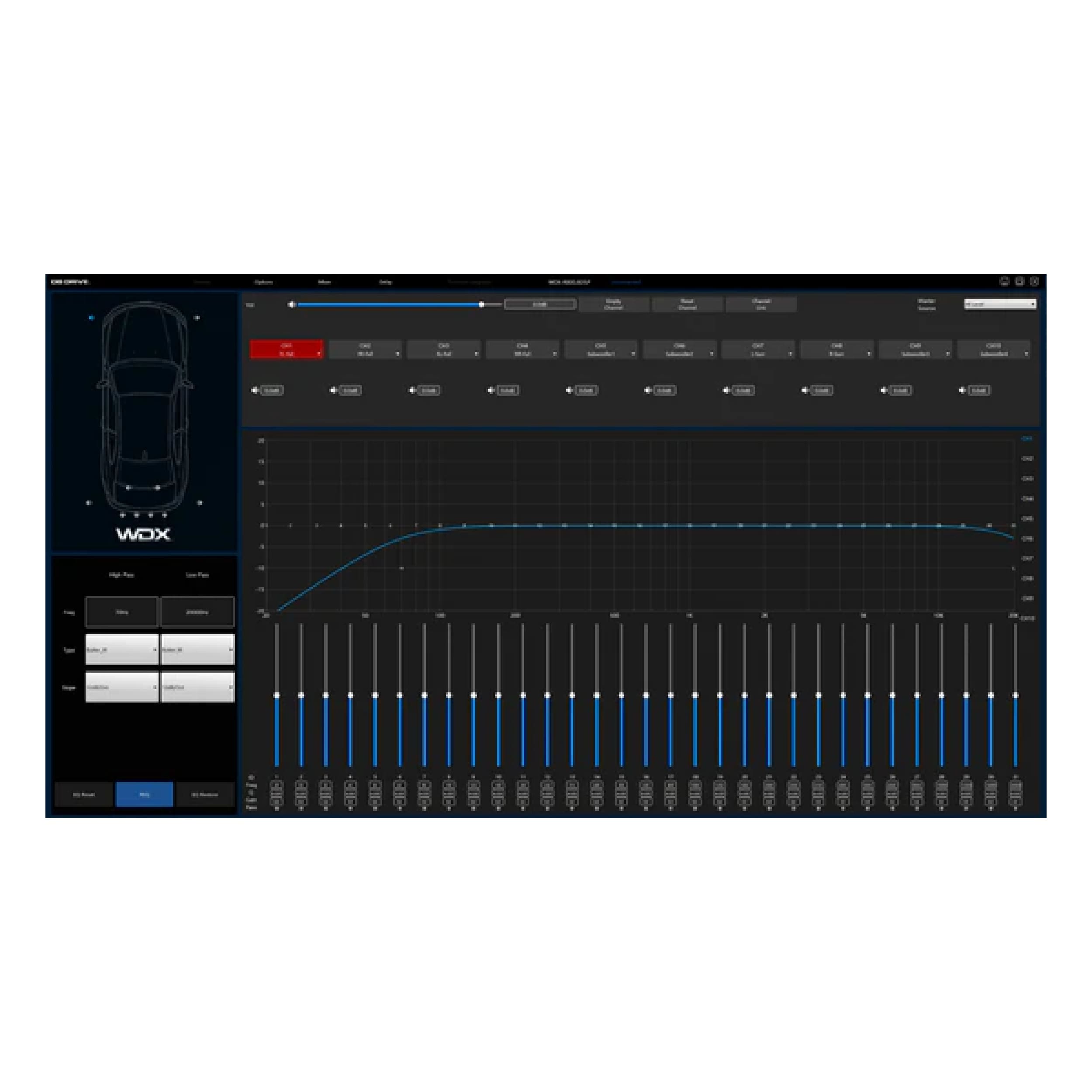

PC Software
iOS Software
Android Software
$749.99
