Features:

• DSP settings and adjustments made via PC or optional Smart phone app

• 6 assignable inputs

• Selectable Audio Input: Front, rear and Subwoofer Low-Level- Front and rear Hi-Level

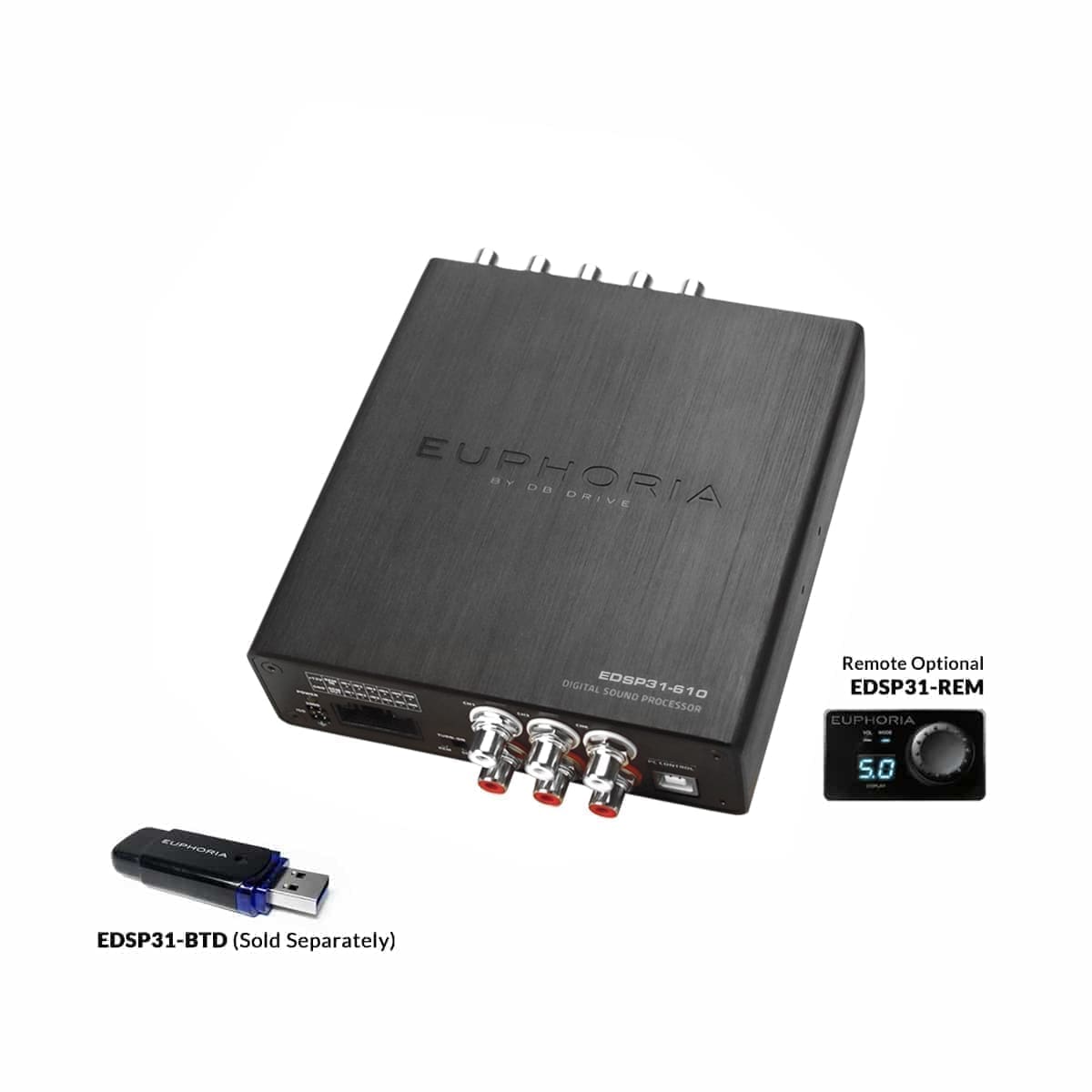

• Optional Wireless Audio Streaming dongle ( sold Seperatly )

• 10 Independently assignable low-level outputs

• Summable Input Channel

• Selectable crossover slopes: ( 6, 12, 18, 24, 30, 36, 42, 48 dB/octave )

• 31 band graphic EQ with fine tuning • Adjustable high, band-pass, or low-pass filters (20KHz-20Hz)

• Adjustable Time alignment per output channel

• Adjustable Q-Factor per frequency

• Phase adjustment: switchable 0/180 degrees on all output channels

• Audio Sensing Auto remote output

• Includes USB cable and software download QR code

• Optional Dash remote with subwoofer control (sold separately)

• Compatible Microsoft Windows® XP SP3 / Vista / 7 / 8 / 8.1 / 10

• 5.66” x 5.27” x 1.57” – L x W x H

Resources

PC Software Download

Manual
