Product Highlights:

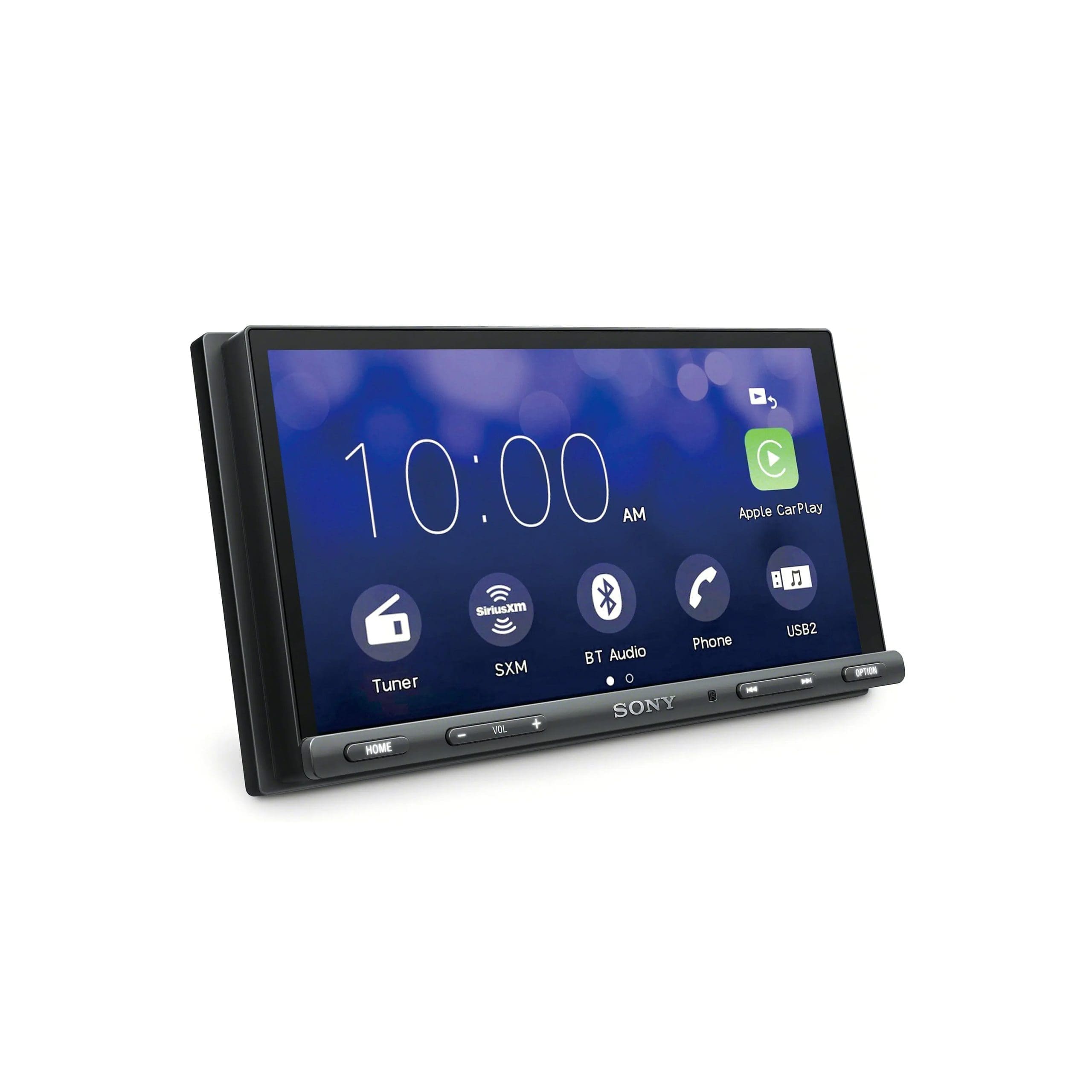

– Digital multimedia receiver with AM/FM tuner.

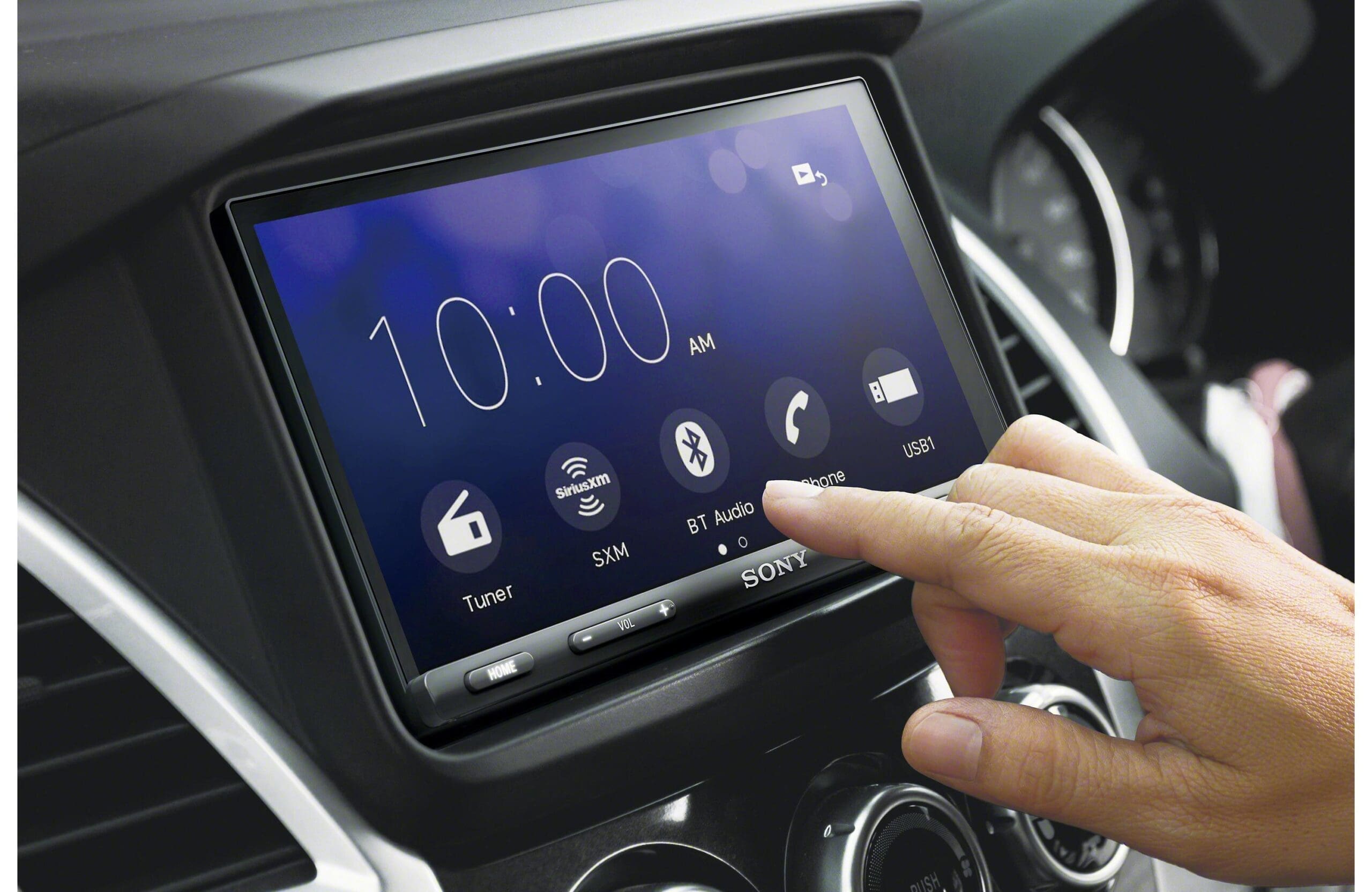

– 6.95″ capacitive touchscreen display on bezel-less panel.

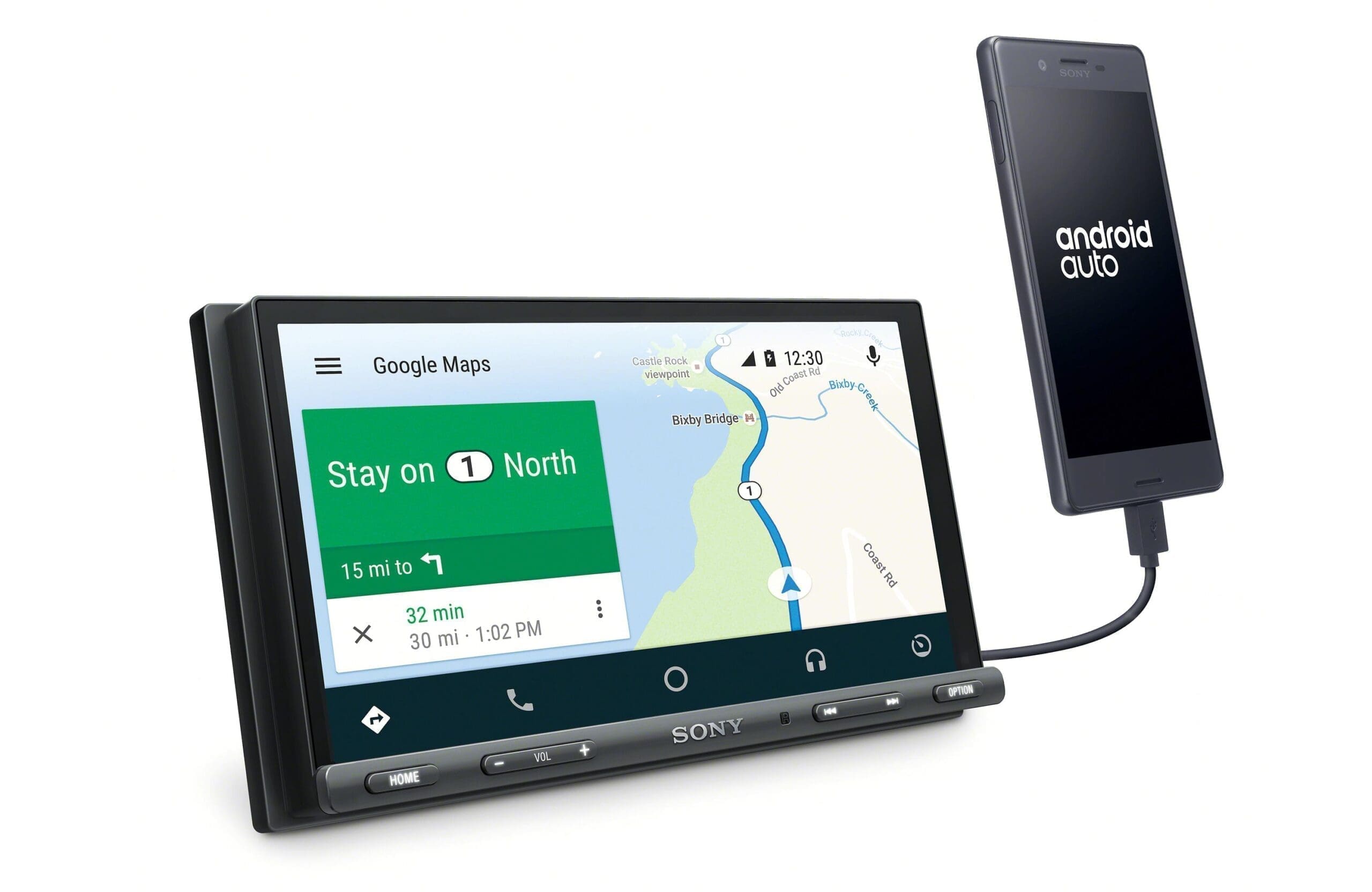

– Works with Apple CarPlay and Android Auto.

– Plays FLAC files on USB drives.

– Bluetooth hands-free calling and audio streaming.

Smartphone Features:

– Pandora and Spotify control with iPhone and Android.

Audio/Video Features:

– Plays media from USB memory devices.

– 10-band equalizer with digital time alignment.

– Dynamic Stage Organizer (DSO) compensates for low speaker positions.

– Subwoofer controls.

Expandability:

– Compatible with SiriusXM satellite radio tuner.

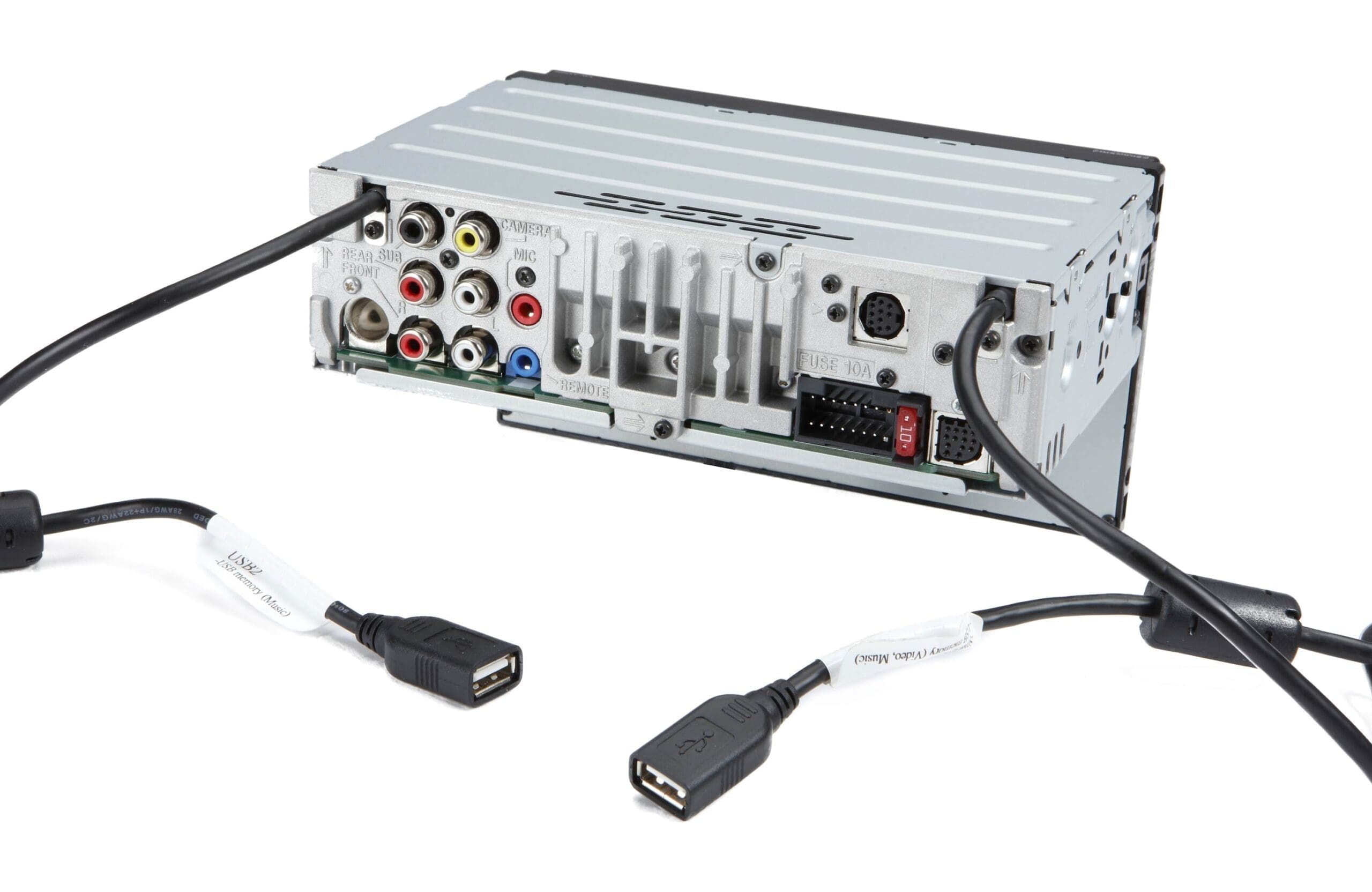

– Inputs: dual rear USB inputs, rear-view camera input.

– Outputs: 5-channel preamp outputs (2-volt front, rear, subwoofer).

Other Info:

– Wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display).

– Built-in internal amp (20 watts RMS/55 peak x 4 channels).

– CTA-2006 compliant.

– Fits double-DIN dash openings.

– Compatible with most factory steering wheel audio controls (adapter required).

– Warranty: 1 year.

What's Included

– Digital media receiver w/ 6.95″ touchscreen monitor (10A fuse).

– Wiring harness (6.5′ parking brake wire).

– Remote control (RM-X170).

– CR2025 3V battery (installed in remote).

– Microphone w/ bracket (attached 12′ cable terminated by a right-angle mono-3.5mm connector).

– Two-sided tape.

– Four M5x6mm ISO-screws.

– Operating Instructions.

– Warranty Sheet.

Specs

Audio Codec (Bluetooth Audio)
SBC / AAC

Audio Level Adjustment
Yes (-8 dB to +18 dB)

Cue / Rev
Yes

Group (Folder) +/-
Yes

Meta Data Indication
Yes

Pause (Bluetooth Audio)
Yes

Repeat Control (Audio Device side)
Yes

Shuffle Control (Audio Device side)
Yes

Track +/-
Yes

Alphabetical Phone book Sorting
Yes

Auto Answer
No

Call Volume Level Control
Yes

External Microphone
Supplied

Last Dialed Call
YES (select from the dialed call history)

Phone Battery Level Reminder
Yes

Phonebook (Built in)
No

Phonebook Access via PBAP
Yes

Recent Calls (# of)
Yes

Ring Volume Level Control
Yes

Signal Strength Indication
Yes

Speed Dial
Yes (6 memories)

Voice Dial Activation
No

Bluetooth Profile A2DP
Yes (1.3)

AVRCP
Yes (1.3)

HFP 1.5
Yes (1.6)

OPP
No

PBAP
Yes (1.1)

SPP
No

CD / DVD Audio Codec
No

CD / DVD Audio Playable Extension
No

CD / DVD Video Codec
No

CD / DVD Video Playable Extension
No

CD-R Playback
No

CD-RW Playback
No

DVD+R / +RW Playback
No

DVD-R / -RW Playback
No

DVD-VR Playback (Main Unit)
No

DVD-Video Playback (Main Unit)
No

Dolby Digital Playback (Main Unit)
No

MP3: ID3 Tag Indication (Version, Title /Artist/Album)
No

Repeat / Shuffle (Main Unit)
No

VCD Playback (Main Unit)
No

Bluetooth
Yes

Dimmer Adjust
Yes

Key Illumination
Yes (White)

Visualizer
No

Aux-In
No

DSO (Dynamic Stage Organizer)
Yes

EXTRA BASS
Yes (Off/1/2)

Equalizer
10-band Graphic Equalizer

Firmware upgradability
Yes

Navigation
No, Yes, via Apple CarPlay or Android Auto

Output Power
55 W

Pre Out
3 Pre 2V

Rear View Camera in
Yes

Sub Out
Yes

Time Alignment
No

USB
Yes (Rear x2)

Video out
No

Zone x Zone
No

Apple CarPlay
Yes

Android Auto
Yes

Weblink
No

Monitor (AVC) Brightness
500 cd/m2

Contrast Ratio
400

Dimmer
Yes

LCD Type
TFT Active Matrix, TFT Active Matrix/Capacitive Touch

Resolution (DOT)
800 x 480

Screen Aspect
17: 9

Screen Diagonal (inch / mm)
6.95 inch

Screen Size (W x H mm)
6.17 * 3.21 (inches)

Multi-Language ID3 Tag
English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic

Menu
English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic

Key Illumination
Yes (White)

Panel Detachability
No

Panel Surface Finish Color
Black

Size & Weight
Dimensions (W x H x D)
7.01 x 3.94 x 5.47 inches

Weight
2.65 lb

Auto Memory
BTM

Preset
FM18 / AM12

RDS / EON
Yes (RBDS)

User Interface Aspect Ratio Select
Yes

Gesture Command
Yes

Parking Control
Yes

Rear View Camera-In Marker Setting
Yes

Remote Commander
RM-X170

Touch Panel
Yes/Capacitive
