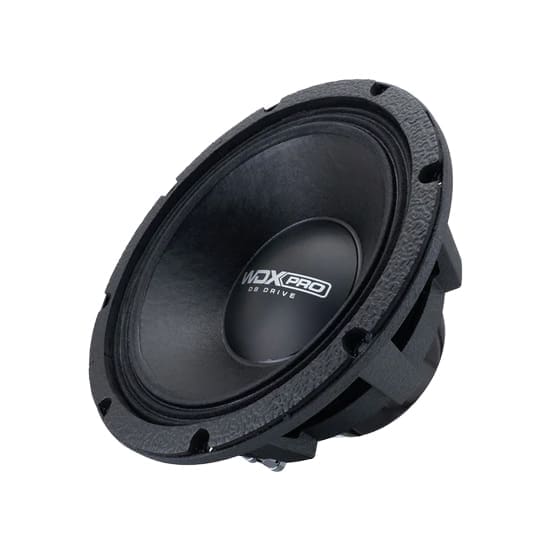

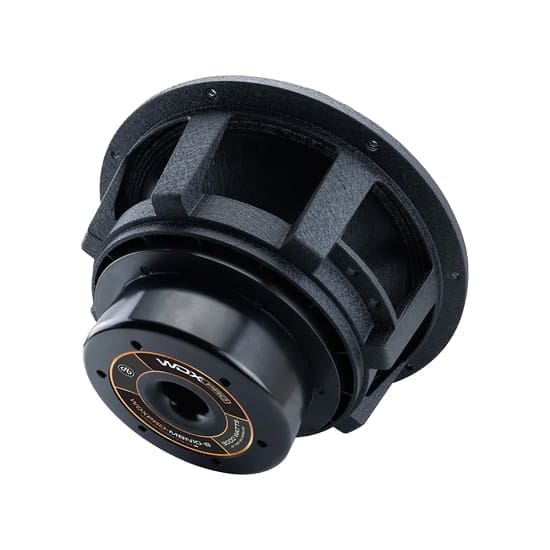

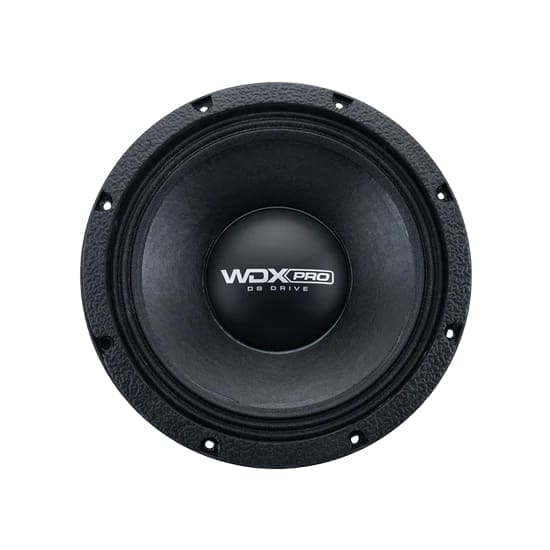

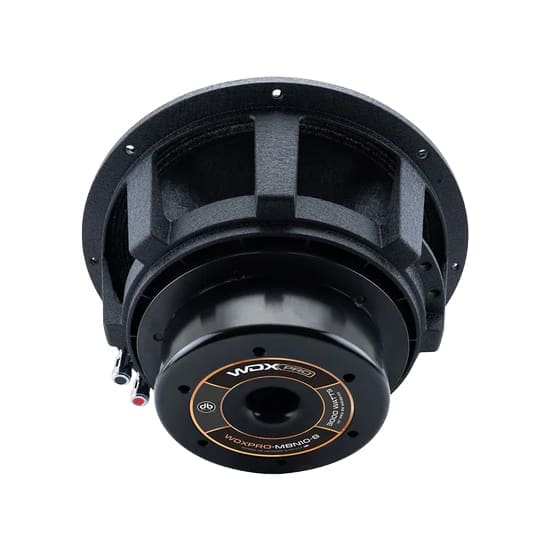

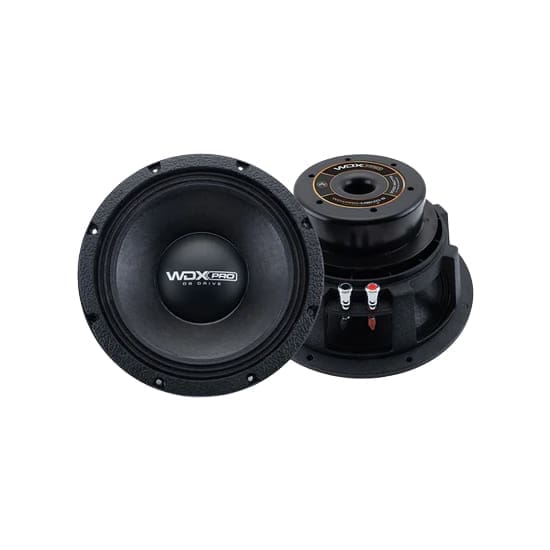

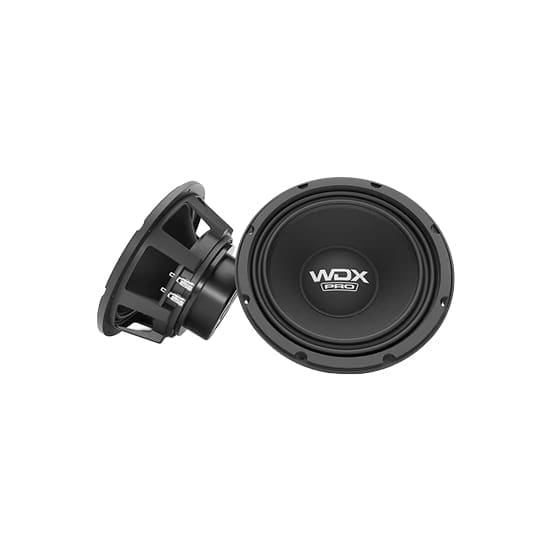

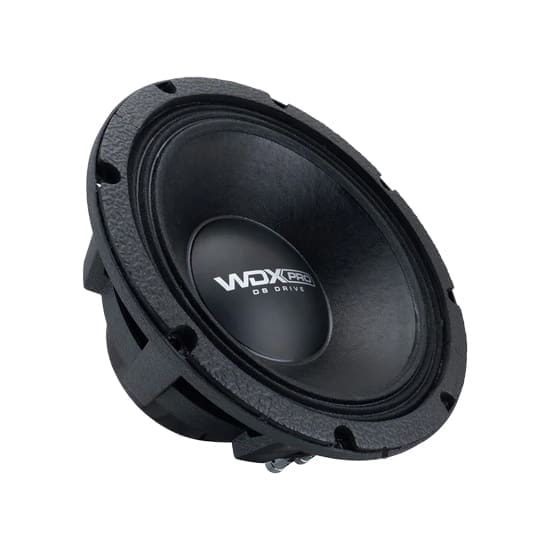

The WDXPRO-MBN10-8 is a 10-inch midbass speaker engineered for extreme high-output car audio systems. It features a 3.0″ high-temperature voice coil with a shorting ring, paired with a Neodymium magnet for high efficiency and enhanced power handling . The treated paper cone with a cloth surround is designed to optimize midbass frequency response, delivering exceptional output performance. With a dynamic power handling of 2000 watts and a nominal power rating of 1000 watts, this speaker is built for unmatched performance and durability.

Features:

• 3.0″ High-Temperature Voice Coil with Shorting Ring
• Neodymium magnet for higher efficiency
• Treated Paper Cone with Cloth Surround
• Extreme Output Capability
• Die-Cast Aluminum Basket
• EVA Mounting gasket

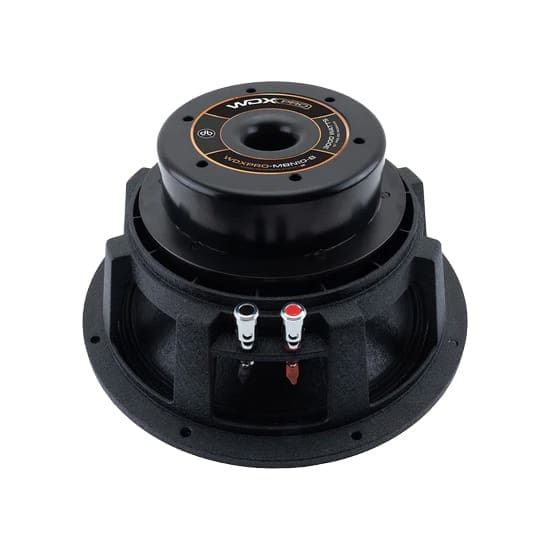

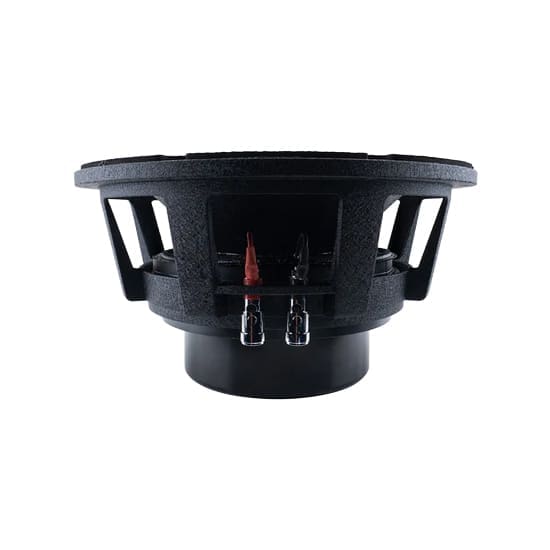

• Compression Speaker terminals

Specs

Dynamic Power Handling: 2000 Watts

Nominal Power Handling: 1000 Watts

Impedance: 8Ω Voice Coil

Resonant Frequency (fs): 78.5 Hz

D.C. Voice Coil Resistance (Re): 8Ω

Mechanical Quality Factor (Qms): 2.89

Electrical Quality Factor (Qes): 0.47

Total Quality Factor (Qts): 0.41

Equivalent Air Volume to Cms (Vas): 13.0 L

Mass of Diaphragm/Coil (Mms): 50.2 g

Force Factor (BL): 16.5

Sound Pressure Level (SPL): 93.1dB

Outside Diameter: 10.46″/ 265.60 mm

Cutout Diameter: 9.23″/ 234.41 mm

Mounting Depth: 5″/ 127 mm
