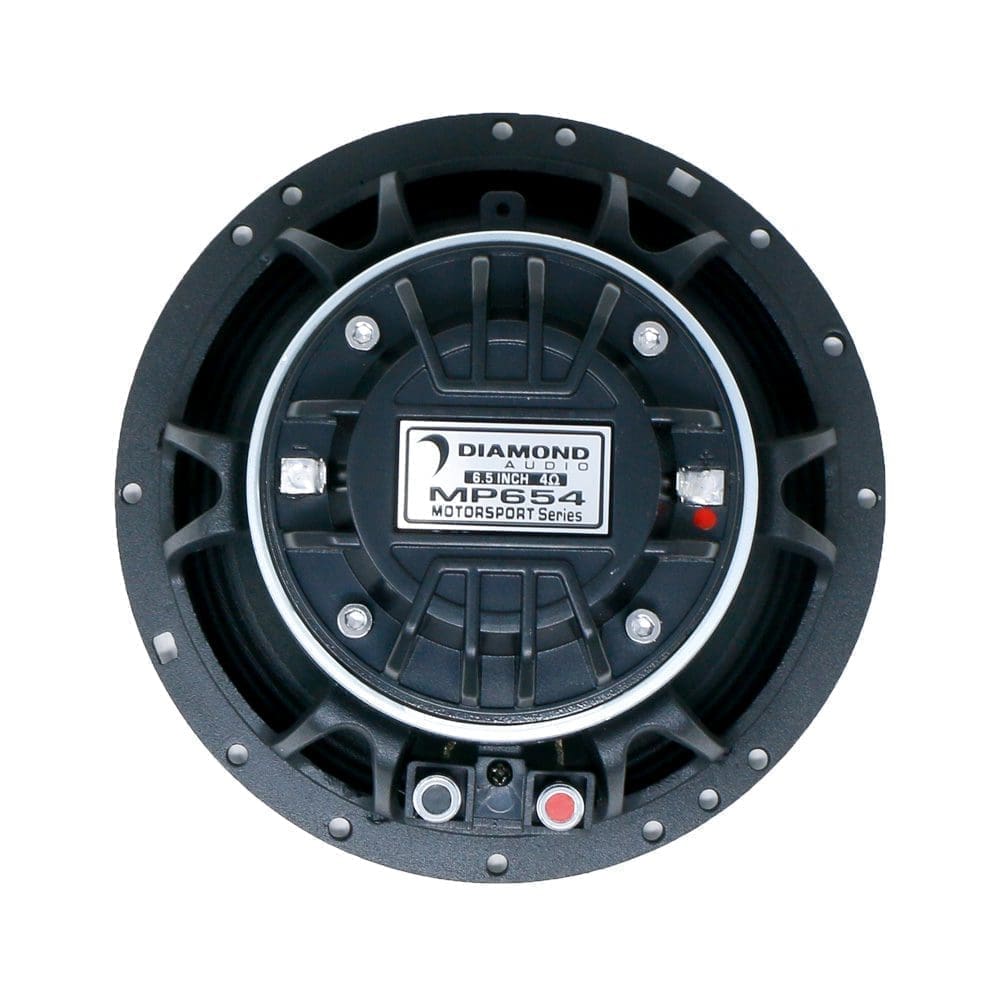

Diamond Audio MP654 – 6.5” Pro Full-Range Coax Horn Speakers

$399.99

-

Diamond Audio MP654 – 6.5” Pro Full-Range Coax Horn Speakers

7 In Stock - Ships in 24-48 Hours

Brand:
MP654.

Diamond Audio MP654 is the best choice for 6.5″ speaker upgrades for inner fairings on touring motorcycles. These are full range speakers with a built in compression horn that hits 107db which cuts through road noise to produce superior sound at high speeds.

Features:

– Ferrite Strontium High Temp Magnet structure

– Heavy Duty Die-cast Aluminum Basket

– 1.5” 4 Ohm – Single Layer High Temp Voice Coil with Black Coated Voice Coil former for Woofer

– 1.0” 8 Ohm – Single Layer High Temp Voice Coil for Tweeter

– Advanced Voice Coil Heat Sink Design for Better Heat Dissipation

– 12dB Crossover

Specs

SPL (dB-MidBass) 92.7

SPL (dB-Tweeter) 107

Re(Ω)[series] 3.2

Qms 10.73

Qes 0.47

Qts 0.45

Fs(Hz) 103.3

Vas(L) 6.6

Cms(mm/N) 0.24

Mms(g) 9.7

Sd(m2) 138.9

BL(T*M) 6.5

Xmax(mm) 1.0

Pwr(W) RMS/MAX 150/300

Total Diameter 6.52 (165.5) in. (mm)

Mounting Diameter 5.73 (145.5) in. (mm)

Mounting Depth 3.33 (91.6) in. (mm)

Total Depth 3.88 (98.6)in. (mm)

Magnet Diameter 3.94 (100) in. (mm)
