Features:

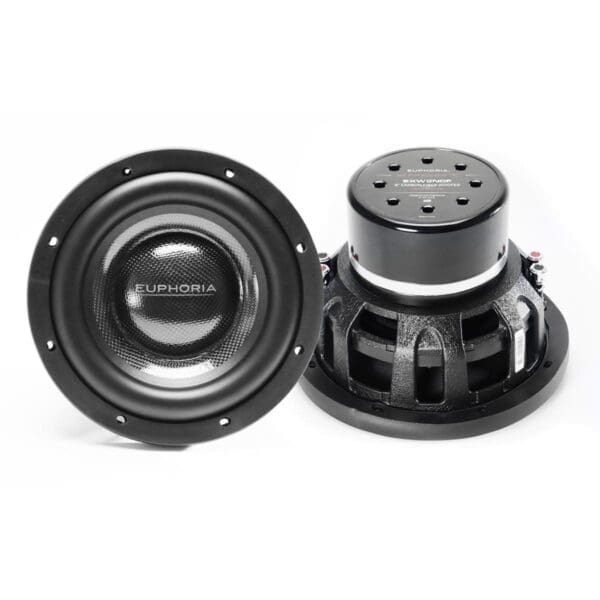

• 8″ NEO Carbon Fiber Woofer
• 2″ (51mm) Voice Coil Diameter
• Die-Cast Aluminum Basket with Radial Venting
• Large Gauge Compression Terminals
• Rubber Surround
• Carbon Fiber Cone
• Neodymium Magnet
• Weather Resistant Cone and Surround
• PVC Gasket
• Dual 4Ω 4 Layer Voice Coil
Note: Sold each
Specs
Structure |
8″ (20.32cm) Woofer |
Dynamic Power Handling |
2000 Watts |
Nominal Power Handling |
1000 Watts |
Impedance |
Dual 3.6Ω Voice Coil |
Outside Diameter |
8.76″ (222.56mm) |
Cutout Diameter |
7.17″ (182.31mm) |
Mounting Depth |
5.41″ (137.5mm) |
Install Resources
Series: Is the method of wiring of alternate positive with negative terminals. (string method) (Illustration below)
Parallel: Is the method of wiring where you wire match 2 speaker terminals with positive to positive terminal and negative to negative. (Illustration below)
Series/Parallel: This configuration is a combination of both series and parallel. We recommend series for the terminal and parallel for the leads to amp. (Illustration below).

2 OHM DVC CONFIGURATION
