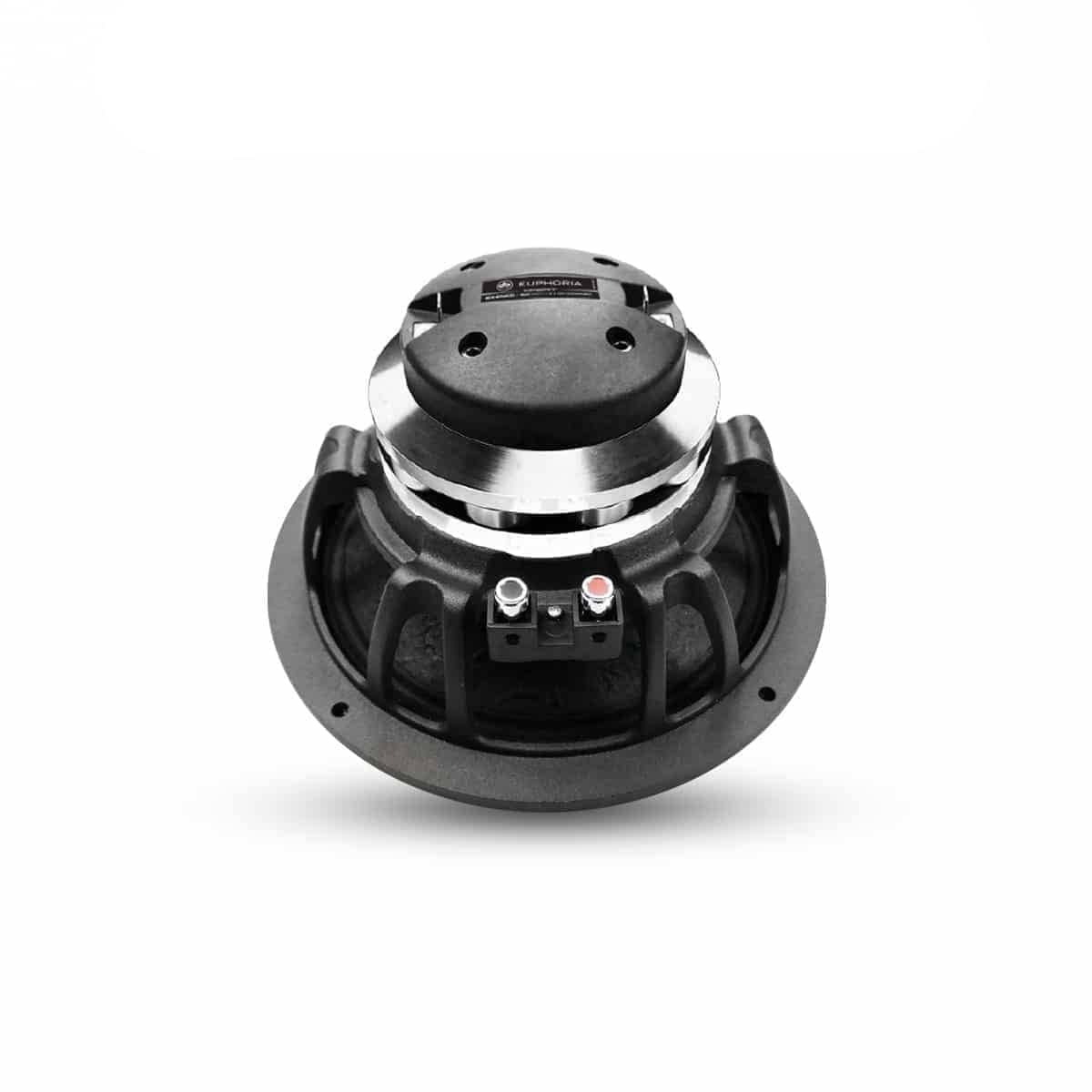

Euphoria Xpert 8″ Neodymium Series 2-Way Loudspeaker

Login To View Price

-

Euphoria Xpert 8″ Neodymium Series 2-Way Loudspeaker

Brand:
EX8NCD.
UPC: 811536032461

Features:

• 2″ (51mm) Midrange Voice Coil

• Neodymium Ring Magnet Assembly

• Rear Mounted Full Sized Compression Driver

• IP52 Rated Paper Cone With Treated Cloth Surround

• Die-Cast Aluminum Basket With Radial Venting

• 1.4″ (36mm) Polyester Tweeter Diaphragm

• Wide Dispersion Conical HF Waveguide

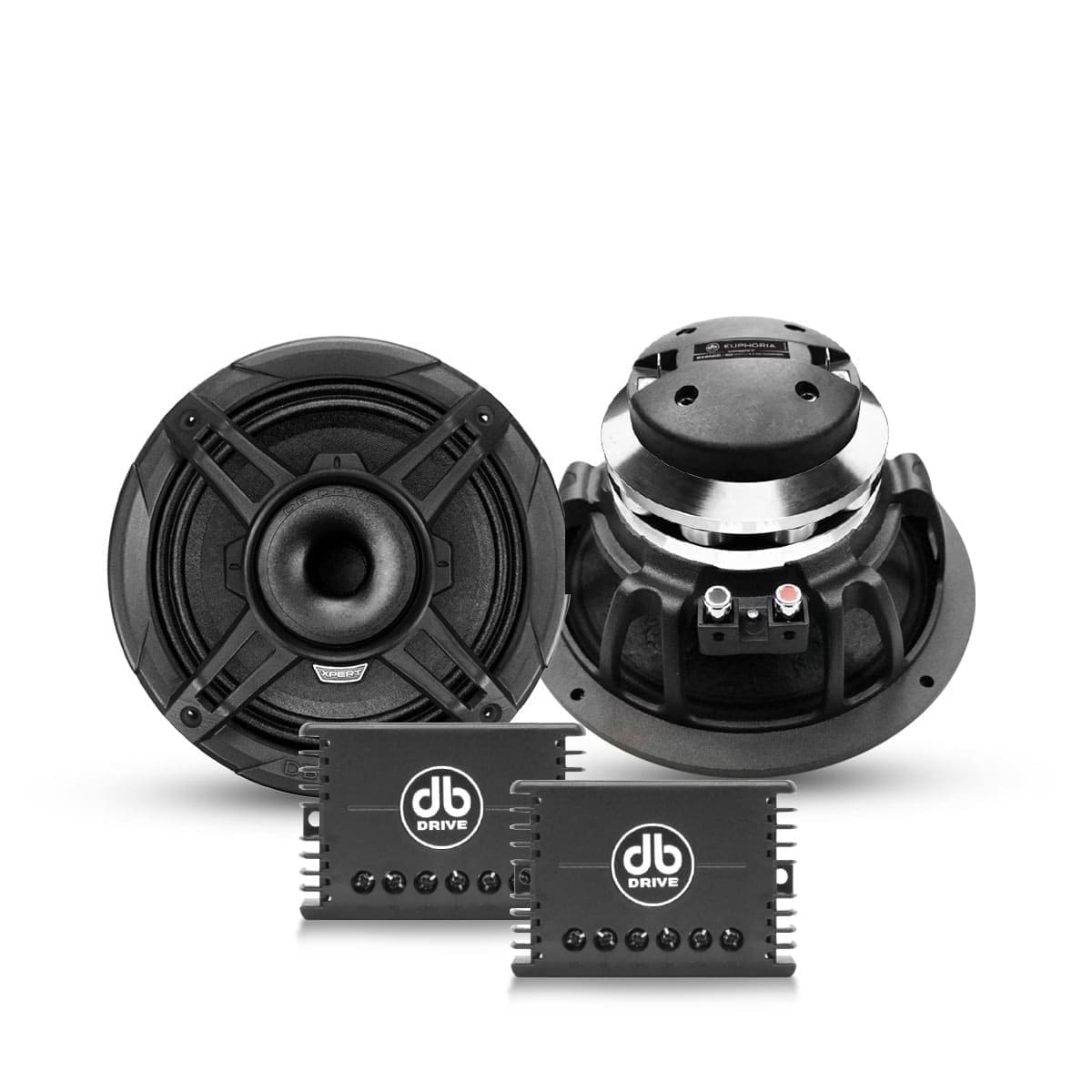

• 12dB Passive Crossover Included

• Protective Grills Included

Note: Sold in pairs

Specs

Resonant Frequency (fs) 79.7Hz
D.C. Voice Coil Resistance (Re) 3.2Ω
Mechanical Quality Factor (Qms) 8.24
Electrical Quality Factor (Qes) 0.43
Total Quality Factor (Qts) 0.41
Compliance Equivalent Volume (Vas) 16.3L
Mechanical Compliance (Cms) 0.25 mm/N
Efficiency (1W/1M) 105.4 dB
Nominal Impedance 5.2Ω
Power Handling 450 Watts
Dynamic Wattage 900 Watts
Sensitivity (1w/1m) 105.4 dB
Voice Coil Diameter 2.0″ (51mm)
Mounting Depth: 4.30″ (109.47mm)
Mounting Diameter: 7.07″ (179.64mm)
