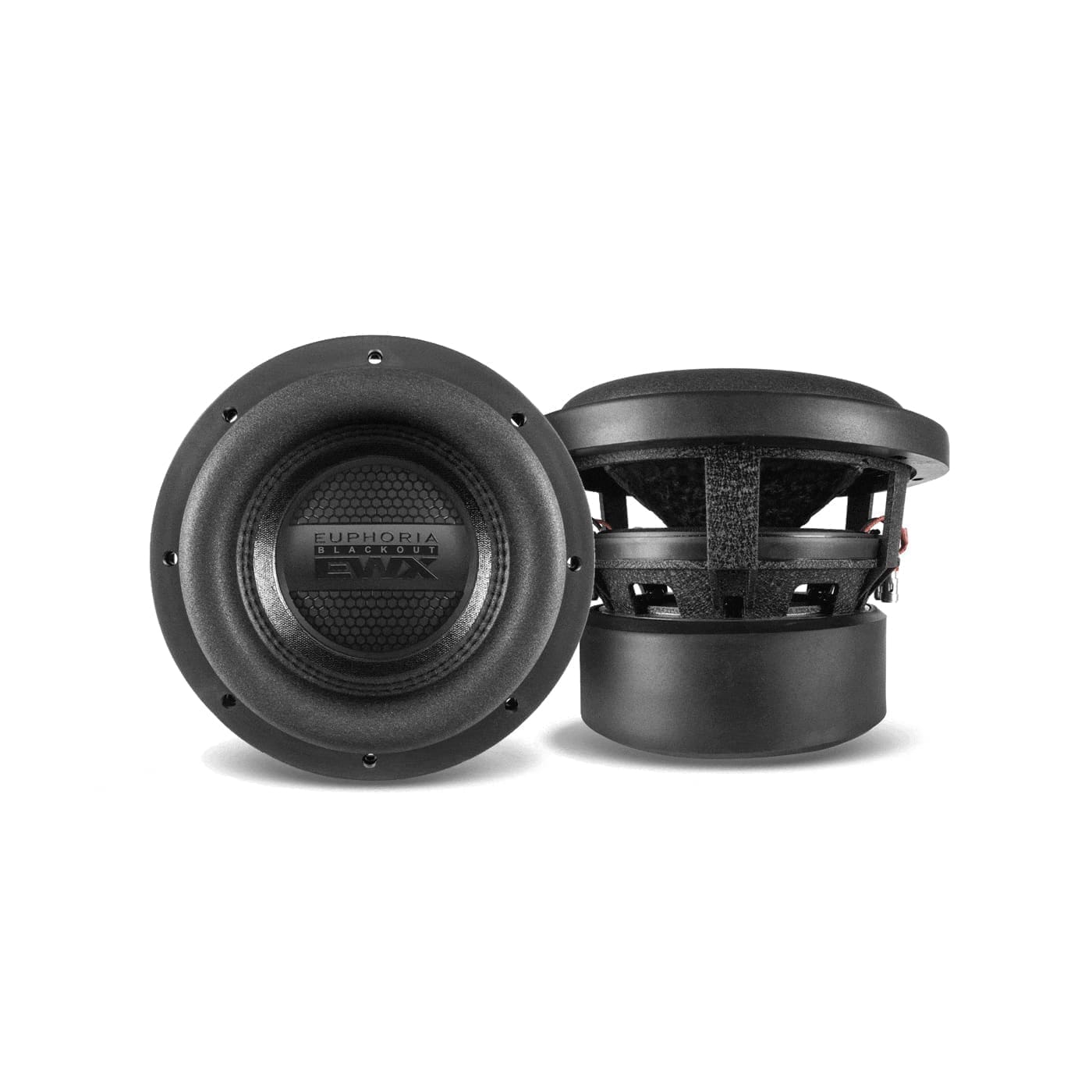

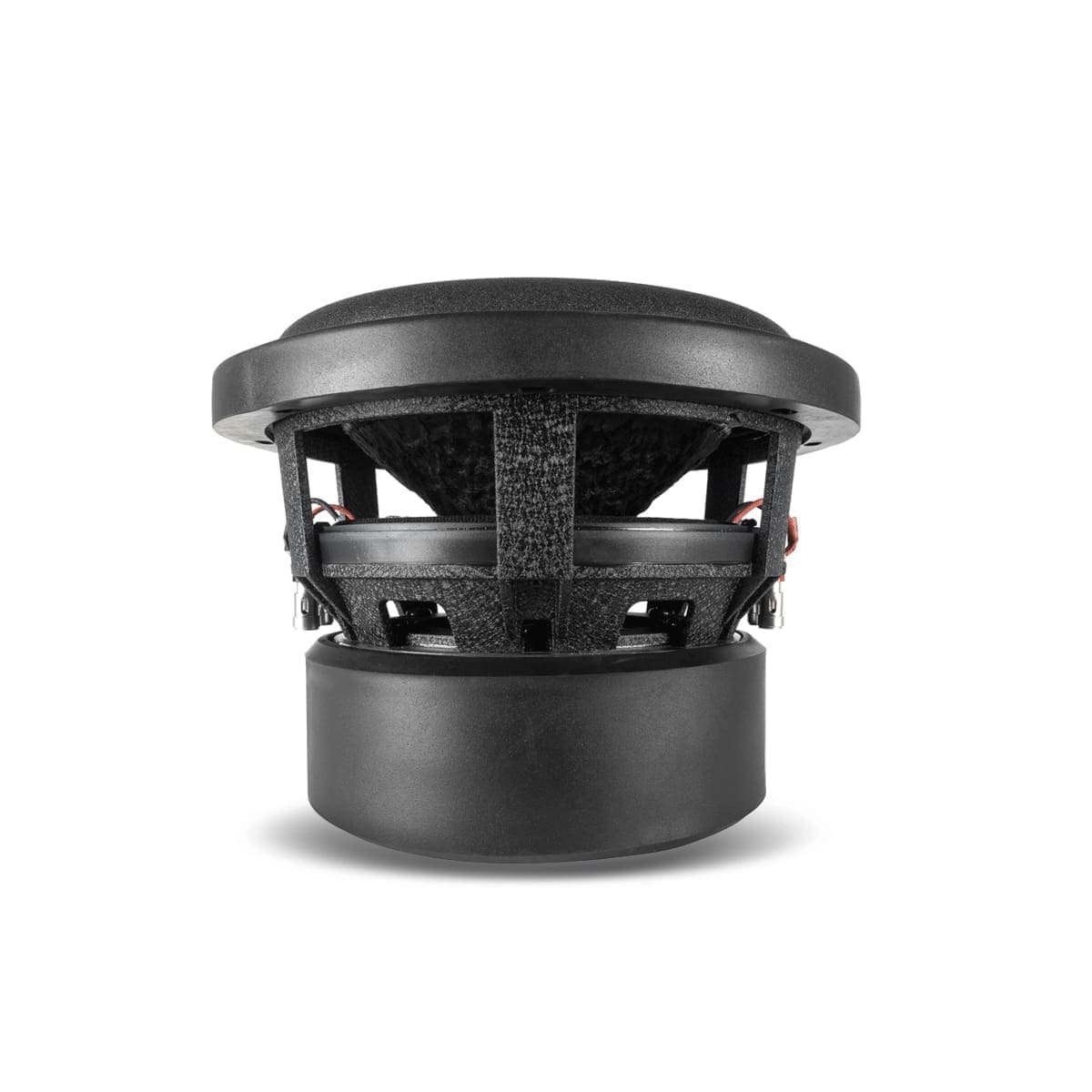

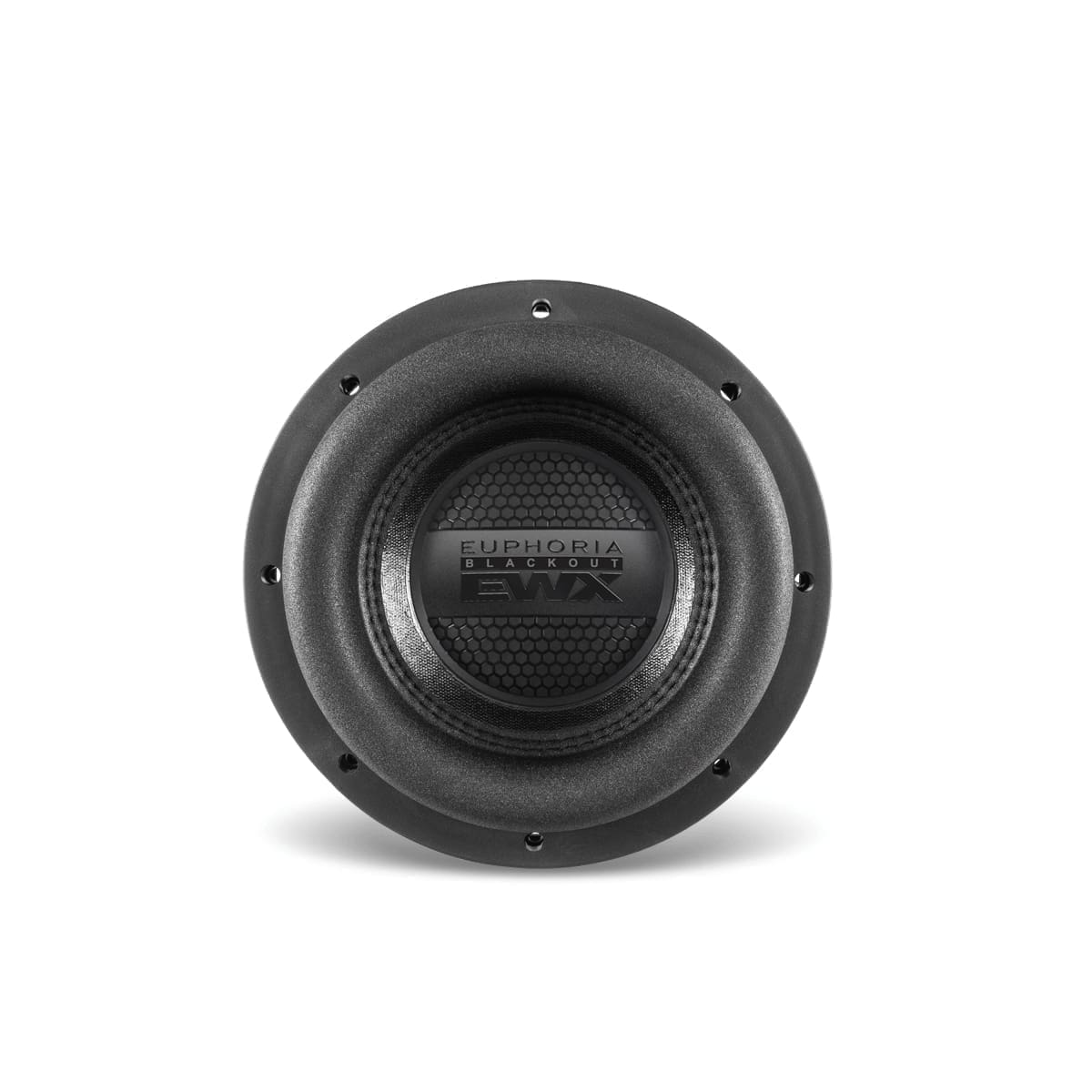

Euphoria 8″ Dual 4 Ohm Subwoofer Black Out Edition
-
Euphoria 8″ Dual 4 Ohm Subwoofer Black Out Edition
In Stock - Ships in 24-48 hours
Feel the Euphoria with every beat! Introducing the EWXB8D4: 8in Subwoofer Black Out Edition by Euphoria, where elegance meets power in the world of audio. Engineered to optimize SPL performance, this subwoofer boasts a high excursion multi-layer foam surround and a high-temperature voice coil, ensuring that every beat is felt as much as heard. Its sleek blacked-out cosmetic design adds a touch of sophistication to any setup, while the dual 4Ω voice coil and 120 oz. magnet size promise unrivaled performance. With a maximum power of 1500 Watts and nominal power of 600 Watts, the EWX BLACKOUT SERIES is built for those who crave high output bass. The 1.5” high roll foam surround and large gauge push button speaker terminals further enhance its reliability and ease of use. Crafted from high-grade low carbon steel, this 8” subwoofer is not just a component; it’s a statement. Elevate your audio experience and feel the euphoria with every beat!
Features:
• 2″ High-Temperature Voice Coil
• 145 oz. Ceramic Ferrite Magnet
• High-Grade Low Carbon Steel Top & Bottom Plates
• 1.5” High Roll Foam Surround
• Designed To Optimize SPL Performance
• High Excursion Dampener
• Large Gauge Push Button Speaker Terminals
• Dual 4 Ohm Voice Coils
Specs
| Outside Diameter | 8.66″ |
| Cutout Diameter | 7.32″ |
| Mounting Depth | 5.31″ |
| Structure | 8″ Woofer |
| Dynamic Power Handling | 1500 Watts |
| Nominal Power Handling | 600 Watts |
| Impedance | Dual 4Ω Voice Coil |
| Resonant Frequency (fs) | 48.621Hz |
| D.C. Voice Coil Resistance (Re) | 326Ω + 3.2Ω |
| Mechanical Quality Factor (Qms) | 5.405 |
| Electrical Quality Factor (Qes) | 0.695 |
| Total Quality Factor (Qts) | 0.616 |
| Equivalent Air Volume to Cms (Vas) | 6.076 L |
| Mass of Diaphragm/Coil (Mms) | 113.921 g |
| Force Factor (Bl) | 14.784 |
| Sound Pressure Level (SPL) | 81.9 dB |
Wiring

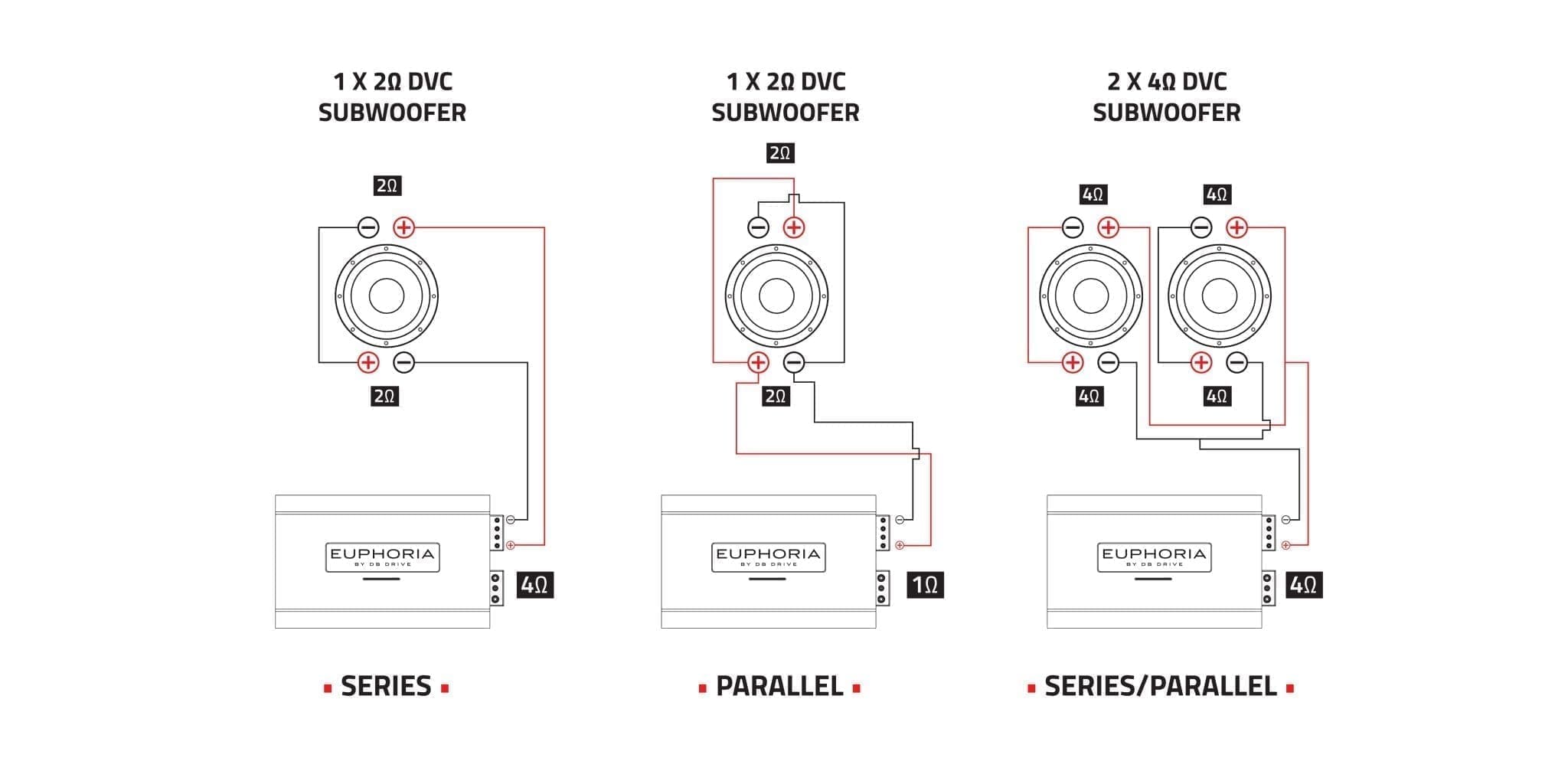

WIRING CONFIGURATION
You can change the wiring configuration of your speakers (Series, Parallel and Series / Parallel) to match the impedance loads that maximizes the power output of you amplifier. Wiring the same woofer or multiple woofers in these three different wiring configurations will result in different impedance loads.
Series: Is the method of wiring of alternate positive with negative terminals (string method) (Illustration below)
Parallel: Is the method of wiring where you wire match 2 speaker terminals with positive to positive terminal and negative to negative. (Illustration below)
Series/Parallel: This configuration is a combination of both series and parallel. We recommend series for the terminal and parallel for the leads to amp. (Illustration below).
2 OHM DVC CONFIGURATION
Manual
