Analog/Digital Gauge System, ’04-’13 Softail/Road King



2004-2013 Models w/ Tank Mounted Gauge

Add Oil Pressure Sender? *

Add Air Susp Pressure Module? *

Add Boost Module? *

Order total:

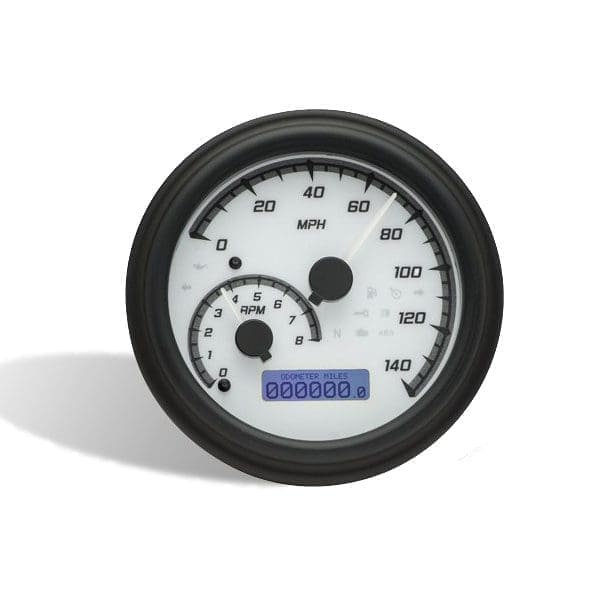

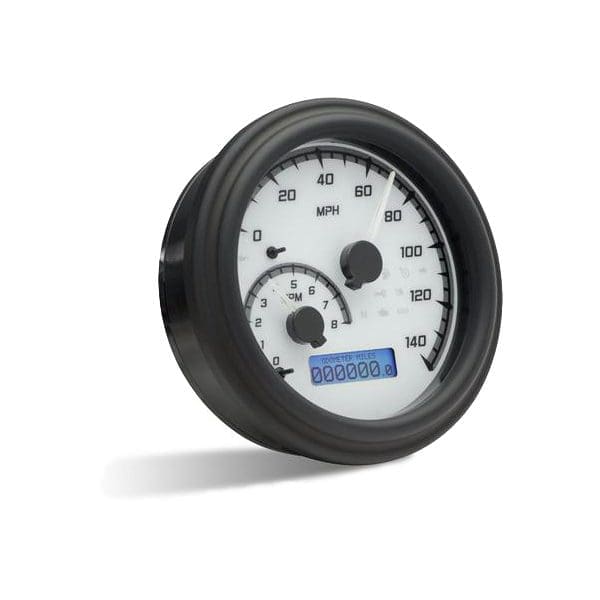

The all new MVX-2004 electronic instrumentation system offers a 140 MPH Speedometer, Tachometer with an adjustable shift point, odometer with dual resettable trip meters and a full complement of indicators to provide a complete information system.


• 31 individually user-selectable colors for Pointer, Backlight and LCD Message Center.

• 2 Different face options available: Black w/ Gray Accents & White w/ Gray Accents

• Chrome or Black bezel option

• 140 MPH speedometer.

• Tachometer with adjustable shift point, can also display in digital numeric readout.

• Odometer with two resettable trip odometers.

• Resettable Miles to Service with warning (user settable countdown) and hour meter.

• Clock (12 hour format).

• Voltage readout with low voltage alert.

• Cylinder Head Temp (requires factory sender equipped on some bikes).

• Oil Pressure sender sold separately, (SEN-1039).

• 7 Speed Gear Position Indicator compatible with 3- 7 speed transmissions.

• Various indicators can also be displayed such as Turn Signal, High Beam, Neutral, Low Oil Pressure, Low Voltage and Security Indicators.

• ABS Indicator

• Cruise on and Cruise engaged indication.

• Security Indicator.

• Automatic turn signal cancelling compatible.

• “Wait to start” / Check Engine light.

• Several performance calculations include: 0- 60 time, high speed & high RPM recall, 1/4 mile time and speed.

Additional gauges that can be added to the MVX Series by use of the Dakota Digital MBM expansion modules are:

• Air Suspension Pressure (single or dual readings)

• MBM-19 – Includes 1 sender. Additional sender SEN-1901 sold separately.

• Boost

• MBM-09 – Sender included.

Dakota Digital Instrument systems are shipped from the factory with “0” miles on the odometer. Odometer mileage is now user settable one time and must be done before the odometer reaches 100 miles. This can be done at the factory for a charge of $20 if unable to be set before 100 miles, or if set incorrectly. Please contact Dakota Digital to arrange this service.

Note: Limited Two Year Warranty. Softails may require an oil temp adapter kit from Harley-Davidson. Does not fit 2010 CVO Convertible.


2010 Harley-Davidson Fat Boy Lo FLSTFB
2008-2011 Harley-Davidson Fat Bob FXDF
2008-2010 Harley-Davidson Softail Cross Bones FLSTSB
2008-2010 Harley-Davidson Softail Rocker C FXCWC
2008-2009 Harley-Davidson Softail Rocker FXCW
2007-2013 Harley-Davidson Road King EFI FLHR
2007-2010 Harley-Davidson Softail Custom EFI FXSTC
2006 Harley-Davidson Softail Heritage EFI FLSTI
2006 Harley-Davidson Softail Heritage FLST
2005-2010 Harley-Davidson Softail Deluxe EFI FLSTNI
2005-2007 Harley-Davidson Softail Springer Classic EFI FLSTSCI
2005-2006 Harley-Davidson Softail Springer Classic FLSTSC
2005-2006 Harley-Davidson Softail Deluxe FLSTN
2005 Harley-Davidson 15th Anniversary Fat Boy FLSTF
2004-2010 Harley-Davidson Softail Fat Boy EFI FLSTFI
2004-2010 Harley-Davidson Softail Heritage Classic EFI FLSTCI
2004-2009 Harley-Davidson Softail Night Train EFI FXSTBI
Harley-Davidson Wide Glide EFI FXDWGI
2004-2007 Harley-Davidson Softail Deuce EFI FXSTDI
2004-2007 Harley-Davidson Road King Custom EFI FLHRS
2004-2007 Harley-Davidson Softail Standard EFI FXSTI
2004-2006 Harley-Davidson Softail Deuce FXSTD
2004-2006 Harley-Davidson Road King Custom FLHRS
2004-2006 Harley-Davidson Softail Heritage Classic FLSTC
2004-2006 Harley-Davidson Softail Fat Boy FLSTF
2004-2006 Harley-Davidson Road King Classic EFI FLHRC
2004-2006 Harley-Davidson Softail Springer FXSTS
2004-2006 Harley-Davidson Softail Night Train FXSTB
2004-2006 Harley-Davidson Softail Springer EFI FXSTSI
2004-2006 Harley-Davidson Softail Standard FXST
2004-2006 Harley-Davidson Road King FLHR
2004-2005 Harley-Davidson Wide Glide FXDWG
