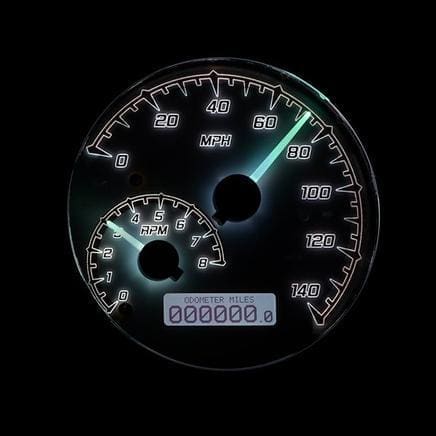

The all new MVX-2011 electronic instrumentation system offers a 140 MPH Speedometer, Tachometer with an adjustable shift point, odometer with dual resettable trip meters and a full complement of indicators to provide a complete information system.

Features:

• 31 individually user-selectable colors for Pointer, Backlight and LCD Message Center.

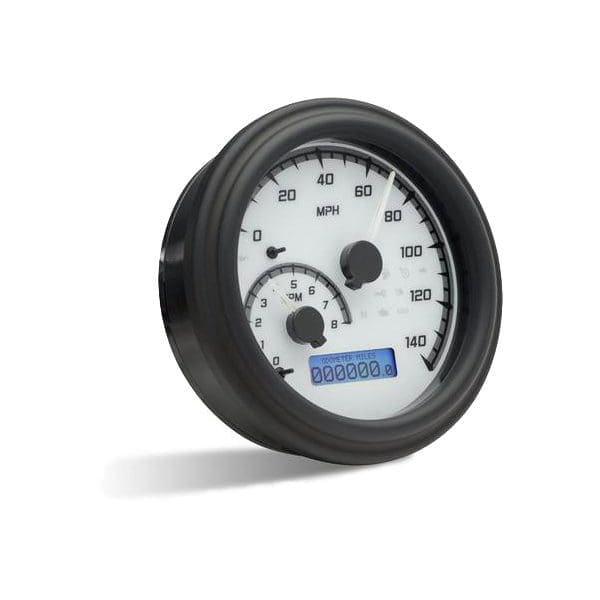

• 2 Different face options available: Black w/ Gray Accents & White w/ Gray Accents

• Chrome or Black bezel option

• 140 MPH speedometer.

• Tachometer with adjustable shift point, can also display in digital numeric readout.

• Odometer with two resettable trip odometers.

• Resettable Miles to Service with warning (user settable countdown) and hour meter.

• Clock (12 hour format).

• Voltage readout with low voltage alert.

• Cylinder Head Temp (requires factory sender equipped on some bikes).

• Oil Pressure sender sold separately, (SEN-1039). 2011–2016 applications only, does not fit Milwaukee 8.

• Oil Temperature sender sold separately, (SEN-1043 or SEN-1044) eliminates cylinder head temp if used.

• 7 Speed Gear Position Indicator compatible with 3- 7 speed transmissions.

• Various indicators can also be displayed such as Turn Signal, High Beam, Neutral, Low Oil Pressure, Low Voltage and Security Indicators.

• ABS Indicator

• Cruise on and Cruise engaged indication.

• Fuel Level on 2018 – newer if factory equipped.

• Security Indicator.

• Automatic turn signal cancelling compatible.

• “Wait to start” / Check Engine light.

• Several performance calculations include: 0- 60 time, high speed & high RPM recall, 1/4 mile time and speed.

Additional gauges that can be added to the MVX Series by use of the Dakota Digital MBM expansion modules are:

• Air Suspension Pressure (single or dual readings)

• MBM-19 – Includes 1 sender. Additional sender SEN-1901 sold separately.

• Boost

• MBM-09 – Sender included.

Dakota Digital Instrument systems are shipped from the factory with “0” miles on the odometer. Odometer mileage is now user settable one time and must be done before the odometer reaches 100 miles. This can be done at the factory for a charge of $20 if unable to be set before 100 miles, or if set incorrectly. Please contact Dakota Digital to arrange this service.

Note: Limited Two Year Warranty. Softails may require an oil temp adapter kit from Harley-Davidson. Does not fit 2010 CVO Convertible.
