Four Piece LCD Gauge Kit, 8 Color, ’14-’23 Touring
-
Four Piece LCD Gauge Kit, 8 Color, ’14-’23 Touring
In Stock - Ships in 24-48 hours
Features:
• Plug-and-play.
• Fits directly on OEM dash and connectors.

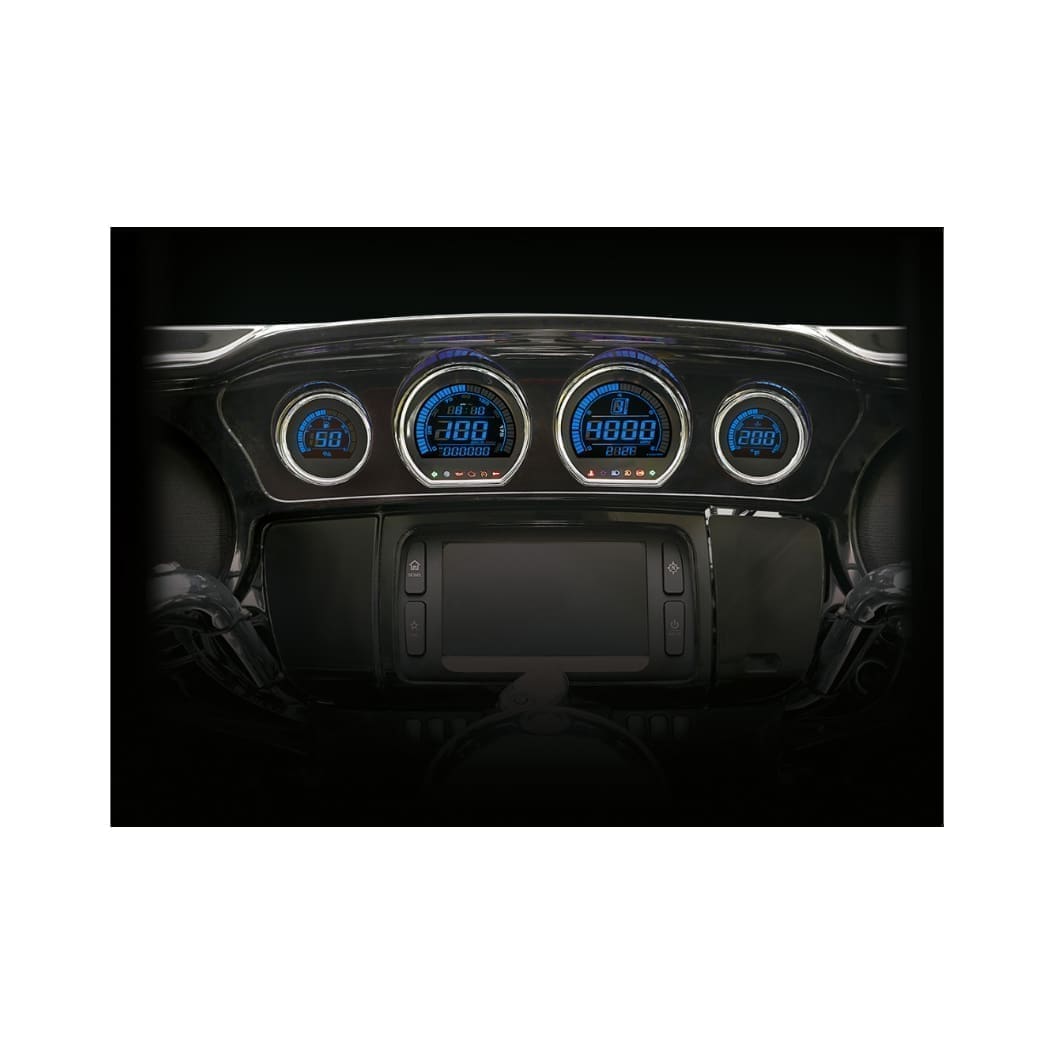

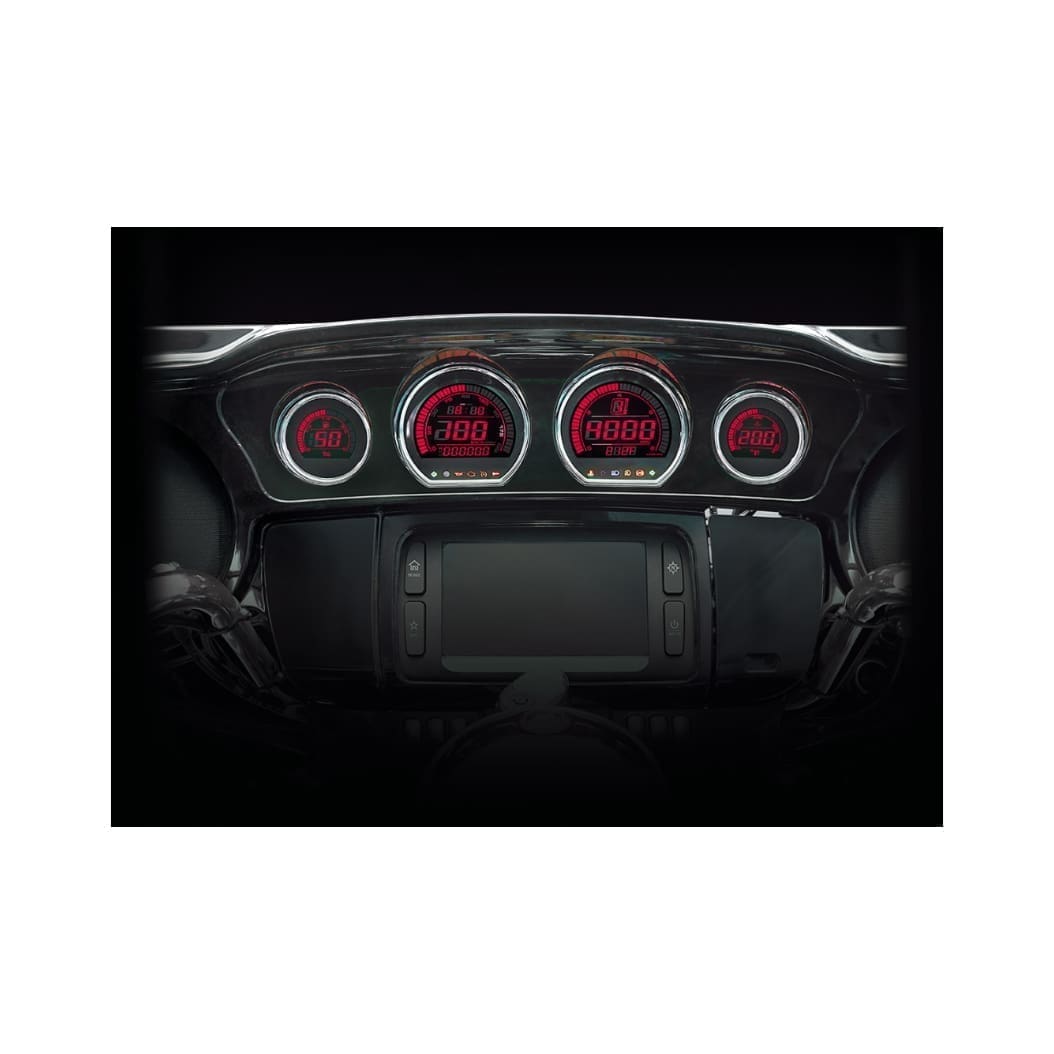

• The kit features a color changeable LCD display offering 8 different color options for a custom look to fit your motorcycle.
• Includes speedometer, tachometer, odometer, gear indicator, trip meter, engine temperature, oil temperature, and fuel level gauges.
• Indicator lights for oil, engine warning, warning light, high beam, fog light, and turn signals.
Note: To access settings on CVO models, you must turn ON the run/stop switch so that the bike will not turn off. Then you can make your adjustments to the settings on the gauge.
Fits
| 2023 | Harley-Davidson | Road Glide 3 FLTRT |
| 2022-2023 | Harley-Davidson | Electra Glide Ultra Limited FLHTK |
| 2022-2023 | Harley-Davidson | Tri Glide Ultra Classic FLHTCUTG |
| 2022-2023 | Harley-Davidson | Road Glide ST FLTRXST |
| 2022-2023 | Harley-Davidson | Street Glide ST FLHXST |
| 2020-2023 | Harley-Davidson | Road Glide Limited FLTRK |
| 2016-2019 | Harley-Davidson | Road Glide Ultra FLTRU |
| 2015-2023 | Harley-Davidson | Road Glide Special FLTRXS |
| 2015-2023 | Harley-Davidson | Road Glide Custom FLTRX |
| 2014-2023 | Harley-Davidson | Street Glide Special FLHXS |
| 2014-2023 | Harley-Davidson | Street Glide EFI FLHX |
Specs
Specifications (R= Range U= Unit)
• Tachometer
 R: 0 ~ 9,990 RPM | U: 10 RPM
• RPM Shift‑Light
 R: 2,000 ~ 8,000 RPM
 Warning lights on > value
• Maximum RPM
 R: 0 ~ 9,990 RPM | U: 100 RPM
• Speedometer
 R: 0 ~ 199 MPH (0 ~ 299 km/h)
 U: 1 MPH or km/h
• Overspeed Warning
 R: 19 ~ 199 MPH
 R: 30 ~ 299 km/h
 Warning lights on ≥ value
• Maximum Speed Record
 R: 0 ~ 199 MPH
 R: 0 ~ 299 km/h
• Odometer
 R: 0 ~ 999,999 miles (km)
 U: 1 mile (km)
• Trip Meter A/B
 R: 0 ~ 9,999.9 miles (km)
 U: 0.1 mile (km)
• Mileage Maintenance
 R: Off / 300 ~ 10,000 miles
 (500 ~ 16,000 km) ~ -999 miles
 U: 100 miles (km)
• Engine Temperature
 R: -40 ~ 572° F (-40 ~ 400° C)
• Fuel Meter
 R: 0 ~ 100 %
• Fuel Warning Setting
• 1-HD Standard
 Flashing LCD when > 211 Ω
 Off LCD when < 187 Ω
• 2-HD Customize
 Flashing LCD when < 20%
 Off LCD when > 30%
• Fuel Tank Volume
 Off / 1 ~ 9.9 US gallons
• Average Fuel Consumption
 Off / MPG (US Spec)
 Off / MPG (UK Spec) L/100 km/ km/L
• Remaining Mileage
 LO RNG displayed when< 10 miles
 U: 1 mile (km)
• Oil Temperature Meter
 R: 32 ~ 248° F (0 ~ 400° C)
 U: 1° F or °C
• Max. Oil Temperature Record
 R: 32 ~ 248° F (0 ~ 400° C)
• Clock
 R: 12 H or 24 H format
• Volt Meter
 R: DC 8 ~ 18 V
• Digits Brightness
 R: 1/5 (darkest) ~ 5/5 (brightest)
• Indicator Lights
 Turn Signal
 Water Temp
 Oil Pressure
 Photometric Sensing
 Warning Light
 Check Engine
 High Beam
 Fog Light
 Volt
 Traction Control
 Cruise
 ABS
 Rain Mode
 Vehicle Hold Control
 Fuel Level
 Low Tire Pressure
 Security Light
• Gear Indicator
 Off, N, P, R, 1, 2, 3, 4, 5, 6
• Effective Temperature Range
 14 ~ 140° F (‑10 ~ 60° C)
• Effective Voltage
 DC 12 V

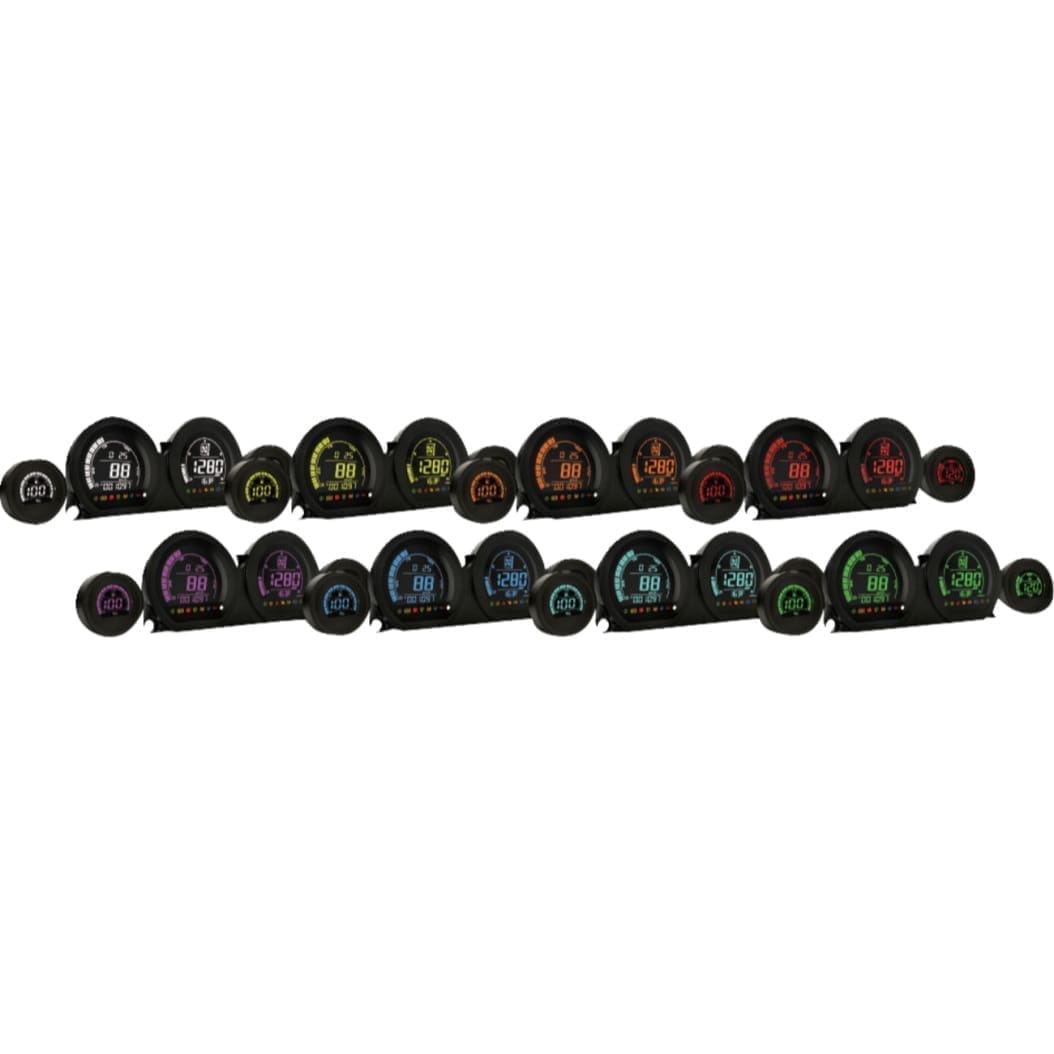

• Backlight Color
 White
 Yellow
 Orange
 Red
 Purple
 Blue
 Light Blue
 Green
