The AirFx Magnum shock outperforms all other air ride systems in both comfort and durability. Now you can fine tune your suspension for extreme cornering and braking and quickly adjust back to a comfortable cruising mode. Experience fast responsive, grip and true performance with our sport bike kits, all in a package not any larger than your stock shock. The air in the shock reacts much faster than a standard hydraulic shock. By lowering your bike you will change the center of gravity and your geometry. This makes a huge difference in handling. Each shock has two air chambers for lift and 1 for rebound in axial alignment. Rebound is set by adding air to the Schrader valve on the shock, allowing the rider to adjust the ride height and rebound setting.

Compressors

The Standard Compressor comes with an Omega style mounting bracket. Insulated wiring is pre-installed. Compressors are equipped with a thermal overload protector that will shut down the unit when overheated. When cool, the compressor will automatically restart as normal. (Hi-Flow Compressor available in drop down menu above)

The Hi-Flow Compressor comes standard with a chrome motor housing, chrome end plates, and Omega style mounting bracket. Insulated wiring is pre-installed. Compressors are equipped with a thermal overload protector that will shut down the unit when overheated. When cool, the compressor will automatically restart as normal.

Instant-Up Kit

Instant-Up Kit Includes: Air tank, compressor control box, and rear valve pair. Control box will cycle the compressor to charge the air tank to 190psi. Provides stored air pressure to raise the bike to ride height in about 1 second. Kit allows the use of one compressor to control both front and rear air ride shocks. (Dual Tank Kit available in drop down menu above)

Micro Buttons

Micro Button Wiring Harness: The micro button package consists of a pair of miniature snap acting stainless steel buttons potted in a small aluminum housing connected to a relay module and wiring harness. Pre-wired and tested. Two included for independent front and rear air ride control.

What's Included

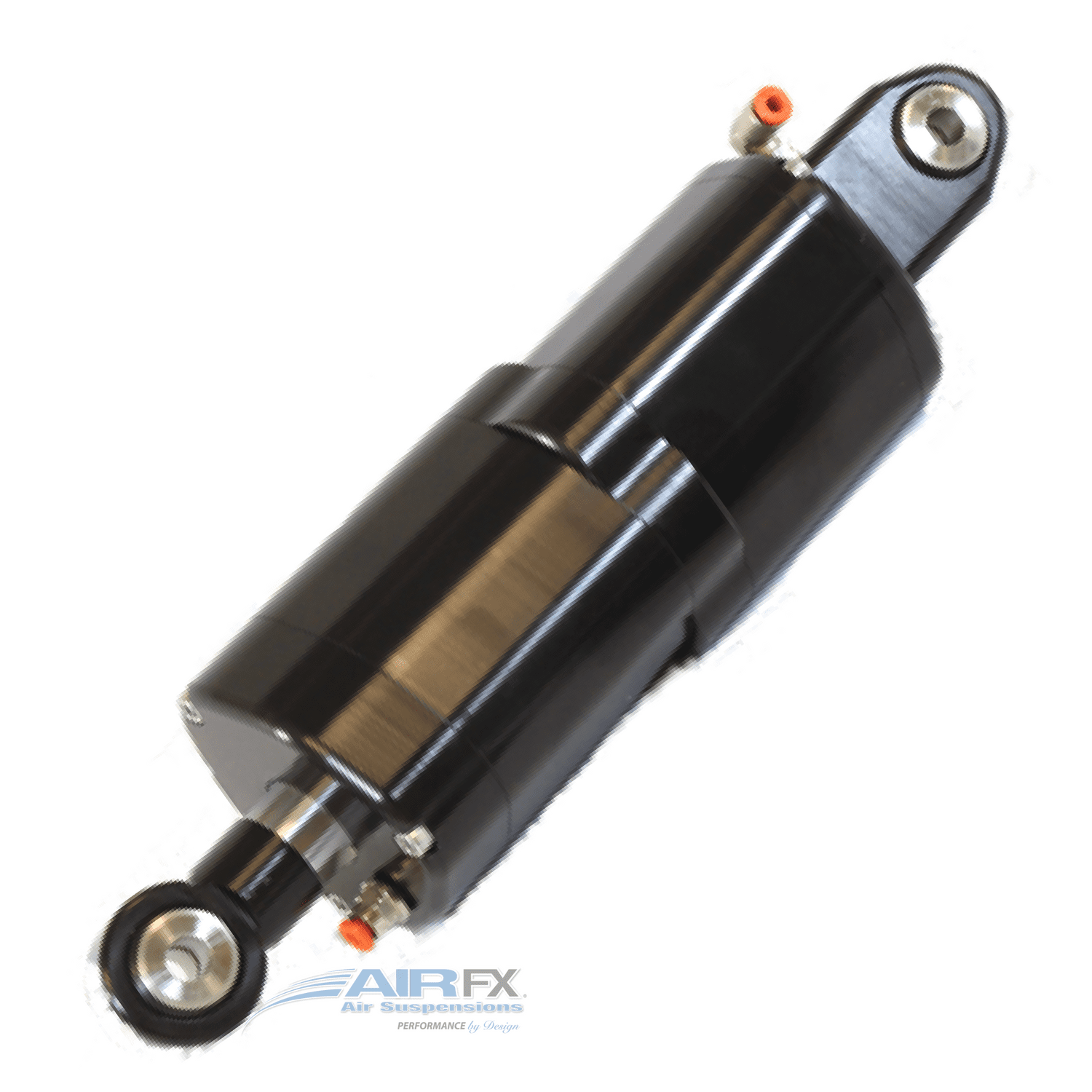

– Rear mono-shock with black hard coat anodized finish.

– Front Cartridge Pair For Suzuki M109 For 21″, 23″, or 26″ Front Wheel.

– Sumo-X 6° Triple Trees, or 9° Triple Trees, Gloss Black, or Chrome.

– Standard Compressor, or Hi-Flow Compressor.

– Instant-Up Kit Single Tank, or Dual Tank.

– Micro Button Wiring Harness.

Install Resources

Instant Up Installation Instructions

Monoshock Installation Instructions
