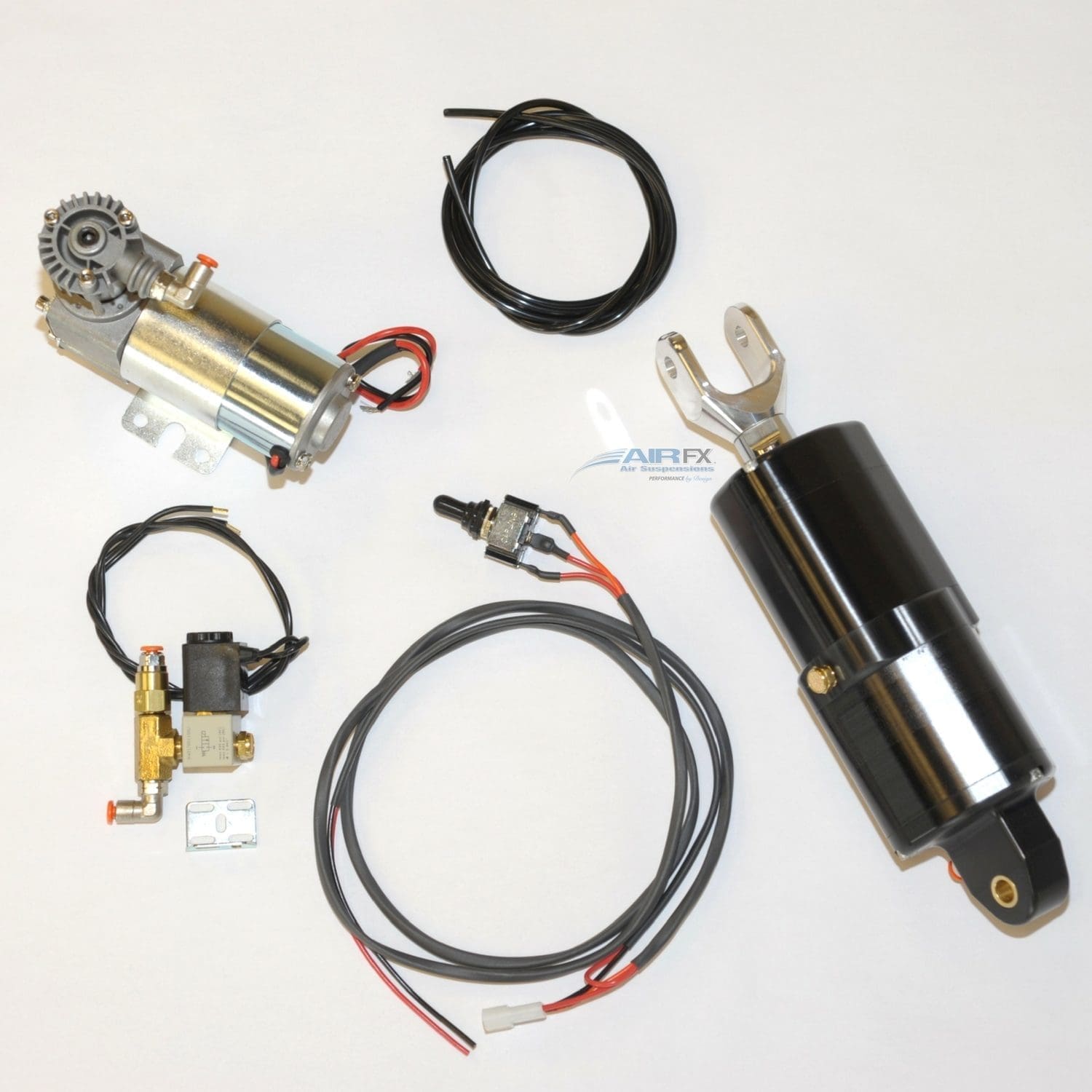

The AirFx Magnum shock out performs all other air ride systems in both comfort and durability. Their new shock technology incorporates a double sealed 63mm extra large composite piston. This requires less air pressure and creates a softer, smoother, and consistent ride. The specially designed shock body uses an upper spherical bearing to allow the shock body to pivot in all directions. This minimizes shock side loading or pivot friction while increasing response when cornering. Spacers are provided to custom fit most aftermarket bags. Rebound is set by adding/removing rebound air to the Schrader valve on each shock, allowing the rider to adjust the ride setting.
The Standard Compressor comes with an Omega style mounting bracket. Insulated wiring is pre-installed. Compressors are equipped with a thermal overload protector that will shut down the unit when overheated. When cool, the compressor will automatically restart as normal. (Hi-Flow Compressor available in drop down menu above)
The Hi-Flow Compressor comes standard with a chrome motor housing, chrome end plates, and Omega style mounting bracket. Insulated wiring is pre-installed. Compressors are equipped with a thermal overload protector that will shut down the unit when overheated. When cool, the compressor will automatically restart as normal.
Instant-Up Kit Includes: Air tank, compressor control box, and rear valve pair. Control box will cycle the compressor to charge the air tank to 190psi. Provides stored air pressure to raise the bike to ride height in about 1 second. Kit allows the use of one compressor to control both front and rear air ride shocks.
Micro Button Wiring Harness: The micro button package consists of a pair of miniature snap acting stainless steel buttons potted in a small aluminum housing connected to a relay module and wiring harness. Pre-wired and tested. Two included for independent front and rear air ride control.
Note(s): AirFX brand parts are specifically designed and tested for our kits. The use of other brands will void your warranty.
Please specify Year, Make, and Model during checkout.
– Rear mono-shock with black hard coat anodized finish.
– Standard Compressor, or Hi-Flow Compressor.
– Instant-Up Kit.
– Micro Button Wiring Harness.
– 2000-2018 Suzuki Hayabusa
– 2000-2018 Suzuki GSX-R750/1000
– 2000-2018 Yamaha R1
– 2000-2018 Kawasaki ZX-10/12/14
– 2000-2008 Honda CBR 1000
