AirFx Brand Kits for Harley-Davidson stock OEM not raked with 18”+21” Front wheel. Protect your bags from road rash when cornering. Their kits are designed to allow the air in the shock to react much faster than a standard hydraulic shock. Ride height adjustments can be made with a smooth ride even with 23” up to 32” diameter front wheels. Larger wheels or low profile tires provide little shock absorption. Their systems make these bikes rideable on normal roads. Now you can adjust up on corners, and drop it down for cruising. Nothing like it on the market… AirFx Air Ride has eliminated the chance of catastrophic air loss that can occur when air bag suspensions burst. They use a piston and cylinder technology for superior performance and durability.
Front wheels larger than 23 inches require the frame to be Raked to extend the axle away from the frame. Hawg Halters Rake Kits are specifically designed and matched to your front wheel for the best possible ride. They offer dramatic improvements in the geometry and handling of your bike while making it safer and easier to control. 23″ Front Wheel Kits will be bolt-on style. The 26″ Front Wheel Kits can choose a bolt-on style, or welded style, and the 30″ Front Wheel Kits will be a welded style.
HHI Short Neck Builders Kit (Welded) For 26″, and 30″ Wheels:
The 30″ kits include a 9 degree short neck, and 12 degree trees for a total rake of 47 degrees. The 26″ kits include a 7 degree short neck, and 9 degree trees for a total rake of 42 degrees. Both kits include a template, for extensions, and neck bearings.
X-26®Neck Rake Kit (Bolt-On) Specifications:
Fits: 1996-present Road Glide, Street Glide, Electra Glide & Road King applications.
Ride Height / Frame Clearance: 5 3/4“
Finish: Black Anodized
Air Suspension: Compatible all years.
Ride Height and Clearances: The X-26® Neck Rake Kit maintains stock clearances and full suspension travel.
Warranty: Limited Life Time Hawg Halters Warranty
HHI X-26® Bolt-On Kits: Contain black anodized Triple Tree, Neck Kit, hardware, installation instructions and, for 2013-earlier installs, the correct Fork Extensions.
The Standard Compressor comes with an Omega style mounting bracket. Insulated wiring is pre-installed. Compressors are equipped with a thermal overload protector that will shut down the unit when overheated. When cool, the compressor will automatically restart as normal. (Hi-Flow Compressor available in drop down menu above)
The Hi-Flow Compressor comes standard with a chrome motor housing, chrome end plates, and Omega style mounting bracket. Insulated wiring is pre-installed. Compressors are equipped with a thermal overload protector that will shut down the unit when overheated. When cool, the compressor will automatically restart as normal.
Instant-Up Kit Includes: Air tank, compressor control box, and rear valve pair. Control box will cycle the compressor to charge the air tank to 190psi. Provides stored air pressure to raise the bike to ride height in about 1 second. Kit allows the use of one compressor to control both front and rear air ride shocks. (Dual Tank available in drop down above)

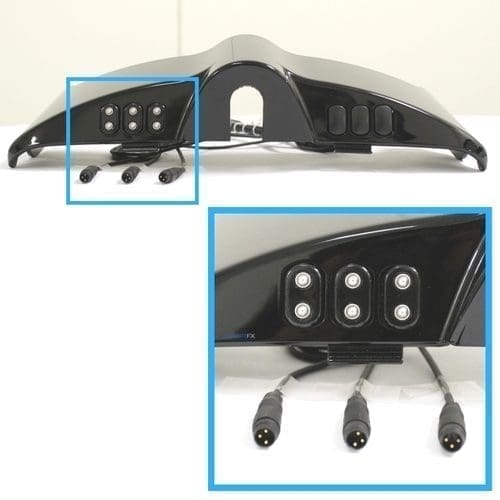

Micro Button Wiring Harness: The micro button package consists of a pair of miniature snap acting stainless steel buttons potted in a small aluminum housing connected to a relay module and wiring harness. Pre-wired and tested. Two included for independent front and rear air ride control.
Note: AirFx brand parts are specifically designed and tested for our kits. The use of other brands will void your warranty.

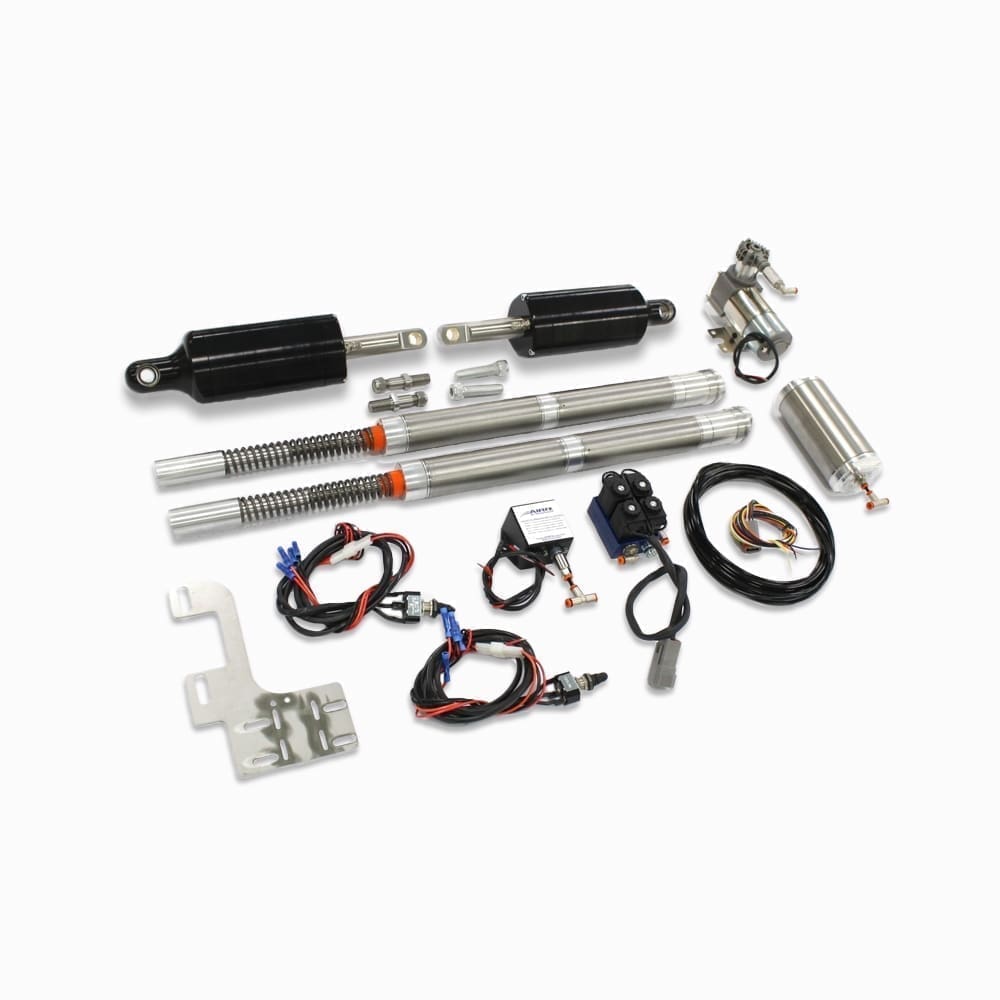

– Rear magnum shock pair with black hard coat anodized finish.
– Front Cartridge Pair 41mm For 21″, 23″, 26″, or 30″ Wheel.
– Hawg Halters Inc. Welded Style Rake Kit, or Bolt-On Style Rake Kit.
– Standard Compressor, or Hi-Flow Compressor.
– Instant-Up Kit Single Tank, or Dual Tank.
– Micro Button Wiring Harness.

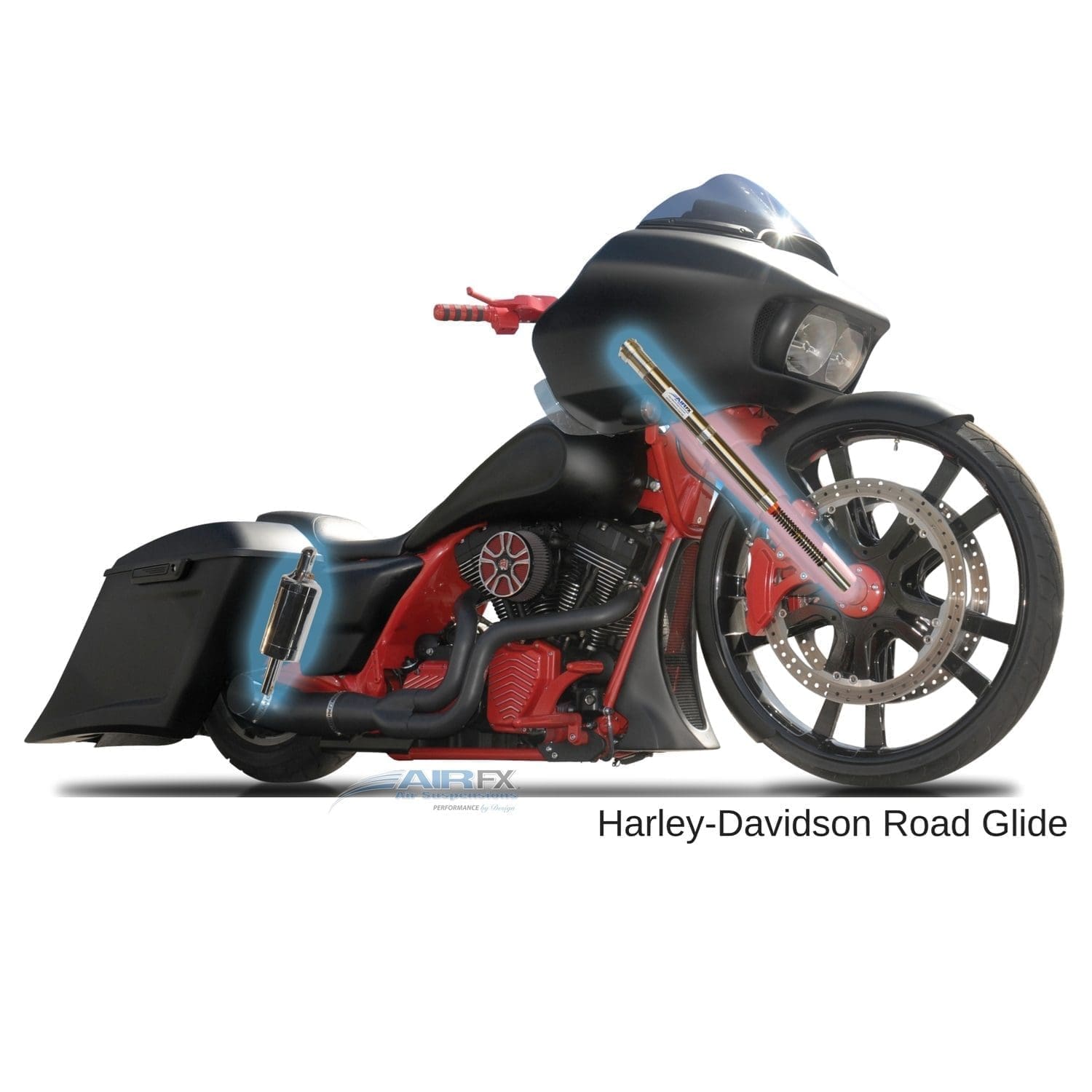

– Road Glide 2014-Current
