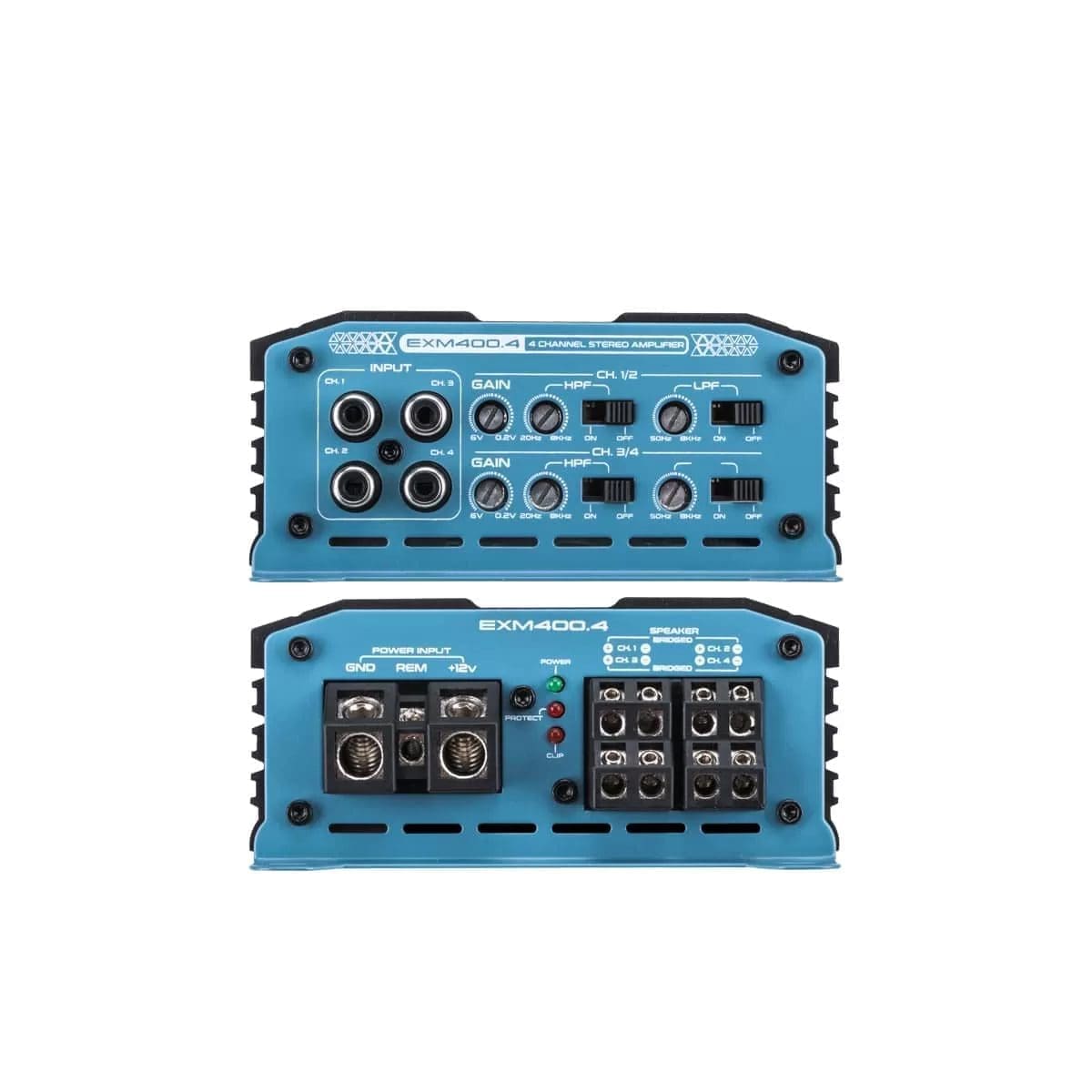

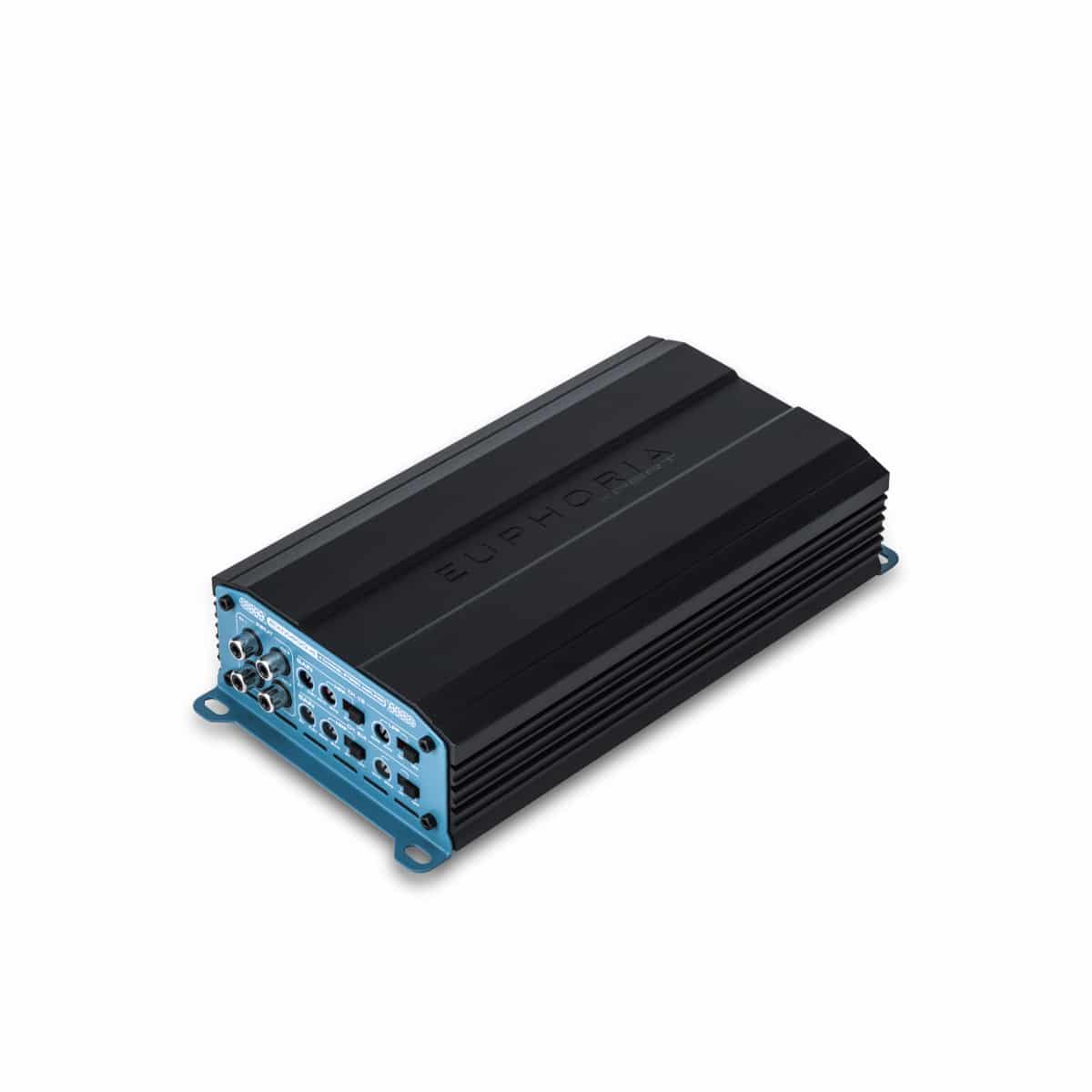

Euphoria Xpert 400.4 Amplifier
-
Euphoria Xpert 400.4 Amplifier
Features:
• 4 Channel full range class D circuitry
• SESI – Signal Evaluation Status Indicator
• ACT- Adaptive Crossover Technology
• High-efficiency Full Range Class D Technology
• Direct Connect Speaker Terminals
• Large Gauge Power Wire Inputs
• APC – Audio Protection Circuit
Specs
| GENERAL SPECIFICATIONS | |
| Rated Power @ 14.4 Volts | 4 x 200 Watts @ 4Ω |
| Dynamic Power Handling | 4 x 400 Watts @ 2Ω |
| 2 x 800 Watts @ 4Ω Bridged | |
| PARAMETERS | |
| Frequency Response | 10-24KHz |
| S/N Ratio | <85dB |
| Working Voltage | 10-16 Volts |
| Damping Factor | 100dB |
| Low Level Input | 6V – 0.2V |
| Ch 1/2 High Pass Filter Variable | 20Hz – 8KHz |
| Ch 1/2 Low Pass Filter Variable | 50Hz – 8KHz |
| Ch 3/4 High Pass Filter Variable | 20Hz – 8KHz |
| Ch 3/4 Low Pass Filter Variable | 50Hz – 8KHz |
| Minimum working Impedance | 2 Ohm Stereo |
| Length | 8.26″ (250mm) |
| Width | 4.68″ (119mm) |
| Height | 2.04″ (52mm) |
