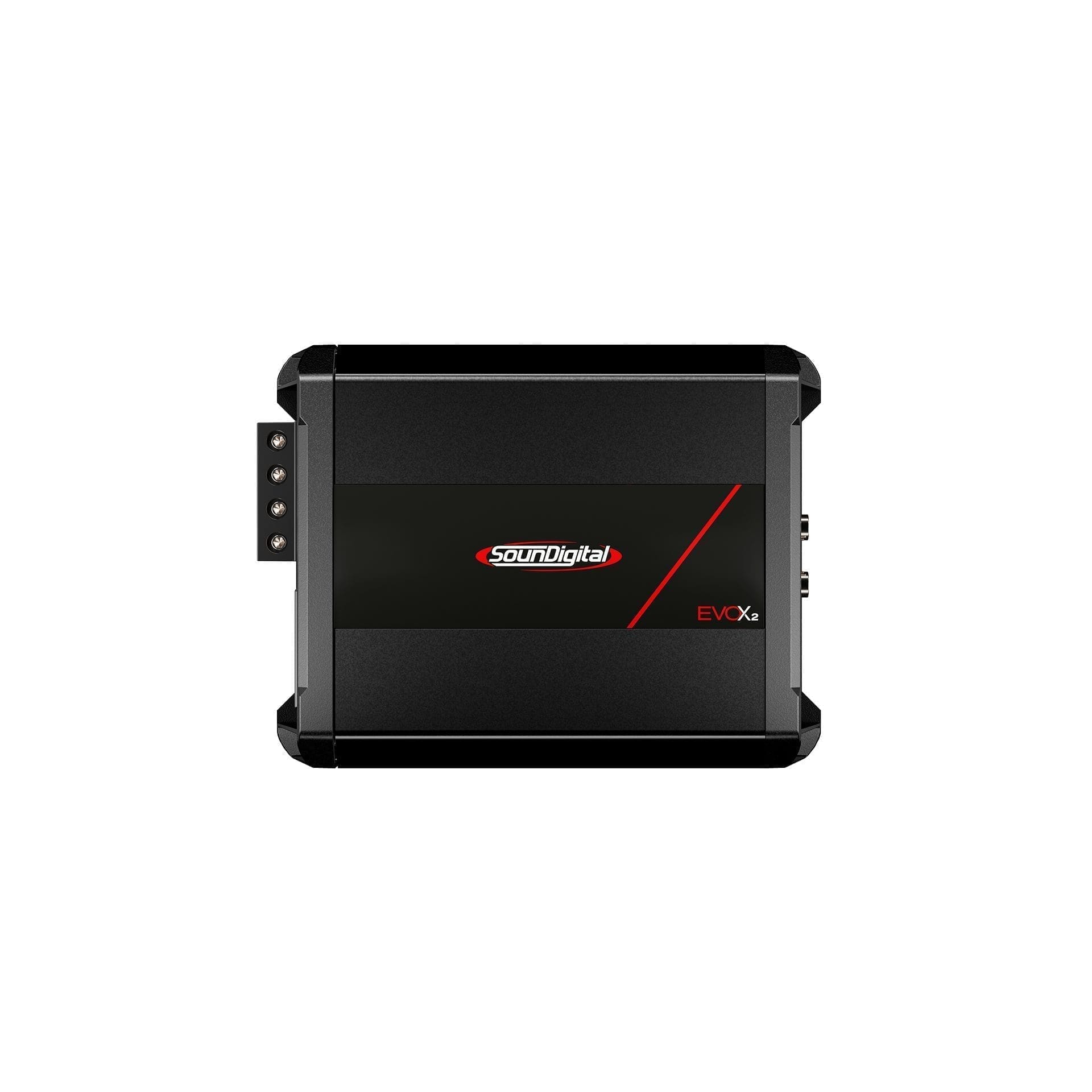

The 1200.4 EVOX2 is a compact, modern amplifier that delivers 1200W RMS of power over 4 channels.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Power @ 12.6V @ 4Ω: 4 x 198 WRMS
Power @ 12.6V @ 2Ω: 4 x 300 WRMS
Bridge Power @ 12.6V @ 4Ω: 2 x 600 WRMS
Operating Voltage: 8V – 16V
Current Draw (Music): 49 A
Current Draw (Max): 98 A
Recommended Fuse (Music): 60 A
Total Efficiency: 85%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 22kHz

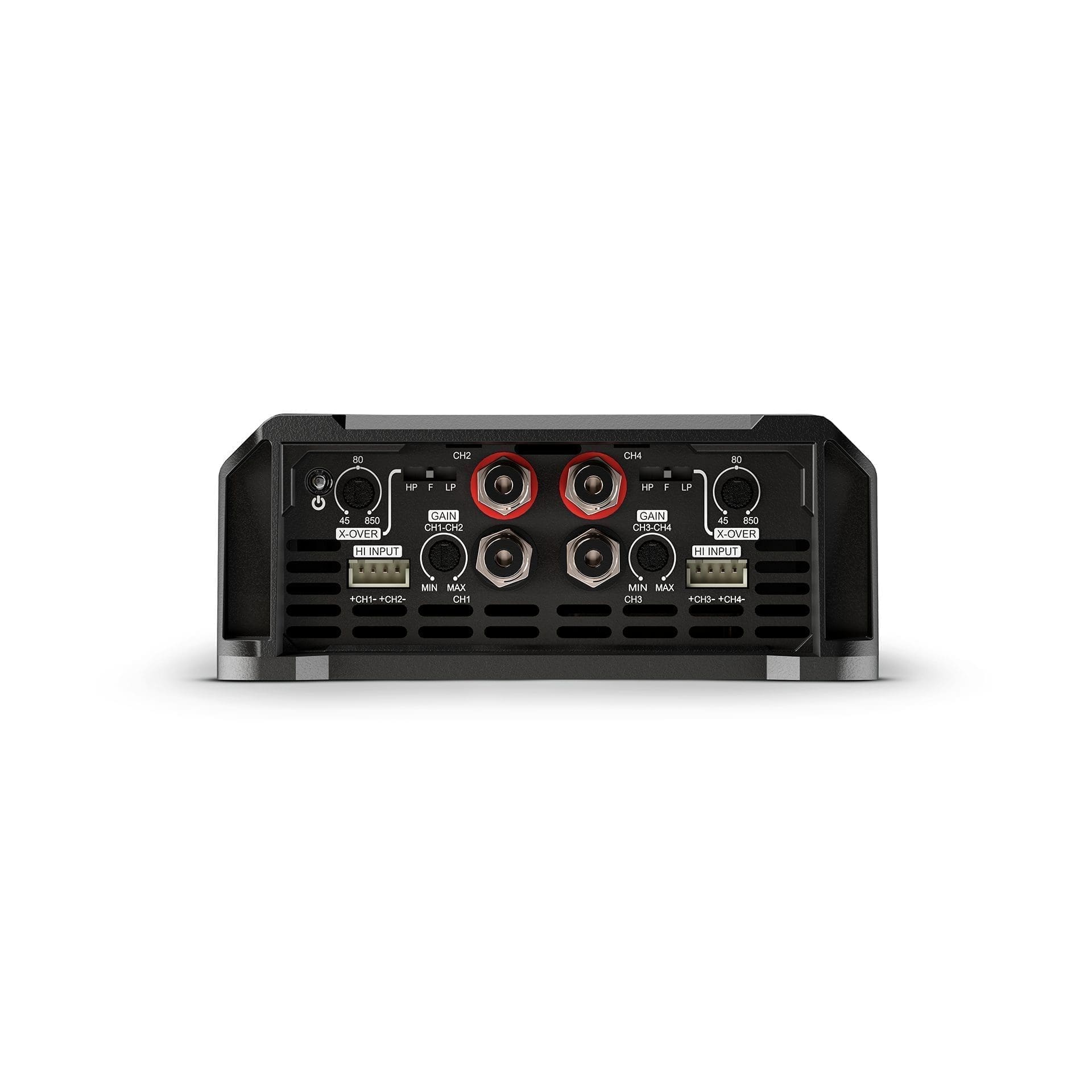

Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 7.1 x 5.4 x 2.2 in
Product Dimensions: 18.1 x 13.6 x 5.5 cm
