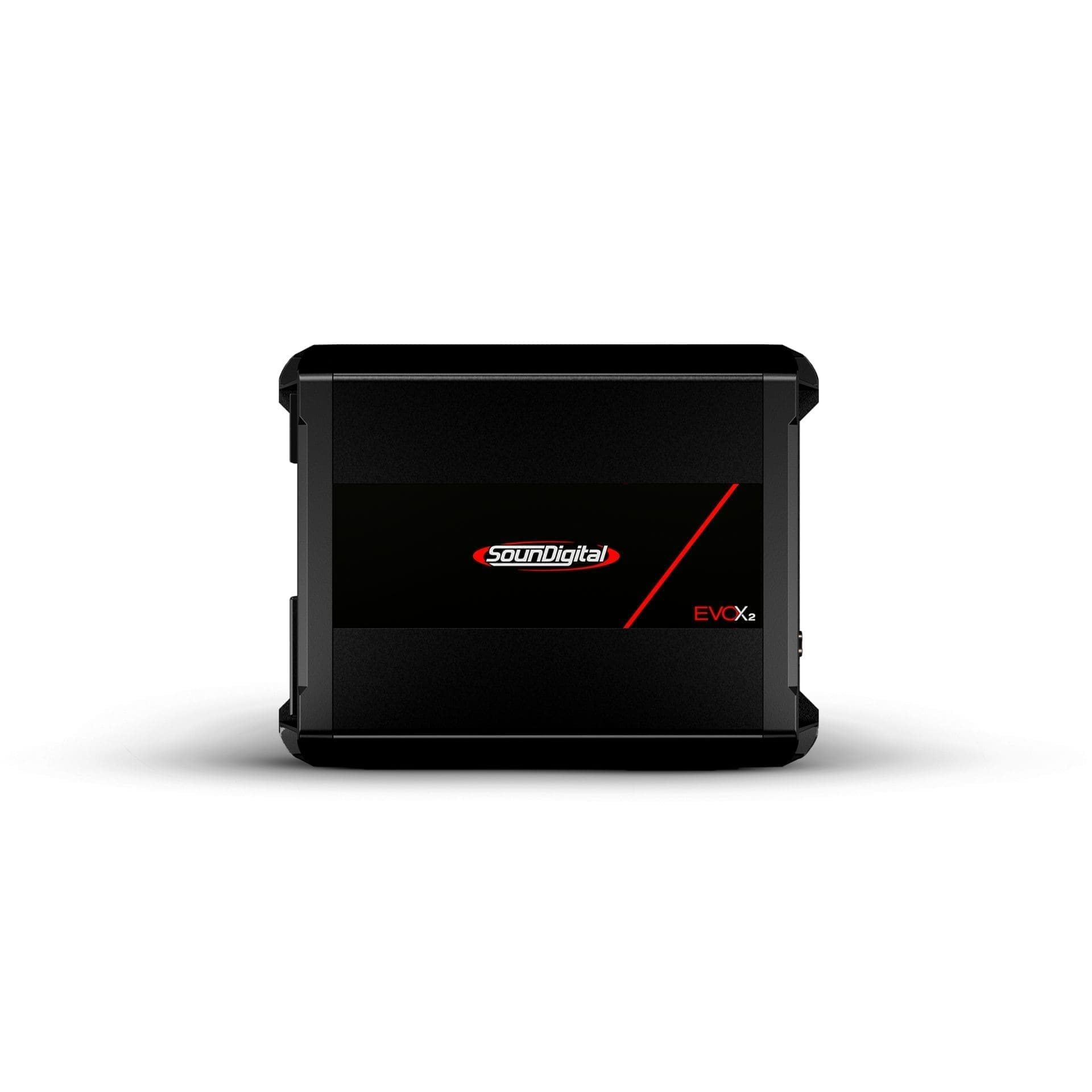

The 1000.1 EVOX2 is a compact, modern amplifier that delivers 1000W RMS of power over 1 channel.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Available in 1 Ohm, or 2 Ohms.
Specs
1000.1 EVOX2 – 1 OHM | Power @ 1Ω: 1 X 1000 WRMS |
Power @ 2Ω: 1 X 721 WRMS | |
Power @ 4Ω: 1 X 476 WRMS | |
1000.1 EVOX2 – 2 OHMS | Power @ 1Ω: N/A |
Power @ 2Ω: 1 X 1000 WRMS | |
Power @ 4Ω: 1 X 739 WRMS | |
Frequency Response (-3dB): | 5Hz ~ 25kHz |
Subsonic Filter (12dB/oct.): | 5Hz ~ 40Hz |
Low Pass Filter (12dB/oct.): | 50Hz ~ 500Hz |
Bass Boost: | 0dB ~ 12dB @ 50Hz |
Operating Voltage: | 8V ~ 16V |
SNR: | 94dB |
Input Sensitivity (RCA): | 0.2V ~ 2V |
Input Sensitivity (High Level input): | 1.5V ~ 15V |
Current Draw (music): | 1Ω: 44A |
2Ω: 45A | |
Current Draw (max.): | 1Ω: 89A |
2Ω: 90A | |
Total Efficiency: | 1Ω: 89% |
2Ω: 86% | |
Damping Factor (@100Hz nominal impedance): | >3000 |
Power Cable: | 16mm² / 5 AWG |
Speaker Cable: | 2 x 4.0mm² / 11 AW |
Recommended Fuse* (music): | 50A |
Recommended Battery (minimum): | 50Ah |
Width: | 7.1 in / 18.1 cm |
Length: | 5.4 in / 13.6 cm |
Height: | 2.2 in / 5.4 cm |
Weight: | 1.12 kg (2.46 lb) |
