SounDigital 5000.1 EVOX2 Amplifier
-
SounDigital 5000.1 EVOX2 Amplifier

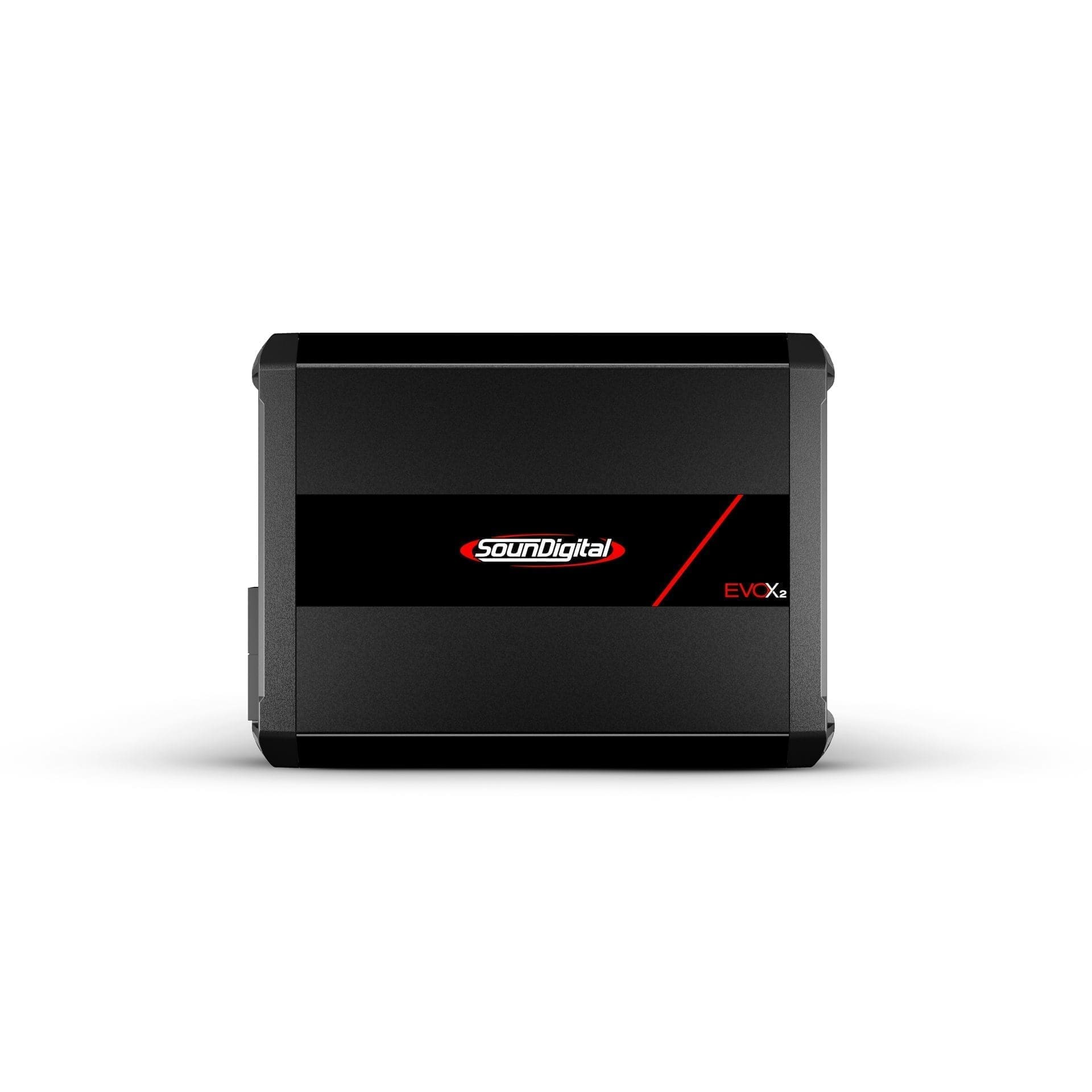

The 5000.1 EVOX2 is a compact, modern amplifier that delivers 5000W RMS of power over 1 channel.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Available in 1 Ohm, or 2 Ohms.
Specs
| 5000.1 EVOX2 – 1 OHM | Power @ 1Ω: 1 X 5000W RMS |
| Power @ 2Ω: 1 X 3300W RMS | |
| Power @ 4Ω: 1 X 2178W RMS | |
| 5000.1 EVOX2 – 2 OHMS | Power @ 1Ω: N/A |
| Power @ 2Ω: 1 X 5000W RMS | |
| Power @ 4Ω: 1 X 3300W RMS | |
| Frequency Response (-3dB): | 5Hz ~ 6kHz |
| Crossover: | Low Pass Filter: 5Hz ~ 40Hz |
| High Pass Filter: 50Hz ~ 6kHz | |
| Operating Voltage: | 8V – 16V |
| SNR: | 90 dB |
| Input Sensitivity: | 0.2V ~4V |
| Current Draw (Music): | 202A |
| Current Draw With Resistive Load: | 404A |
| Total Efficiency: | 86% |
| Damping Factor: | >2000 |
| Power Cable: | 50mm²(0AWG) |
| Audio Output Cable: | 2 x 2,5mm (13AWG) |
| Recommended Fuse (Music): | 250A |
| Recommended Battery (Minimum): | 250Ah |
| Width: | 7 in / 18 cm |
| Length: | 9.8 in / 25 cm |
| Height: | 2.5 in / 6,3 cm |
