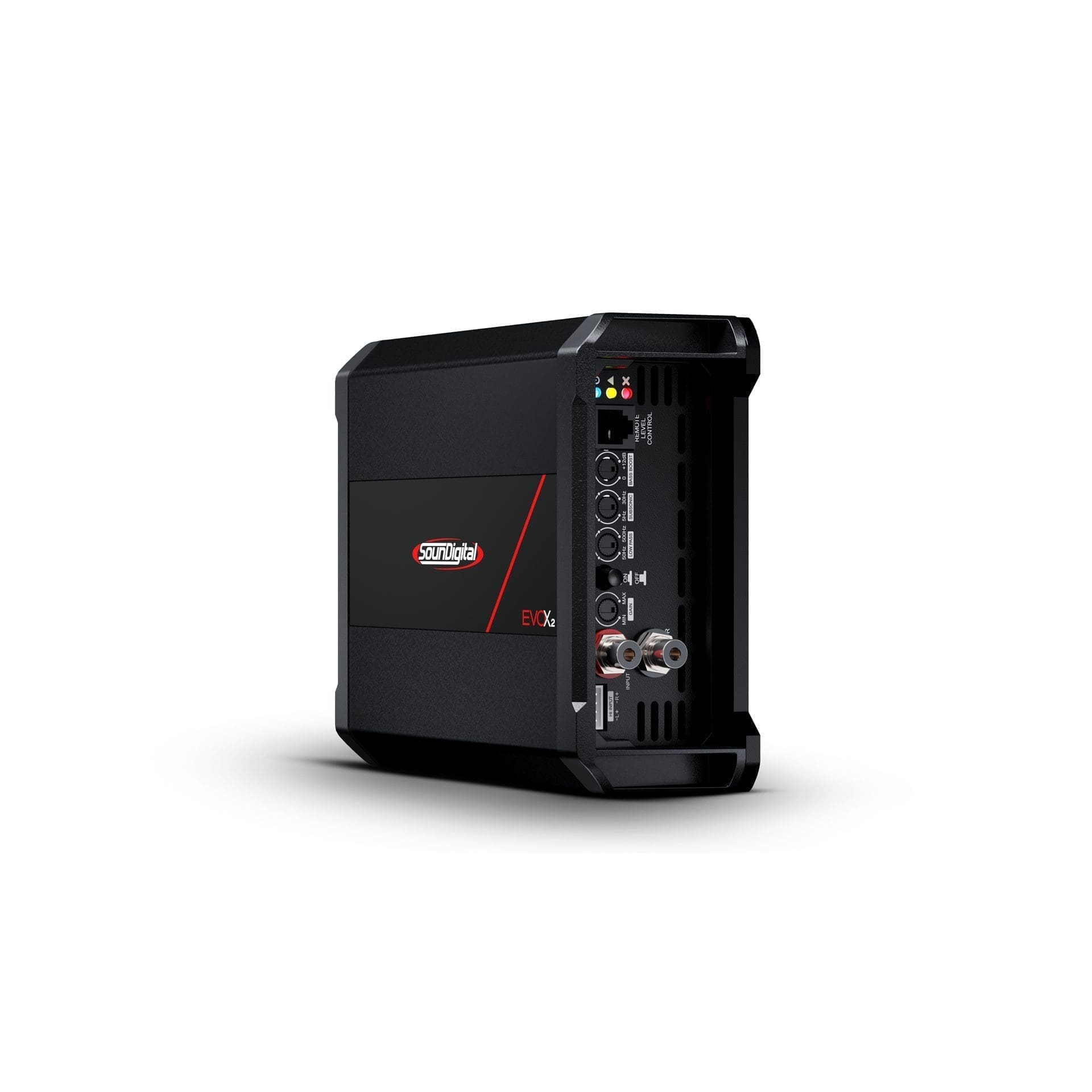

SounDigital 1600.1 EVOX2 Amplifier

$599.99

-

SounDigital 1600.1 EVOX2 Amplifier

Brand:
N/A.

The 1600.1 EVOX2 is a compact, modern amplifier that delivers 1600W RMS of power over 1 channel.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Available in 1 Ohm, or 2 Ohms.

Specs

1600.1 EVOX2 – 1 OHM Power @ 1Ω: 1 X 1600W RMS
Power @ 2Ω: 1 X 1056W RMS
Power @ 4Ω: 1 X 657W RMS
1600.1 EVOX2 – 2 OHMS Power @ 1Ω: N/A
Power @ 2Ω: 1 X 1600W RMS
Power @ 4Ω: 1 X 1056W RMS
Operating Voltage: 8V – 16V
Current Draw (Music): 62A
Current Draw (Max): 125A
Recommended Fuse (Music): 70A
Total Efficiency: 89%
Damping Factor: >2000
Frequency Response: 5Hz - 25kHz
SNR: 94db
Crossover: LPF: 50Hz - 500Hz
HPF: 5Hz - 30Hz
THD + N (10% Rated Power): 0.10%
Length: 7 in / 18 cm
Width: 5.3 in / 13.6 cm
Height: 2.1 in / 5.5 cm

Resources

Manual
