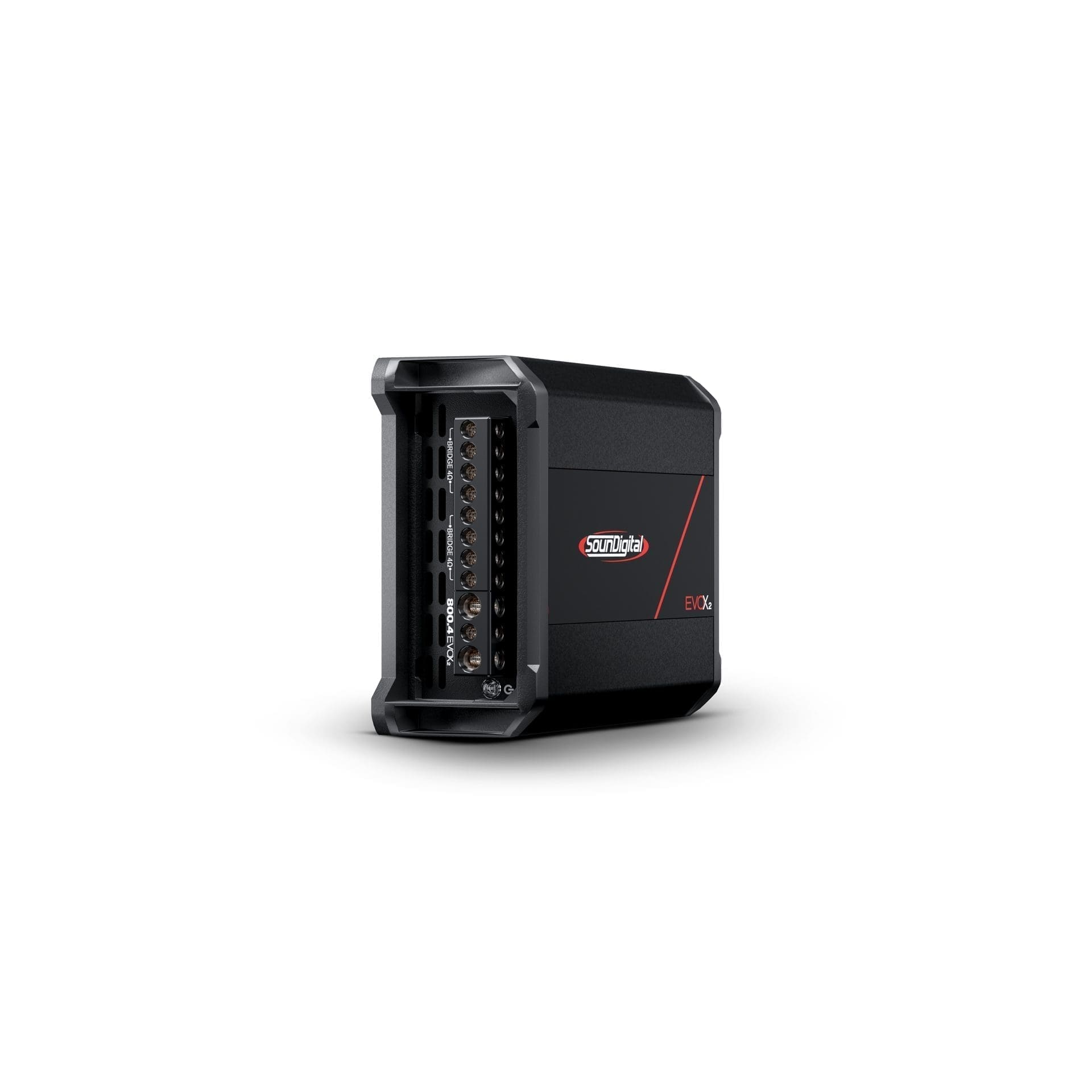

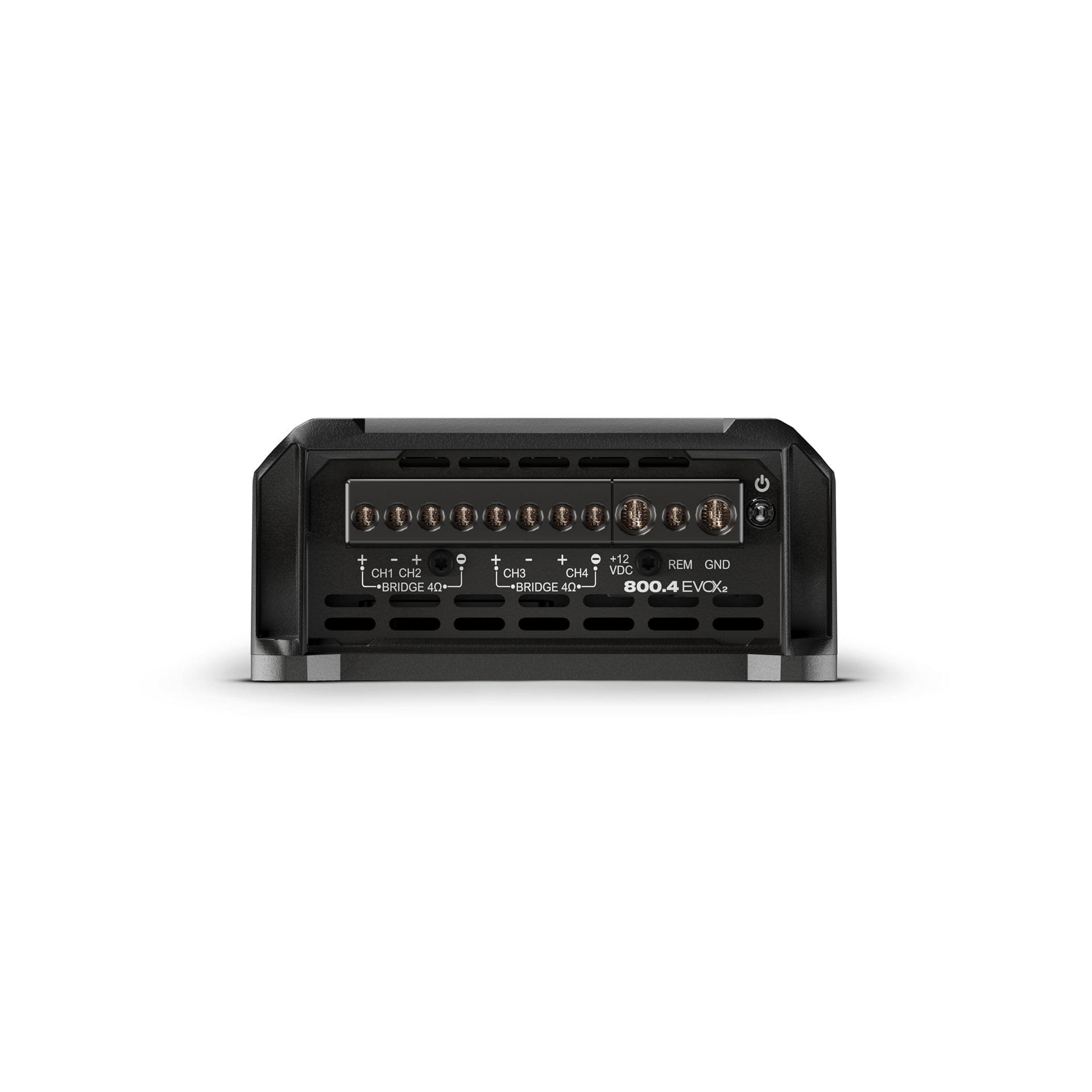

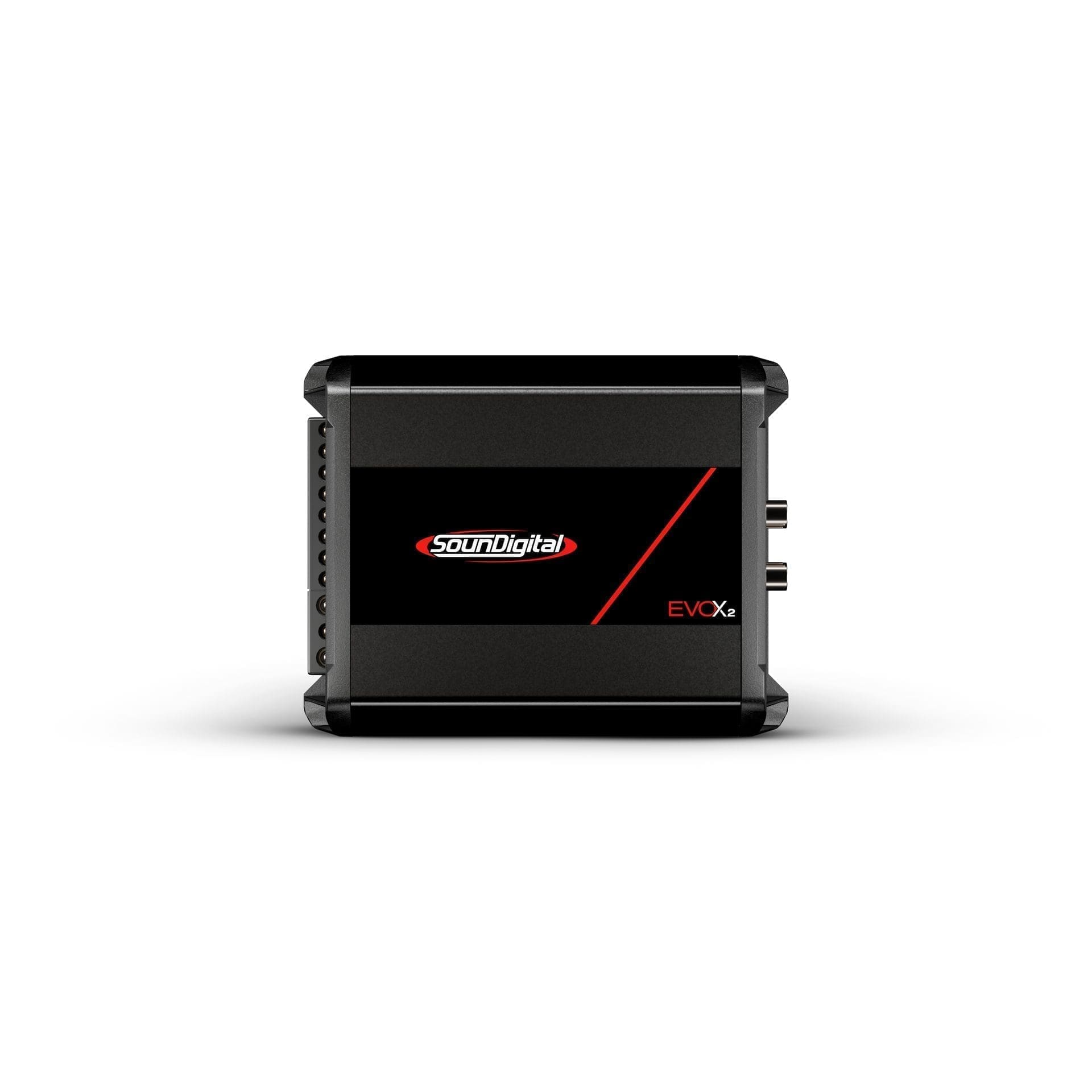

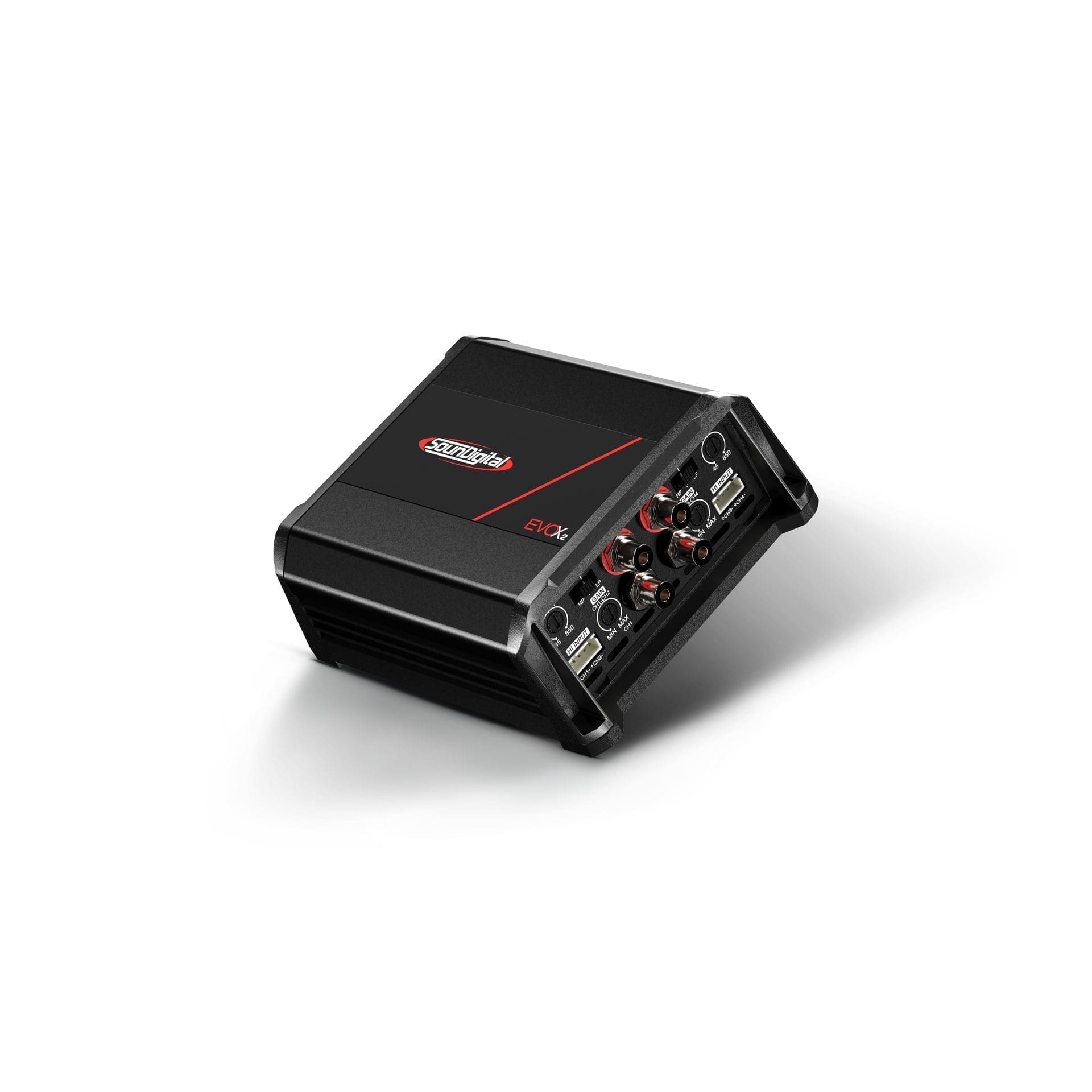

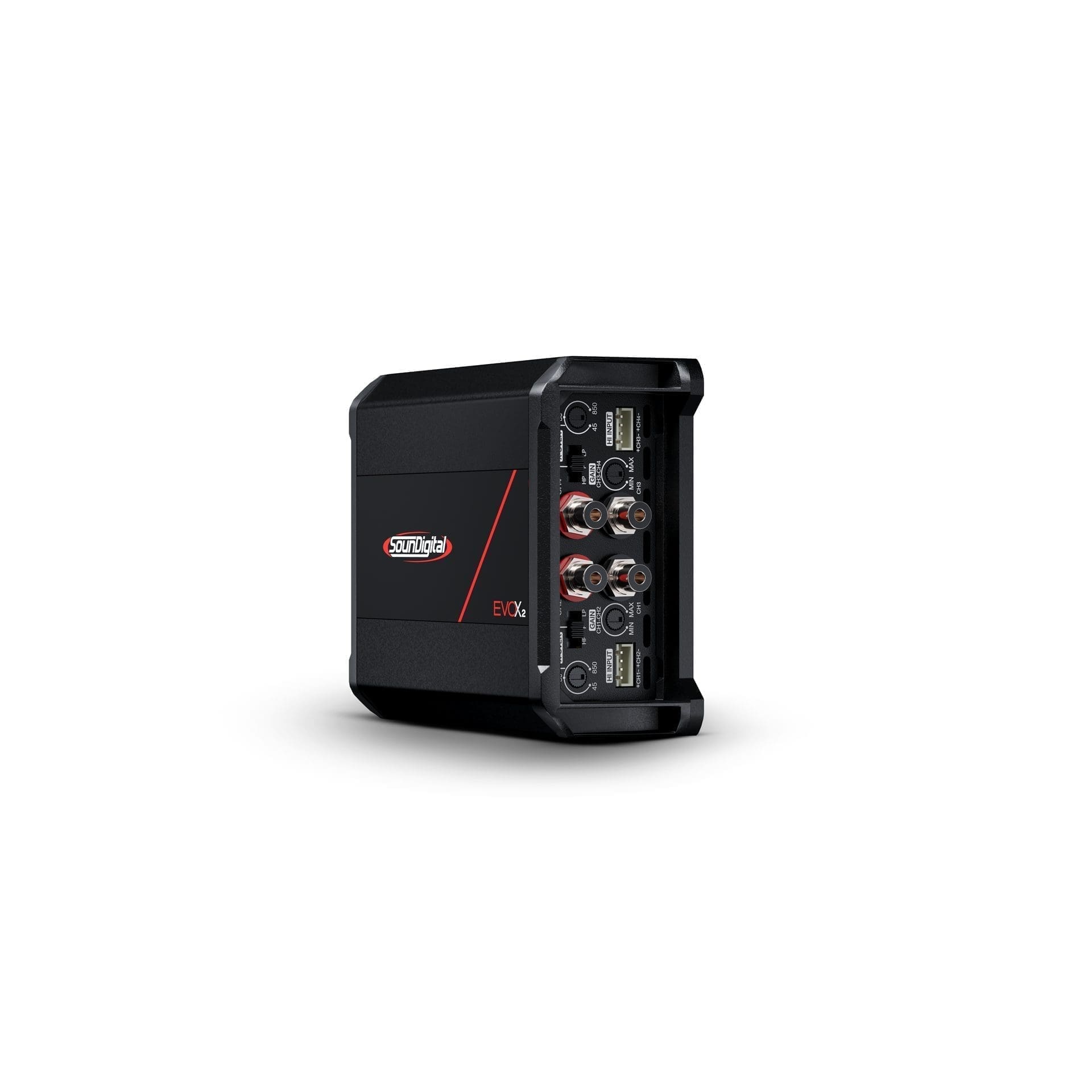

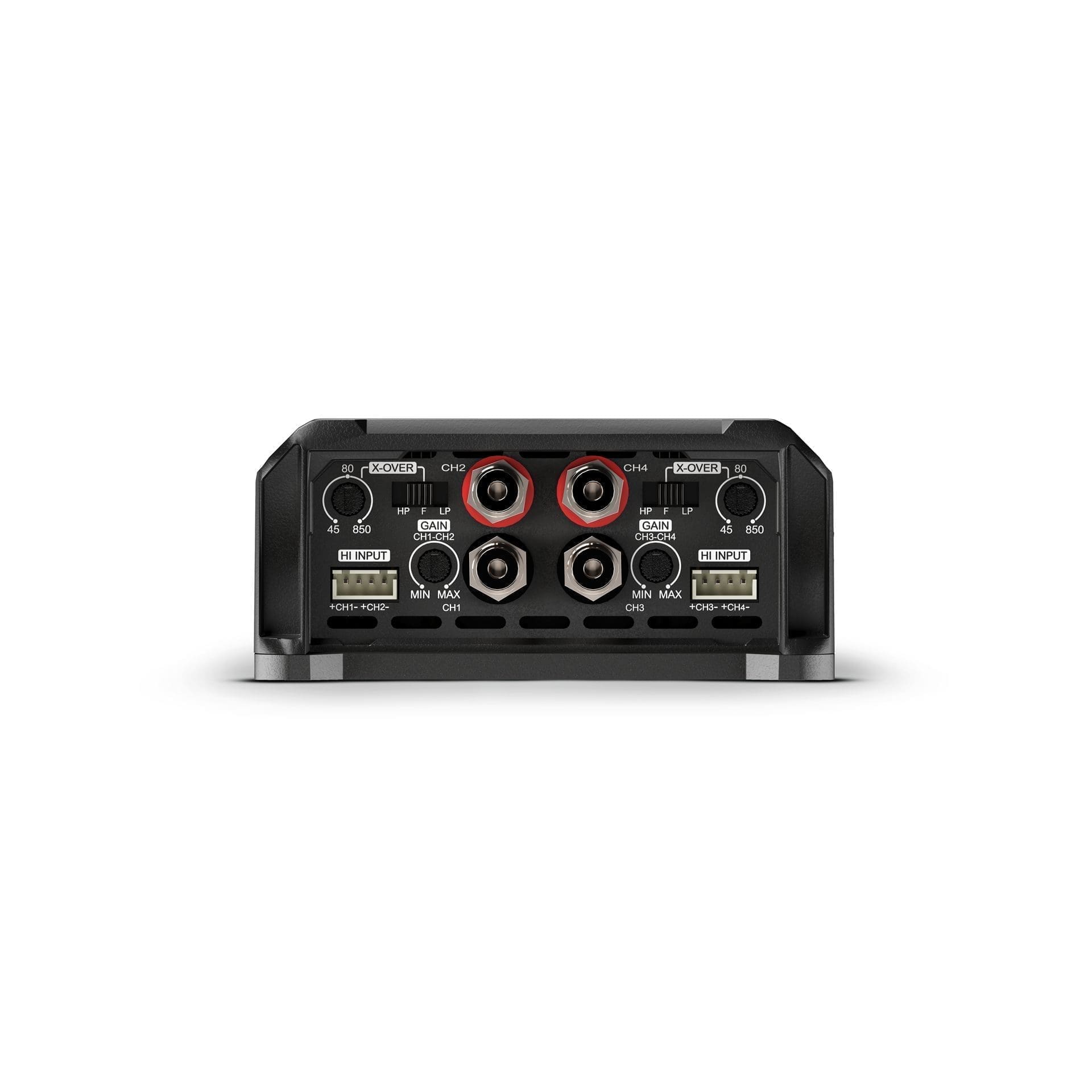

The 800.4 EVOX2 is a compact, modern amplifier that delivers 800W RMS of power over 4 channels.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Specs

Power @ 4Ω: 4 X 132 WRMS

Power @ 2Ω: 4 X 200 WRMS

Bridge Power 4Ω: 2 X 400 WRMS

Operating Voltage: 8V – 16V

Current Draw (Music): 35 A

Current Draw (Max): 70 A

Recommended Fuse (Music): 40 A

Total Efficiency: 80%

Damping Factor: 200

Frequency Response (-3dB): 5Hz – 22kHz

SNR: 91dB

Crossover HPF: 45Hz – 850Hz

Crossover LPF: 45Hz – 850Hz

THD + N (10% Rated Power): 0.1%

Product Dimensions: 5.8 x 4.4 x 2.0 in
