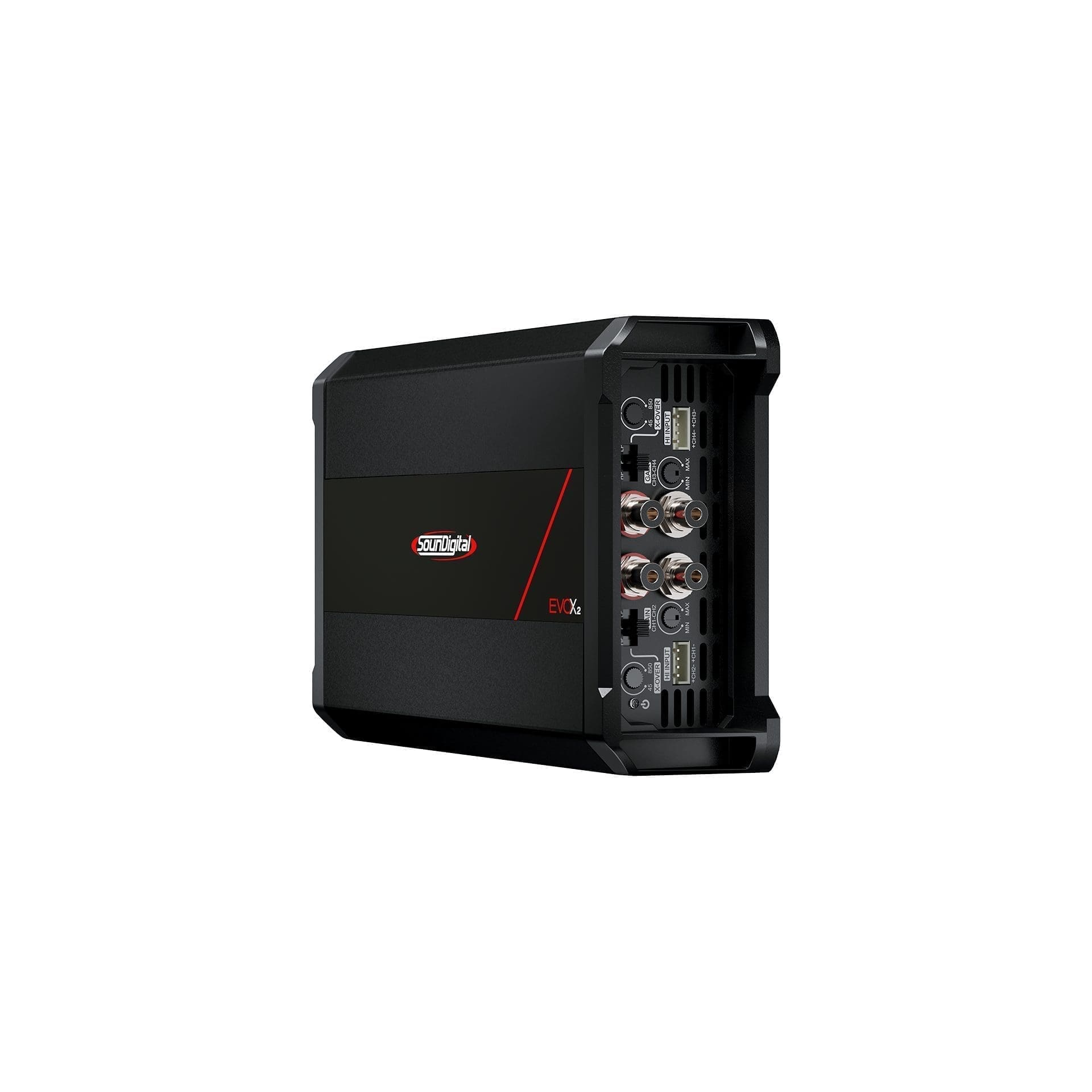

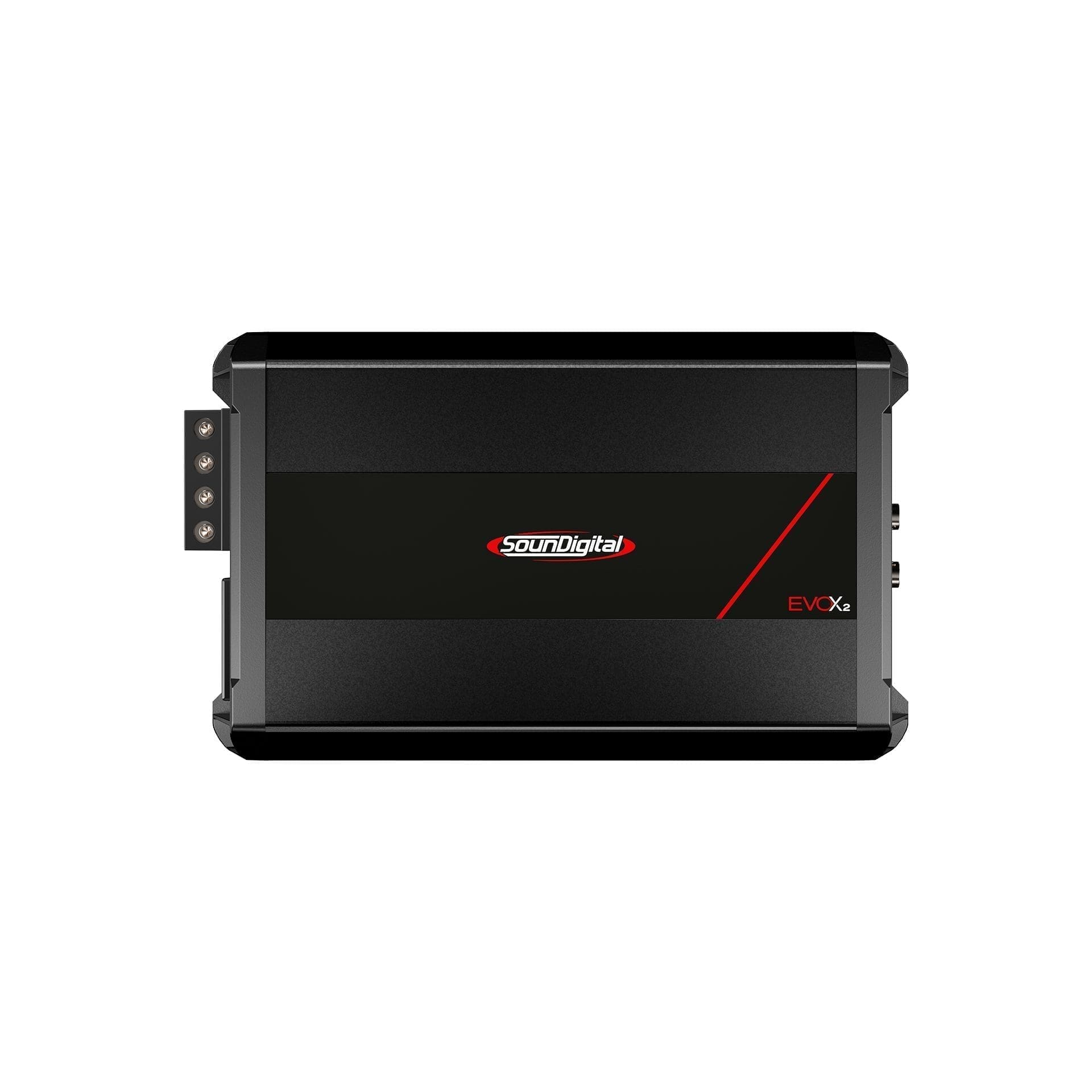

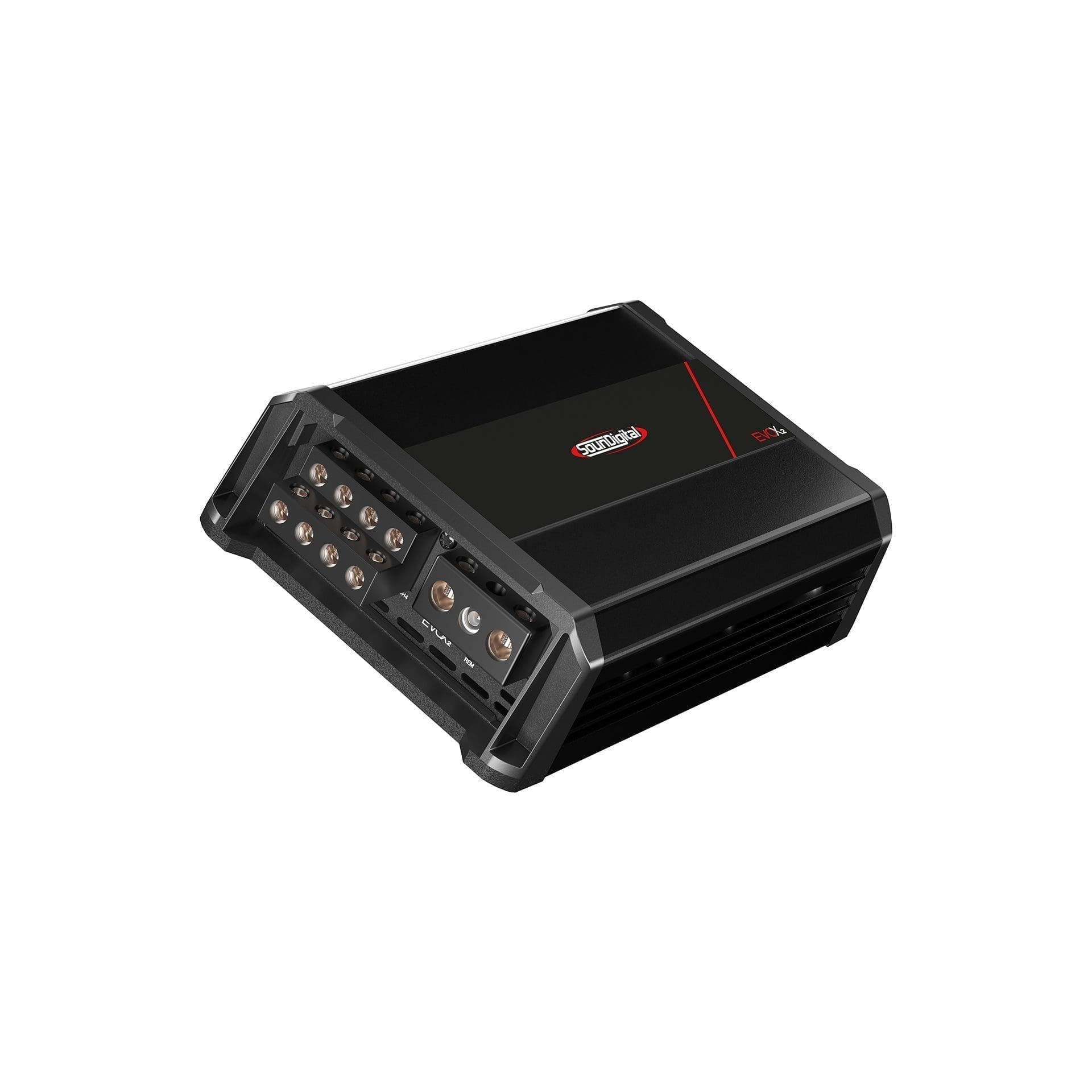

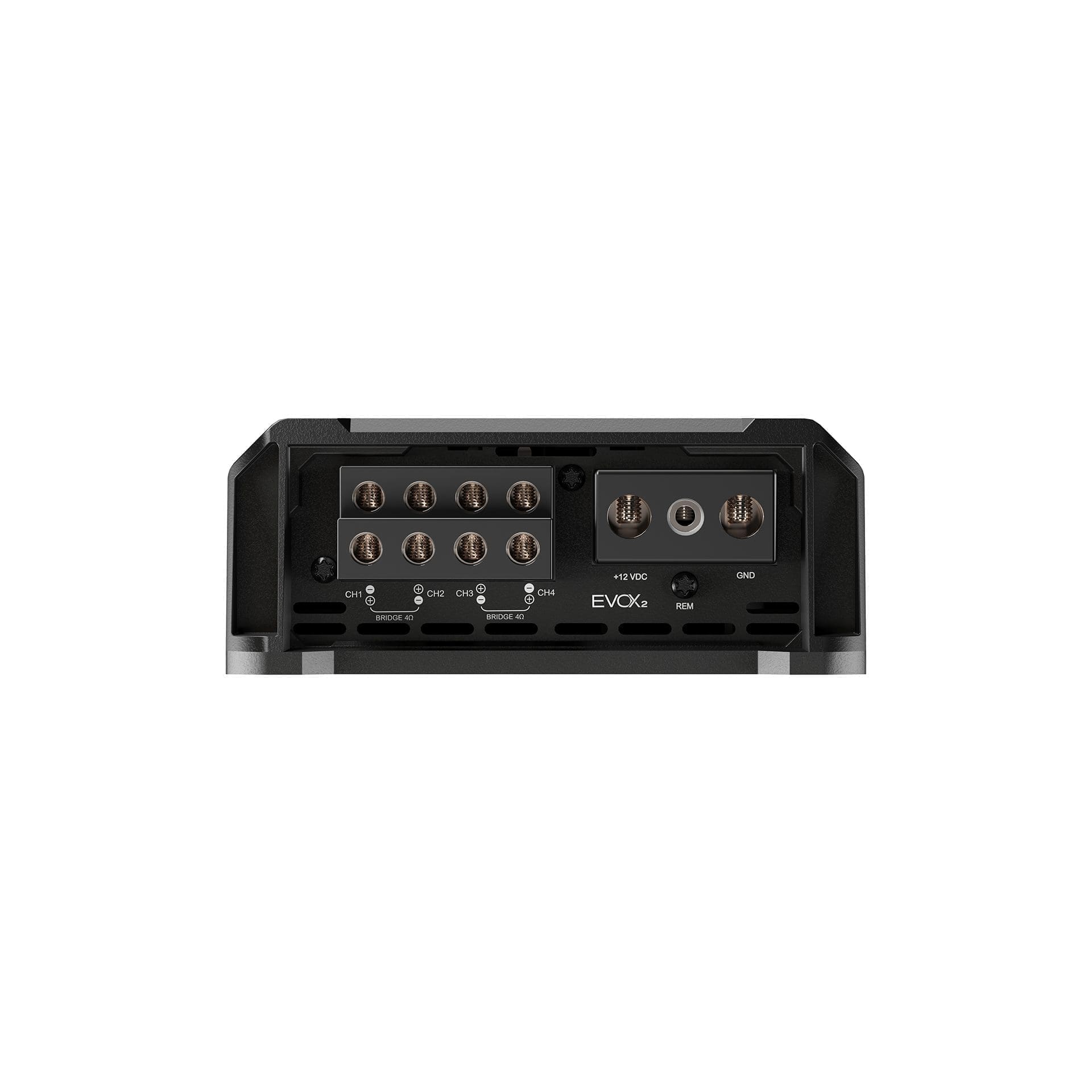

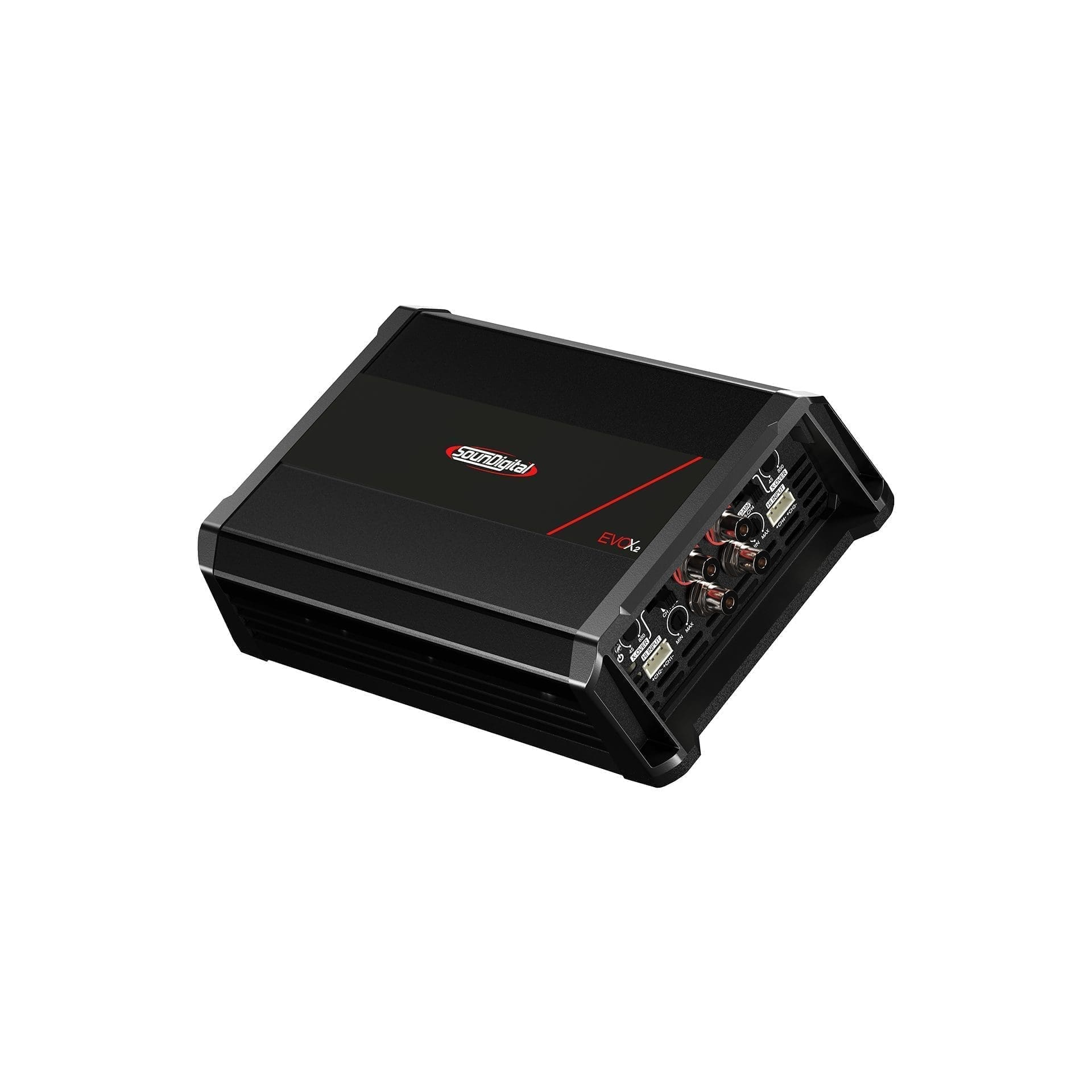

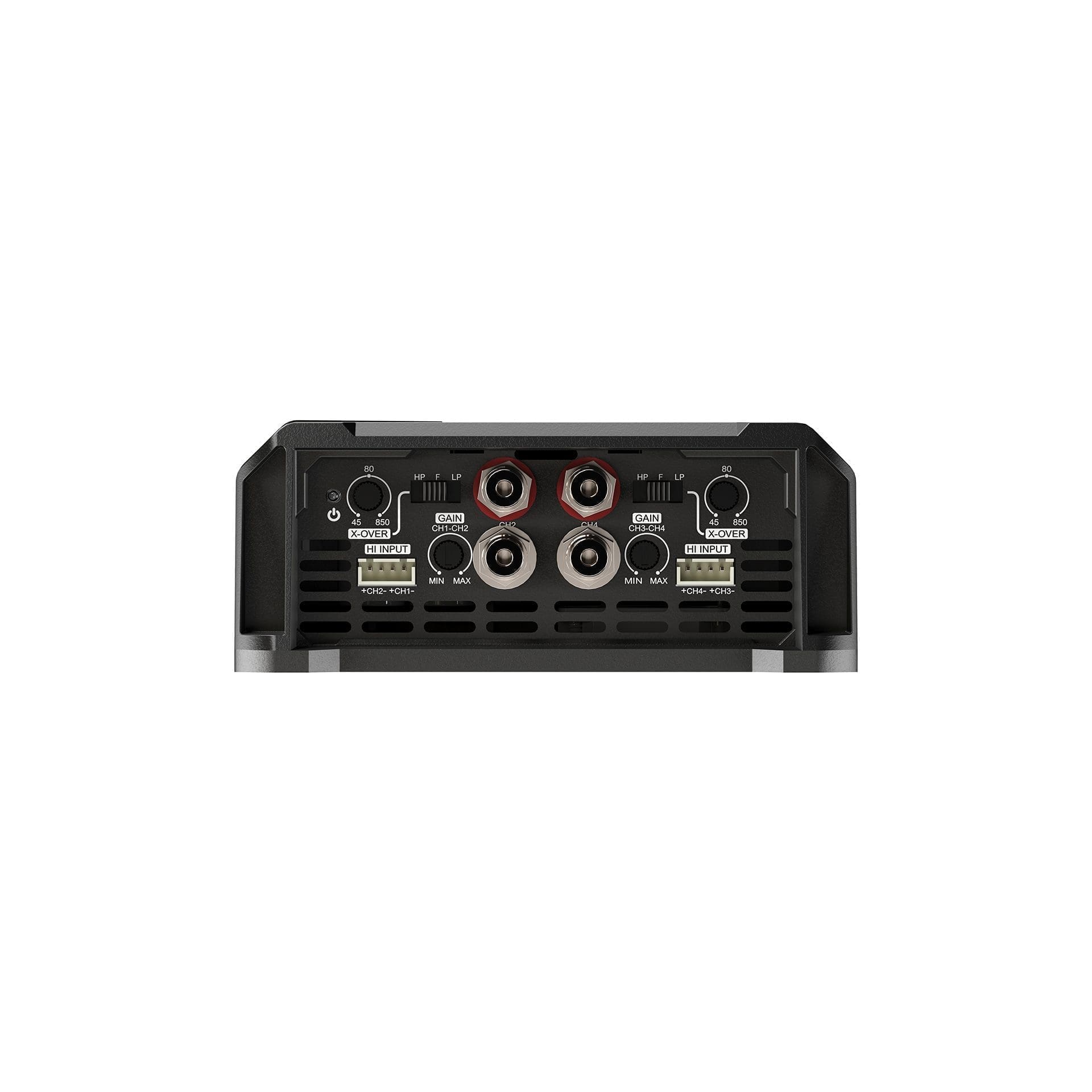

The 2400.4 EVOX2 is a compact, modern amplifier that delivers 2400W RMS of power over 4 channels.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Specs

Power @ 12.6V @ 4Ω: 4 X 396 WRMS

Power @ 12.6V @ 2Ω: 4 X 600 WRMS

Bridge Power @ 12.6V @ 4Ω: 2 X 1200 WRMS

Operating Voltage: 8V – 16V

Current Draw (Music): 104 A

Current Draw (Max): 208 A

Recommended Fuse (Music): 120 A

Total Efficiency: 80%

Damping Factor: 200

Frequency Response (-3dB): 5Hz – 25kHz

SNR: 90dB

Crossover HPF: 45Hz – 850Hz

Crossover LPF: 45Hz – 850Hz

THD + N (10% Rated Power): 0.1%

Product Dimensions: 8.9 x 5.4 x 2.2 in

Product Dimensions: 22.7 x 13.6 x 5.5 cm

Resources

Manual
