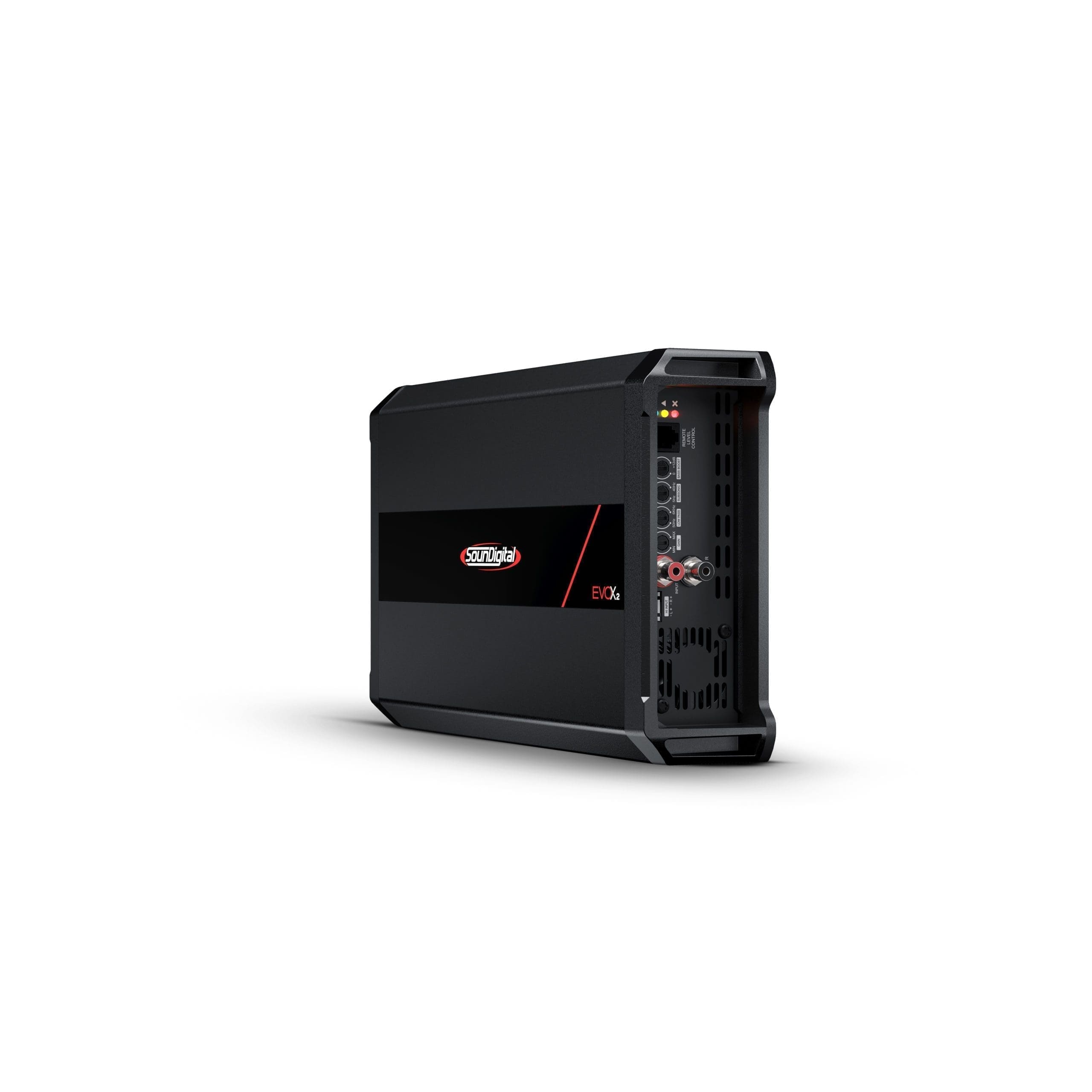

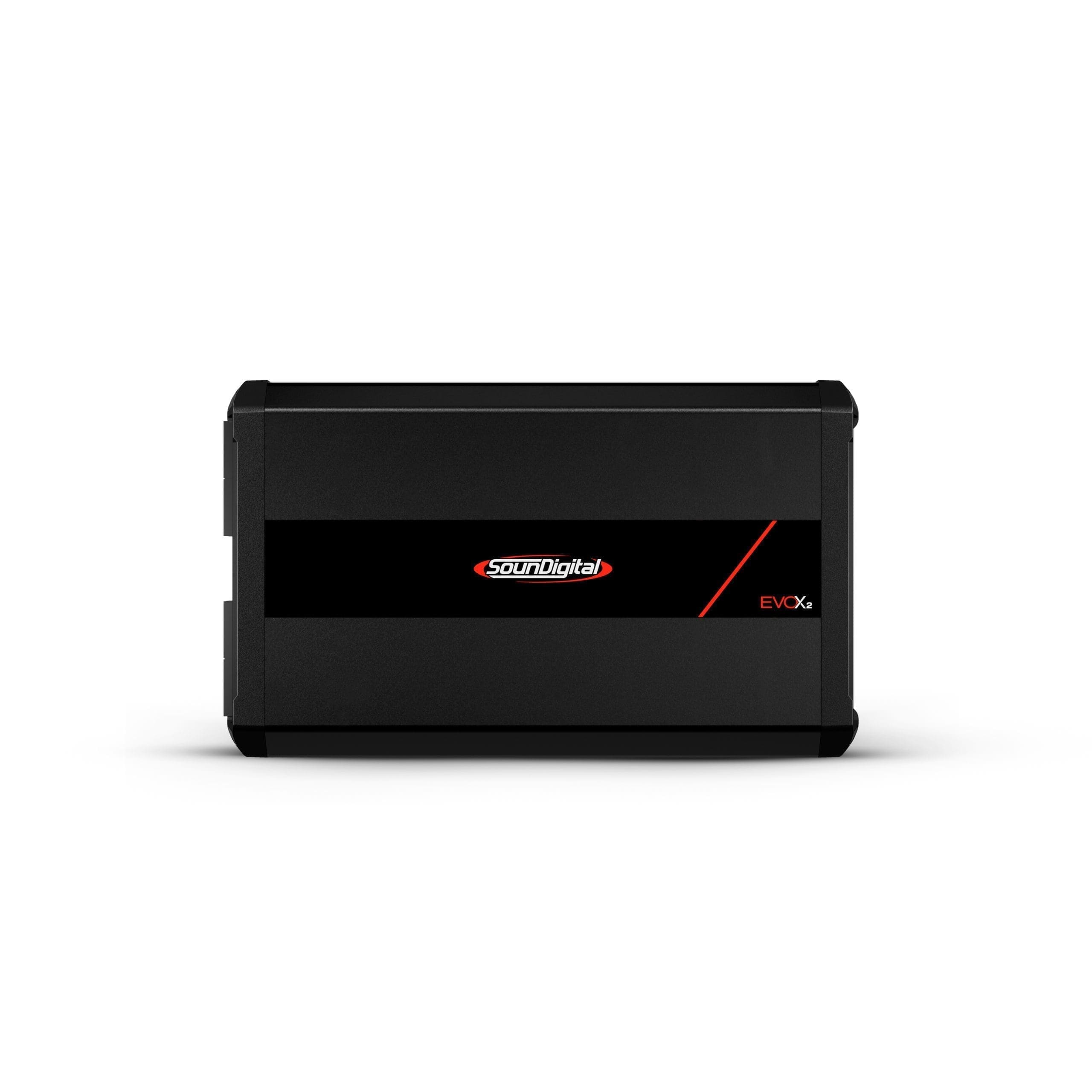

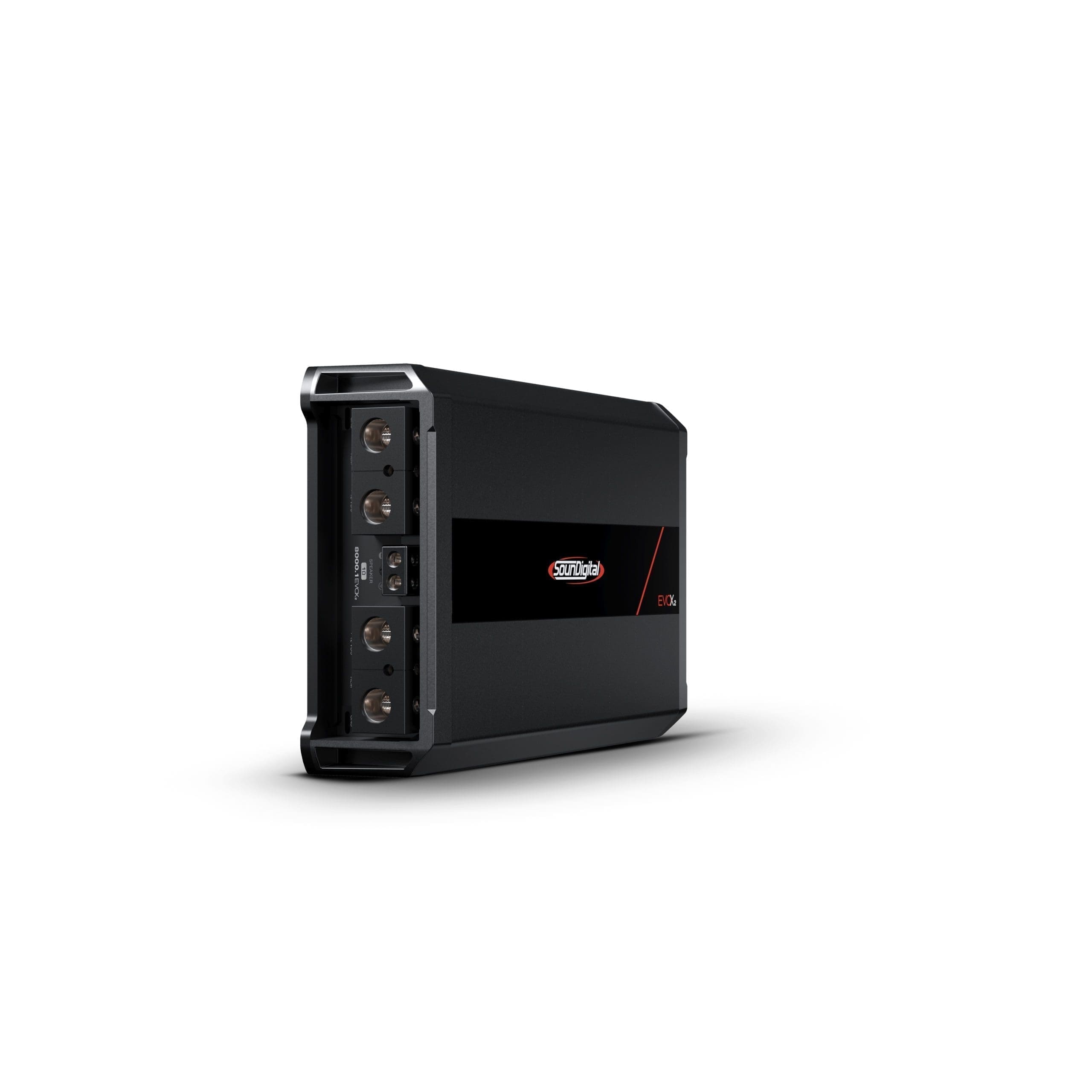

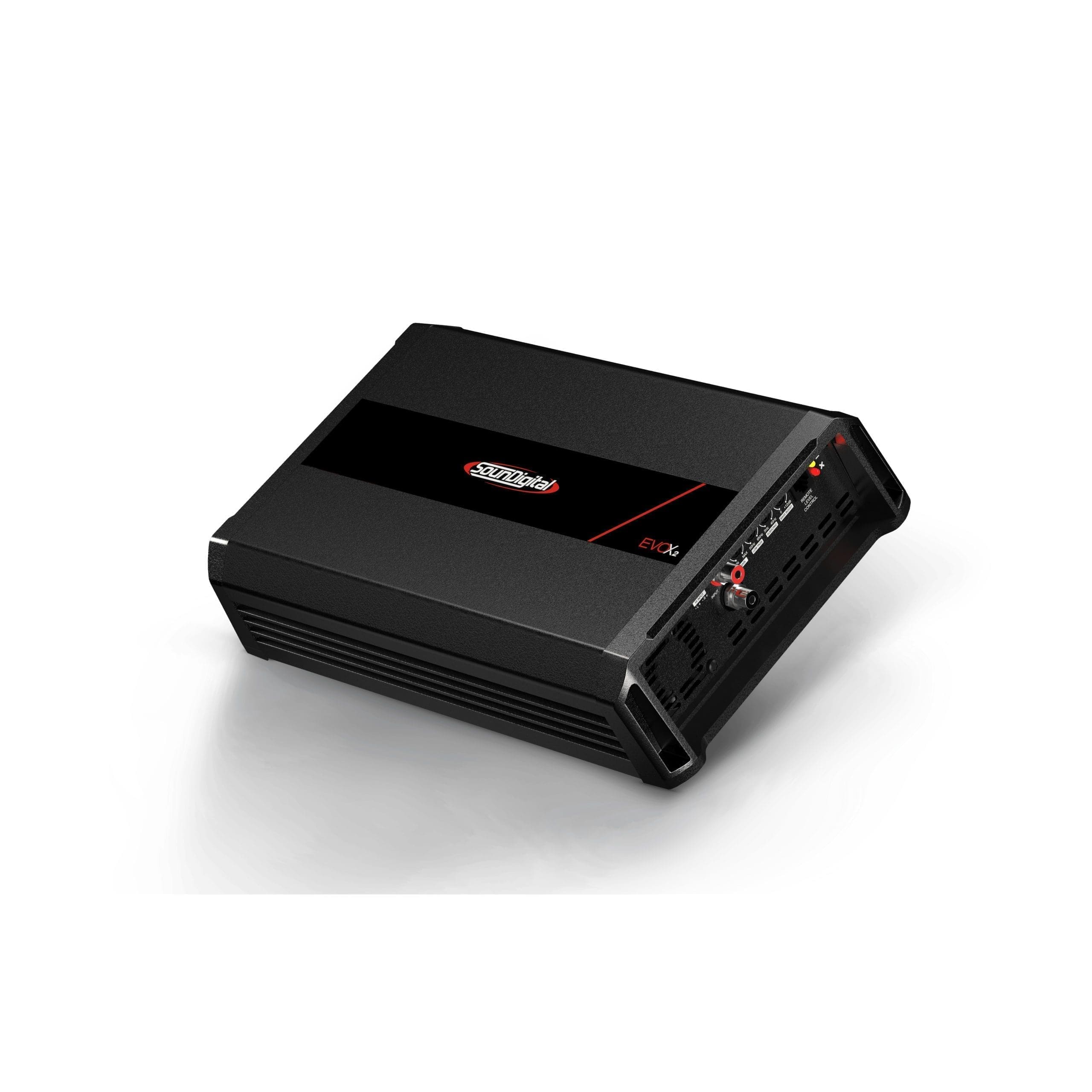

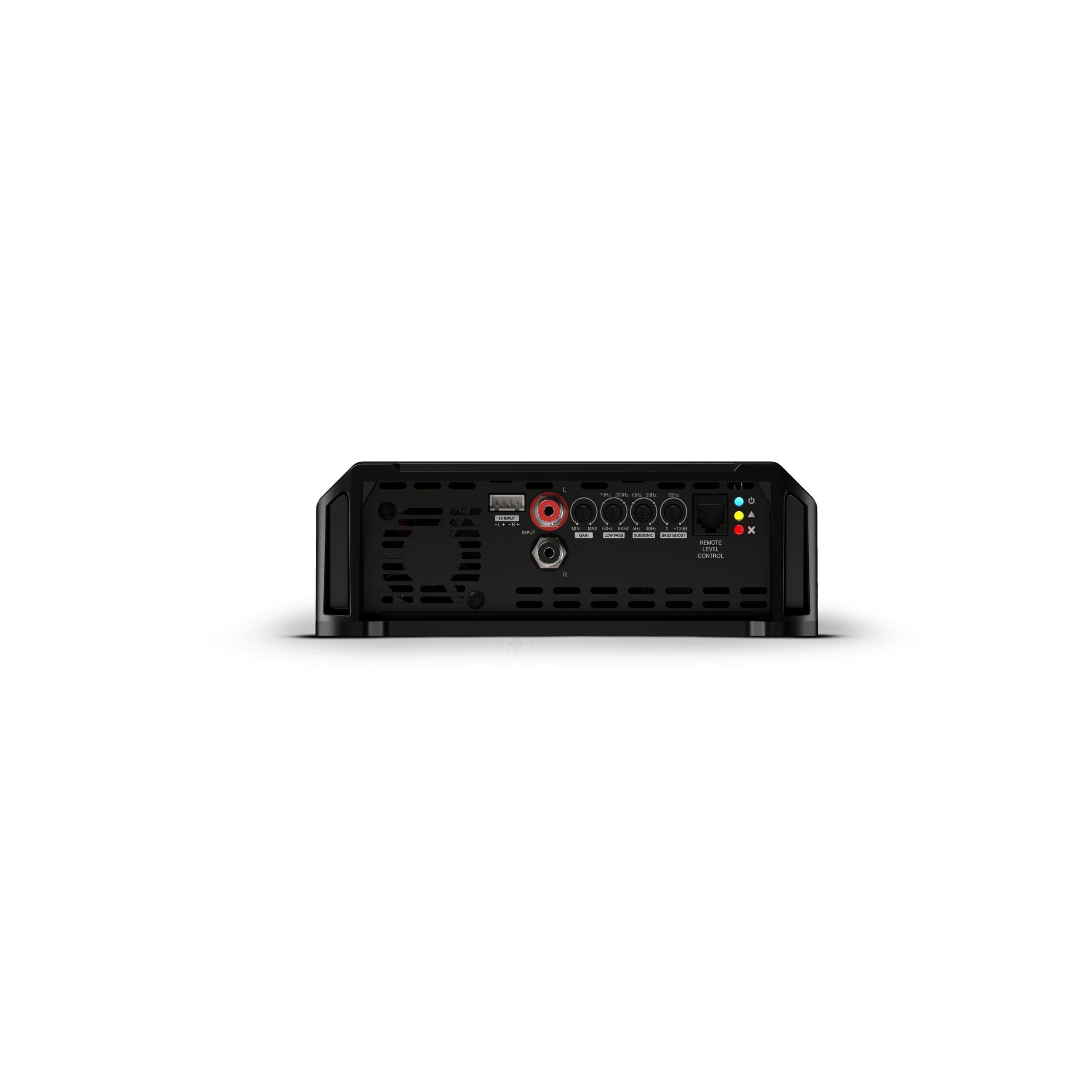

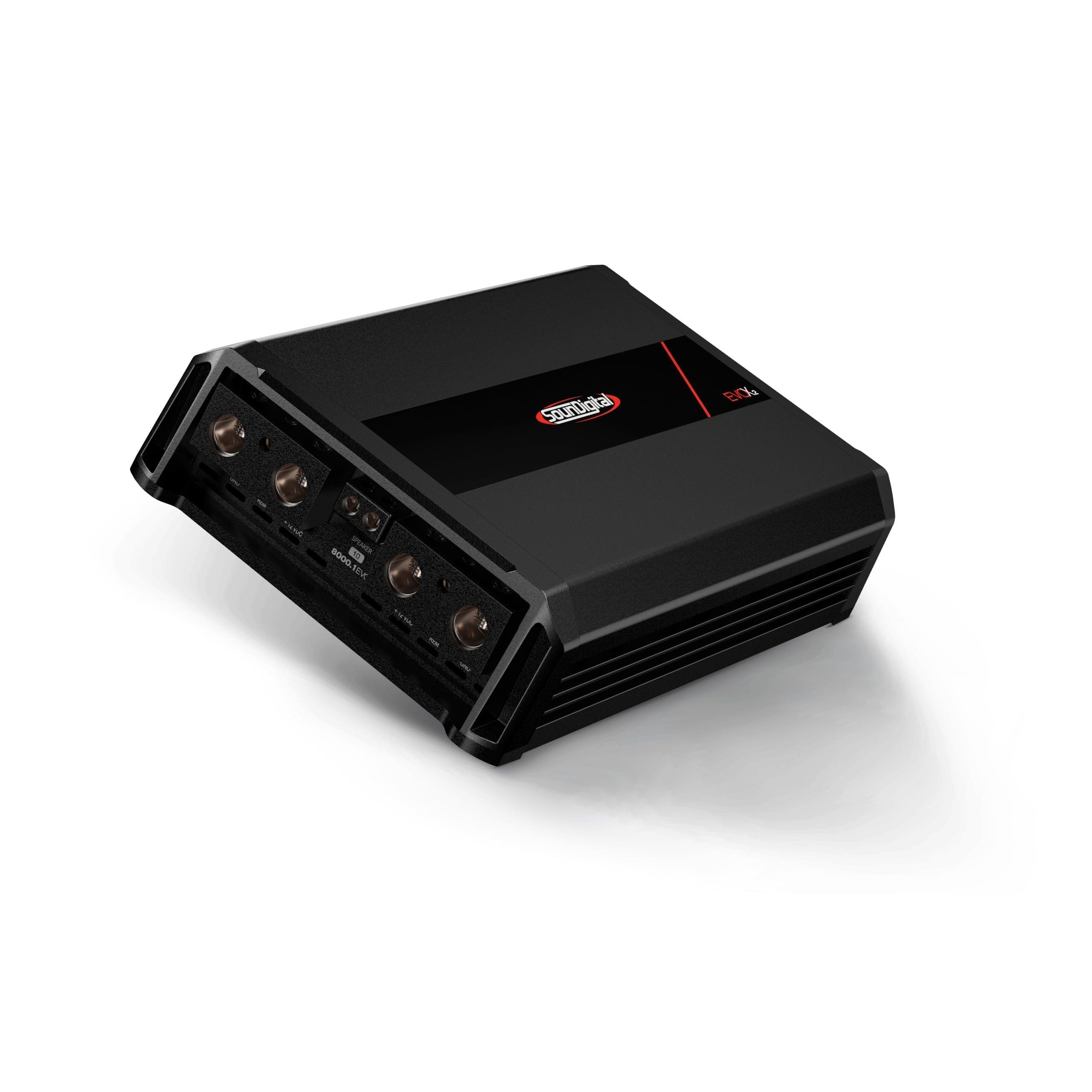

SounDigital 8000.1 EVOX2 Amplifier



SounDigital 8000.1 EVOX2 Amplifier


The 8000.1 EVOX2 is a compact, modern amplifier that delivers 8000W RMS of power over 1 channel.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.


8000.1 EVOX2 – 1 OHM Power @ 1Ω: 1 X 8000W RMS
Power @ 2Ω: 1 X 5280W RMS
Power @ 4Ω: 1 X 3485W RMS
8000.1 EVOX2 – 2 OHMS Power @ 1Ω: N/A
Power @ 2Ω: 1 X 8000W RMS
Power @ 4Ω: 1 X 5280W RMS
Frequency Response (-3dB): 5Hz - 6kHz
Subsonic Filter (12dB/oct.): 5Hz ~ 40Hz
Low Pass Filter (12dB/oct.): 50Hz ~ 6kHz
Bass Boost: 0dB ~ 12dB @ 50Hz
Operating Voltage: 8V – 16V
Current Draw (Music): 343A
Current Draw (max): 686A
Recommended Fuse (Music): 400A
Recommended Battery (minimum): 400Ah
Total Efficiency: 81%
Damping Factor (@100Hz nominal impedance): >2000
Power Cable: 70mm² / 00AWG
Speaker Cable: 2 x 6 mm² / 9 AWG
SNR: 82dB
Input Sensitivity (RCA): 1Ω: 0.19V ~ 2.23V
2Ω: 0.19V ~ 2.29V
Input Sensitivity (High Level input): 1Ω: 1.32V ~ 15.52V
2Ω: 1.33V ~ 15.99V
Length: 12.2 in
Width: 7.1 in
Height: 2.5 in
