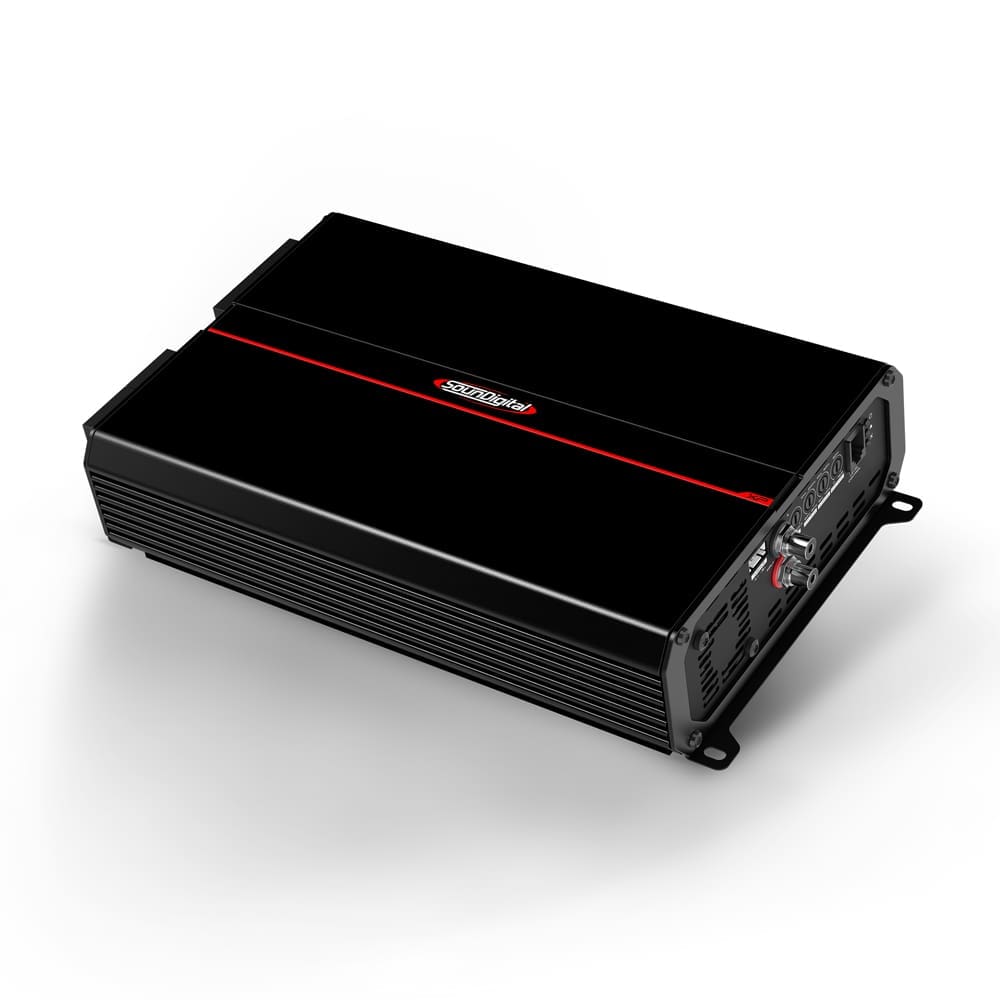

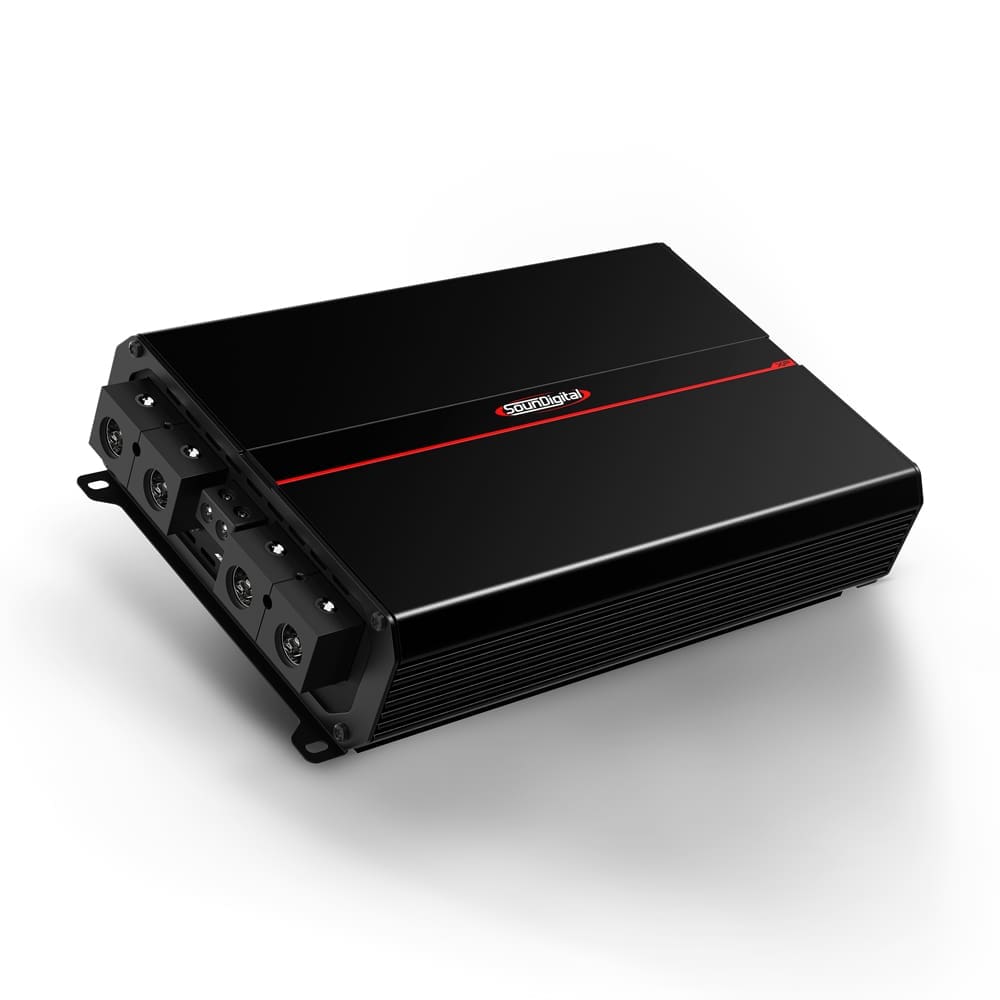

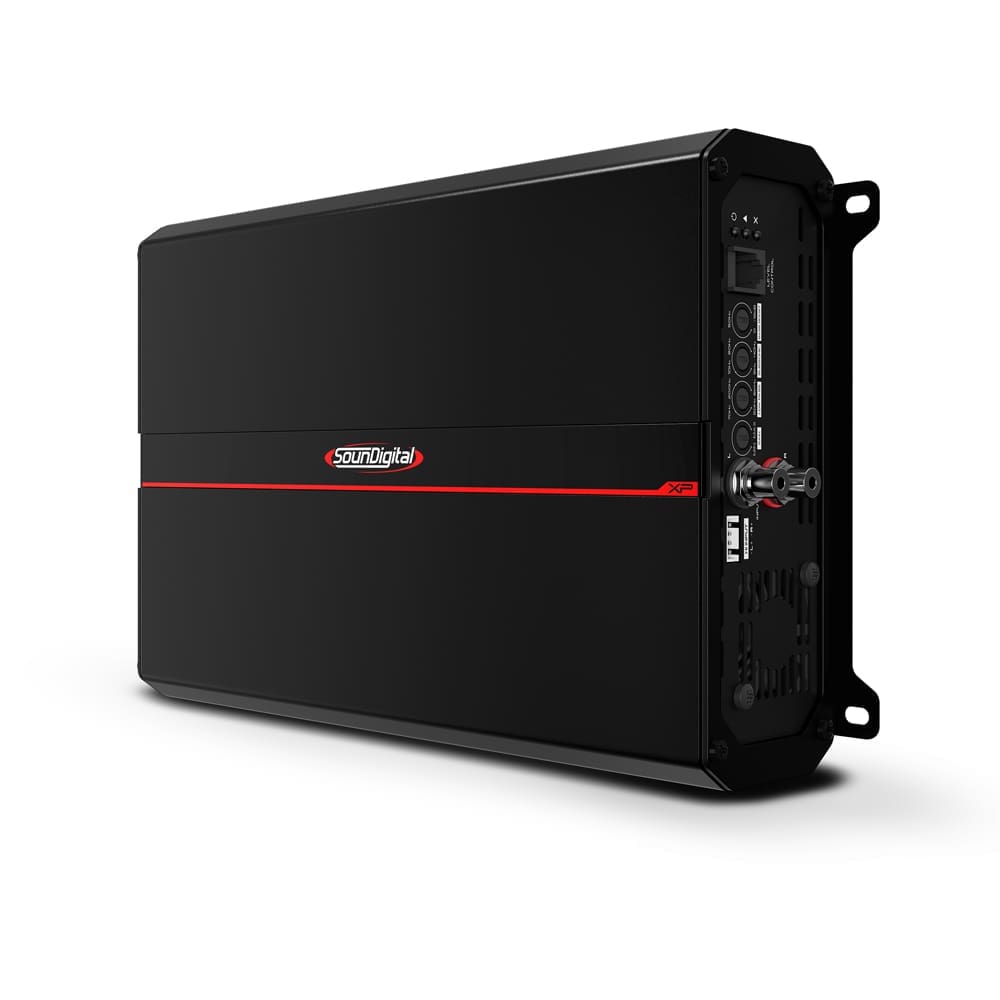

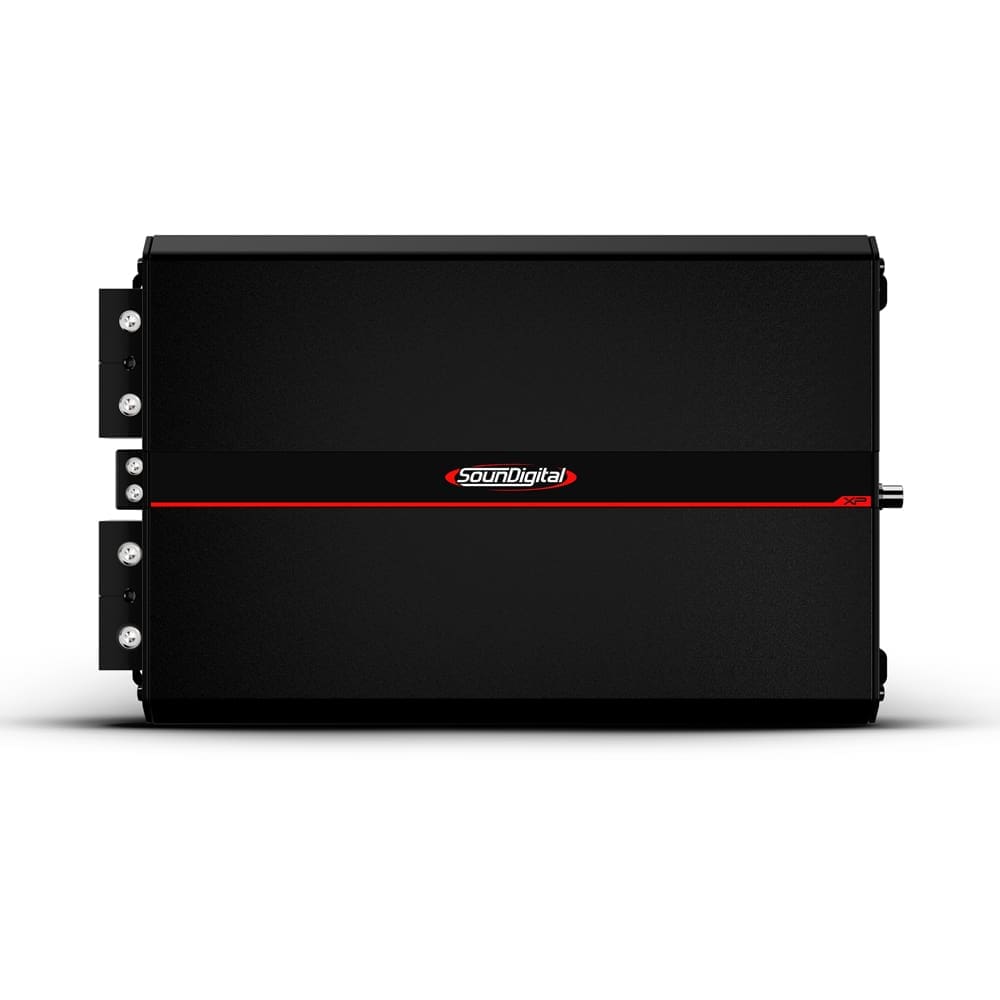

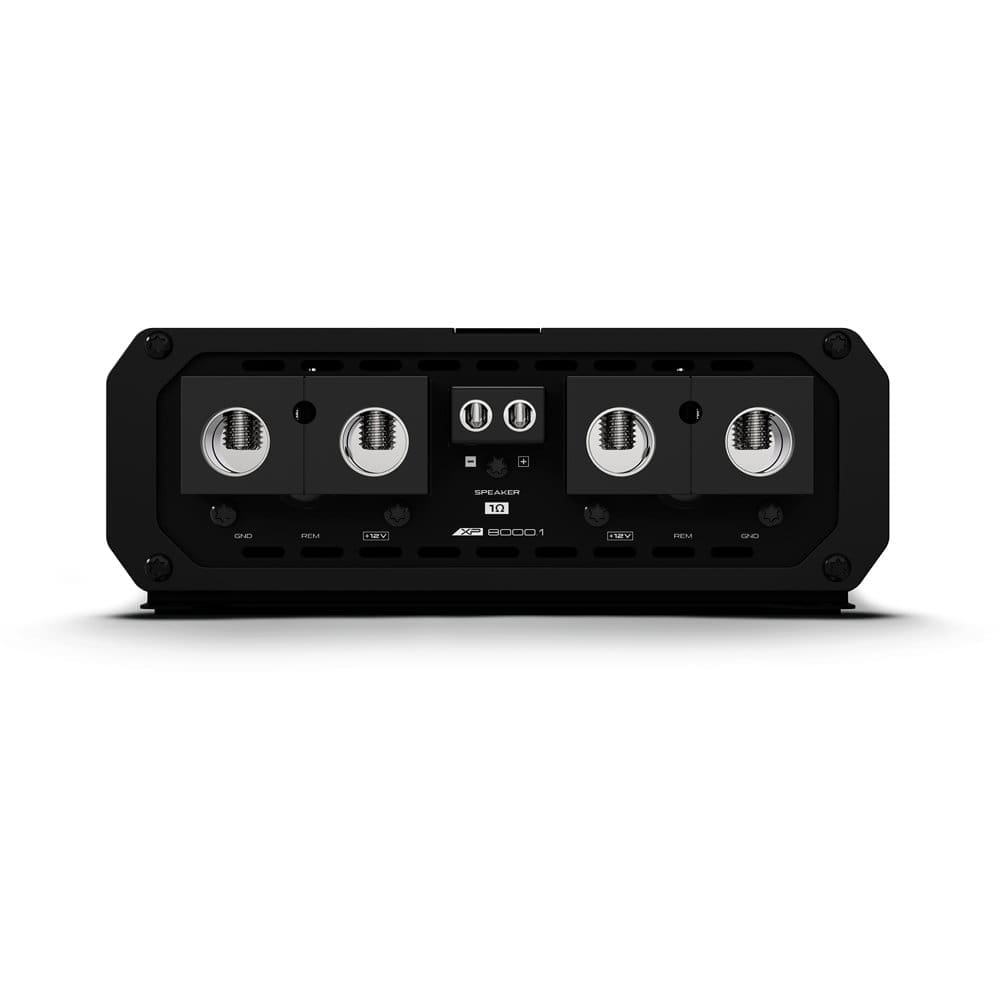

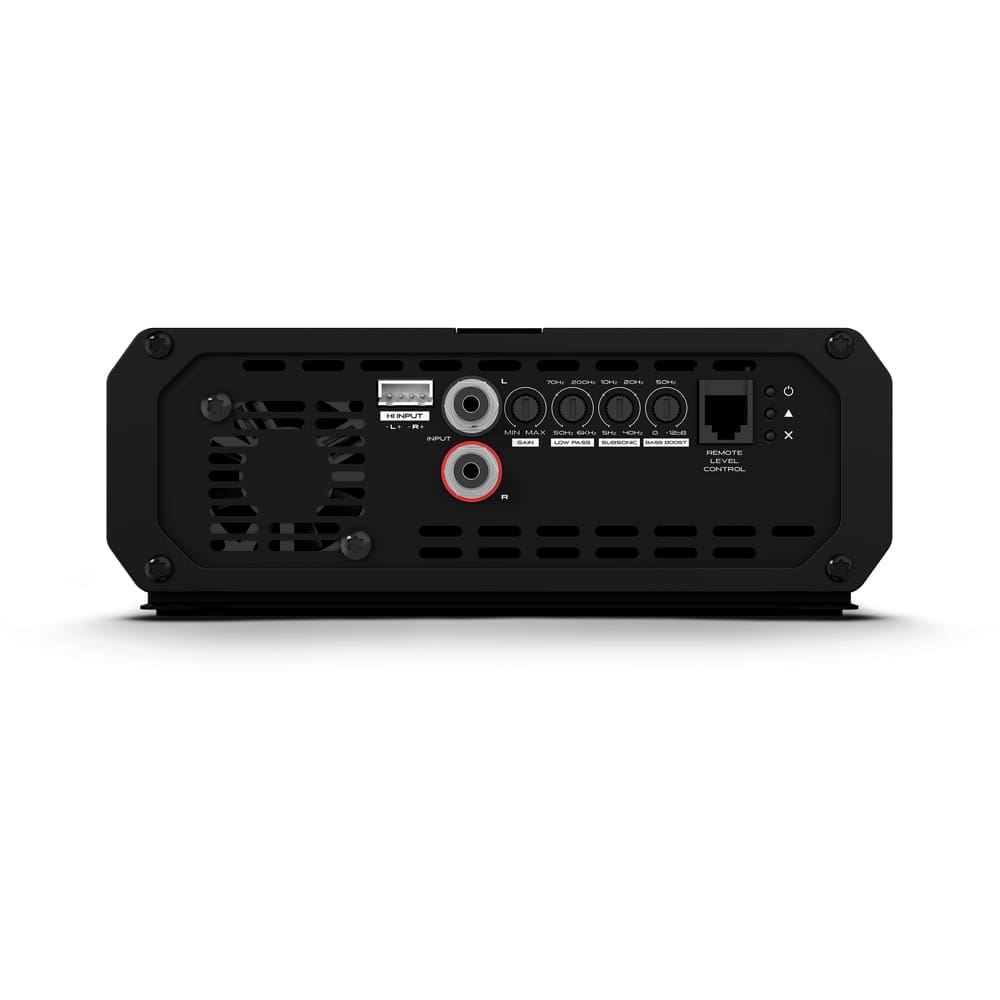

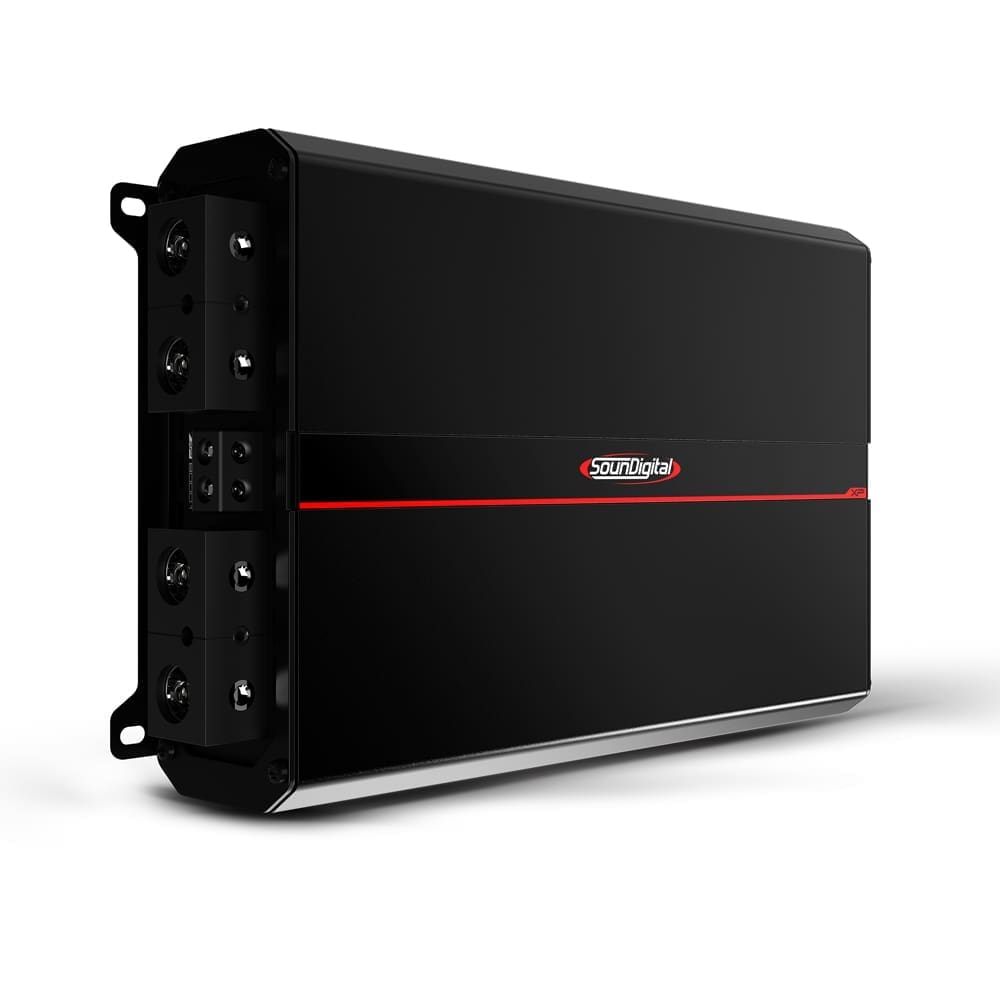

SounDigital XP8000.1
-
SounDigital XP8000.1
The NEW SounDigital XP motorcycle amplifiers are composed of the highest-quality components, allow high-quality sound from your speakers, and are more efficient for your motorcycle or marine speaker system. Using the latest technology, this motorcycle amplifier features a compact design to allow installation in tight areas.
Specs
XP8000.1-1
| POWER @ 4 OHM: | 1 X 3520 WRMS |
| POWER @ 2 OHM: | 1 X 5300 WRMS |
| POWER @ 1 OHM: | 1 X 8000 WRMS |
| OPERATING VOLTAGE: | 9V – 16V |
| CURRENT DRAW (MUSIC): | 334 A |
| CURRENT DRAW (MAX): | 668 A |
| RECOMMENDED FUSE (MUSIC): | 400 A |
| FREQUENCY RESPONSE (-3dB): | 5Hz – 6000Hz |
| SNR: | 82dB |
| CROSSOVER HPF: | 5Hz – 40Hz |
| CROSSOVER LPF: | 50Hz – 6000Hz |
| THD + N (10% RATED POWER): | 0.1% |
| RECOMMENDED BATTERY: | 400Ah |
| POWER CABLE: | 000AWG |
| SPEAKER CABLE: | 5AWG |
| LENGTH: | 11.80″ |
| WIDTH: | 7.10″ |
| HEIGHT: | 2.52″ |
XP8000.1-2
| POWER @ 4 OHM: | 1 X 5300 WRMS |
| POWER @ 2 OHM: | 1 X 8000 WRMS |
| POWER @ 1 OHM: | N/A |
| OPERATING VOLTAGE: | 9V – 16V |
| CURRENT DRAW (MUSIC): | 334 A |
| CURRENT DRAW (MAX): | 668 A |
| RECOMMENDED FUSE (MUSIC): | 400 A |
| FREQUENCY RESPONSE (-3dB): | 5Hz – 6000Hz |
| SNR: | 82dB |
| CROSSOVER HPF: | 5Hz – 40Hz |
| CROSSOVER LPF: | 50Hz – 6000Hz |
| THD + N (10% RATED POWER): | 0.1% |
| RECOMMENDED BATTERY: | 400Ah |
| POWER CABLE: | 000AWG |
| SPEAKER CABLE: | 5AWG |
| LENGTH: | 11.80″ |
| WIDTH: | 7.10″ |
| HEIGHT: | 2.52″ |
