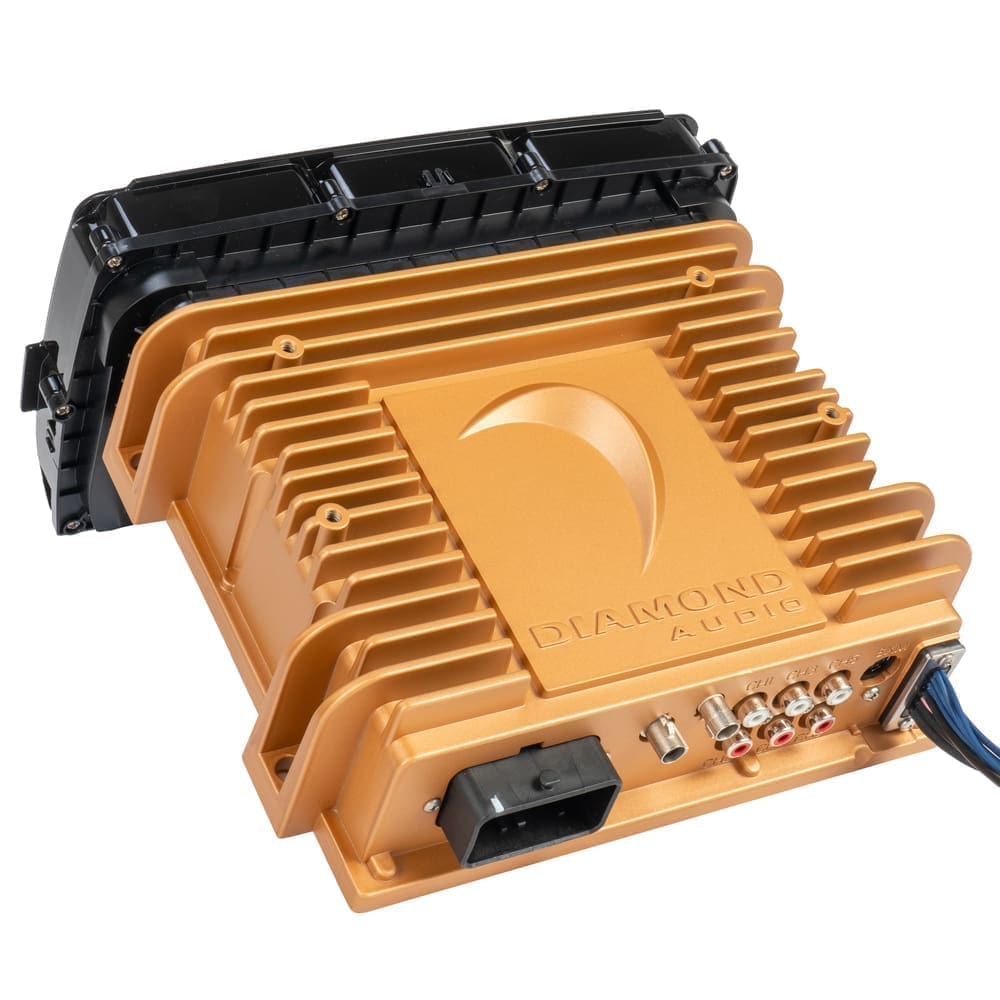

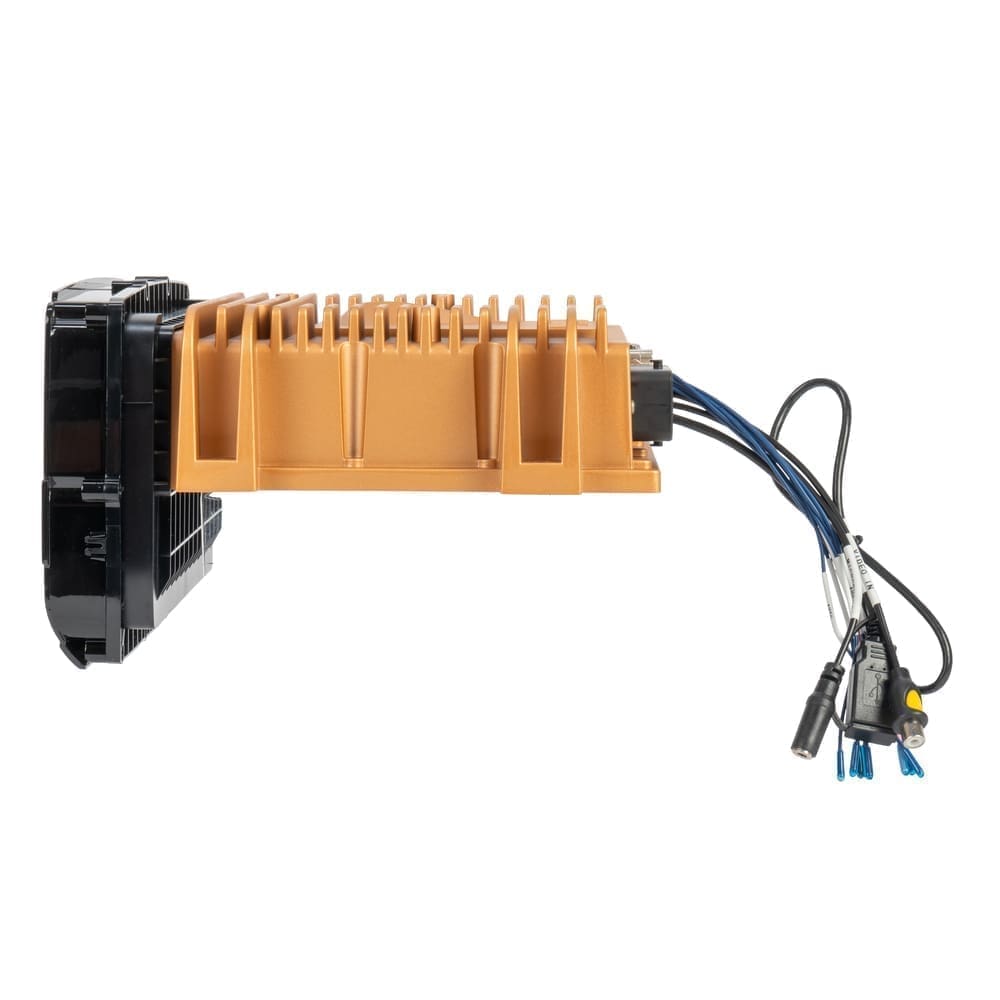

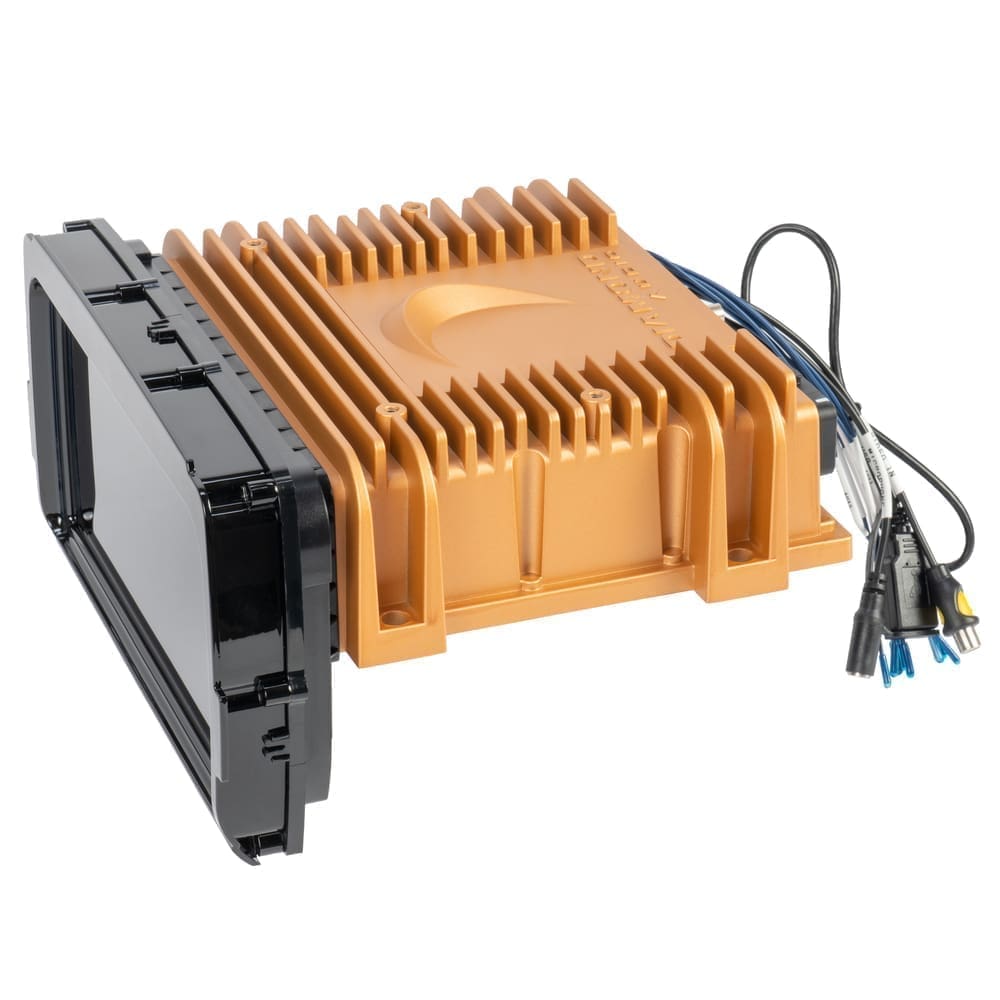

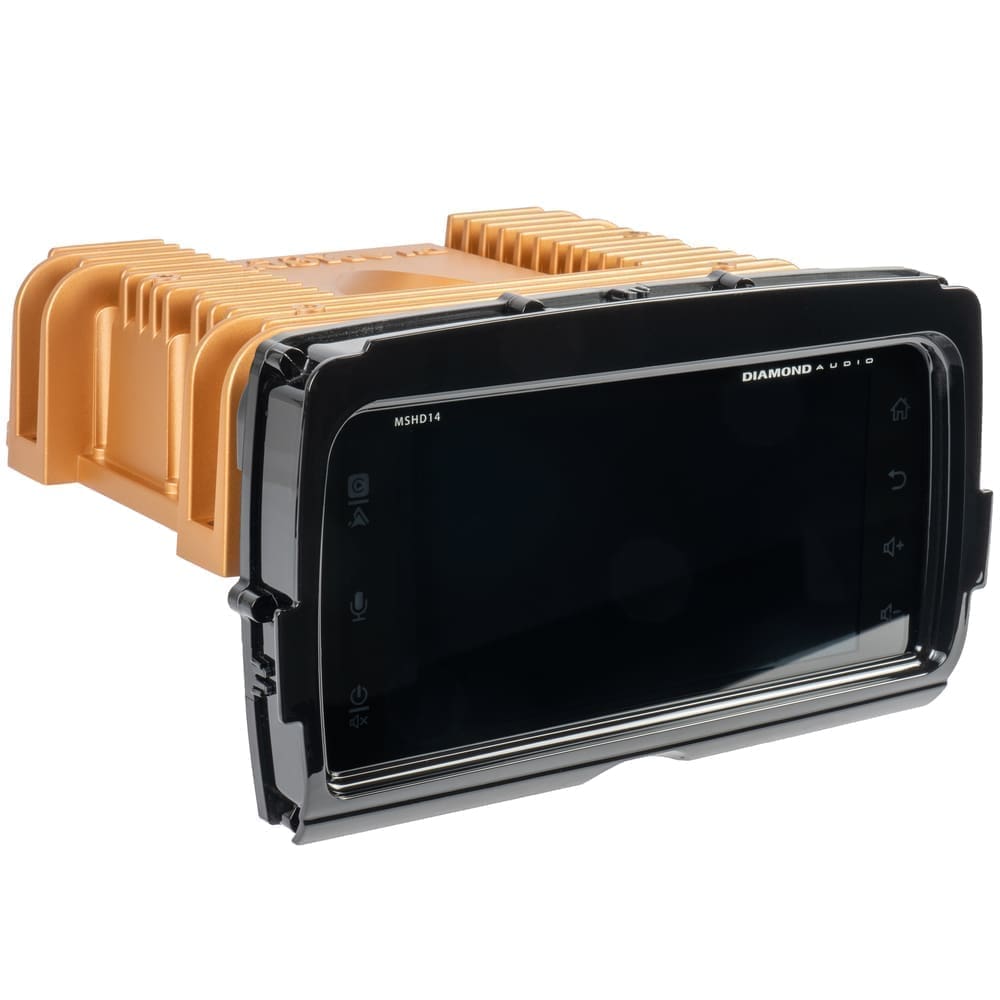

Diamond Audio 7″ Touch Screen Head Unit For HD Touring ’14+



Diamond Audio 7″ Touch Screen Head Unit For HD Touring ’14+

In Stock - Ships in 24-48 hours

UPC: 847169064753

Product Details

• Custom Fit Digital Multimedia Receiver
• 7″ Capacitive Touchscreen Display
• Power Output:
• Peak: 50 watts x 4 channel
• RMS: 28 watts x 4 channel

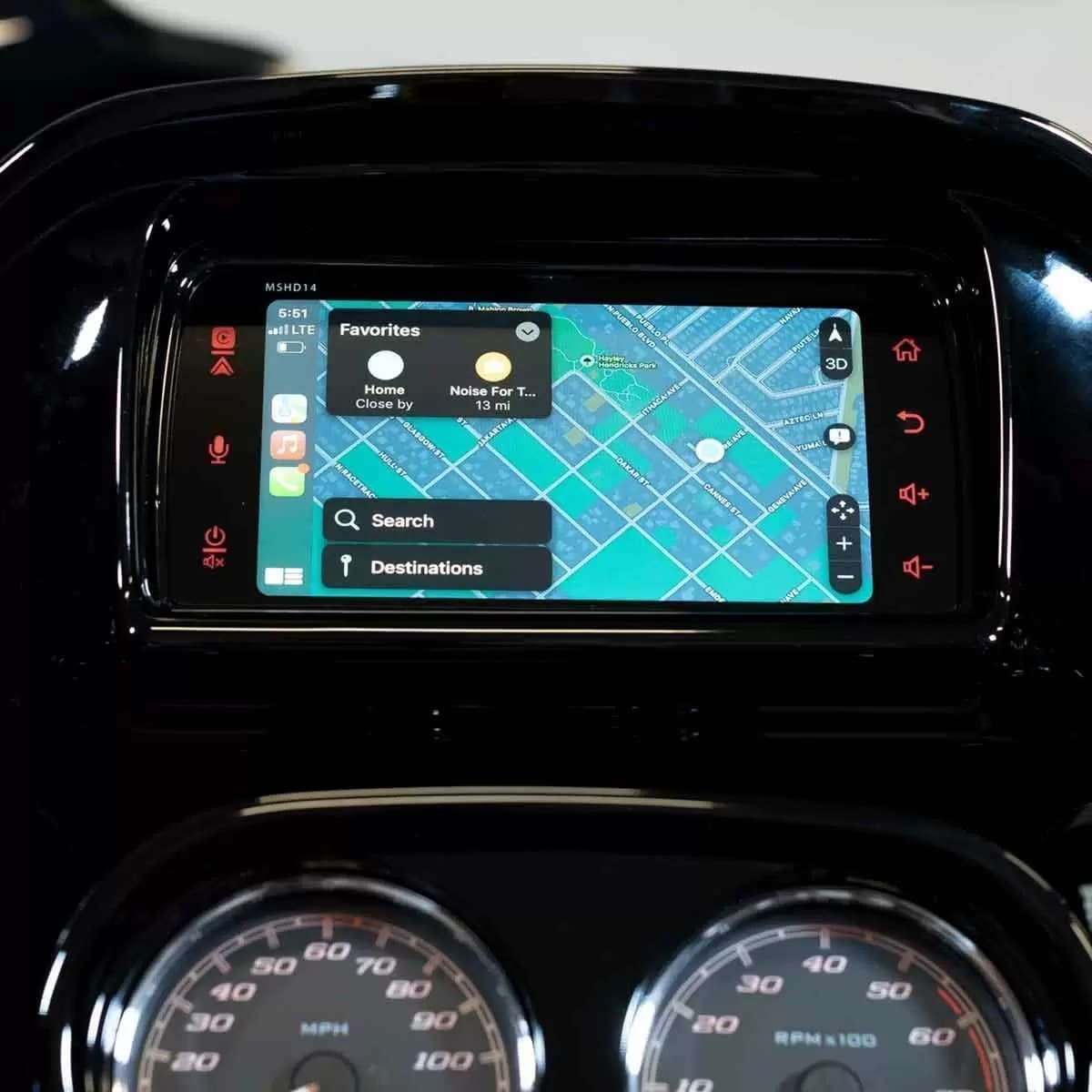

• Built in WiFi for wireless Apple CarPlay and Android Auto
• Utilizes factory USB for phone charging and music playback
• Maestro built in for advanced vehicle data Boom Audio 2 amplifier turn on
• Retains handlebar controls, reconfigurable though programming

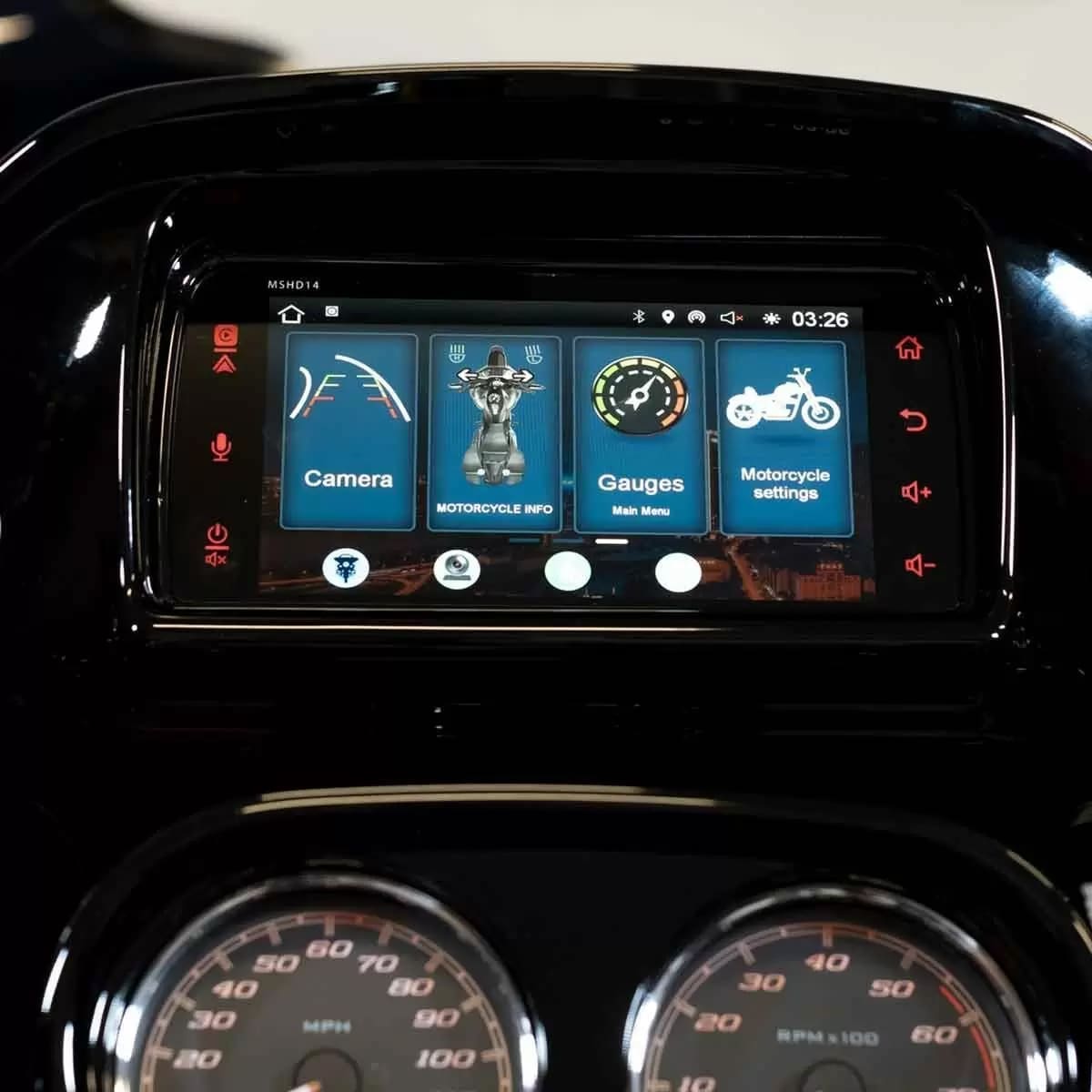

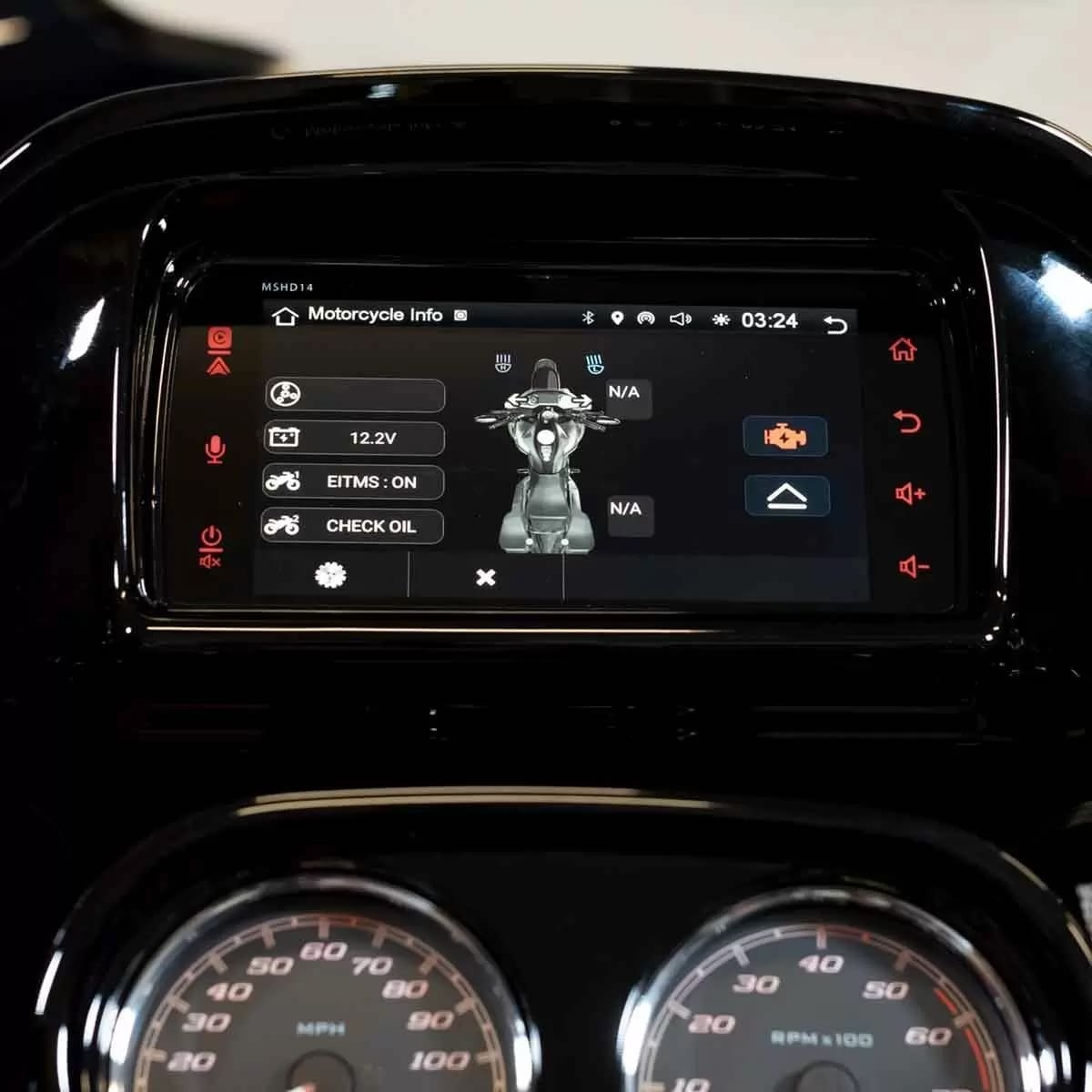

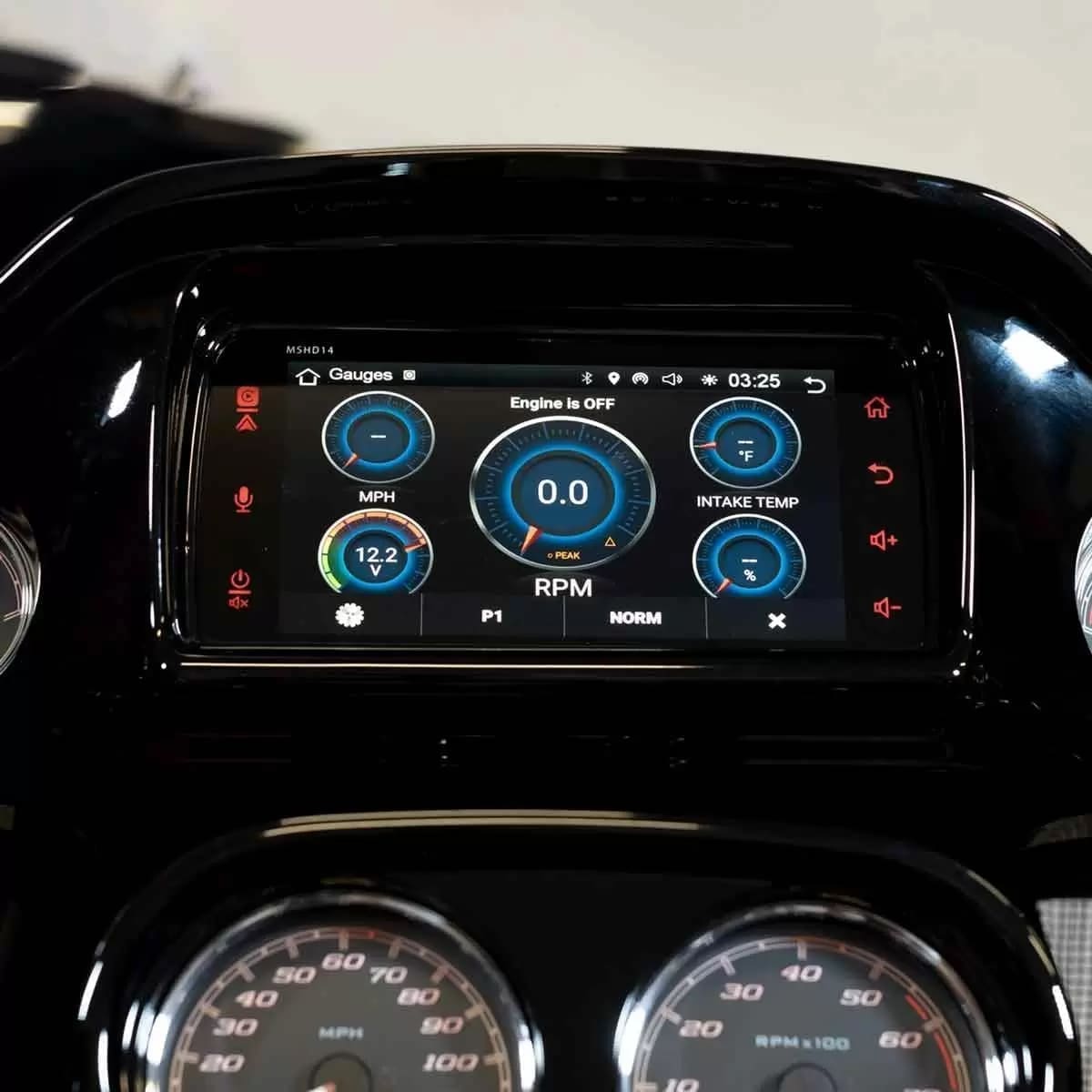

• Can bus integration and vehicle data allows for selectable on-screen data such as RPM, Voltage, Temp, Throttle Position
• Glove friendly, ultra-bright 7″ 1000 nit, sunlight viewable touch screen display

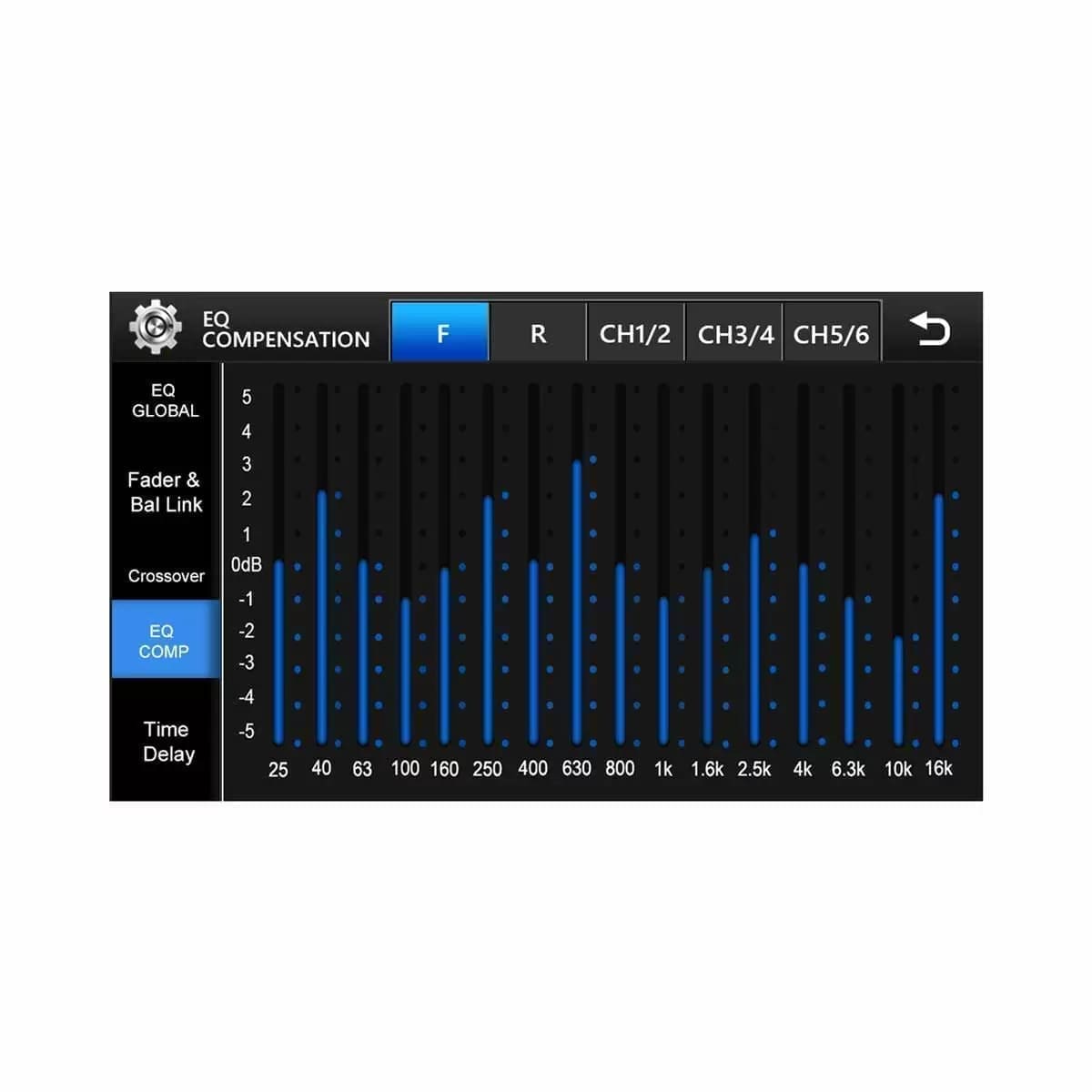

• 6 independent EQ’s for the ultimate sound customization (1 global, 5 for setup)

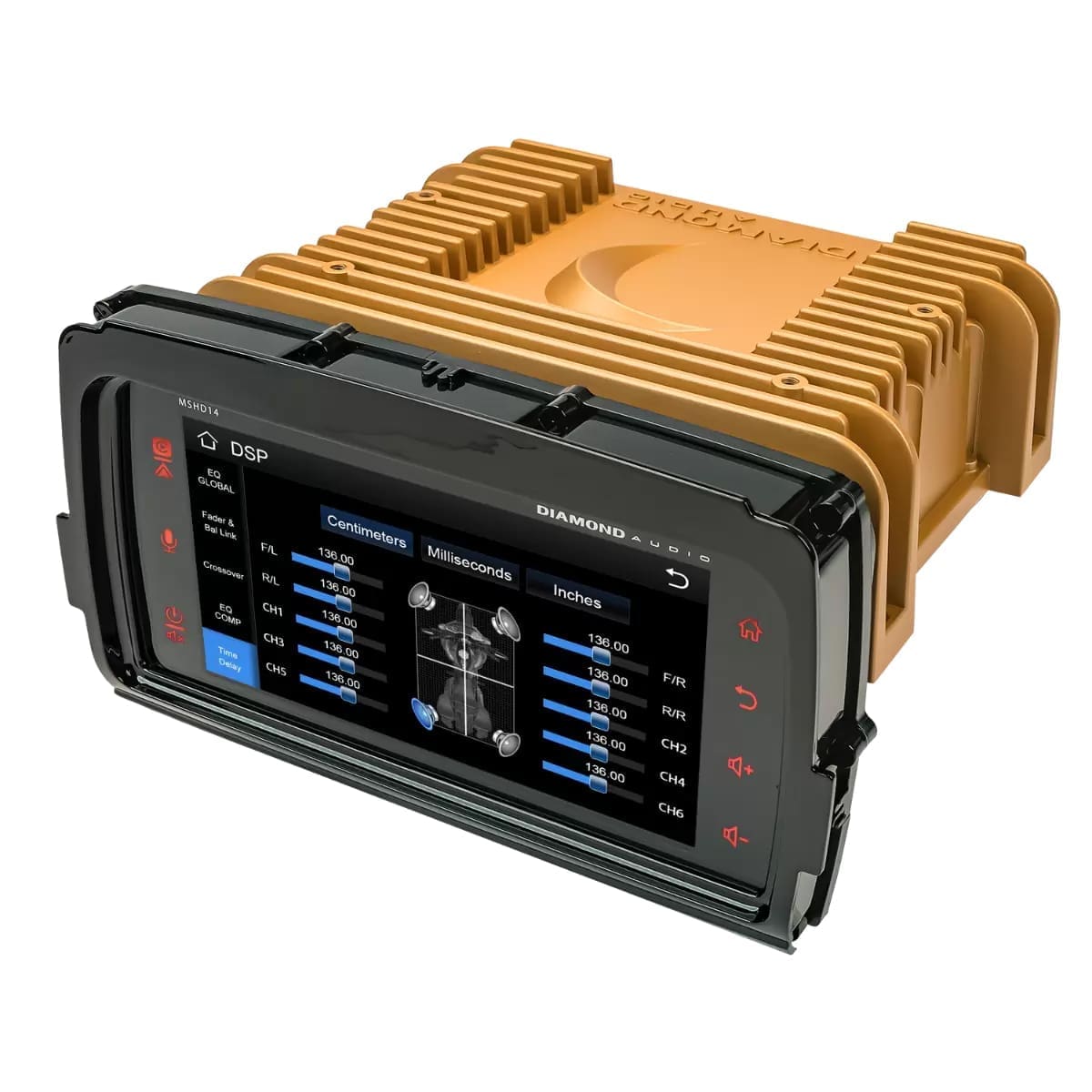

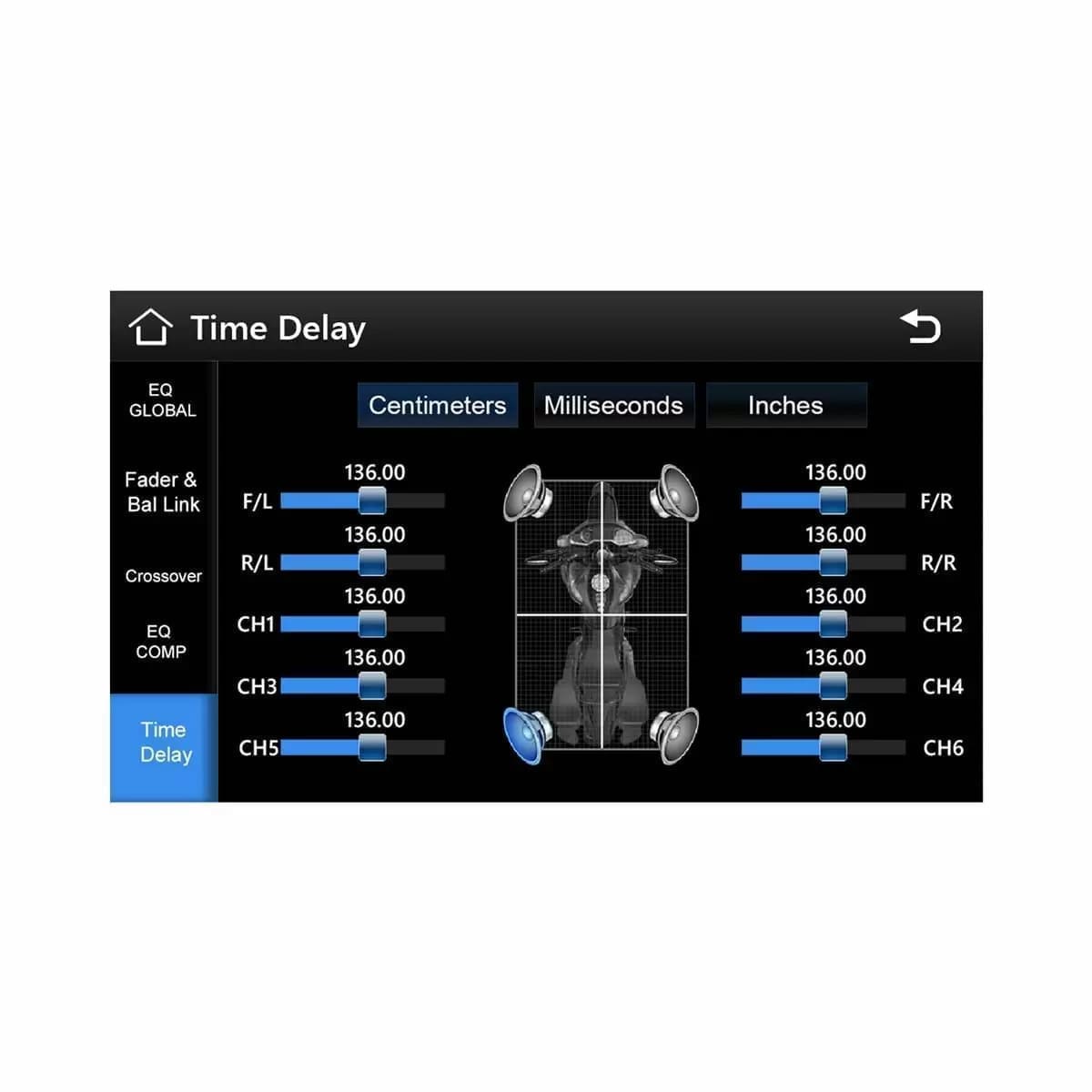

• 10ch DSP features time delay, HP/LP/BP crossovers with adjustable 6, 12, 18, 24db slopes independent channels can be linked together or separated from fader control
• 10 channel, clip free independent outputs
• Built-in HD Radio Tuner
• 2 Year Manufacturer’s Warranty

Smartphone Features

• Wireless Apple CarPlay and Android Auto compatible
• Display and control music, navigation, and other apps with iPhone and Android

Playback and Audio Features

• MP3 | WMA Audio Playback
• AVI | MP4 | MPG | MOV and WMV Video Playback
• AM/FM tuner
• MP3 ID3 Tag Display (Title/Artist/Album)
• 13 Band Parametric EQ

Expandability Options

• Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately
• 6 programmable auxiliary triggers for controlling lighting, kickstands and accessories via touchscreen, timers/triggers or handlebar controls

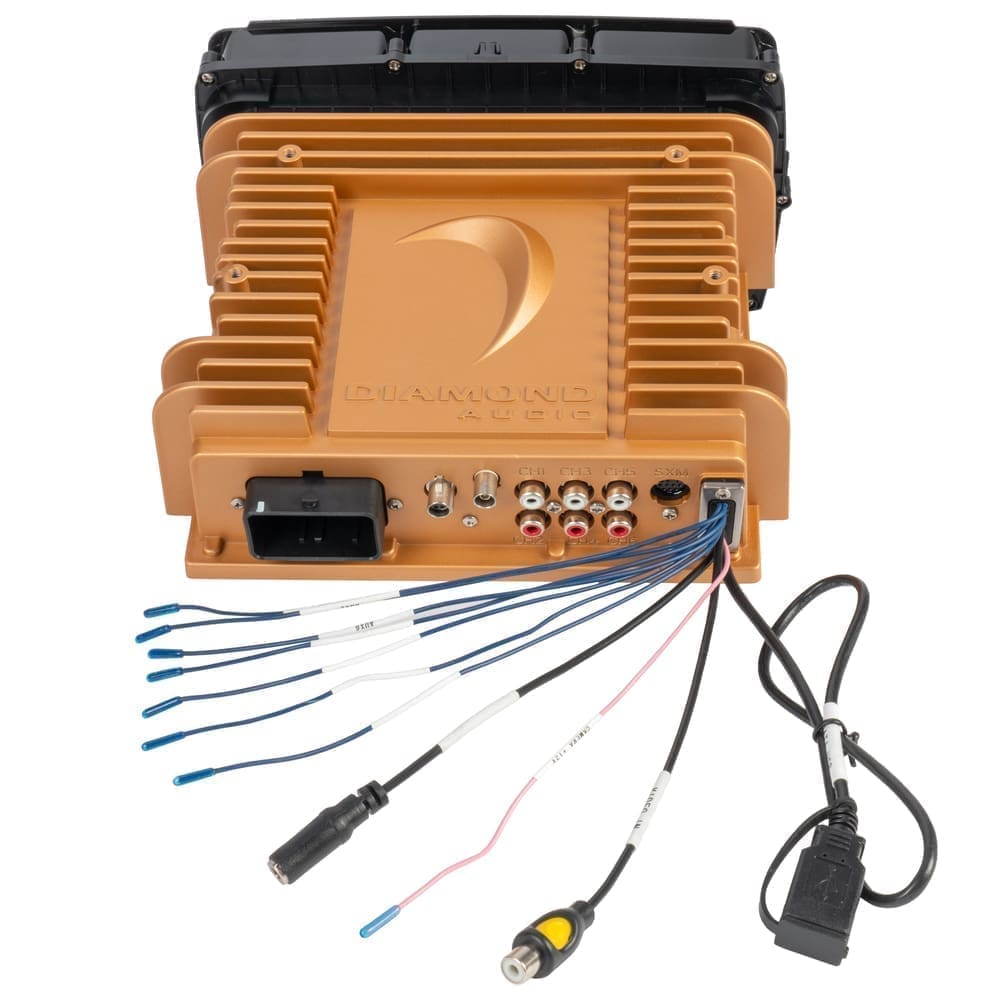

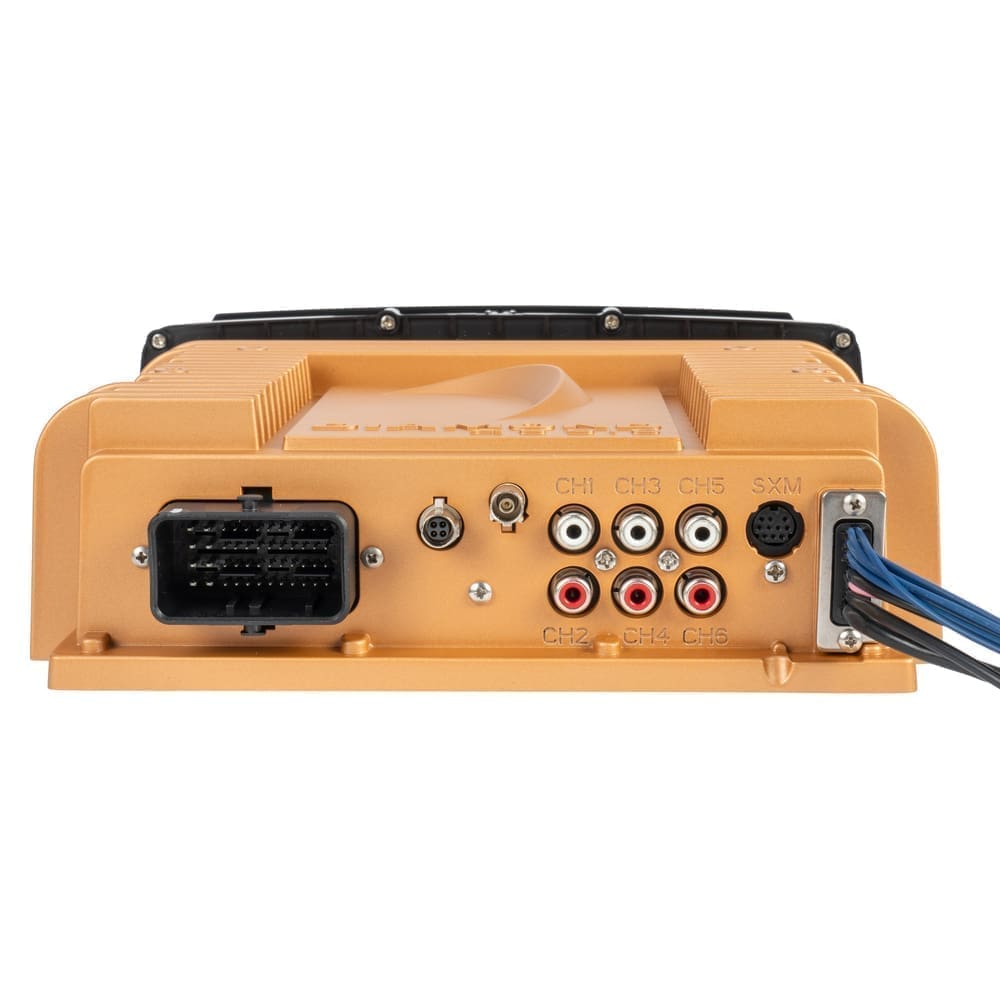

Audio/Video Inputs and Outputs

• 3 sets of 5 volts preamp outputs (front, rear, and subwoofer)
• Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
• Backup Camera Input: Used for universal rear view cameras with an RCA composite input

Bluetooth Features

• Bluetooth line driver for maximum output
• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes an external wired microphone for clear, convenient, distortion-free sound


* If you’re using a mobile device, the table below scrolls horizontally *

Specifications & Details
Compatible Vehicle Types Motorcycle
General Features
CEA-2031 Compliant No
Receiver Size Custom Fit
Anti-Theft Security None
Motorized Faceplate No
Wireless Remote No
Peak Power Output 50 watts x 4 channel
RMS Power Output 28 watts x 4 channel
Preamp RCA Outputs 3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output Yes
Preamp Voltage 5 volts
Built-In Equalizer 13 Band Parametric EQ
Display Type Capacitive Touchscreen Display
Display Color Full Color
Key Features
SiriusXM Ready
Idatalink Maestro Capable
USB Input
Aux Input
Playback Features
Dual Zone No
FM Presets 12
AM Presets 5
Radio Data System (RDS) Yes
CD-R/RW Playback No
MP3 Playback Yes
WMA Playback Yes
Radio Type Digital Multimedia
AM/FM Tuner Yes
Audio/Video Inputs
Inputs Auxiliary (Rear)
Number of Rear USB Inputs 1
Number of Front USB Inputs None
USB Input Rear
Monitor Screen Features
MirrorLink Compatible No
Display Adjustment Dimmer
Screen Size 7"
Touchscreen Yes
Navigation Features
Map Source Carplay or Android Auto Compatible Phone
Text-to-Speech Yes
Expandability Features
Compatible Smartphones iPhone (iOS) Android
Bluetooth Connectivity Yes (Built-in/Included [Bluetooth Controls, Adapter and/or Microphone Included])
Maestro Compatible Yes
Rear View Camera Input Yes (Accessory recommended and sold separately)
Smartphone Features
iPhone Control CarPlay
CarPlay (Wireless)
Navigation App Compatible
Android Control Android Auto
Android Auto (Wireless)
Navigation App Compatible
Android Audio Integration Yes (Built-in/Included)
Parts Warranty Duration 2 years
Labor Warranty Duration 2 years
