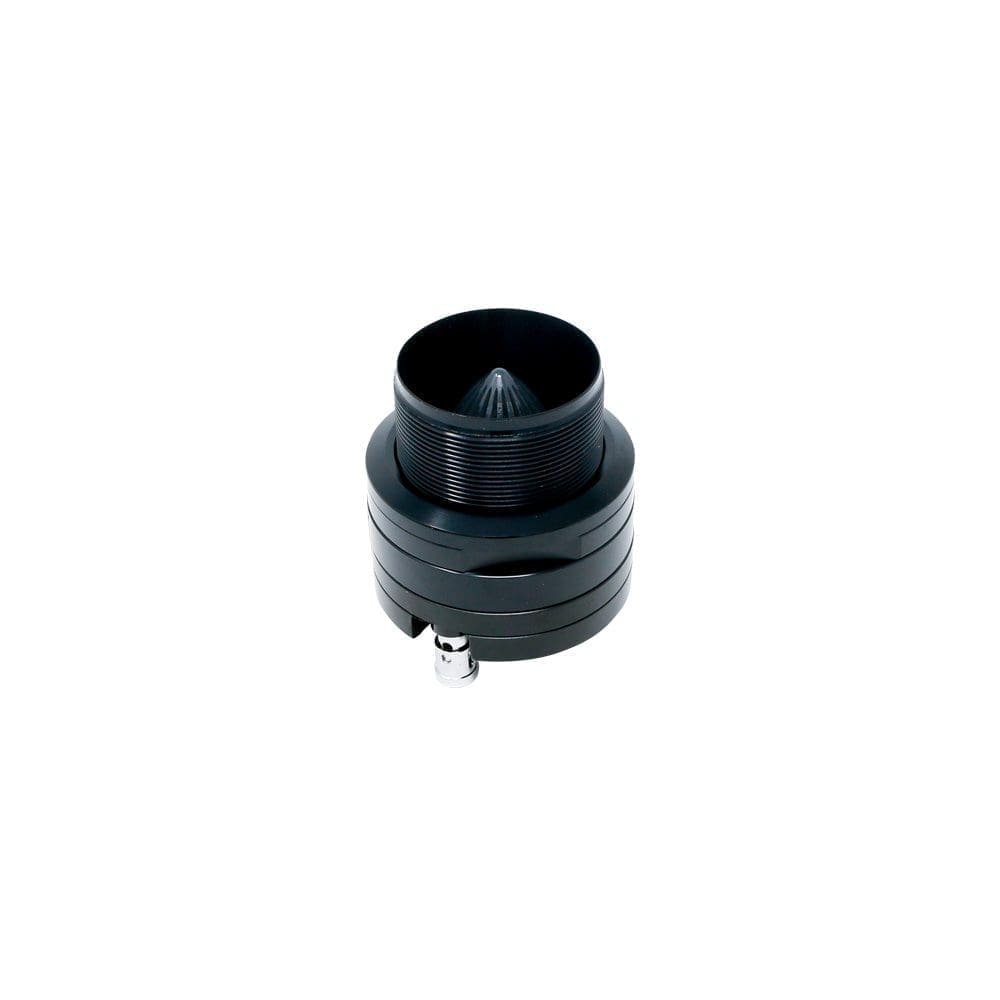

Diamond Audio MO1T – 1” Pro Audio High-Frequency Drivers

$199.99

-

Diamond Audio MO1T – 1” Pro Audio High-Frequency Drivers

2 In Stock - Ships in 24-48 Hours

Brand:
MO1T.

Features:

– 50w RMS/100w Max Power Handling.

– 107db Sensitivity.

– Composite Rubber Mounting Frame.

– 12db Crossover included for maximum protection.

– Radial Slit Phase Plug for Better Response.

– Re-buildable Diaphragm Replacement Design.

Resources

Owner’s Manual

Specs

Sensitivity (1W/1M): 106 dB

Frequency Response: 3K-20KHZ

Nominal Impedance (ohms):

Cut-out Diameter: 1.75″ (44.45mm)

Front of Horn to Magnet Depth: 1.3″ (33.1mm)

Depth Front to Back Magnet: 2.3″ (58.7mm)

Over-All Depth: 2.72″ (69mm)

Over-All Diameter: 2.28″ (57.9mm)

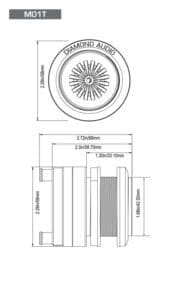

Dimensions
