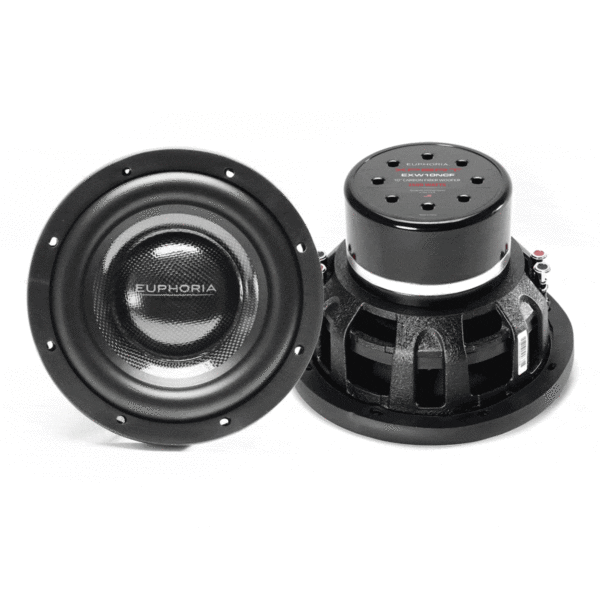

Euphoria Xpert 10″ Neo Carbon Fiber Woofer

$799.99

-

Euphoria Xpert 10″ Neo Carbon Fiber Woofer

In Stock - Ships in 24-48 hours

Brand:
EXW10NCF.

Features:

• 10″ NEO Carbon Fiber Woofer

• 2″ Voice Coil

• Die-Cast Aluminum Basket with Radial Venting

• Large Gauge Compression Terminals

• Rubber Surround

• Carbon Fiber Cone

• Neodymium Magnet

• Weather Resistant Cone and Surround

• PVC Gasket

• Dual 4Ω 4 Layer Voice Coil

Note: Sold each

Specs

Structure 10″ (20.32cm) Woofer
Nominal Power Handling 1250 Watts
Dynamic Wattage 2500 Watts
Frequency Response 42.81Hz
Sensitivity (1w/1m) 82.2dB
Impedance Dual 3.6Ω Voice Coil
Outside Diameter 10.98″ (222.56mm)
Cutout Diameter 9.16″ (182.31mm)
Mounting Depth 6.25″ (137.5mm)

Install Resources

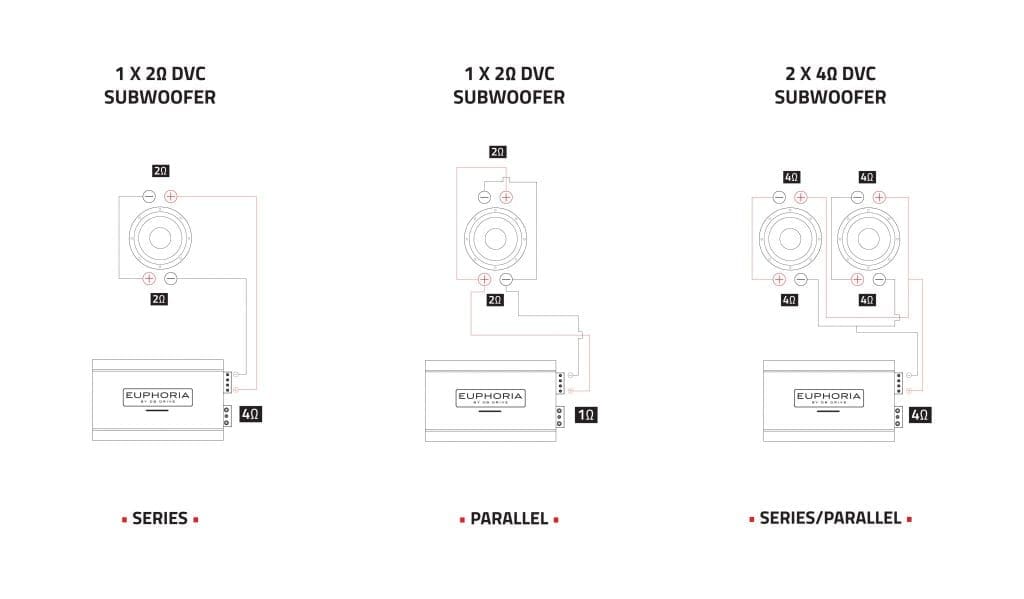

Series: Is the method of wiring of alternate positive with negative terminals. (string method) (Illustration below)

Parallel: Is the method of wiring where you wire match 2 speaker terminals with positive to positive terminal and negative to negative. (Illustration below)

Series/Parallel: This configuration is a combination of both series and parallel. We recommend series for the terminal and parallel for the leads to amp. (Illustration below).

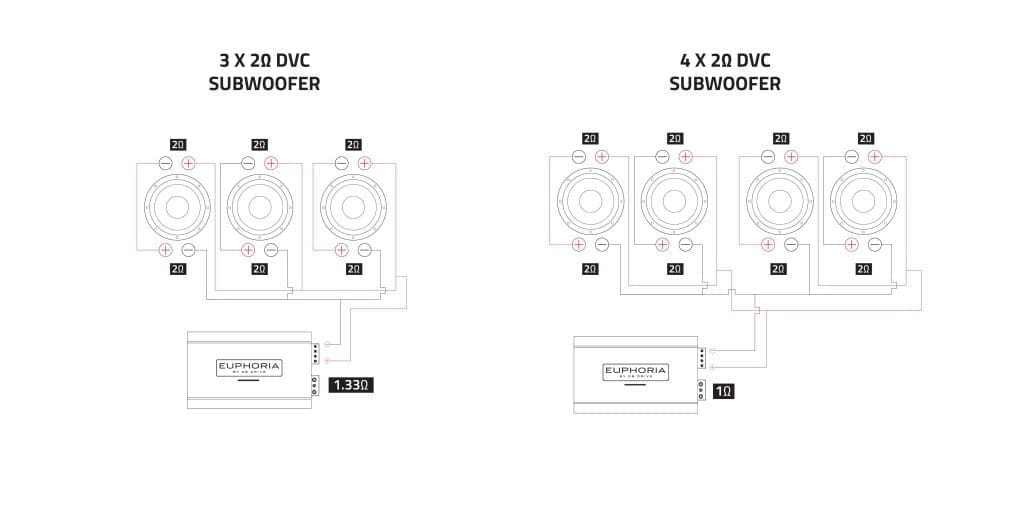

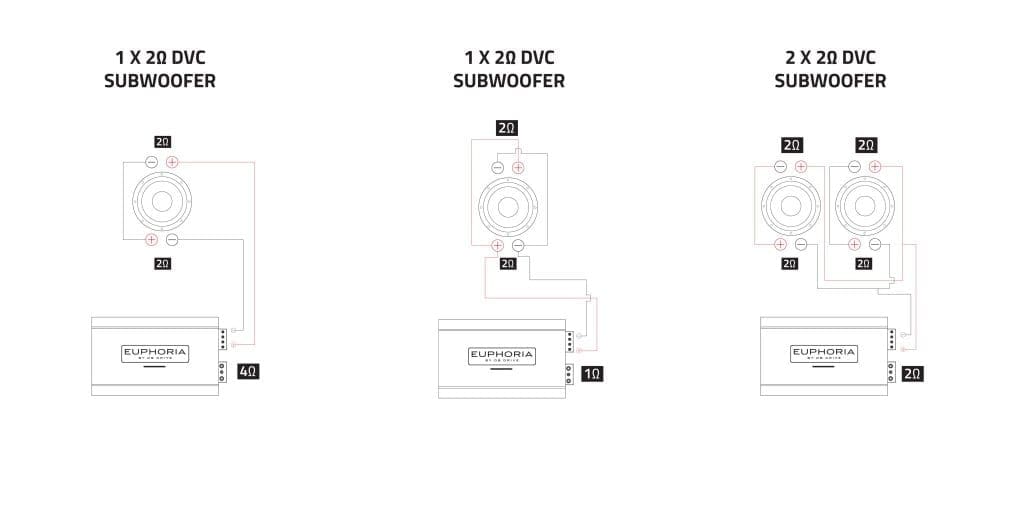

2 OHM DVC CONFIGURATION

Resources

Manual
