Euphoria Xpert 8″ Neodymium Series 2-Way Loudspeaker
-
Euphoria Xpert 8″ Neodymium Series 2-Way Loudspeaker
Features:
• 2″ (51mm) Midrange Voice Coil
• Neodymium Ring Magnet Assembly

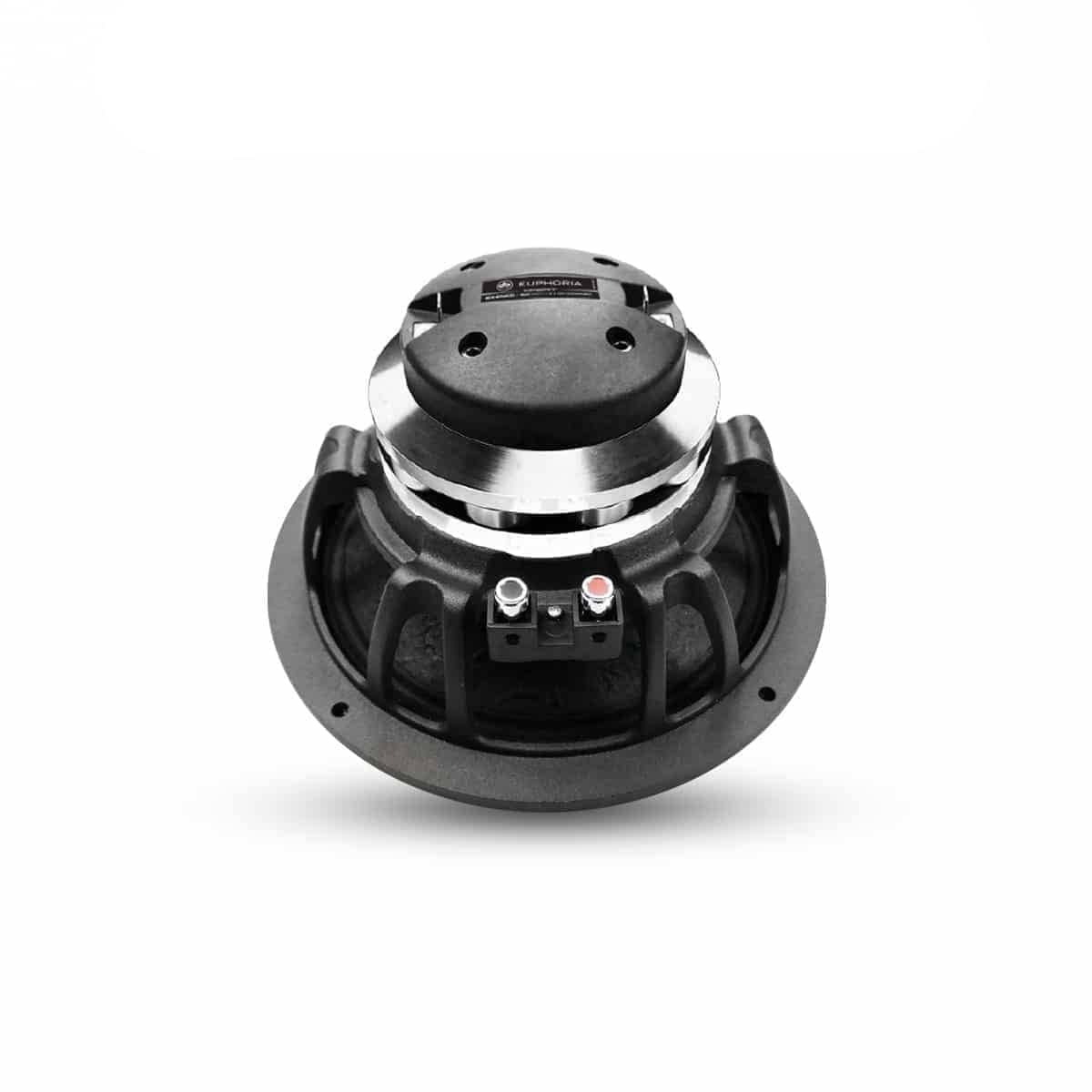

• Rear Mounted Full Sized Compression Driver
• IP52 Rated Paper Cone With Treated Cloth Surround
• Die-Cast Aluminum Basket With Radial Venting
• 1.4″ (36mm) Polyester Tweeter Diaphragm
• Wide Dispersion Conical HF Waveguide

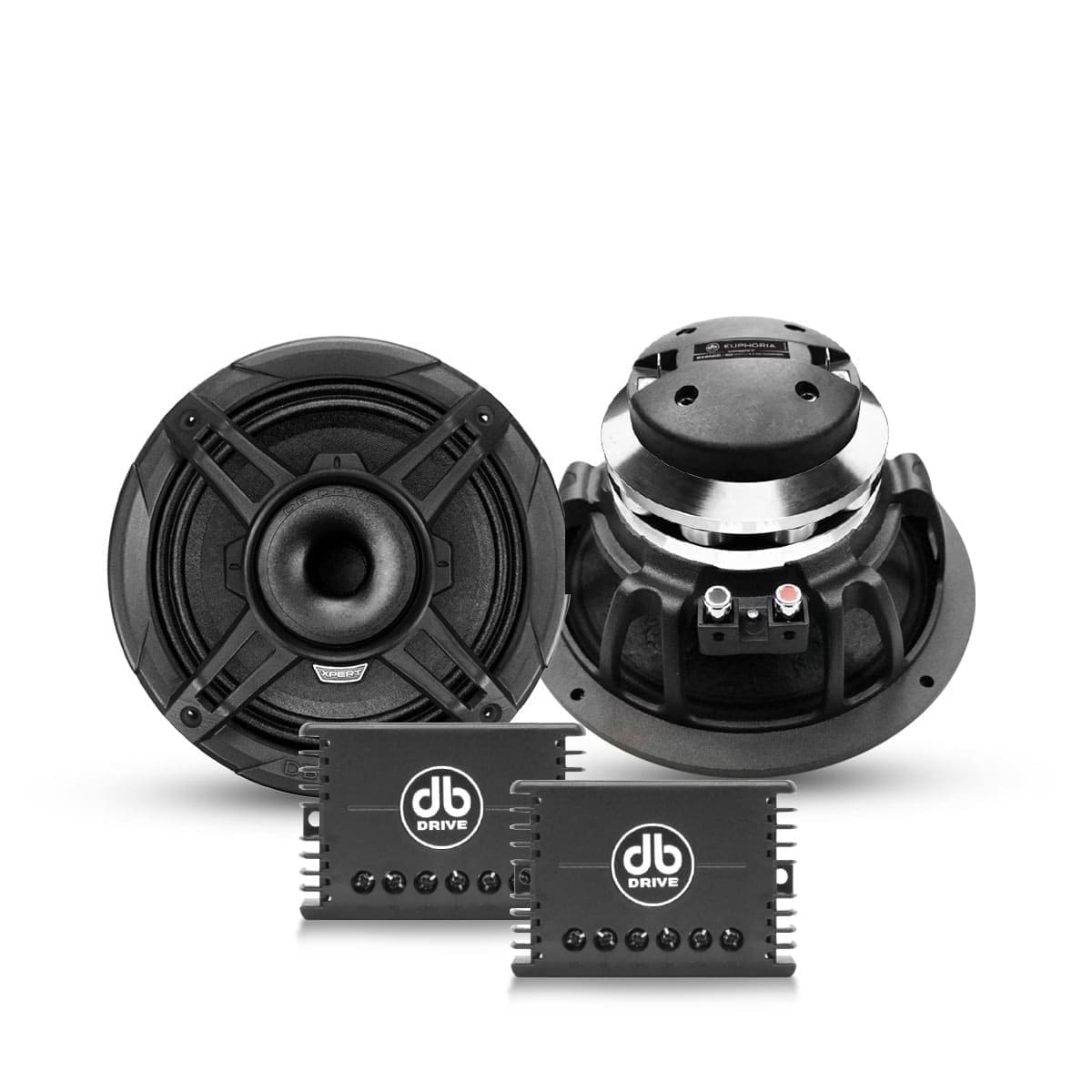

• 12dB Passive Crossover Included
• Protective Grills Included
Note: Sold in pairs
Specs
| Resonant Frequency (fs) | 79.7Hz |
| D.C. Voice Coil Resistance (Re) | 3.2Ω |
| Mechanical Quality Factor (Qms) | 8.24 |
| Electrical Quality Factor (Qes) | 0.43 |
| Total Quality Factor (Qts) | 0.41 |
| Compliance Equivalent Volume (Vas) | 16.3L |
| Mechanical Compliance (Cms) | 0.25 mm/N |
| Efficiency (1W/1M) | 105.4 dB |
| Nominal Impedance | 5.2Ω |
| Power Handling | 450 Watts |
| Dynamic Wattage | 900 Watts |
| Sensitivity (1w/1m) | 105.4 dB |
| Voice Coil Diameter | 2.0″ (51mm) |
| Mounting Depth: | 4.30″ (109.47mm) |
| Mounting Diameter: | 7.07″ (179.64mm) |
