$3,803.00

-

Lease-to-own for as low as $164.55/week. Get Started

AirFx Front & Rear Air Ride Kit, Softail ’00-’17

In Stock - Ships in 24-48 hours

Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Front cartridge pair for Harley-Davidson Softail applications makes it easy to upgrade your factory internal fork assemblies. These replacement style cartridges are a perfect fit. Each cartridge has 2 chambers for lift, and 2 for rebound in axial alignment. This allows us to increase piston surface area, thus reducing air pressure required to lift. To dampen compression during hard braking we have add a booster spring. The result is a much smoother, and consistent ride and increased handling. Each kit is specifically designed to fit your bike without modification and exceeds all manufacture specifications.

One inch stainless steel fork extensions are provided with a side port for the air inlet.  Therefore, the air lines can be hidden under the upper triple tree and also be hidden by the stock fork covers.

AirFX built the single housing Softail shock air ride system to outperform all other air ride units on the market. Each kit is specifically designed to fit your bike without modification and exceeds all manufacturer specifications. The CNC billet aluminum housing is machined to exact tolerances with a hard coat anodized finish applied to all wear surfaces. The large double sealed composite pistons let you run less air pressure for a softer ride and increase stability in cornering. Both air chambers operate independently and are mounted with friction free composite bushings to keep your suspension geometry and rebound correctly adjusted. Shocks are self-lubricated, corrosion resistant, and rebuildable.

Compressor

The Hi-Flow Compressor comes standard with a chrome motor housing, chrome end plates, and Omega style mounting bracket. Insulated wiring is pre-installed. Compressors are equipped with a thermal overload protector that will shut down the unit when overheated. When cool, the compressor will automatically restart as normal.

Instant-Up Kit

Instant-Up Kit Includes: Air tank, compressor control box, and rear valve pair. Control box will cycle the compressor to charge the air tank to 190psi. Provides stored air pressure to raise the bike to ride height in about 1 second. Kit allows the use of one compressor to control both front and rear air ride shocks.

Micro Buttons

Micro Button Wiring Harness: The micro button package consists of a pair of miniature snap acting stainless steel buttons potted in a small aluminum housing connected to a relay module and wiring harness. Pre-wired and tested. Two included for independent front and rear air ride control.

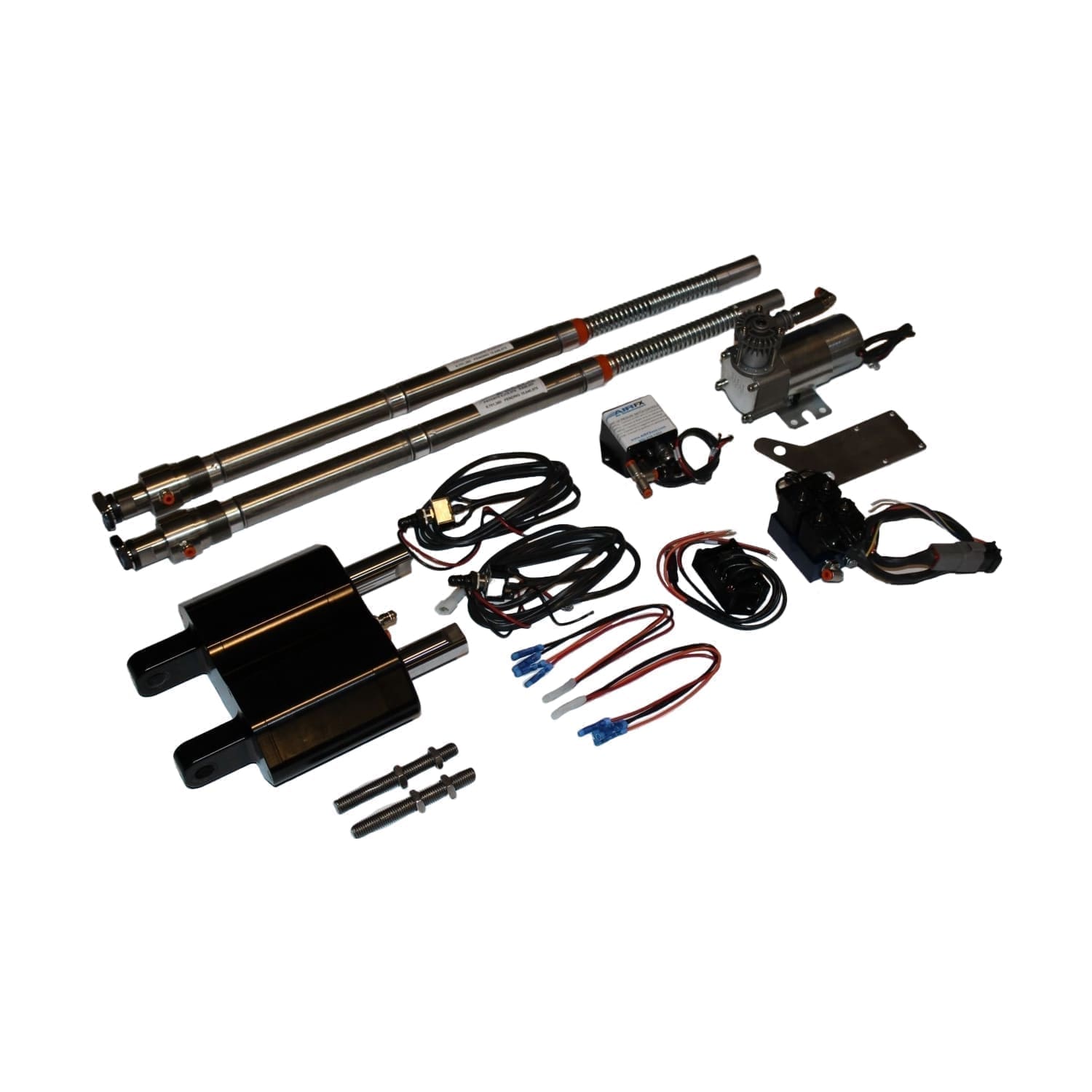

What's Included

– Front Cartridge Pair 41mm Softail Stock/21″ Wheel

– FXA-2004-B Shock, Black, 2000-2017

– FXA-2000 Hi-Flow Compressor Assembly

– FXA-1028-1 Q-Pak Quad Valve 5/32T in/out

– FXA-1034-STB Softail Pressure Switch Bypass Module

– FXA-1012 Instant Up Kit

– (2) Micro Button Wiring Harness
