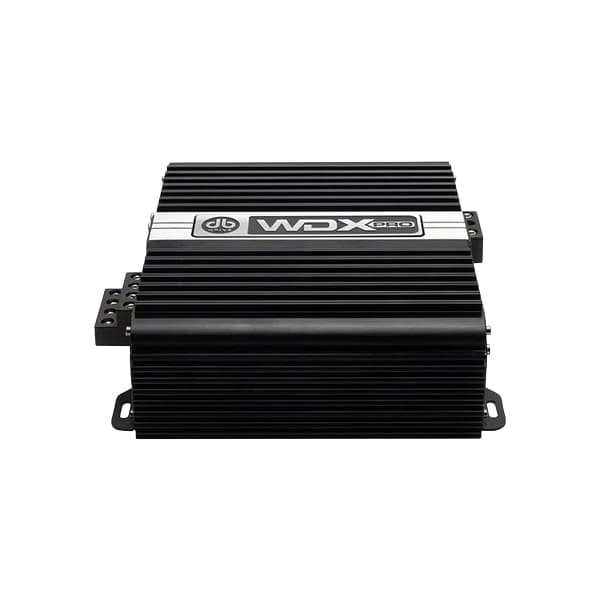

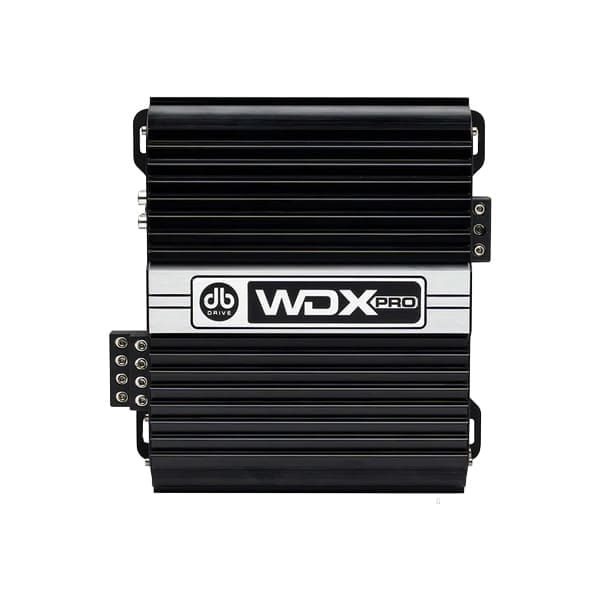

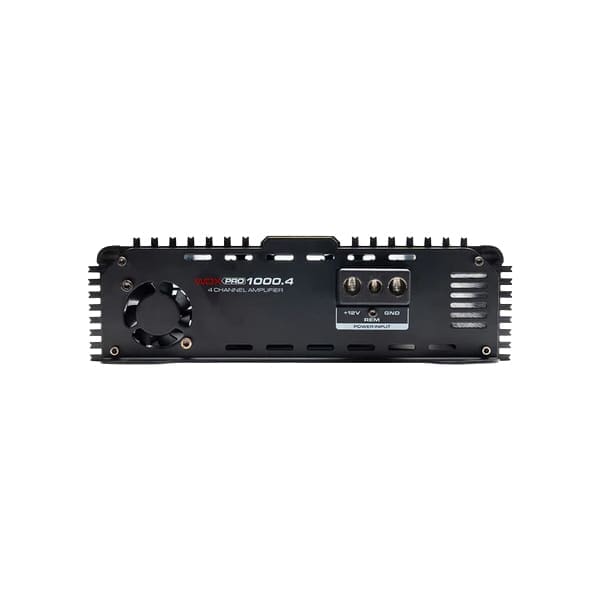

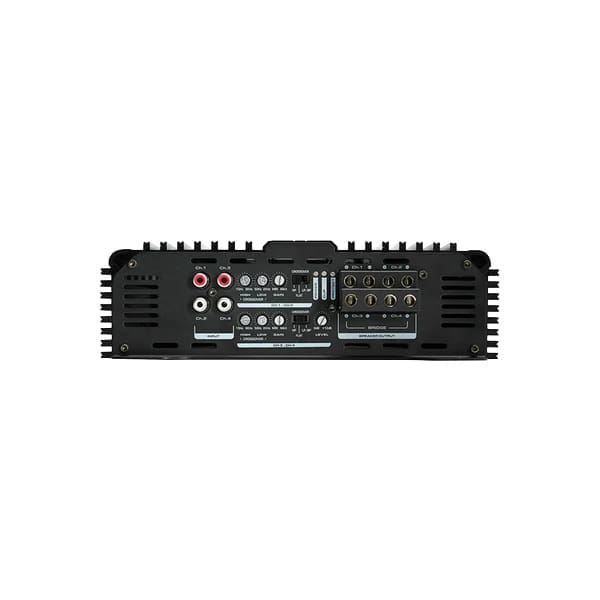

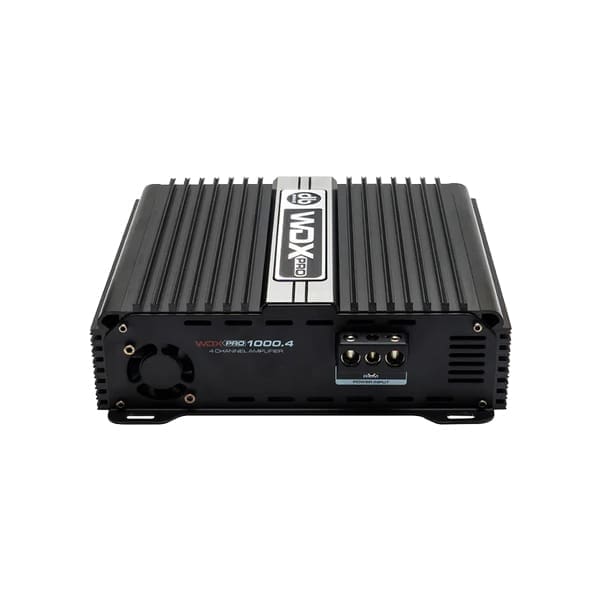

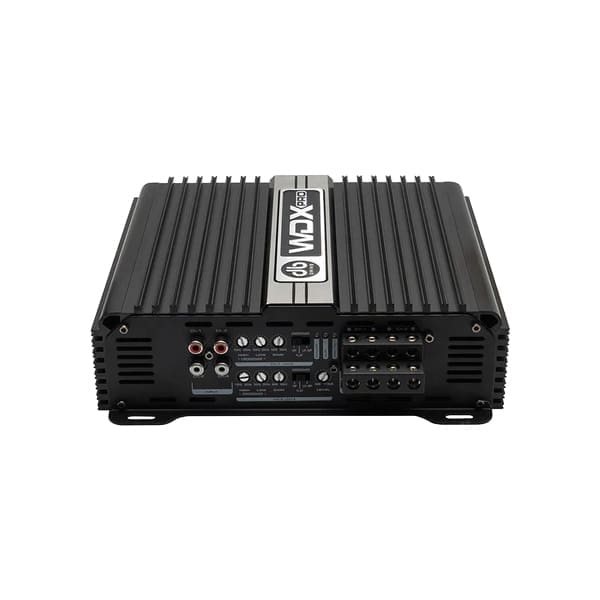

Maximize your car audio with the DB Drive WDX PRO1000.4, a powerful 4-channel Class D amplifier built for high output and superior sound.

Features:

• 300W X 4 Channel Class D Amplifier
• ATC – Audiophile RCA Connectors
• ACT – Adaptive Crossover Technology
• High-efficiency Class Full Range Class D Technology
• Direct Connect Speaker Terminals
• 4 Gauge Power Wire Inputs
• APC – Audio Protection Circuit
• SESI – Signal Evaluation Status Indicator
• CHM – Collective Heat Management

Specs

4 x 75 Watts @ 4 ohms
4 x 150 Watts @ 2 ohms
4 x 300 Watts @ 1 ohm
4 ohms (Bridged): 2 x 500 Watts
Working Voltage: 12-15 Volts
Frequency Response: 15 Hz – 20 KHz
Signal to Noise Ratio: 96dB
ACT – Variable Crossover: HP/BP/LP
Damping Factor: ≥200
Low-Level Input: 6V – 0.2mV
Ch 1/2 High Pass Filter Variable: 15 Hz – 6 KHz
Ch 1/2 Low Pass Filter Variable: 50 Hz – 2 KHz
Ch 3/4 High Pass Filter Variable: 15 Hz – 6 KHz
Ch 3/4 Low Pass Filter Variable: 50 Hz – 2 KHz
Minimum working Impedance: 1 ohm stereo / 2 Ohms bridged
