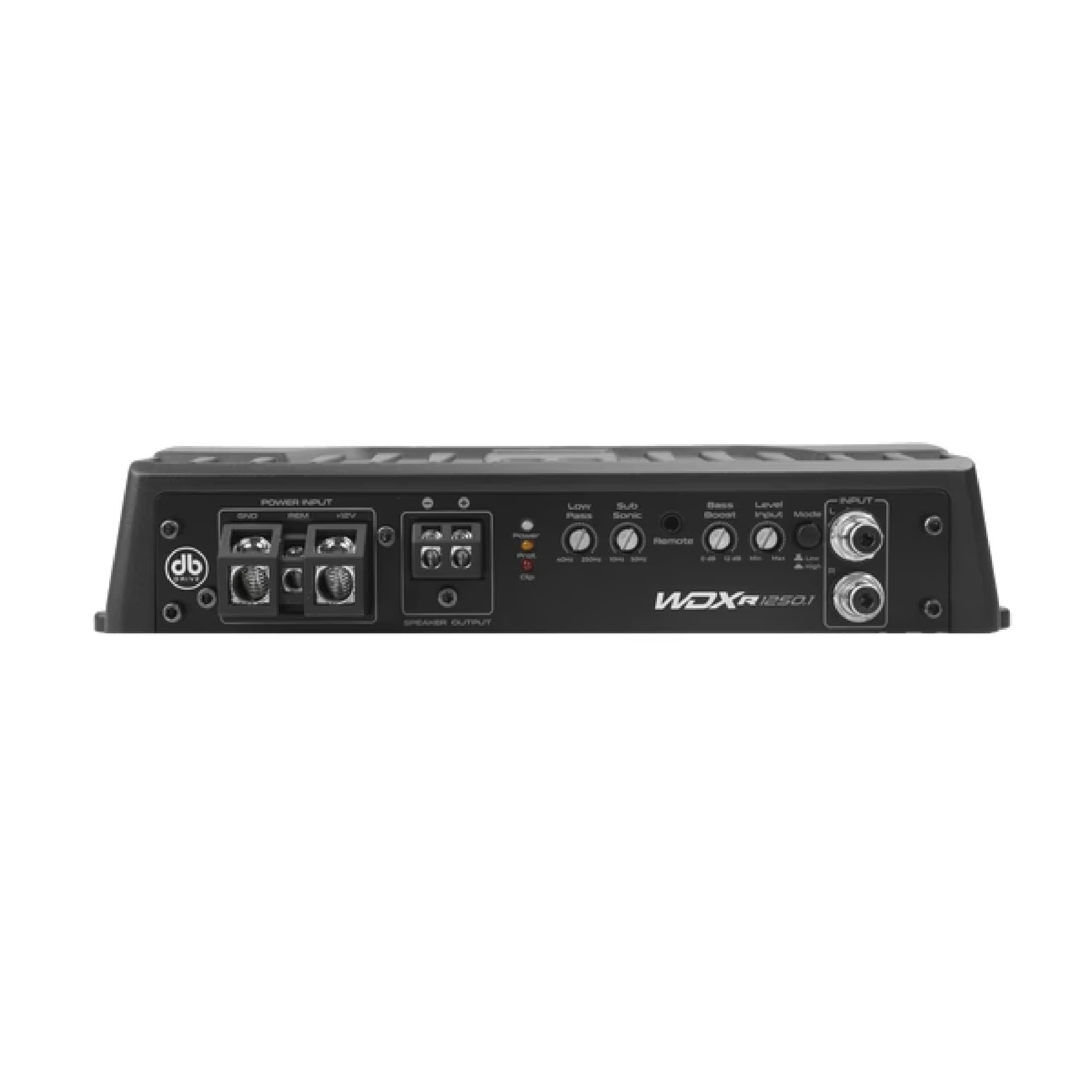

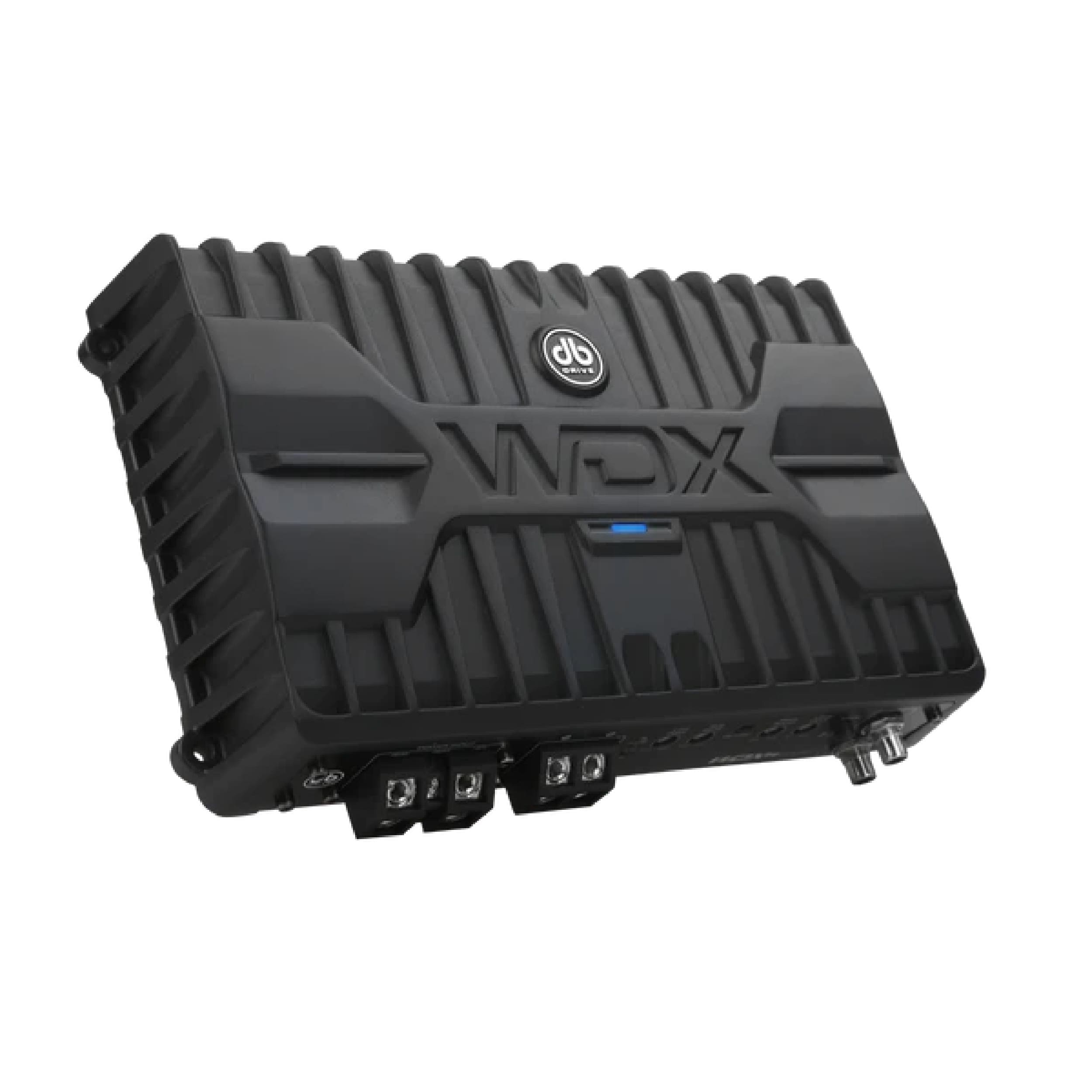

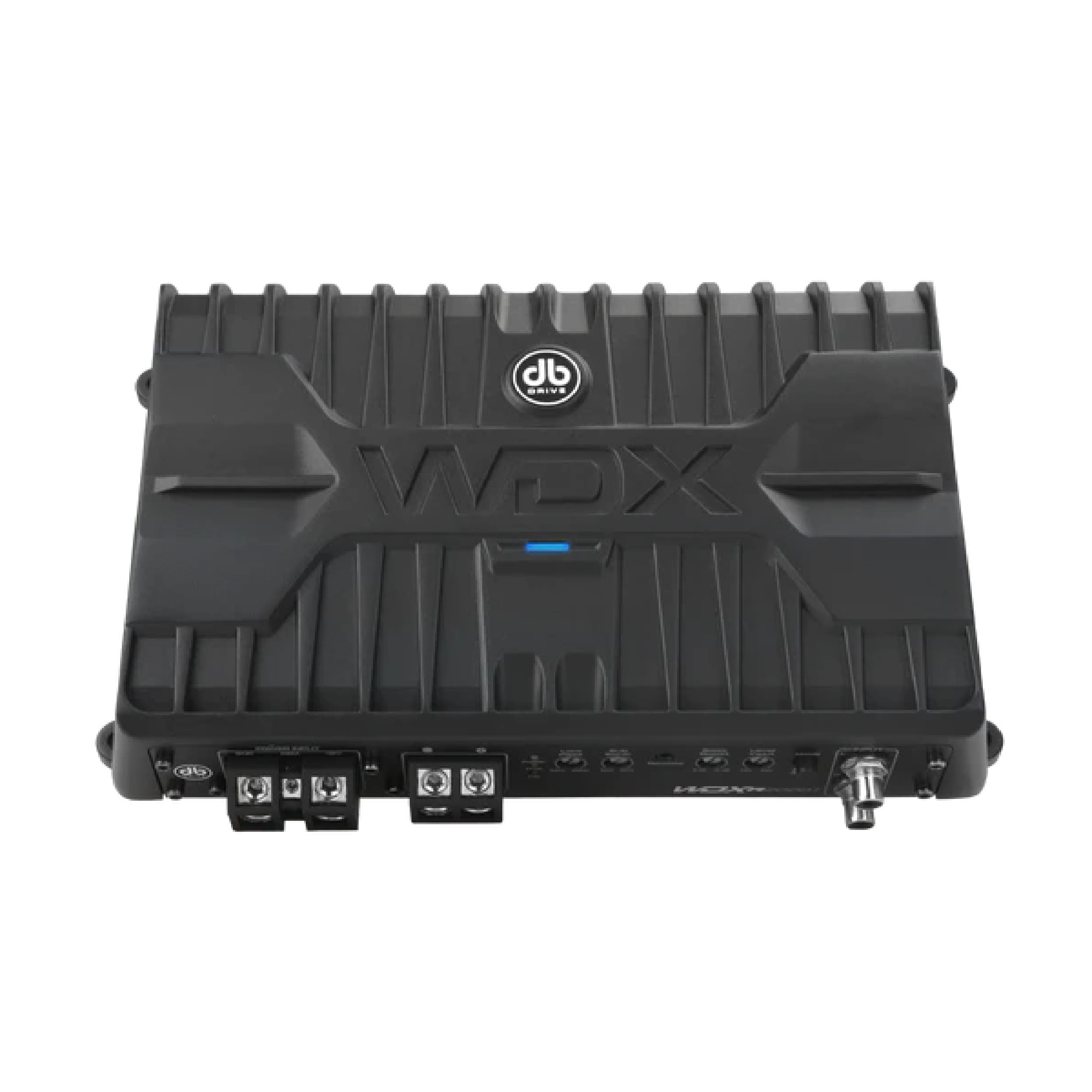

WDX-R1250.1 WDX Reference Class-D Mono Amplifier
-
WDX-R1250.1 WDX Reference Class-D Mono Amplifier
In Stock - Ships in 24-48 hours
Features:
• Class D Technology
• Direct Connect Speaker Terminals
• Large Gauge Power Wire Inputs
• PWM Mosfet Regulated Power Supply
• APC – Audio Protection Circuit
• SESI – Signal Evaluation Status indicator
• CHM – Collective Heat Management
• 1Ω Capability
• Remote Bass Control Included
Specs
| Rated Power: 1 x 1250 Watts @ 1Ω |
| Rated Power: 1 x 625 Watts @ 2Ω |
| Rated Power: 1 x 300 Watts @ 4Ω |
| Crossover Slope: @ 24dB |
| Low Pass Filter: 40Hz – 250Hz |
| Subsonic Filter: 10 – 50 Hz |
| Bass Boost @ 45Hz : 0-12dB |
| Input Sensitivity: .425Mv – 8.5V |
| Signal to Noise Ratio :>110dB |
| DIMENSIONS: |
| L – 9.24″/ 234.6 mm |
| W – 5.51″/ 140 mm |
| H – 1.97″/ 50 mm |
