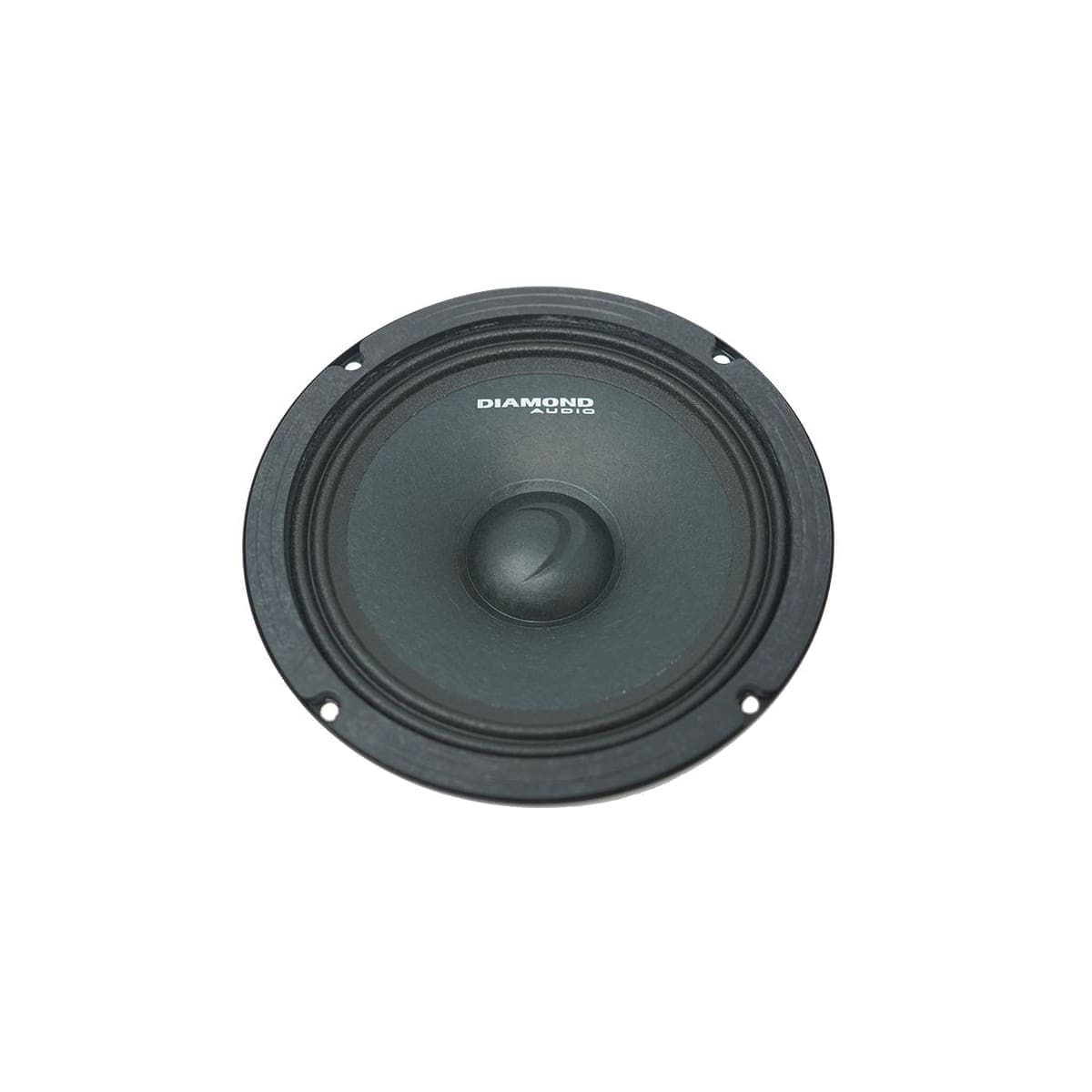

Diamond Audio 8″ Pro High Output Speaker



Diamond Audio 8″ Pro High Output Speaker

In Stock - Ships in 24-48 hours

UPC: 0847169044779

Volume output is never an issue when it comes to Diamond Audio’s Motorsport series pro audio speakers! Designed and engineered to handle extreme power in order to withstand the long hours of open road cruising at SPL sound level conditions, the Motorsport MSPRO series speakers are no doubt the best when it comes to superior sound output and clarity.


• 250W RMS Power Handling

• Hi-Pass Filtered @ 150 Hz – 12 dB Oct.

• Frequency Response: 100 – 9kHz +/- 3dB

• Sensitivity: 100dB 1W/1M

• Manufactured to IP65 Marine Grade Compliant Specifications

• Shorting Ring Utilized In Motor Structure For Far-Field Performance

• Thermal Molded Waterproof Paper Cone

• UV-Treated Polycarbonate Cloth Surround


Speaker Size 8”
Nominal Impedance (ohms)
Voice Coil Diameter (inch/mm) 2″
Power Handling (RMS/Peak) 250W/500W
SPL (db) 100
Re (Ω)[series] 3
Qms 5.641
Qes 0.595
Qts 0.539
Fs-Free Air Resonance (Hz) 63.3
Vas (Liter) 9
Cms (mm/N) 0.376
Mms (g) 26.6
Sd (cm²) 0.022
BL (T*M) 5.798
Xmax – Inch(mm) 1.5
Crossover (-12 dB/ Oct) Variable High-Pass 100Hz – 12dB Oct
Total Diameter 8.25” (210mm)
Mounting Diameter (inch/mm) 7.00” (179mm)
Mounting Depth 3.5” (90.5mm)
Total Depth 3.75” (96.1mm)
Grille NO
