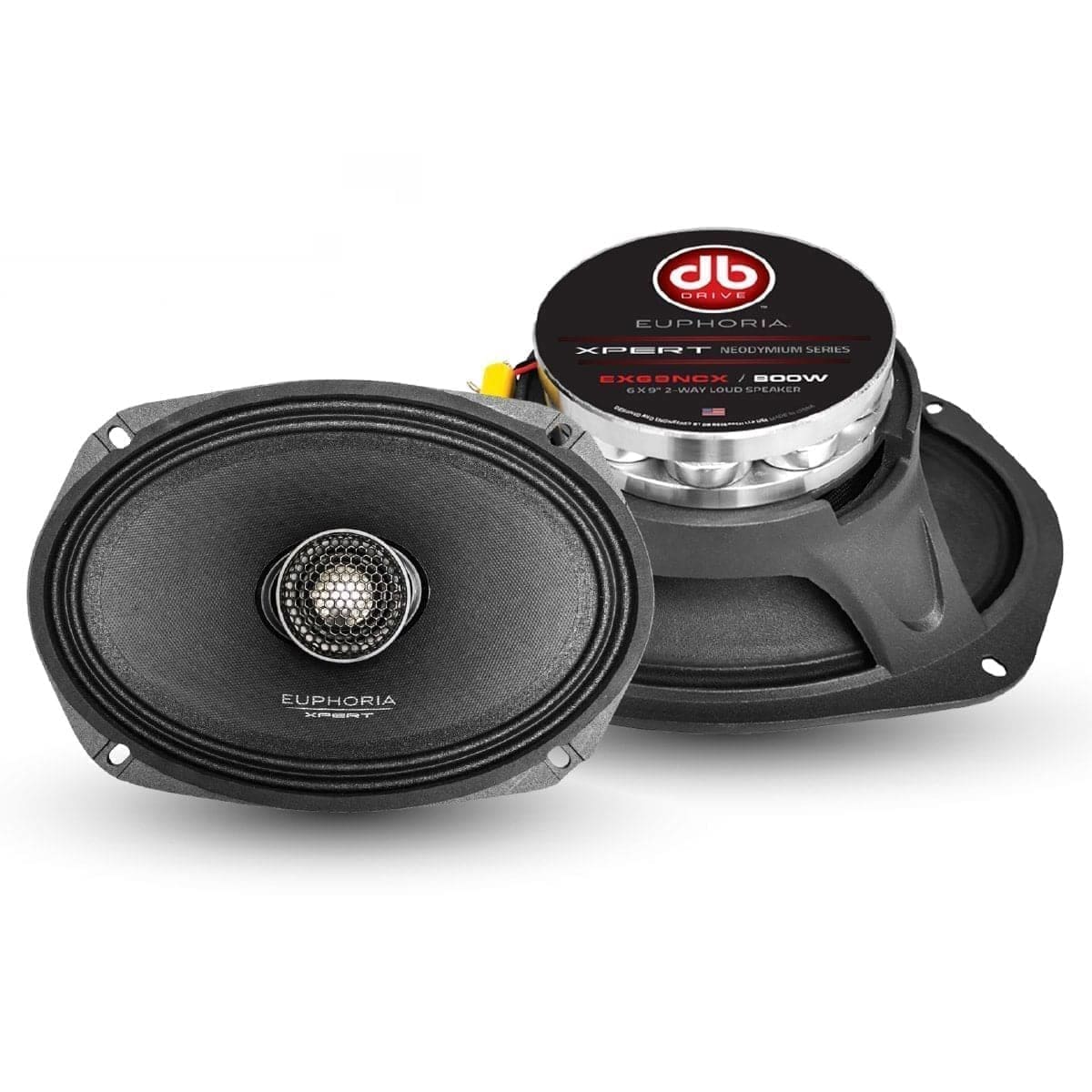

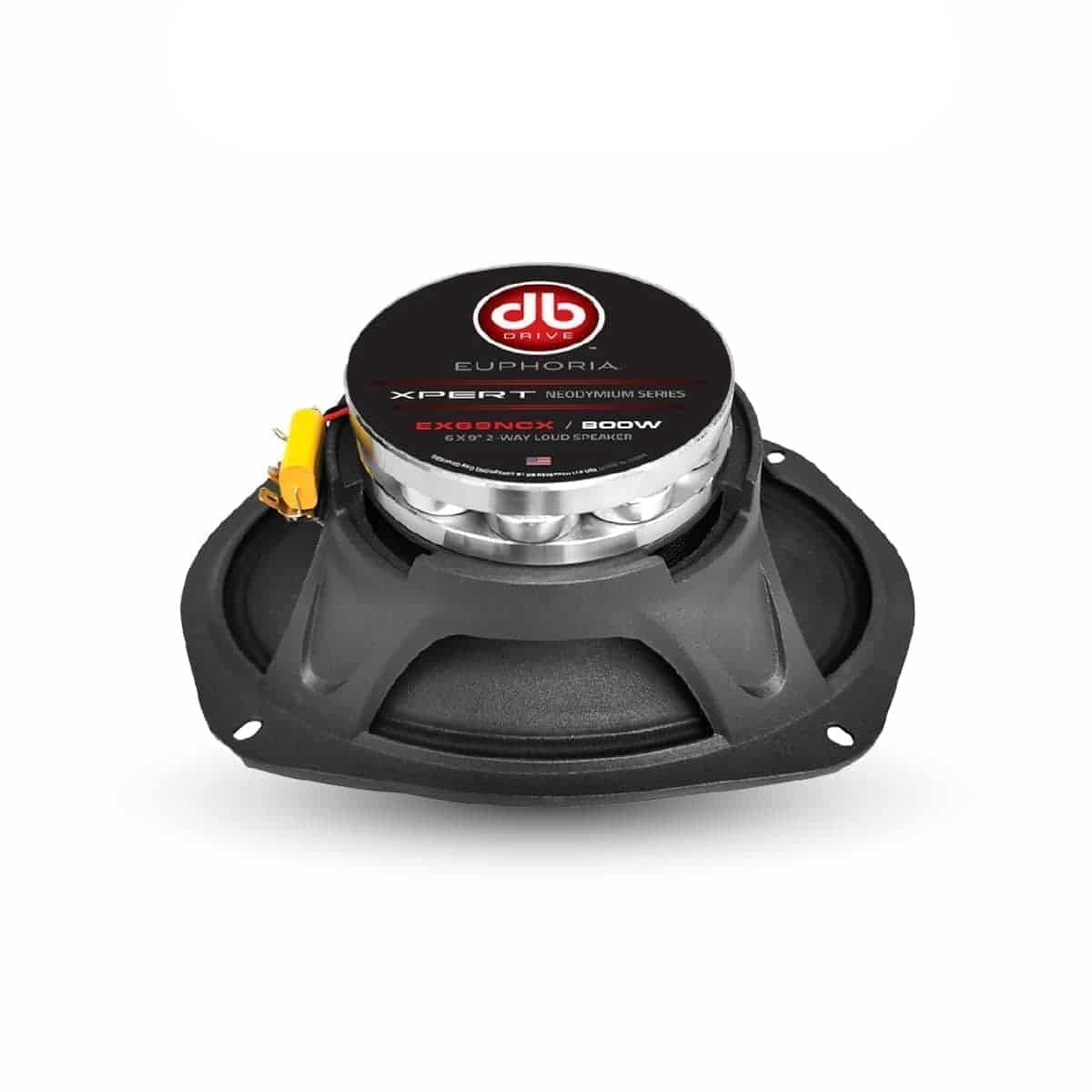

Euphoria Xpert 6″x9″ Neodymium Series 2-Way Loudspeaker

Login To View Price

-

Euphoria Xpert 6″x9″ Neodymium Series 2-Way Loudspeaker

Brand:
EX69NCX.

Features:

• 6″x9″ 2-Way Loudspeaker

• 1.5″ (38.1mm) Midrange Voice Coil

• Neodymium 10 Piece Radially Equalized Magnet Assembly

• IP52 Rated Weather Resistant Paper Cone with Cloth Surround

• Die-Cast Aluminum Basket with Radial Venting

• Wide Dispersion 1.25″ (28mm) Aluminum Dome Tweeter

Note: Sold in pairs

Specs

Resonant Frequency (fs) 92.1Hz
D.C. Voice Coil Resistance (Re) 3.2Ω
Mechanical Quality Factor (Qms) 5.78
Electrical Quality Factor (Qes) 0.33
Total Quality Factor (Qts) 0.31
Compliance Equivalent Volume (Vas) 12.2L
Mechanical Compliance (Cms) 018 mm/N
Efficiency (1W/1M) 96.5 dB
Nominal Impedance
Power Handling 400 Watts
Dynamic Wattage 800 Watts
Sensitivity (1w/1m) 96.5 dB
Voice Coil Diameter 1.5″ (38.5mm)
Mounting Depth: 3.31″ (84.10mm)
Mounting Diameter: 5.81 x 8.56″ (147.57mm x 2170.42mm)
