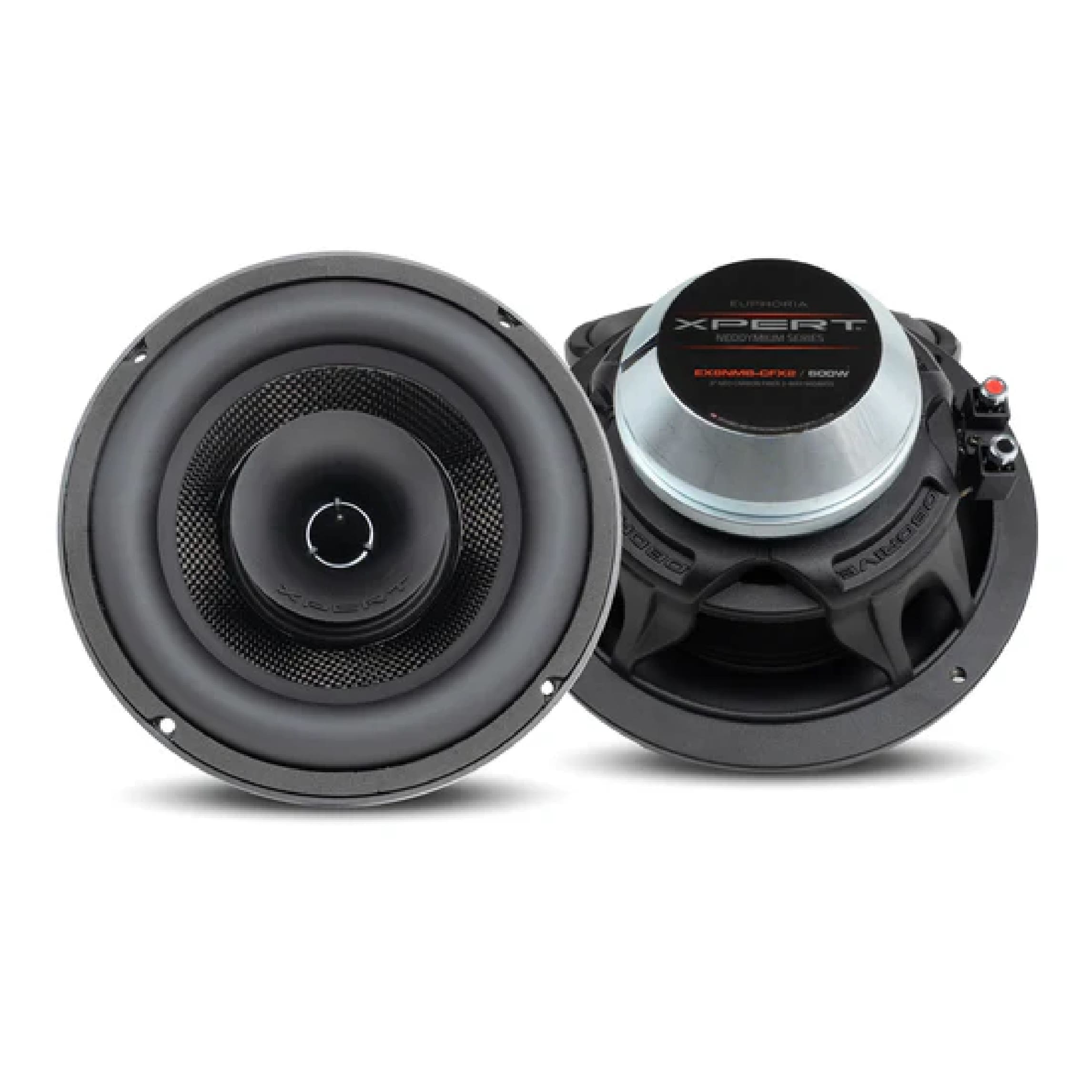

Engineered for unmatched clarity and power, the EX8NMB-CFX2 is built to deliver precise midbass and smooth high-frequency performance in one compact design. Featuring a lightweight neodymium ring magnet assembly and a 2.0″ midrange voice coil, this driver combines efficiency with raw power handling, making it ideal for high-performance car audio and pro audio applications.

The IP65-rated carbon fiber cone ensures durability against water, dust, and harsh conditions, while the die-cast aluminum basket with radial venting keeps the system cool and distortion-free even under extreme loads. With an impressive combined frequency response from 50Hz – 17kHz, it delivers deep midbass punch and crystal-clear highs with accuracy.

Rated at 300W AES (600W peak) for low frequencies and 15W AES (30W peak) for high frequencies, the EX8NMB-CFX2 handles demanding setups with ease. Its exceptional sensitivity—99.3 dB (HF) and 91.3 dB (LF)—ensures maximum output with minimal power.

Features:

• 2.0″ (51mm) Midrange Voice Coil
• Neodymium Ring Magnet Assembly
• IP65 Rated Weather Resistant Carbon Fiber Cone
• Die-Cast Aluminum Basket with Radial Venting
• Sold in Pairs

Specs

HF – Power Handling AES: 15 Watts*
HF – Dynamic Wattage: 30 Watts
LF – Power Handling AES: 300 Watts*
LF – Dynamic Wattage: 600 Watts
Combined Frequency Response: 50Hz – 17KHz
HF – Sensitivity (1w/1m): 99.3dB
LF – Sensitivity (1w/1m): 91.3dB
Nominal Impedance: 4Ω
Recommended HF Crossover Frequency: 4.2KHz @ 24db

LP – TS Parameters:
FS: 68.074 Hz
Re: 3 Ohms
Qms: 1.982
Qes: 0.374
Qts: 0.315
Cms: .189.252 mm/N
Mms: 28.883 gr
BL: 9.951 N/A
SPL: 99.3 dB
Vas: 10.331 L

Dimensions:
Overall Diameter: 8.29″/ 210.50 mm
Mounting Depth: 3.78″/ 96 mm
Cutout Diameter: 7.09″/ 180 mm
