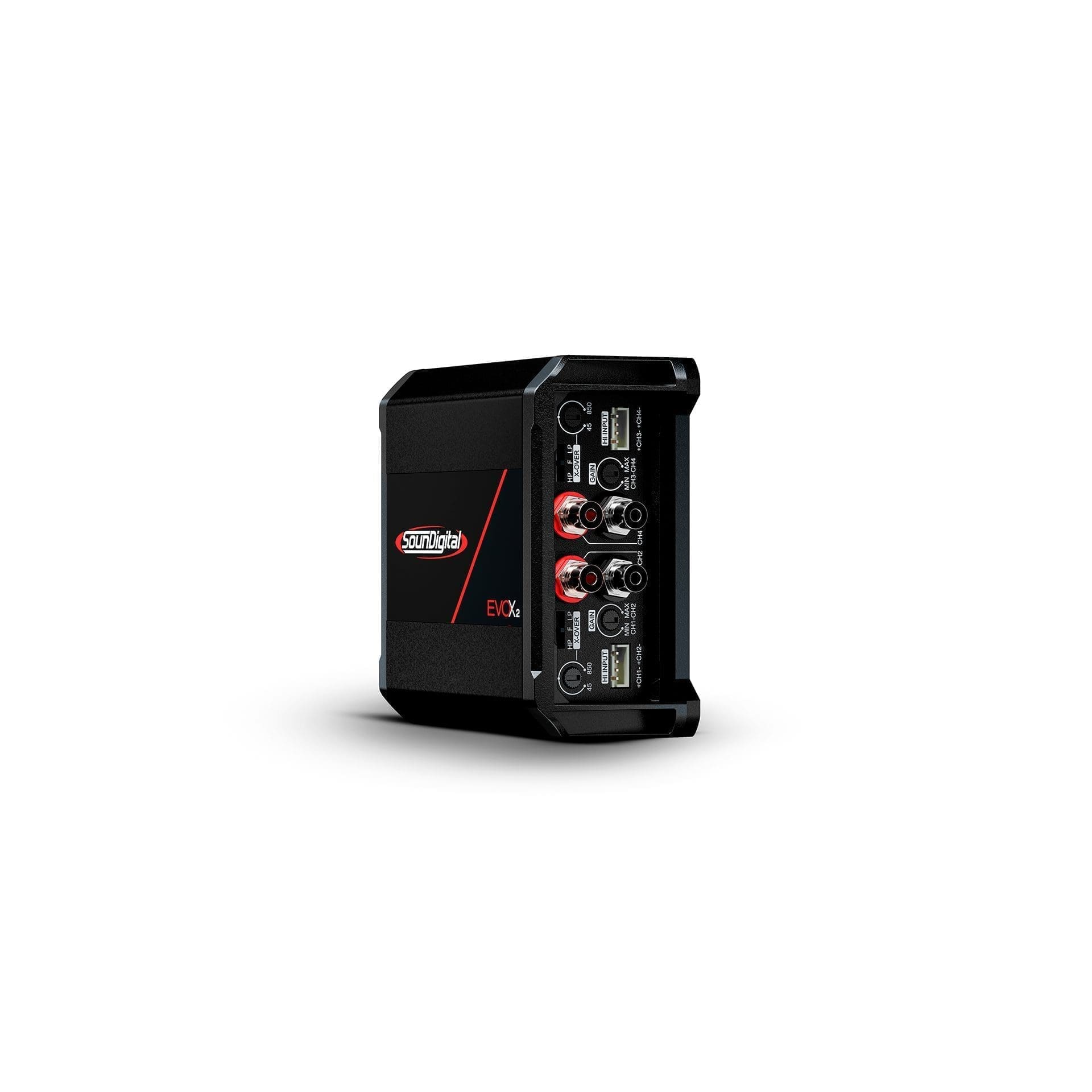

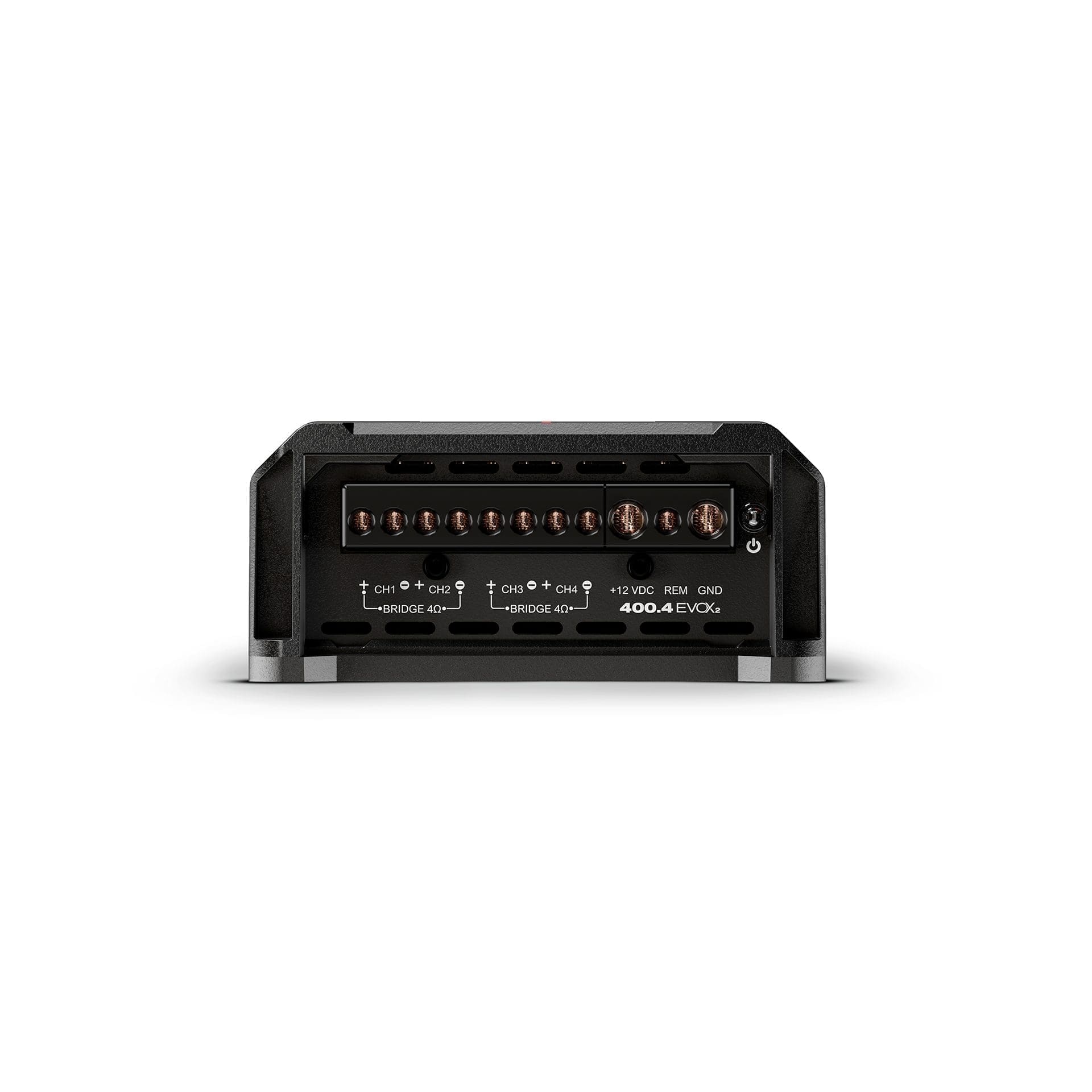

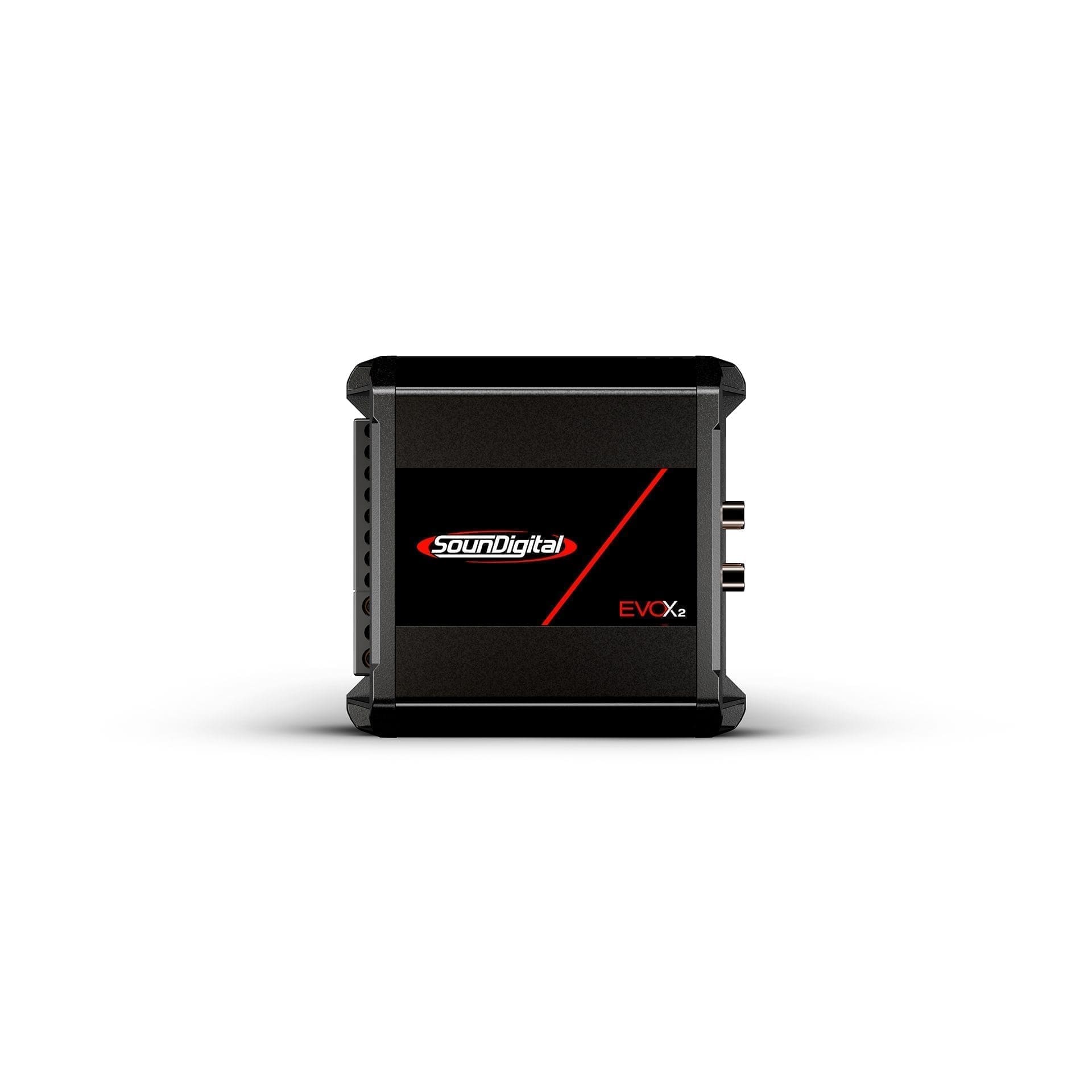

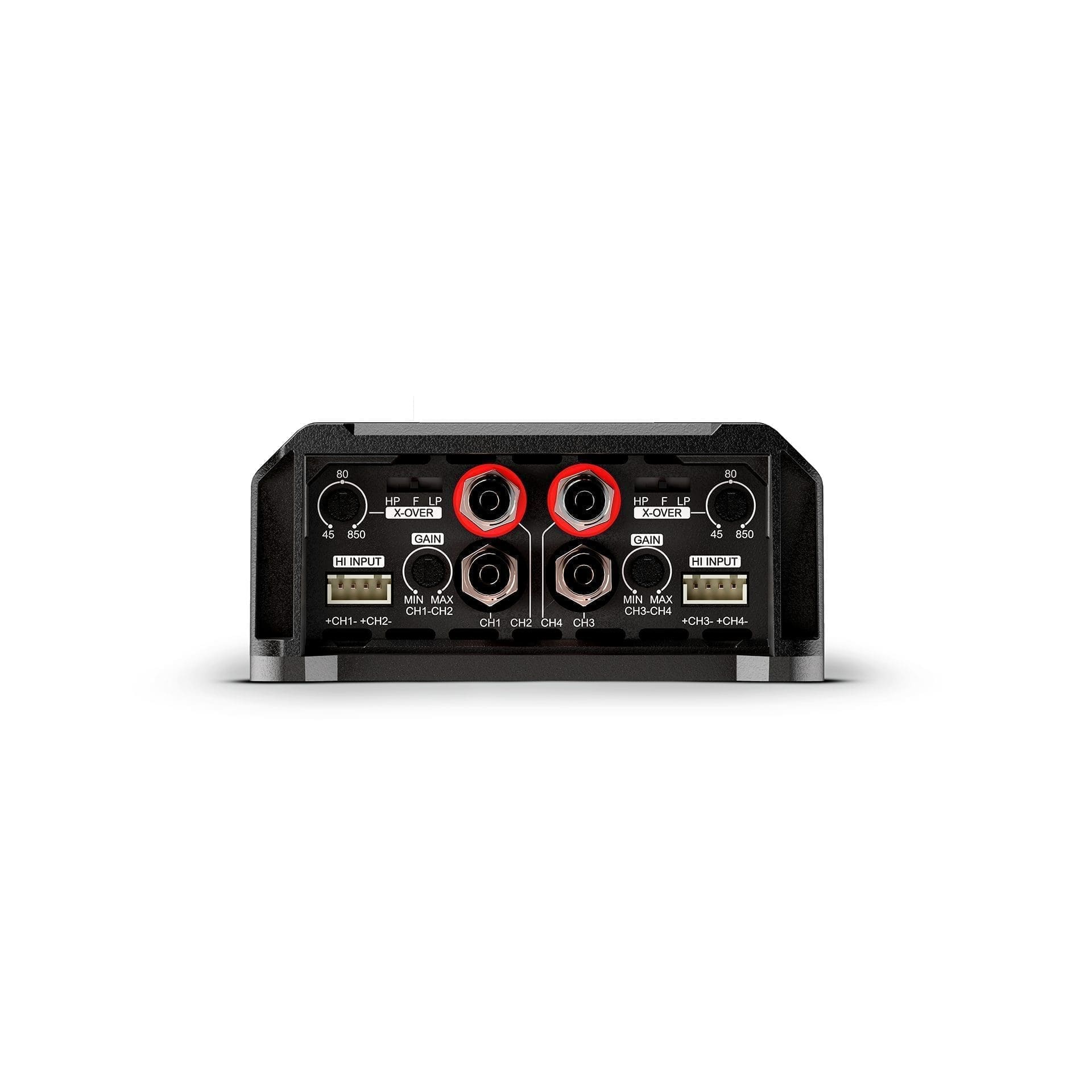

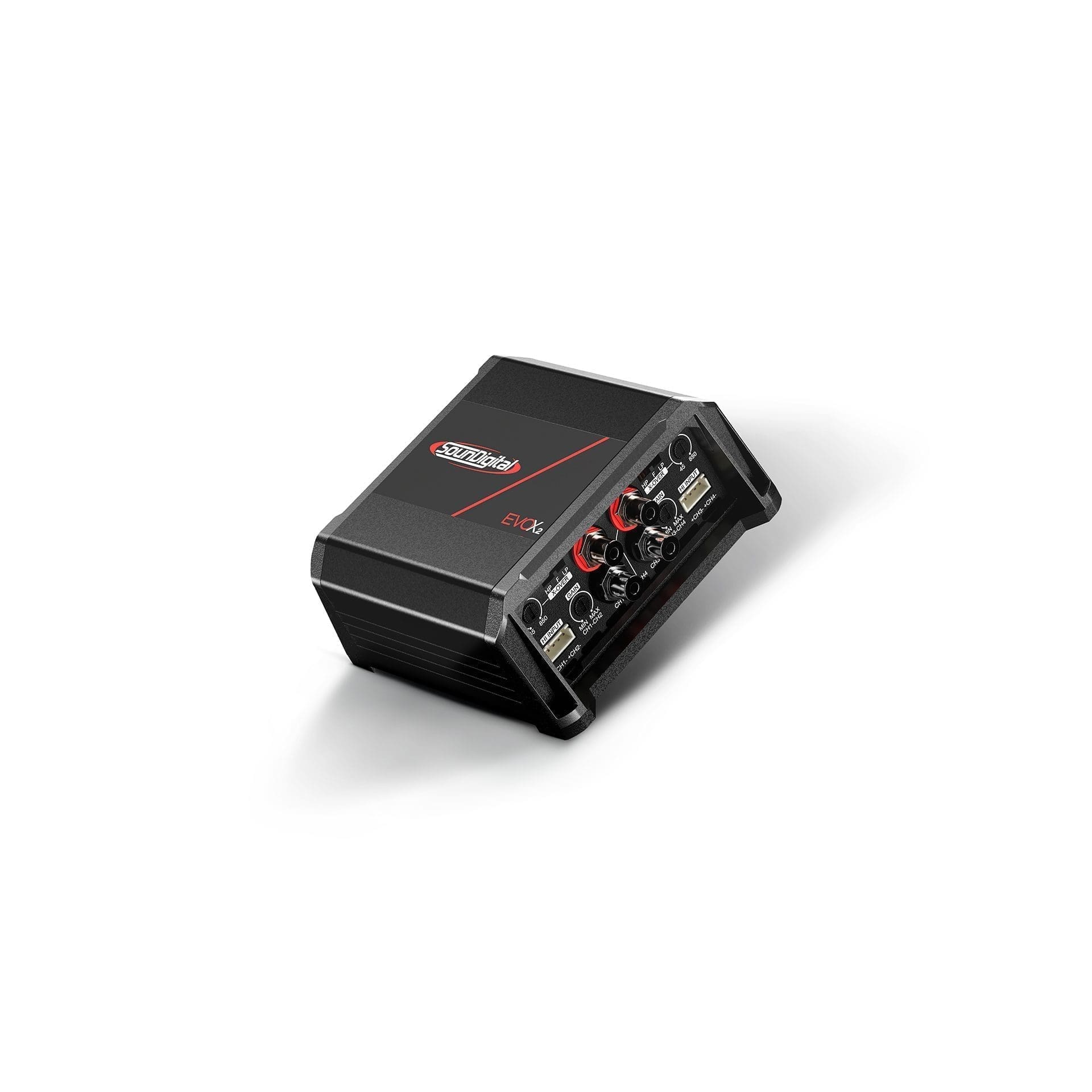

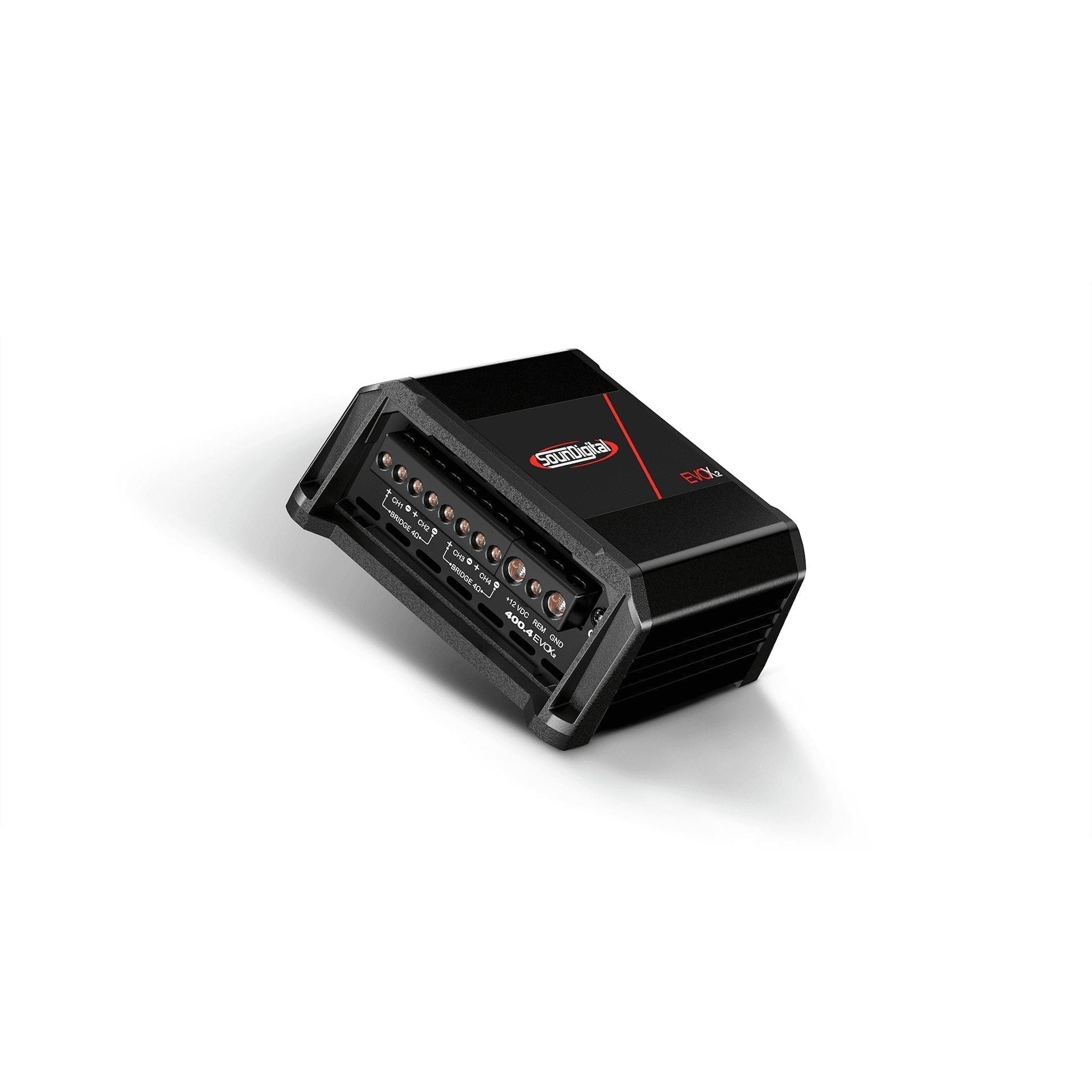

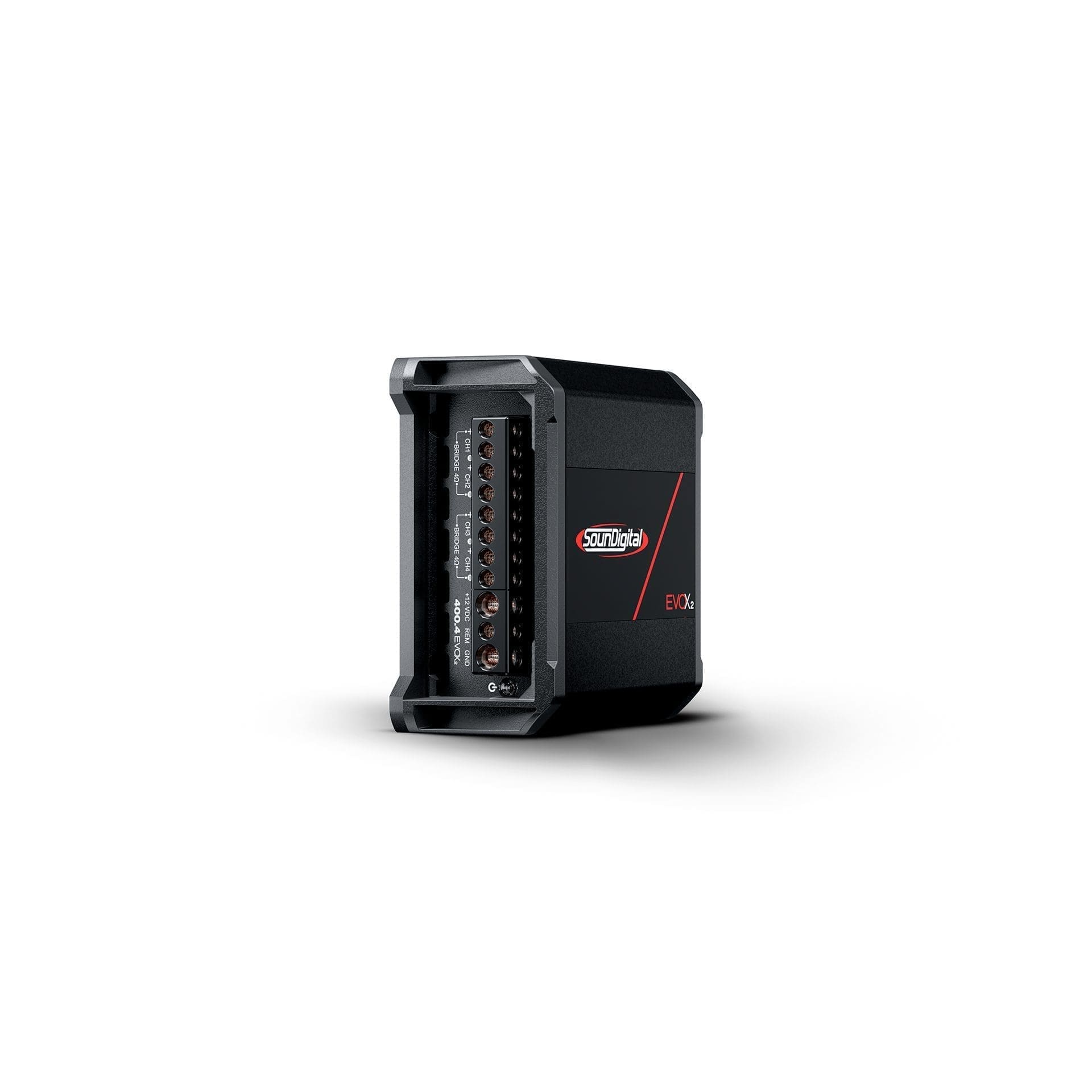

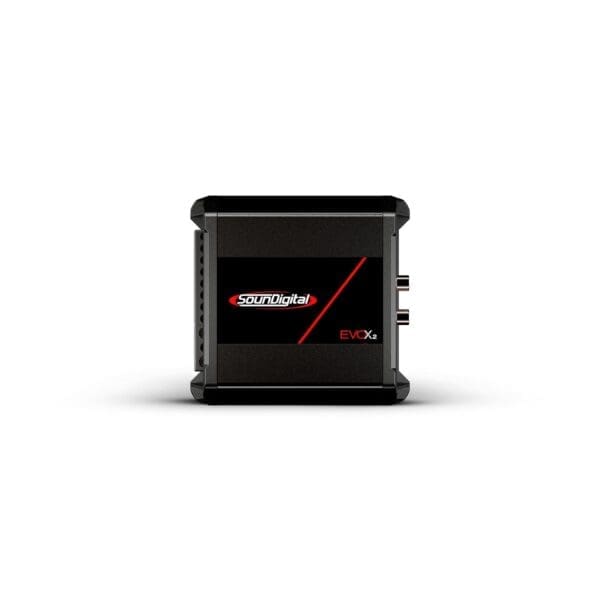

SounDigital 400.4 EVOX2 Amplifier
-
SounDigital 400.4 EVOX2 Amplifier
2 In Stock - Ships in 24-48 Hours
The 400.4 EVOX2 is a compact, modern amplifier that delivers 400W RMS of power distributed over 4 channels.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Specs
| 400.4 EVOX2 – 4 OHMS | Power @ 2Ω: 4 X 100 WRMS |
| Power @ 4Ω: 4 X 66 WRMS | |
| Power @ 8Ω: 4 X 44 WRMS | |
| Bridge Power @ 4Ω: 2 X 200 WRMS | |
| Bridge Power @ 8Ω: 2 X 132 WRMS | |
| Frequency Response (-3dB): | 5Hz ~ 22kHz |
| Low Pass Filter (12dB/Oct.): | 45Hz ~ 850Hz |
| High Pass Filter (12dB/Oct.): | 45Hz ~ 850Hz |
| Operating Voltage: | 8V ~ 16V |
| SNR: | 96dB |
| Input Sensitivity: | RCA: 0.18 ~ 2.09V |
| High Level: 1.2 ~ 15.13V | |
| Current Draw (Music): | 19A |
| Current Draw (Max.): | 35A |
| Total Efficiency: | 83% |
| Damping Factor: | 200 |
| Power Cable: | 8mm² (8 AWG) |
| Audio Output Cable: | 2 x 1.5mm² (15 AWG) |
| Recommended Fuse (Music): | 20A |
| Recommended Battery (Minimum): | 20Ah |
| Width: | 4.45 in |
| Length: | 4.79 in |
| Height: | 3.98 in |
