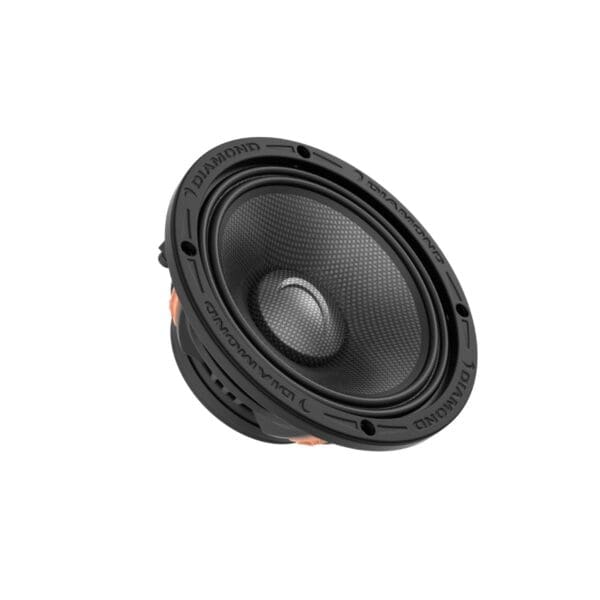

Diamond Audio 6.5″ Motorsport High Output Neo Midrange
-
Diamond Audio 6.5″ Motorsport High Output Neo Midrange
In Stock - Ships in 24-48 hours
Features:
• 300 W RMS/600W MAX Power Handling
• Sensitivity: 94dB 1W/M
• Frequency Response: 100Hz – 13kHz
• Nominal Impedance: 4 ohm
• Mounting Depth: 2.77” (70.5 mm)
• Cut-out Diameter: 5.78” (147 mm)
• Over-All Diameter: 6.65” (169 mm)
• Over-All Height: 3.14” (79.7 mm)
• Heavy Duty Industrial Cast Aluminum Basket
• Waterproof Black DUPONT™ Kevlar Cone
• Neodymium Magnet Motor Structure
• US manufactured 2” Black High Temperature Coated Voice Coil
Specs
| Speaker Size | 6.5” Neodymium MidRange |
| Nominal Impedance (ohms) | 4ohm |
| RMS Power Rating | 300 W RMS |
| Max Power Rating | 600W MAX |
| SPL (db) | 94 dB |
| Re (O)[series] | 3.2 |
| Qms | 9.892 |
| Qes | 0.629 |
| Qts | 0.592 |
| Fs-Free Air Resonance (Hz) | 120 |
| Vas (Liter) | 2.97 |
| Cms (mm/N) | 0.105 |
| Mms (g) | 16.4 |
| Sd (cm²) | 0.0141 |
| BL (T*M) | 8.209 |
| Xmax – Inch(mm) | 1.2 |
| Pwr (W) NOM/MAX | 300/600 |
| Cut-out Diameter | 5.78” (147 mm) |
| Over-All Diameter | 6.65” (169 mm) |
| Over-All Height | 3.14” (79.7 mm) |
| Total Diameter | 6.654” (169mm) |
