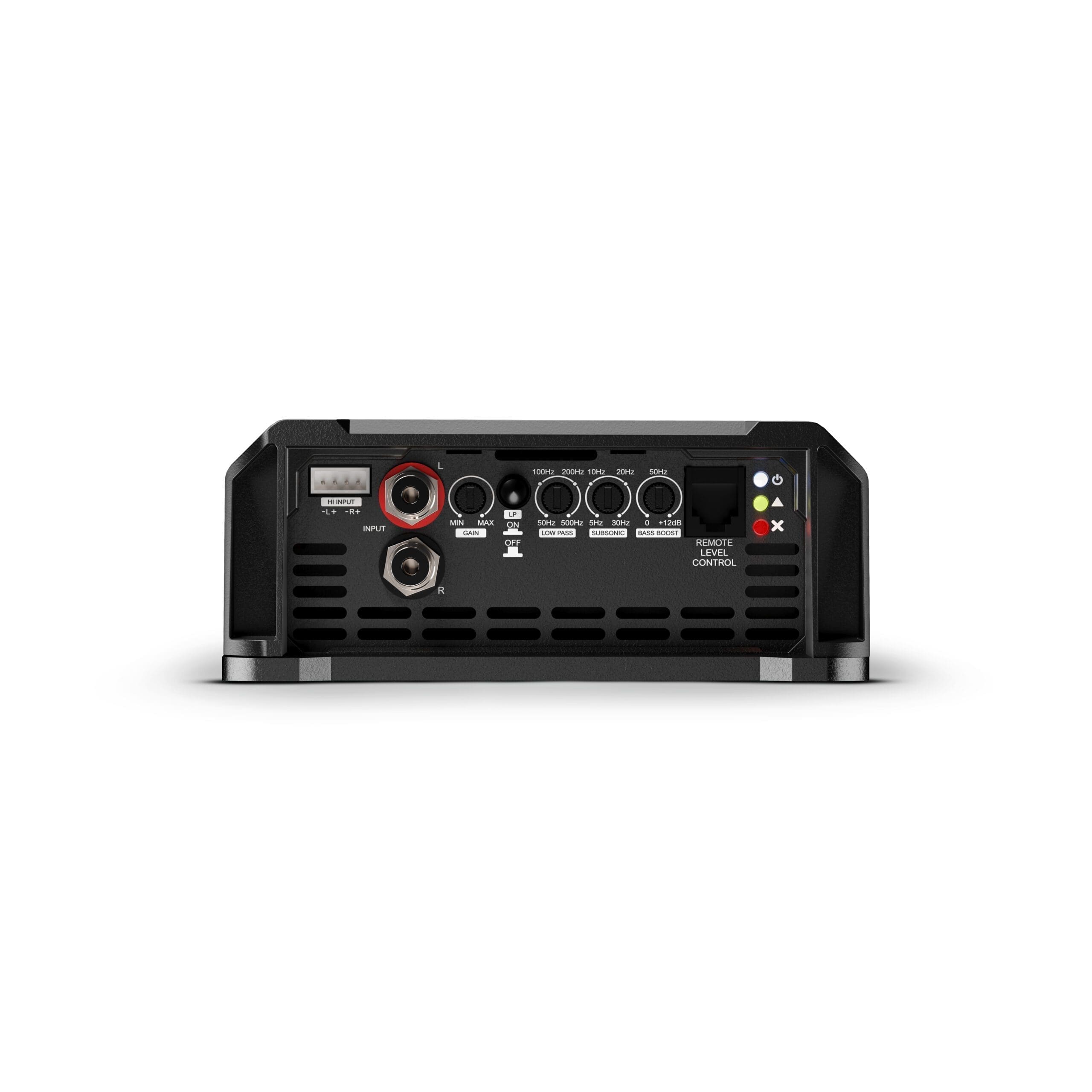

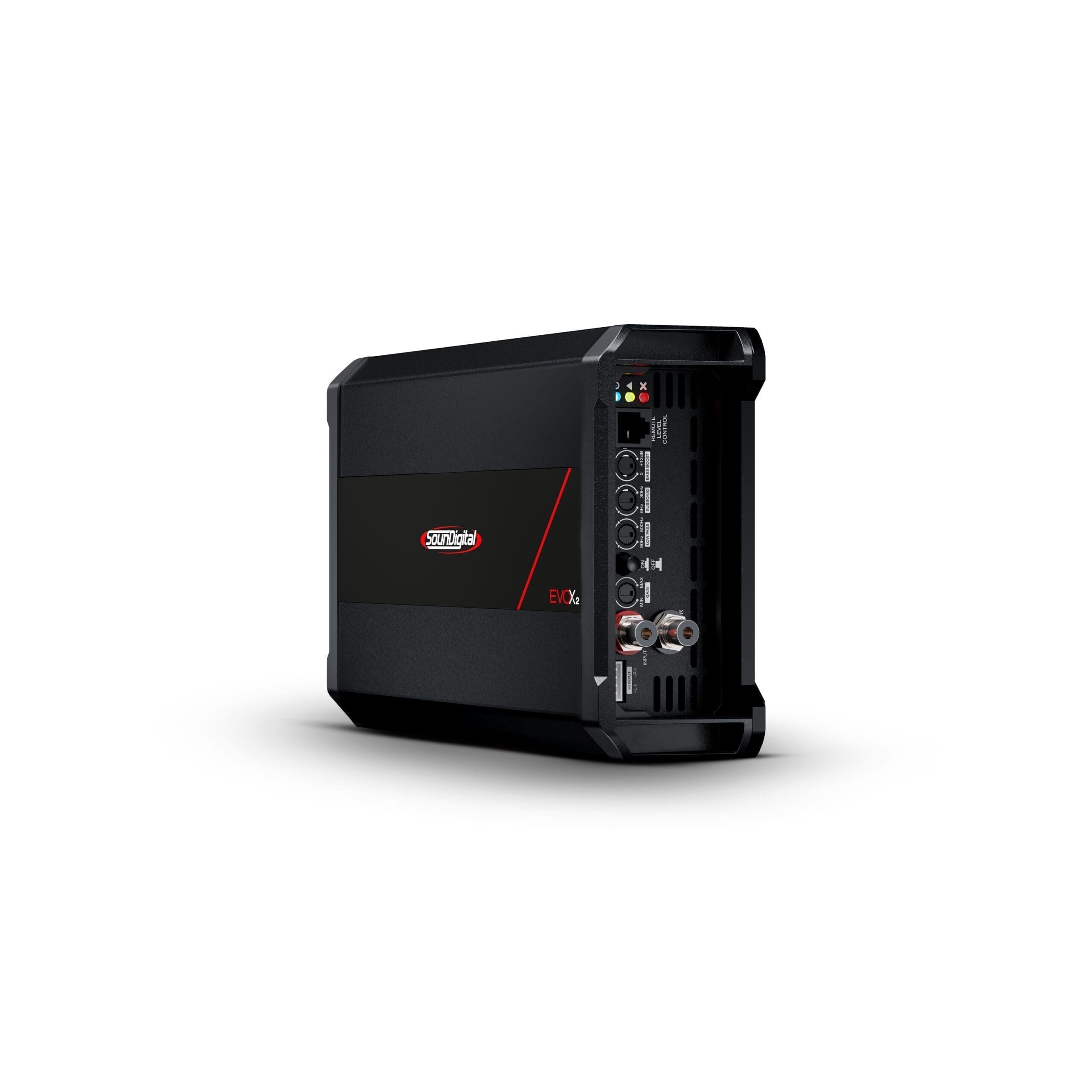

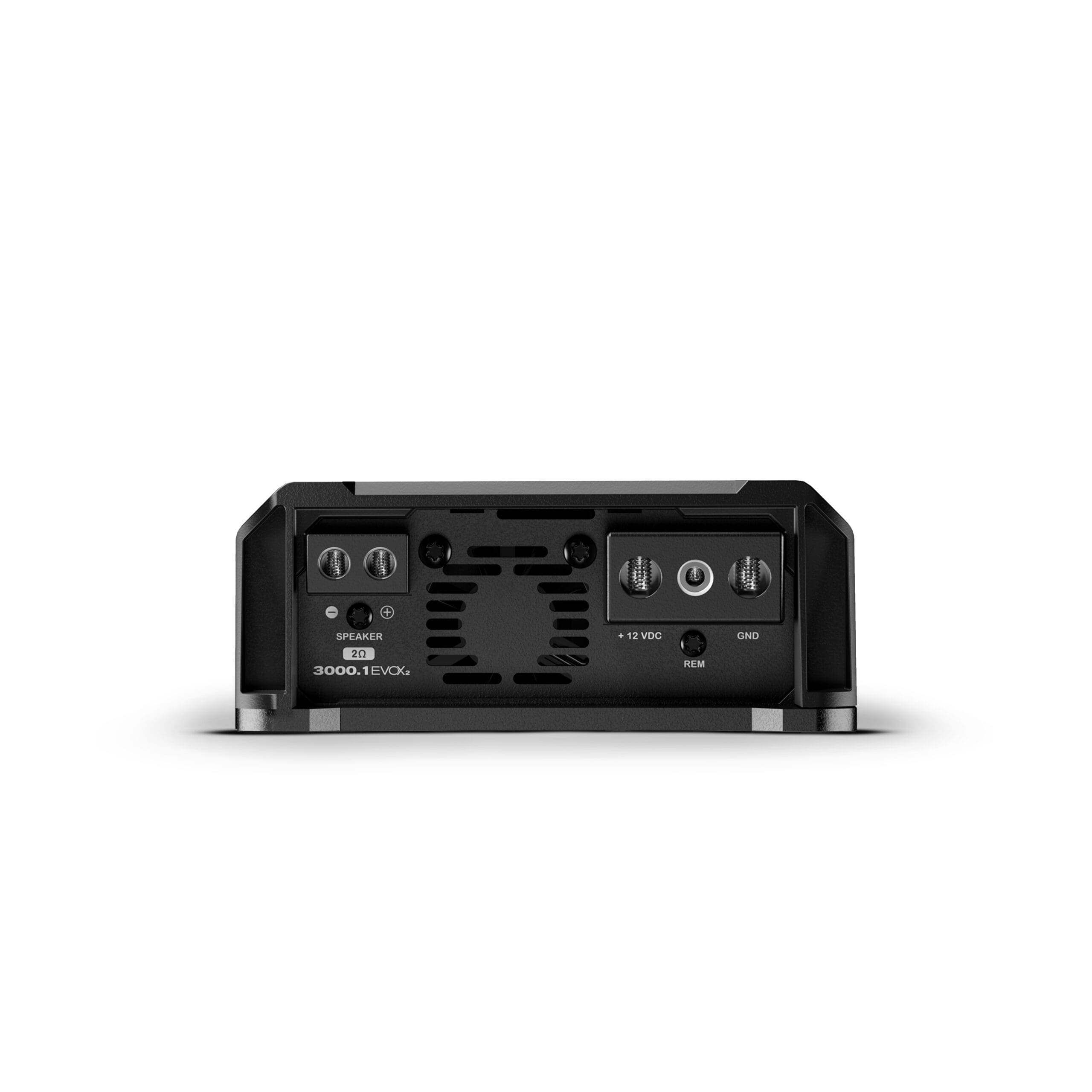

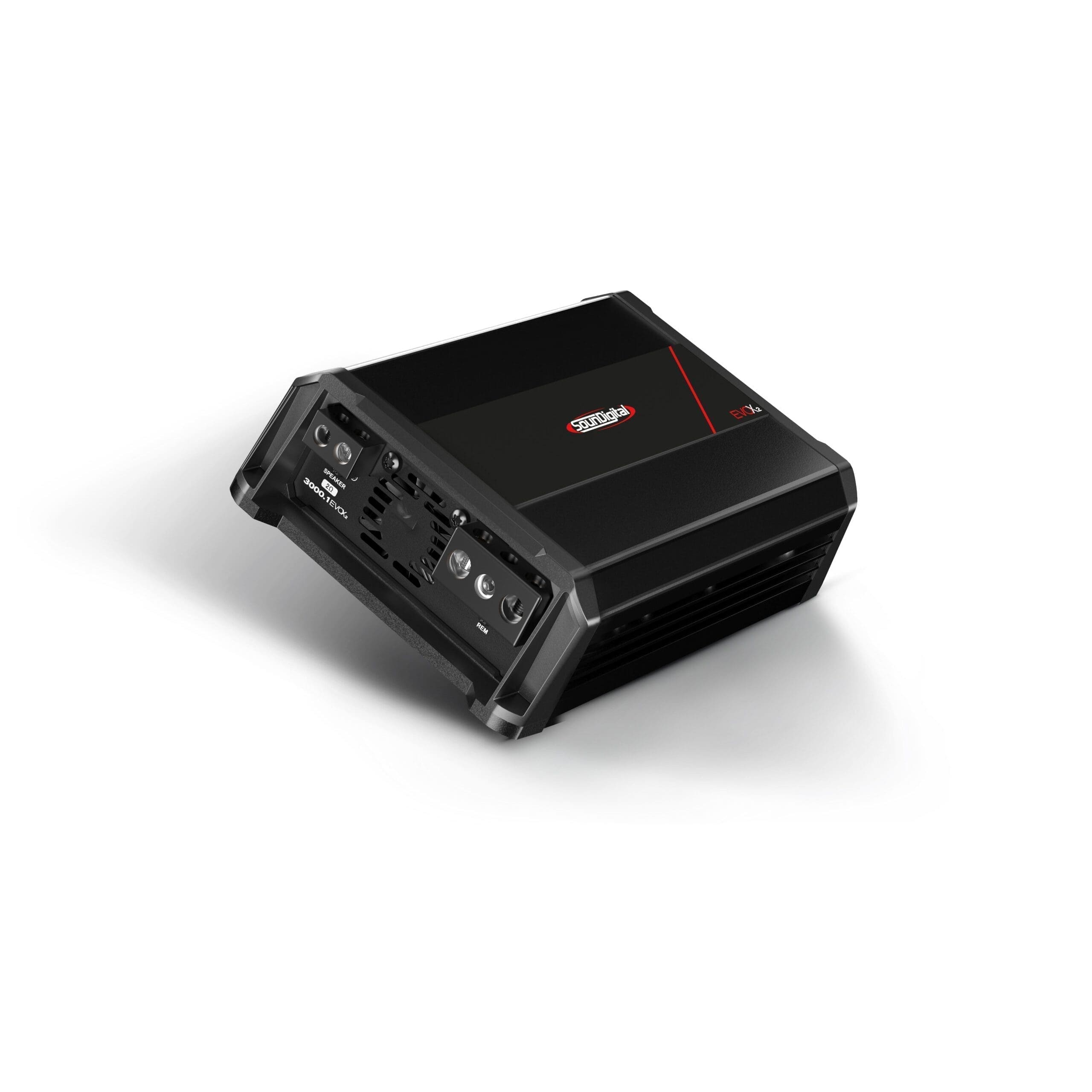

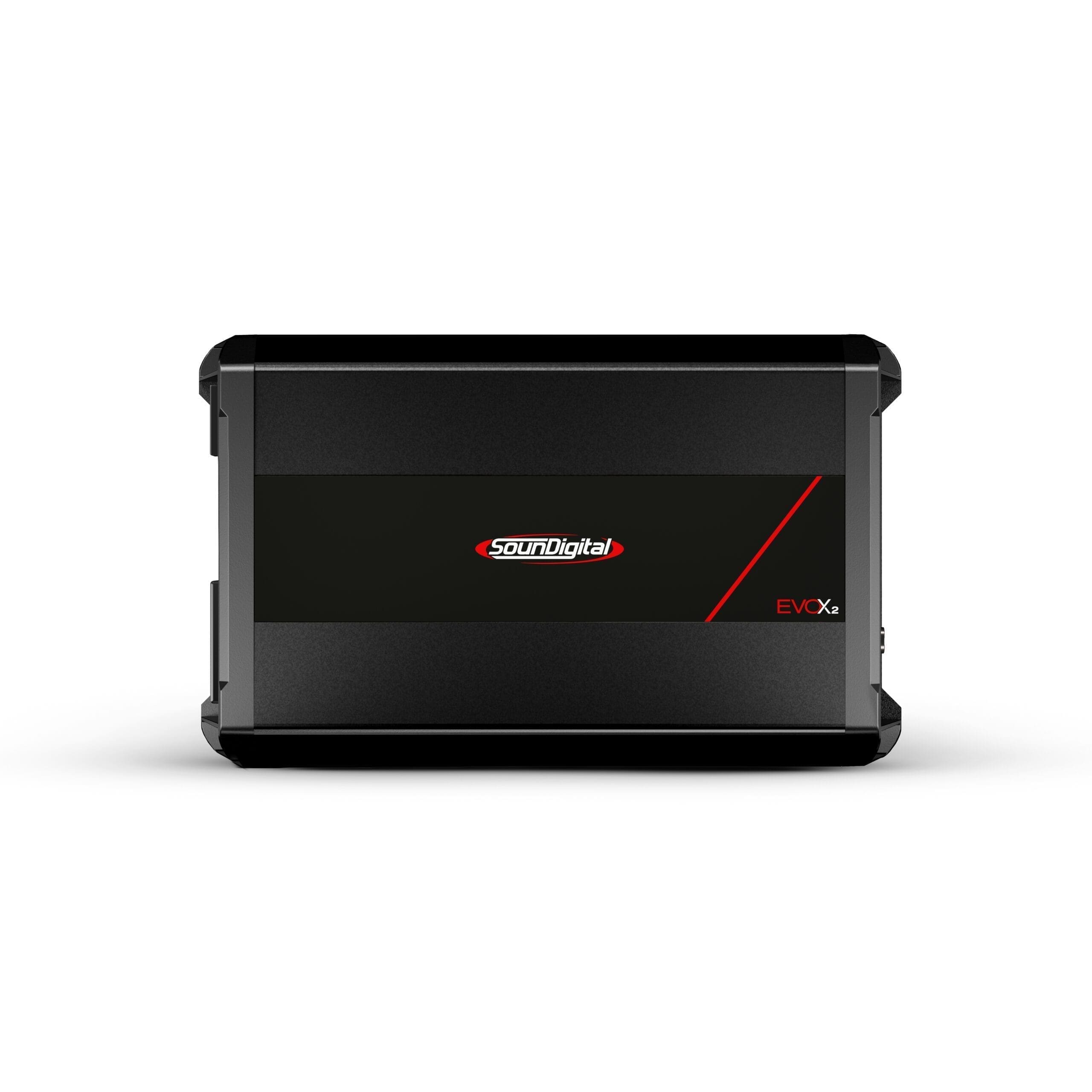

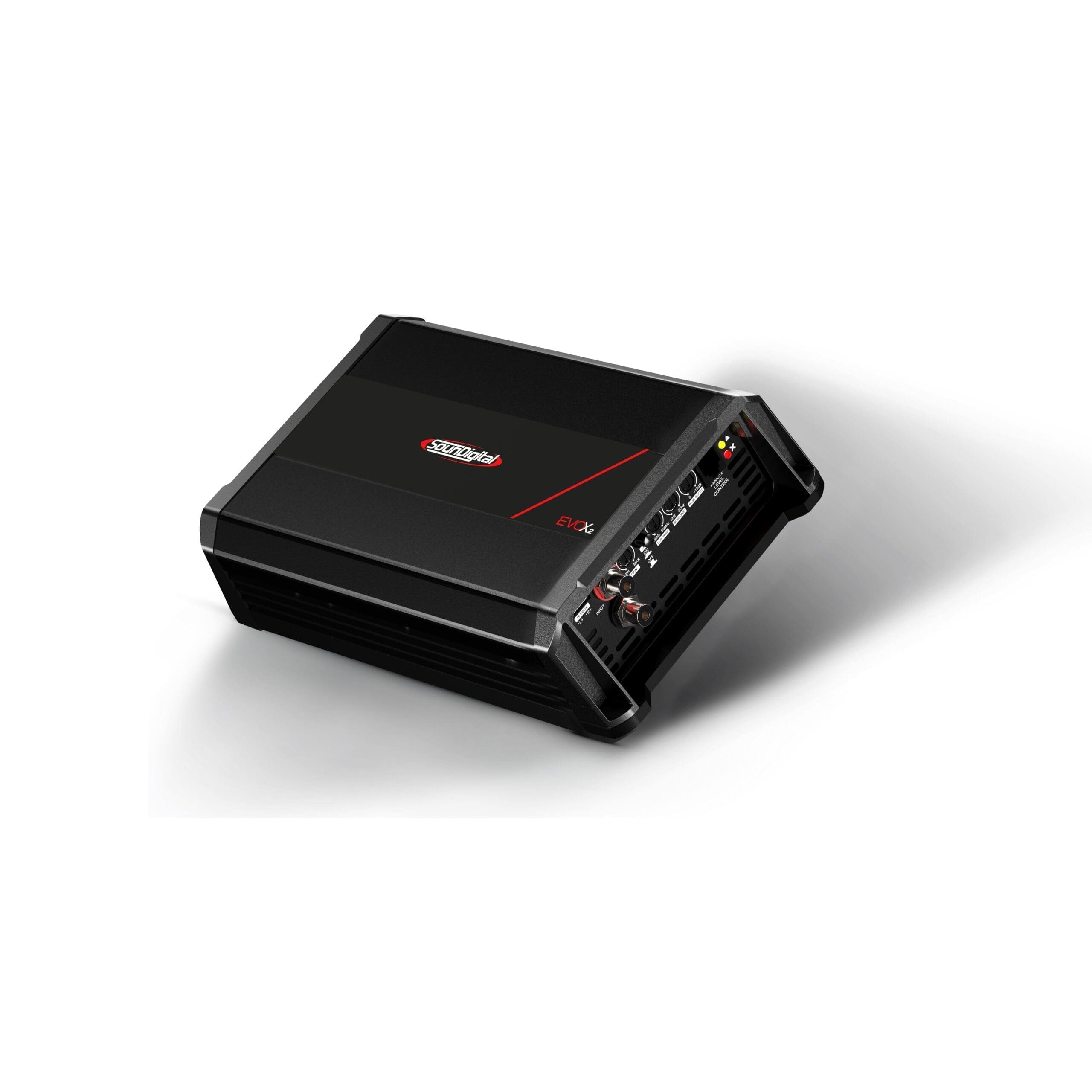

The 3000.1 EVOX2 is a compact, modern amplifier that delivers 3000W RMS of power over 1 channel.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Available in 1 Ohm, or 2 Ohms.
Specs
| 3000.1 EVOX2 – 1 OHM | Power @ 1Ω: 1 X 3000W RMS |
| Power @ 2Ω: 1 X 1980W RMS | |
| Power @ 4Ω: 1 X 1307W RMS | |
| 3000.1 EVOX2 – 2 OHMS | Power @ 1Ω: N/A |
| Power @ 2Ω: 1 X 3000W RMS | |
| Power @ 4Ω: 1 X 1980W RMS | |
| Frequency Response (-3dB): | 5Hz - 25kHz |
| Subsonic Filter (12dB/octave): | 5Hz ~ 40Hz |
| Low Pass Filter (12dB/octave): | 50Hz ~ 500Hz |
| Bass Boost: | 0dB ~ 12dB @ 50Hz |
| Operating Voltage: | 8V – 16V |
| Current Draw (Music): | 121A |
| Current Draw (Max): | 242A |
| Recommended Fuse (Music): | 150A |
| Recommended Battery (minimum): | 150Ah |
| Total Efficiency: | 86% |
| Damping Factor (@100Hz nominal impedance): | >3000 |
| Power Cable: | 35mm² / 2AWG |
| Speaker Cable: | 1Ω: 2 x 6mm² / 9 AWG |
| 2Ω: 2 x 4mm² / 11 AWG | |
| SNR: | 1Ω: 92dB |
| 2Ω: 90dB | |
| Input Sensitivity (RCA): | 0.2V ~ 2V |
| Input Sensitivity (High Level input): | 1.4V ~ 14V |
| Length: | 8.9 in / 22.8 cm |
| Width: | 5.3 in / 13.6 cm |
| Height: | 2.1 in / 5.5 cm |
Resources
$1,499.99
Login To View Price
